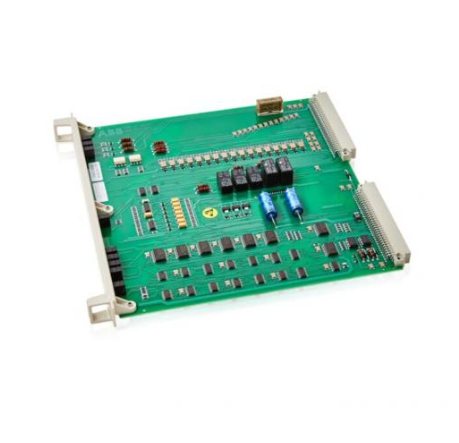

ABB XVC722AE101 3BHB002751R0101 High Performance Industrial Control Module

Core Overview

ABB XVC722AE101 3BHB002751R0101 is a high-performance dedicated control module launched by ABB Group for high-end industrial control scenarios. It belongs to the core I/O and control unit family of ABB Symphony Plus and Advant OCS control systems, and mainly undertakes core tasks such as signal centralized processing, precise logic operation, real-time control instruction output, and equipment collaborative scheduling in complex industrial processes. This module integrates high-precision analog signal processing technology and high-speed digital control technology. As the "execution center" of the control system, it can achieve precise acquisition and processing of multiple types of signals on site, and output reliable control signals according to preset control strategies to drive actuators to complete corresponding actions.

Compared to conventional industrial control modules, the XVC722AE101 module has been optimized and upgraded in terms of processing speed, signal processing accuracy, anti-interference ability, and system compatibility. It supports mixed processing of analog and digital signals and can seamlessly integrate into ABB's mainstream control system architecture. It is widely used in large-scale industrial equipment in industries such as power, petrochemicals, metallurgy, etc., such as steam turbine generator control, large-scale chemical reactor regulation, metallurgical rolling mill control system, etc., providing solid hardware support for high-precision and high reliability control of industrial processes.

Key characteristics

2.1 Compatible with multiple types of signals and comprehensive processing capabilities

The XVC722AE101 module adopts a mixed signal processing architecture, integrating multi-channel analog and digital processing units in a single module to achieve one-stop processing of various types of signals in industrial sites. Among them, the analog input channel supports 4-20mA current signal, 0-10V voltage signal, and RTD/thermocouple temperature signal acquisition. It is equipped with an 18 bit high-precision ADC converter, with a sampling rate of 1kHz and signal processing accuracy of ± 0.02% FS, which can accurately capture continuously changing process parameters such as temperature, pressure, and flow rate; The analog output channel supports configurable outputs of 4-20mA/0-10V, and the 16 bit DAC conversion accuracy ensures precise transmission of control instructions; There are a total of 16 digital I/O channels (8 in and 8 out), supporting dry/wet contact signal acquisition and switch output, with a response time of ≤ 1 μ s, meeting the requirements of fast control such as device start stop and status feedback.

2.2 High speed computing core, fast control response

The module is equipped with ABB customized 32-bit embedded microprocessor and field programmable gate array (FPGA). The microprocessor has a clock frequency of 500MHz, and the FPGA uses Altera industrial grade chips, forming an efficient architecture of "main core computing+FPGA parallel processing". The main core is responsible for executing complex control algorithms (such as PID, cascade control, feedforward control) and coordinating system scheduling, with a computation cycle as low as 1ms. The FPGA is specifically designed to handle high-speed signal acquisition, digital logic operations, and I/O signal timing control, achieving parallel execution of signal processing and control instruction output, greatly improving system response speed. For complex industrial scenarios with multivariable coupling, the module supports up to 32 independent PID control loop configurations, enabling collaborative adjustment and precise control of multiple parameters.

2.3 Industrial grade anti-interference and reliability design

In response to harsh conditions such as strong electromagnetic interference, voltage fluctuations, and drastic changes in temperature and humidity in industrial sites, the module has undergone comprehensive reliability enhancement:

-Electromagnetic compatibility enhancement: adopting multi-layer shielding PCB design, analog circuit and digital circuit partition layout, key signals using differential routing technology, in compliance with IEC 61000-4 series electromagnetic compatibility standards, ESD protection level up to ± 15kV air discharge, ± 8kV contact discharge, can effectively resist electromagnetic radiation and conducted interference generated by industrial motors, frequency converters, and high-voltage equipment.

-Comprehensive isolation protection: All input and output channels adopt photoelectric isolation or magnetic isolation technology, with an isolation voltage of ≥ 2500V AC. The power circuit and signal circuit are independently isolated to avoid external signal interference on the core circuit of the module, and to prevent module faults from affecting the front-end sensors and back-end actuators.

-Wide environmental adaptability: The working temperature range covers -25 ℃~70 ℃, and the relative humidity supports 5%~95% (without condensation). The module housing is made of high-strength metal material, which has good heat dissipation and dust prevention performance, and can adapt to extreme industrial environments such as desert oil fields, plateau power plants, metallurgical workshops, etc.

2.4 Deep compatibility with ABB systems, convenient and efficient integration

The module adopts ABB standard backplane bus interface and mechanical structure design, which can seamlessly adapt to Symphony Plus DCS, AC 800M controller and corresponding I/O rack. It realizes data exchange with the controller and other I/O modules (such as SPSED01 SOE module, DO810 digital output module) through the internal high-speed bus of the system, with a data transmission rate of 100Mbps. The module supports visual programming and parameter configuration through configuration software such as ABB Symphony Plus Engineering and Control Builder M. It has built-in rich industry application function blocks (such as turbine control function block and boiler regulation function block), without the need for additional driver development, greatly reducing the system integration cycle.

2.5 Comprehensive fault diagnosis and redundancy capability

The module has a built-in full link fault diagnosis mechanism, which can monitor the working status of core components, power stability, input and output signal integrity, and bus communication link quality in real time. When problems such as channel short circuit, signal disconnection, power supply abnormality, ADC/DAC conversion failure are detected, the fault status is immediately output through the module panel indicator light, and the fault information (including fault type, channel number, occurrence time) is uploaded to the controller and upper monitoring system through the communication bus, making it easy for operation and maintenance personnel to quickly locate the problem. At the same time, the module supports 1:1 hot redundancy configuration, and the main and backup modules achieve real-time data synchronization through dedicated redundant links, with a fault switching time of ≤ 10ms, ensuring uninterrupted control process and improving system reliability.

Core technical parameters

Module Type

High performance mixed signal industrial control module

Core processor

500MHz 32-bit embedded microprocessor+Altera industrial grade FPGA

Analog input (AI)

8 channels, supporting 4-20mA/0-10V/RTD/thermocouple, 18 bit ADC, sampling rate 1kHz

Analog Output (AO)

4-channel, 4-20mA/0-10V configurable, 16 bit DAC, output accuracy ± 0.05% FS

Digital I/O (DI/DO)

16 channels (8 inputs and 8 outputs), DI response time ≤ 1 μ s, DO drive capability 2A/channel

Control circuit capacity

Supports up to 32 independent PID control loops

Signal processing accuracy

Analog quantity ± 0.02% FS, digital quantity ± 1 bit

Isolation voltage

Input/output channel ≥ 2500V AC, power circuit ≥ 1500V AC

communication interface

ABB system backplane bus, 1 RS485 (supporting Modbus RTU)

Redundant configuration

Support 1:1 hot redundancy, switching time ≤ 10ms

power supply voltage

24V DC ± 15%, supports dual power redundant input, power consumption ≤ 20W

Operating Temperature

-25℃~70℃

relative humidity

5%~95%, no condensation

Protection level

IP20 (rack mounted)

certification standard

IEC 61131-2，UL 508，ATEX Zone 2，SIL 3

Typical application scenarios

4.1 Control of Steam Turbine Generator Sets in the Power Industry

In the digital electro-hydraulic control system (DEH) of steam turbine generator units in thermal power plants and nuclear power plants, the XVC722AE101 module serves as the core control unit, undertaking key tasks such as speed regulation, load control, and valve servo drive. The module collects parameters such as turbine speed (magnetic resistance sensor signal), shaft vibration, tile temperature, and main steam pressure/temperature through the AI channel. After internal PID calculation and logic judgment, it outputs control signals through the AO channel to drive the action of the electro-hydraulic servo valve, accurately adjusting the opening of high and medium pressure valves, and achieving stable control of turbine speed (control accuracy ± 1rpm) and power generation load. When faults such as excessive speed and vibration are detected, the module quickly executes interlocking logic and triggers emergency stop commands through the DO channel to ensure the safe operation of the unit.

4.2 Precise Control of Petrochemical Reactors

In the control system of large-scale chemical plants such as ethylene cracking furnaces and polyethylene reactors, modules can achieve collaborative control of multiple parameters in the reaction process. The temperature (thermocouple signal), pressure (pressure transmitter 4-20mA signal), liquid level (differential pressure transmitter signal), and feed flow signal inside the reaction kettle are collected through the AI channel. After being calculated by the internal cascade PID algorithm of the module, the opening of the feed valve, heating device power, and stirring motor speed are adjusted through the AO channel to ensure that the reaction parameters are stable within the process requirements. Its high-precision signal processing capability can maintain the temperature control accuracy of the reaction at ± 0.5 ℃, meeting the stringent requirements for parameter stability in chemical reactions; At the same time, the fault diagnosis function of the module can timely detect problems such as sensor disconnection and actuator jamming, avoiding production accidents caused by parameter loss of control.

4.3 Process Control of Steel Rolling Mill in Metallurgical Industry

In the control system of the rolling mill in the continuous rolling production line of the steel plant, the XVC722AE101 module is responsible for precise control of the rolling force, rolling speed, and steel plate thickness of the rolling mill. The module collects parameters such as roll pressure (pressure sensor signal), motor speed (encoder pulse signal), and steel plate thickness (laser thickness gauge signal) through the AI channel. After high-speed processing by FPGA and logical operation by microprocessor, the module outputs control signals to adjust the roll pressure and motor speed, achieving closed-loop control of steel plate thickness (control accuracy ± 0.01mm). The digital I/O channel is used to collect status signals of the rolling mill equipment (such as roll in place and normal hydraulic system pressure) and output device start stop and interlock protection commands, ensuring continuous and stable rolling process and improving steel product quality.

4.4 Urban heating network regulation system

In the intelligent regulation system of urban centralized heating network, the module can serve as the core control unit of regional heating stations, achieving precise adjustment of heating parameters and energy consumption optimization. By using AI channels to collect feedback signals on the supply/return water temperature, pressure, and user side room temperature of the heating network, and after internal fuzzy PID algorithm calculation in the module, the steam valve opening or circulating water pump speed of the heat station heat exchanger is adjusted through the AO channel to achieve dynamic adjustment of the heating amount, ensuring that the user side room temperature remains stable within the set range (± 1 ℃). At the same time, the module communicates with the monitoring terminal of the heating station through the RS485 interface, uploads operational data, and receives remote control instructions, supporting centralized management and energy consumption statistics of the heating system, improving heating efficiency and reducing energy waste.
