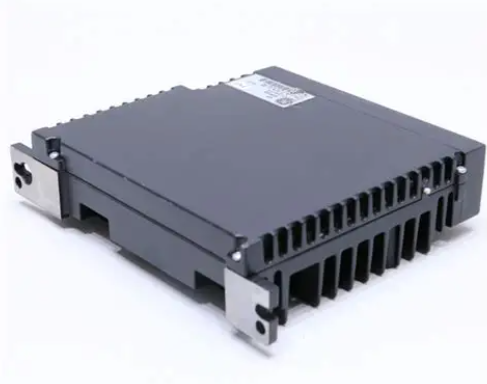

  • GE UCSC H1 IS420UCSCH1A-F-VO.1-A Controller Module
    ❤ Add to collection
  • GE UCSC H1 IS420UCSCH1A-F-VO.1-A Controller Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    GE UCSC H1 IS420UCSCH1A-F-VO.1-A (hereinafter referred to as "IS420UCSCH1A-F-VO.1-A module") is a high-performance controller module developed by General Electric (GE) specifically for high-end control scenarios in industrial automation. It belongs to the GE UCSC (Universal Control and Safety Controller) series of core components and is widely used in distributed control systems that require high-precision and high reliability control, such as mainstream control system architectures such as GE Mark VIe and Mark VIeS. As the "control core" of the system, this module undertakes key tasks such as logical operations, process control, safety interlocking, and equipment collaborative management. Through real-time analysis and decision output of on-site data, it achieves precise control of industrial production processes and is the core center for ensuring the stable, efficient, and safe operation of complex industrial systems.

    • ¥21845.00
      ¥23684.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:1.560KG
    • Quantity:
    • (Inventory: 99999)
Description

GE UCSC H1 IS420UCSCH1A-F-VO.1-A (hereinafter referred to as "IS420UCSCH1A-F-VO.1-A module") is a high-performance controller module developed by General Electric (GE) specifically for high-end control scenarios in industrial automation. It belongs to the GE UCSC (Universal Control and Safety Controller) series of core components and is widely used in distributed control systems that require high-precision and high reliability control, such as mainstream control system architectures such as GE Mark VIe and Mark VIeS. As the "control core" of the system, this module undertakes key tasks such as logical operations, process control, safety interlocking, and equipment collaborative management. Through real-time analysis and decision output of on-site data, it achieves precise control of industrial production processes and is the core center for ensuring the stable, efficient, and safe operation of complex industrial systems.




GE UCSC H1 IS420UCSCH1A-F-VO.1-A Controller Module

Basic overview of module

GE UCSC H1 IS420UCSCH1A-F-VO.1-A (hereinafter referred to as "IS420UCSCH1A-F-VO.1-A module") is a high-performance controller module developed by General Electric (GE) specifically for high-end control scenarios in industrial automation. It belongs to the GE UCSC (Universal Control and Safety Controller) series of core components and is widely used in distributed control systems that require high-precision and high reliability control, such as mainstream control system architectures such as GE Mark VIe and Mark VIeS. As the "control core" of the system, this module undertakes key tasks such as logical operations, process control, safety interlocking, and equipment collaborative management. Through real-time analysis and decision output of on-site data, it achieves precise control of industrial production processes and is the core center for ensuring the stable, efficient, and safe operation of complex industrial systems.

It adopts modular design and redundant architecture concept, strictly follows industrial safety standards such as IEC 61508, and has strong anti electromagnetic interference ability, wide range environmental adaptability, and fault self recovery ability. It can easily cope with complex and harsh on-site working conditions in fields such as power, metallurgy, aerospace, and high-end manufacturing. It is an indispensable key equipment in GE's high-end industrial control solutions.


Core functions and roles

2.1 High precision logical operations and process control

The IS420UCSCH1A-F-VO.1-A module is equipped with a high-performance multi-core industrial processor, which has powerful logical operation and data processing capabilities. It supports multiple international standard programming methods such as ladder diagram (LD), function block diagram (FBD), structured text (ST), etc., and can flexibly implement complex control logic. In the process control scenario, the module can accurately adjust key process parameters such as temperature, pressure, flow rate, and liquid level in industrial production based on advanced algorithms such as PID (proportional integral derivative), fuzzy control, and predictive control. The control accuracy can reach ± 0.1%, effectively ensuring the stability of the production process and the consistency of product quality. For example, in the control of chemical reaction vessels, the module can dynamically adjust the heating power and feed rate based on real-time collected reaction temperature and pressure data to ensure that the reaction process meets process requirements.

2.2 Safety Interlocking and Fault Protection

As a controller module with safety control capabilities, one of its core advantages is the comprehensive safety interlock function, which meets the requirements of SIL 3 (Safety Integrity Level). The module is equipped with an independent safety logic unit, which can monitor key safety parameters in industrial systems in real time (such as overheating, overpressure, abnormal equipment shutdown, etc.). When parameters exceed the safety threshold or equipment malfunctions are detected, the interlock protection mechanism can be triggered within milliseconds to quickly output control instructions such as emergency shutdown, energy cut-off, and starting backup equipment, minimizing safety risks and avoiding the expansion of accidents. For example, in the control of a generator set, if the module detects excessive rotor vibration, it will immediately issue a shutdown command and cut off fuel supply to prevent damage to the unit.

2.3 Multi device collaboration and data interaction

The module has rich communication interfaces and protocol compatibility, which can not only seamlessly connect with various sensors, actuators, transmitters and other devices on site to collect real-time operating data, but also efficiently interact with the upper computer monitoring system, other controller modules, data servers and other devices to build a distributed collaborative control network. It supports various mainstream industrial communication protocols such as GE proprietary SRTP protocol, EtherNet/IP, Modbus TCP/IP, Profibus DP, etc. It can achieve fast issuance of control instructions, real-time feedback of operating status, and synchronous uploading of historical data, ensuring information exchange and collaborative work of the entire control system. For example, in a steel rolling production line, this module can be linked with multiple regional controllers to coordinate the operating rhythm of equipment such as rolling mills, conveyor rollers, and straightening machines, thereby improving production efficiency.

2.4 Redundant Control and High Availability Guarantee

To address the risk of "single point of failure" in industrial control, the IS420UCSCH1A-F-VO.1-A module supports multiple redundant configurations, including controller redundancy, power redundancy, communication link redundancy, etc. In the dual controller redundant architecture, the main controller and the backup controller synchronize real-time operation data and configuration parameters. When the main controller experiences hardware failure or software abnormality, the backup controller can switch without disturbance within ≤ 10ms, take over control tasks, and ensure that the control process is not interrupted. At the same time, both the power interface and communication interface of the module support redundant design, further enhancing the reliability and availability of the system, and meeting the stringent requirements of continuous production industries (such as power and chemical) for "zero downtime" of equipment.

2.5 Online Diagnosis and Remote Maintenance

The module is equipped with comprehensive self diagnosis and online monitoring functions, which can monitor its hardware status in real time (such as processor temperature, power supply voltage, interface connection status), software operation status (such as program execution status, logic errors), and communication status of connected devices. When an abnormality is detected, the module will output detailed fault codes and diagnostic information through indicator lights and communication interfaces, and can be linked to the upper computer system to trigger an alarm. In addition, the module supports remote maintenance function, and operation and maintenance personnel can remotely access the module through GE's dedicated configuration software (such as ControlST) to achieve program download, parameter modification, troubleshooting and other operations, reducing on-site maintenance workload and lowering maintenance costs.


Key technical parameters

core processor

Dual core industrial grade processor with a clock speed of ≥ 1GHz

Ensure the efficiency of complex logical operations and multitasking parallel processing

Memory configuration

RAM:≥2GB; Flash:≥8GB

Meet the requirements of large capacity program storage and real-time data caching

communication interface

4 EtherNet/IP interfaces, 2 RS-485 interfaces, 1 USB debugging interface

Support multi link communication and local debugging to enhance connectivity flexibility

Supported Protocols

GE SRTP、EtherNet/IP、Modbus RTU/TCP、Profibus-DP

Compatible with mainstream industrial protocols, compatible with multiple brands of devices and systems

I/O expansion capability

Supports up to 32 extended I/O modules, digital I/O: ≤ 1024 points; Analog I/O: ≤ 128 points

Flexible expansion according to on-site needs, adaptable to different scale control scenarios

power input

24V DC ± 15%, supports dual power redundant input

Wide voltage range adapts to on-site power fluctuations, redundant design enhances power supply reliability

working environment

Temperature: -40 ℃~+75 ℃; Humidity: 5% to 95% (no condensation); Protection level: IP20

Adapt to extreme industrial environments and meet the installation requirements of indoor control cabinets

security level

SIL 3(IEC 61508); Compliant with UL 508 and CE certification

Meet high security requirements scenarios and comply with international industrial standards

Installation method

DIN rail installation (35mm standard rail)

Standardized installation for easy integration and on-site maintenance


Typical application scenarios

4.1 Power Industry - Control of Large Generator Sets

In the control system of large power generation units in thermal and nuclear power plants, the IS420UCSCH1A-F-VO.1-A module serves as the core controller, integrated into the GE Mark VIeS safety control system, responsible for core tasks such as start stop control, load regulation, speed stability, and fault protection of the power generation units. The module real-time collects key parameters such as vibration, temperature, speed, and oil pressure of the steam turbine and generator, and adjusts the speed control valve, excitation system, and other actuators through precise PID algorithm to ensure stable operation of the unit under different loads. When faults such as overheating of the bearing and demagnetization of the generator are detected, the module immediately triggers the safety interlock to quickly cut off the relevant systems, ensuring the safety of the generator set and avoiding major equipment damage.

4.2 Aerospace - Ground Test Stand Control

In ground test benches for aircraft engines and spacecraft components, there are extremely high requirements for control accuracy and data reliability. The IS420UCSCH1A-F-VO.1-A module, with its high-precision control capability and stable performance, has become the core of the test bench control system. The module is responsible for controlling the power system, hydraulic system, environmental simulation system, etc. of the test bench, accurately adjusting parameters such as pressure, flow rate, temperature, etc. during the test process, and simulating the operating environment of aerospace equipment under different working conditions. At the same time, the module collects real-time test data and synchronously uploads it to the data acquisition system, providing reliable basis for equipment performance analysis and optimization. Its redundant design ensures that the test process is not interrupted, improving test efficiency and safety.

4.3 Chemical Industry - Continuous Chemical Process Control

In the continuous production processes of large chemical enterprises, such as ethylene cracking and polyester synthesis, the IS420UCSCH1A-F-VO.1-A module is responsible for multivariable coordinated control tasks. The module connects various sensors and actuators of equipment such as reaction vessels, distillation towers, and heat exchangers. Through complex cascade control and feedforward control logic, key process parameters such as reaction temperature, pressure, and material ratio are stabilized to avoid product quality degradation or safety risks caused by parameter fluctuations. For example, in the process of ethylene cracking, the module can adjust the heating temperature and feed rate of the cracking furnace in advance according to the change of raw material composition to ensure stable yield of cracking products. At the same time, its safety interlock function can quickly trigger emergency shutdown in case of overpressure, leakage, etc., to ensure production safety.

4.4 High end Manufacturing - Intelligent Manufacturing Production Line Control

In the intelligent manufacturing production lines of high-end manufacturing industries such as automobiles and electronics, the IS420UCSCH1A-F-VO.1-A module serves as the "control brain" of the production line, achieving collaborative control of automation equipment such as robots, conveying equipment, and processing machines. The module communicates in real-time with various devices through the EtherNet/IP protocol, issuing action commands and receiving feedback on operating status, coordinating the operating rhythm of each device, and achieving automatic grabbing, processing, detection, and transportation of workpieces. At the same time, the module uploads the operational data of the production line (such as production capacity, equipment failure rate, product qualification rate) to MES (Manufacturing Execution System), providing data support for production scheduling and optimization, and improving the automation level and production efficiency of the production line.


Installation and maintenance precautions

5.1 Installation specifications

-The module should be installed in a closed industrial control cabinet to avoid direct exposure to dust, moisture, and corrosive gas environments; The control cabinet should have good ventilation and heat dissipation capabilities. If the ambient temperature is high, a cooling fan or air conditioner should be installed to ensure that the operating temperature of the module does not exceed 75 ℃.

-The installation location should be far away from strong electromagnetic interference sources such as high-power frequency converters and welding machines, and the distance between the module and such equipment should not be less than 1.5 meters; If close range installation cannot be avoided, the communication and power lines of the module need to be shielded, and the shielding layer should be grounded at one end.

-When installing with a 35mm standard DIN rail, it is necessary to ensure that the rail is level and firmly fixed, and at least 10cm of heat dissipation space should be reserved at both ends of the module for other devices; When wiring, it is necessary to strictly follow the module terminal definition. The positive and negative poles of the power supply must not be reversed. Communication lines should distinguish between signal lines and power lines to avoid cross interference.

-When configuring redundancy, the installation positions of the primary and backup controllers should be relatively independent to avoid affecting two devices due to a single fault point; The main and backup communication lines need to be wired with different paths to improve the reliability of redundant links.

5.2 Maintenance points

-Daily maintenance requires regular checks on the operation status of the module. The CPU load, memory usage, communication status, and other parameters of the module are monitored through the control cabinet indicator lights (power lights, operation lights, fault lights) and configuration software. If a fault alarm occurs, the cause of the fault should be promptly queried and handled through diagnostic logs.

-Regularly clean the dust on the surface of the control cabinet and modules, and keep the heat dissipation vents unobstructed; Check the wiring terminals of the module once a quarter to ensure that the wiring is secure and not loose, especially the power and communication terminals, to avoid faults caused by poor contact.

-The program and configuration parameters of the module need to be backed up regularly, and it is recommended to back them up once a week. The backup files should be stored on a separate server; Before making program modifications or parameter adjustments, it is necessary to backup the current configuration to avoid system failures caused by operational errors.

-Avoid plugging or unplugging communication cables or expanding modules during module operation. If module replacement is required, cut off the module power first and wait for the capacitor to discharge (about 30 seconds) before proceeding with the operation; The replaced module needs to reload configuration parameters and undergo functional testing to ensure normal operation.

-Conduct a comprehensive performance test on the module once a year, including indicators such as logic operation accuracy, communication delay, redundant switching time, etc., to ensure that the module performance meets the on-site control requirements.
