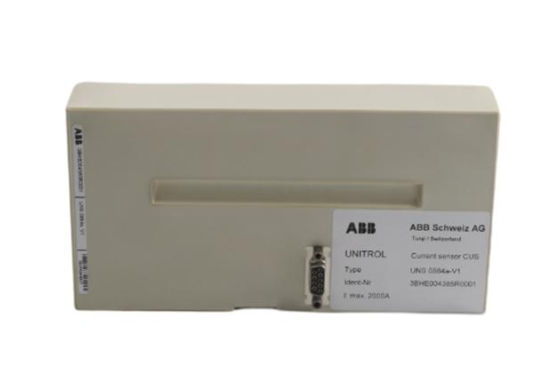

  • ABB UNS0884a-v1 3BHE004385R0001 current sensor
    ❤ Add to collection
  • ABB UNS0884a-v1 3BHE004385R0001 current sensor

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    ABB UNS0884a-v1 (model name: 3BHE004385R0001) is a high-precision and high reliability current sensor independently developed by ABB Group. It is mainly used in industrial automation control systems to achieve real-time monitoring, signal conversion, and transmission of operating currents of various electrical equipment. This sensor, with ABB's profound technical accumulation in the field of power electronics, has excellent environmental adaptability and stable measurement performance. It is widely suitable for complex industrial scenarios such as power generation, metallurgy, chemical industry, and rail transit, providing core data support for the safe operation, fault diagnosis, and energy efficiency management of equipment.

    • ¥8247.00
      ¥8895.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:2.580KG
    • Quantity:
    • (Inventory: 99999)
Description

ABB UNS0884a-v1 (model name: 3BHE004385R0001) is a high-precision and high reliability current sensor independently developed by ABB Group. It is mainly used in industrial automation control systems to achieve real-time monitoring, signal conversion, and transmission of operating currents of various electrical equipment. This sensor, with ABB's profound technical accumulation in the field of power electronics, has excellent environmental adaptability and stable measurement performance. It is widely suitable for complex industrial scenarios such as power generation, metallurgy, chemical industry, and rail transit, providing core data support for the safe operation, fault diagnosis, and energy efficiency management of equipment.


ABB UNS0884a-v1 3BHE004385R0001 current sensor

Product Overview

ABB UNS0884a-v1 (model name: 3BHE004385R0001) is a high-precision and high reliability current sensor independently developed by ABB Group. It is mainly used in industrial automation control systems to achieve real-time monitoring, signal conversion, and transmission of operating currents of various electrical equipment. This sensor, with ABB's profound technical accumulation in the field of power electronics, has excellent environmental adaptability and stable measurement performance. It is widely suitable for complex industrial scenarios such as power generation, metallurgy, chemical industry, and rail transit, providing core data support for the safe operation, fault diagnosis, and energy efficiency management of equipment.


Core technical parameters

measurement range

AC 0-500A (regular), supports custom expansion

Covering common low and medium current scenarios in industry, the range can be adjusted according to demand

accuracy class

Level 0.2 (within full range)

Small measurement error, high data reliability, meeting the requirements of precision control

output signal

4-20mA analog signal/0-5V DC signal

Standardized output, can be directly connected to mainstream control systems such as PLC and DCS

power supply voltage

DC 24V ± 10% (wide voltage adaptation)

Adapt to voltage fluctuations in industrial sites and improve operational stability

response time

≤10ms

Quickly capture changes in current and provide timely feedback on equipment operation status

Operating Temperature

-20℃ ~ +65℃

Suitable for high and low temperature industrial environments, stable operation under non condensing conditions

insulation class

IEC 61010-1 Double Insulation

Ensure the safety of personnel and equipment, in compliance with international safety standards

Installation method

DIN rail installation/bolt fixation

Flexible adaptation to different installation scenarios, convenient for on-site deployment and maintenance


Core performance advantages

1. High precision and high stability coexist

Adopting ABB's patented magnetic balance measurement principle, combined with high-precision signal conditioning chips, effectively suppresses the influence of factors such as temperature drift and electromagnetic interference on measurement results. Within a wide temperature range of -20 ℃ to+65 ℃, the accuracy can still maintain 0.2 level, ensuring the consistency of data output during long-term operation and providing reliable basis for the precise execution of system control strategies.

2. Strong anti-interference ability

The product integrates multiple electromagnetic shielding structures internally and has passed EMC (electromagnetic compatibility) testing certification, which can resist common high-frequency interference, pulse interference, and common mode interference in industrial sites. Even when working around strong interference devices such as frequency converters and high-power motors, the stability of the output signal can be ensured, avoiding measurement errors or system malfunctions caused by interference.

3. High reliability and long service life

Industrial grade high weather resistant components are selected, and after strict environmental stress screening and aging testing, the average time between failures (MTBF) exceeds 100000 hours. At the same time, the product has overcurrent protection, overvoltage protection, and short circuit protection functions. When the measured current exceeds the range or abnormal occurs, the core circuit can be automatically cut off to avoid sensor damage and extend the service life of the equipment.

4. Convenient installation and maintenance

Adopting standardized DIN rail installation design, the installation process is simple and efficient, and can be fixed without the need for professional tools. The wiring terminal adopts an anti misoperation structure, and clear identification facilitates on-site personnel to quickly identify the wiring port. The product supports online calibration function, and precision calibration can be completed through dedicated calibration instruments without disassembly, reducing maintenance costs and downtime.


Applicable scenarios

-Power generation industry: used in scenarios such as thermal power generation, hydropower generation, and photovoltaic power generation to monitor the operating current of generators, transformers, and transmission lines, providing data support for unit load regulation and equipment fault warning.

-Industrial manufacturing: adapted to metallurgical, chemical, textile and other production lines, monitoring the working current of power equipment such as motors, water pumps, fans, etc., to achieve load monitoring, energy-saving optimization and equipment health management.

-Rail transit: applied to subway, light rail and other rail transit systems, monitoring the current changes of traction inverters and traction motors to ensure the stable operation of the train power system.

-Building Electrical: Used for power distribution systems in large shopping malls, office buildings, and other buildings, monitoring the current parameters of distribution cabinets and circuit breakers to improve the safe operation level of the power distribution system.

Installation and usage precautions

1. Before installation, it is necessary to confirm that the sensor model matches the measured current parameters to avoid equipment damage caused by exceeding the range.

2. The installation location should be away from strong magnetic fields, high temperature heat sources, and corrosive gases to ensure that the environmental conditions meet the product's working requirements.

3. When wiring, it is necessary to strictly distinguish between the power supply terminal, signal output terminal, and measured current input terminal to avoid reverse polarity or short circuit of the positive and negative poles.

Before powering on the system, check if the wiring is secure and confirm that there are no errors before proceeding with the power on operation to prevent faults caused by loose wiring.

5. Regularly inspect the appearance of the sensor, clean the surface dust, and if any abnormalities are found, stop the machine for maintenance in a timely manner to avoid the expansion of the fault.
