System Overview and Basic Principles

The AC500 series PLC system has a high degree of modularity, supporting the expansion of digital, analog, hybrid modules, and multiple bus interface modules. Before building the system, it is necessary to confirm that all component devices meet the rated values and safety requirements, and are operated by qualified professionals. During the wiring and installation process, it is necessary to focus on interference suppression, wiring specifications, and grounding system design, which are the foundation for ensuring the stable operation of the system.

1.1 Interference Sources and Handling Measures

In industrial sites, interference mainly comes from the following aspects:

Strong electrical interference: PLC signals belong to the weak electrical category and are susceptible to strong electrical interference. When wiring, it should be ensured that communication lines, signal lines, and strong current cables are kept at least 20cm away. Weak current cables in cable trenches should be laid below strong current cables.

Interference inside the cabinet: PLC should not be installed in the same cabinet as high-voltage electrical appliances and should be kept away from power lines (spacing>200mm). Inductive loads inside the cabinet (such as relays and contactor coils) need to be connected in parallel with RC arc suppression circuits.

Signal line interference: including differential mode interference and common mode interference. Shielded twisted pair cables, RC filters, dual integration A/D converters, optoelectronic isolators, single point grounding, and other methods can be used to suppress it.

Inverter interference: It can be addressed by installing isolation transformers, filters, output reactors, and using shielded armored cables (armored layer grounded).

1.2 Cable selection and wiring specifications

Switching signal: Generally, ordinary cables are used, and shielded cables are recommended for long-distance transmission.

Analog and high-speed signals: Shielded cables must be used.

Communication cable: It is recommended to use manufacturer specific cables, and high-quality shielded twisted pair cables can be selected when requirements are not high.

Wiring spacing: The distance between weak current signal lines and strong current cables should not be less than 20cm, and the distance between high voltage and high current cables and signal cables should be greater than 60cm.

1.3 Grounding System Design

Grounding is a key link in suppressing interference and ensuring safety, mainly including:

Safe grounding (power grounding): Connect the grounding terminal of the power cord to the cabinet to prevent electrical leakage hazards.

System grounding (main grounding): PLC and controlled equipment are grounded together, with a grounding resistance of ≤ 4 Ω. It is recommended to use independent grounding to avoid common grounding with power equipment.

Signal and shielding grounding:

The analog signal line needs to be grounded, while the switch signal can be left ungrounded.

The shielding layer should be grounded at a single point (both ends can be grounded in high-frequency situations).

Each node GND for non isolated 485 communication must be grounded, while isolated communication can be grounded at a single point.

Grounding inspection: Interference can be determined by measuring the AC voltage difference between the signal line and ground using a multimeter.

1.4 Differences between Source and Drain Wiring

PNP (source type) sensor: Output high level, current flows from the sensor to the load. Connect the PLC input COM terminal to the negative terminal of the power supply.

NPN (leakage type) sensor: Output low level, current flows from the load to the sensor. Connect the PLC input COM terminal to the positive pole of the power supply.

PLC output module: source type output COM connected to positive pole, drain type output COM connected to negative pole.

Correctly distinguishing and wiring is a prerequisite for avoiding I/O misoperation.

1.5 Wiring System for Analog Signal

Two wire system: The power supply and signal share two wires, suitable for passive sensors.

Three wire system: Short circuit the power supply negative line and the signal negative line, which is actually a variant of the four wire system.

Four wire system: The power supply and signal are completely independent, suitable for active sensors.

Thermistor wiring: Two wire system without compensation, three wire system can eliminate the influence of lead resistance, and four wire system completely eliminates lead resistance, with the highest accuracy.

Detailed explanation of wiring for digital I/O modules

2.1 Switching input module

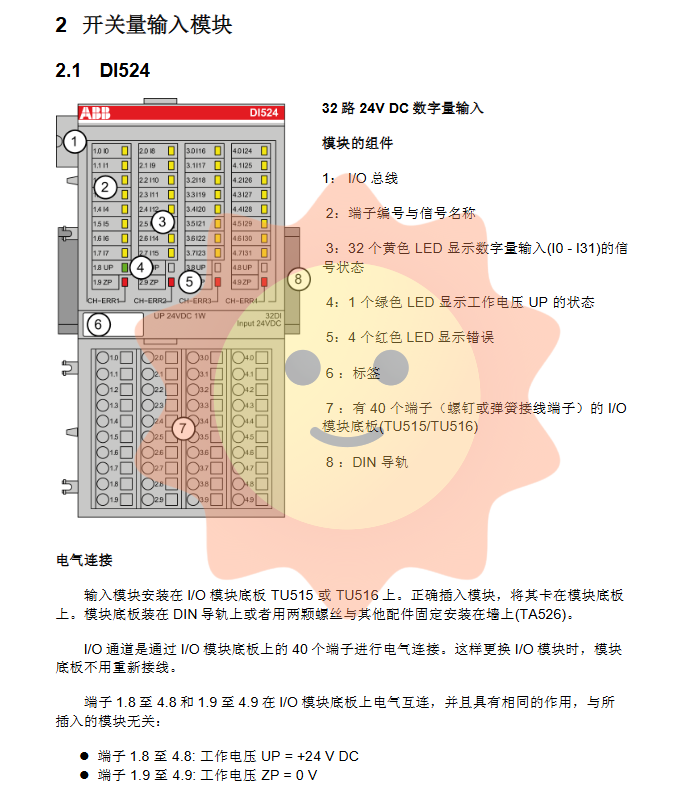

Taking DI524 (32 channel 24VDC input) as an example:

The module is connected through the TU515/TU516 motherboard terminals, with terminals 1.8-4.8 being UP (+24VDC) and 1.9-4.9 being ZP (0V).

The input can be connected as source or drain type, and attention should be paid to the polarity matching of the common terminal (COM) when wiring.

The module structures of DI561, DI562, DI571, etc. are similar, all supporting source/drain input and obtaining internal power through the I/O bus.

2.2 Switching output module

Taking DO561 (8-channel transistor output) as an example:

The output needs to be connected to an external power supply to the UP+and ZP terminals.

Output without short circuit protection, external 3A fast melting fuse is required.

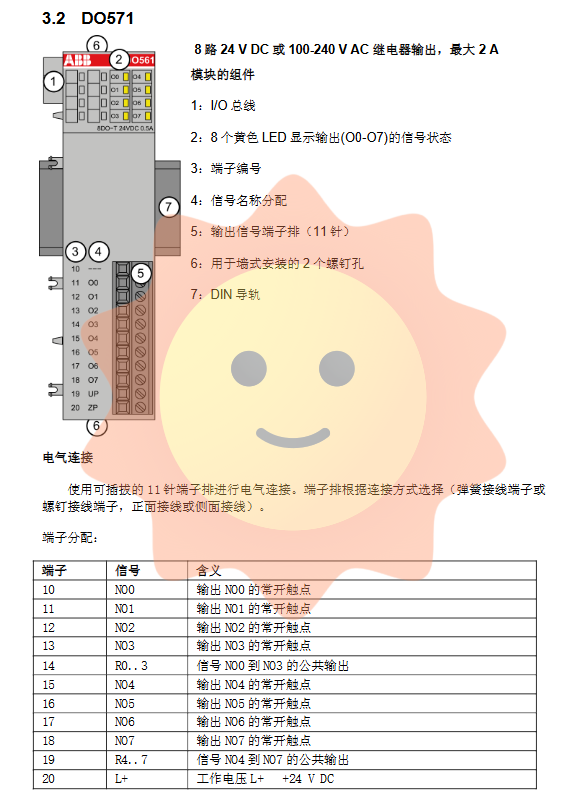

DO571 is a relay output that supports 24VDC/240VAC loads, and the output contacts require external 5A fuse protection.

DO572 is a thyristor output suitable for AC loads.

2.3 Switch input/output hybrid module

Such as DC522 (16 channel configurable), DX561 (8-in 8-out transistor), DX571 (8-in 8-out relay), etc.:

Some channels can be configured as inputs or outputs through software.

When wiring, it is necessary to distinguish between the input common terminal and the output power polarity.

The relay output module can mix DC and AC loads, but it is necessary to ensure synchronous power supply.

Analog I/O module wiring details

3.1 Analog input module

AI523: 16 channel 12 bit resolution, supports voltage/current/thermistor/thermocouple input. When measuring thermal resistance, the module provides a common constant current source.

AI531: 8-channel 15 bit resolution, supports multiple sensor types and differential input measurements, suitable for high-precision applications.

AI561/AI562/AI563: They are 4-channel universal analog input, 2-channel thermistor input, and 4-channel thermocouple input, all of which require shielded cables and single point grounding.

3.2 Analog output module

AO523: 16 channel 12 bit output, supports voltage/current mode.

AO561:2 channel 11-12 bit output, voltage and current output terminals are independent, attention should be paid to mode settings and external power supply voltage (≥ 10V).

3.3 Analog Input Output Hybrid Module

AX521/AX522: Provides 4 inputs and 4 outputs, 8 inputs and 8 outputs respectively, with a resolution of 12 bits, suitable for closed-loop control systems.

AX561:4 inlet and outlet structure, suitable for small process control applications.

Special function module wiring

4.1 Hybrid module DA501

Integrated with 16 DI channels, 8 configurable DI/O channels, 4 AI channels, and 2 AO channels, it has strong integration and is suitable for compact control cabinets.

4.2 Position Module CD522

Integrated encoder interface, PWM output, and digital I/O, supporting differential RS422, TTL, totem pole, and SSI encoder access.

4.3 Bus interface module

Including CS31, PROFIBUS, PROFINET, EtherCAT, CANopen and other bus modules, such as CI501-PNIO, CI541-DP, CI581-CN, etc. Attention should be paid when wiring:

Enable the bus terminal resistor (end node).

Single point grounding of shielding layer.

Use recommended bus cables and connectors.

4.4 CPU Integrated I/O

PM554 and PM564 CPUs come with digital and analog I/O. When wiring, attention should be paid to:

Power type (24VDC or 100-240VAC).

The transistor output requires external fuse protection.

The relay output can be connected to DC or AC loads, but it must not exceed the contact capacity.

Communication module and serial interface

CM572-DP: PROFIBUS DP master station module requires shielded twisted pair cables with terminal resistors at the end.

CM574-RS: Dual serial port module, supporting RS232/RS485/RS422.

CM577-ETH: Ethernet module with dual port switch.

CM579 series: Supports EtherCAT and PROFINET IO.

CPU serial port: COM1 is usually used for programming or Modbus communication, while COM2 is an optional expansion port. When using non isolated RS485 communication, it is recommended that the distance within the same building should not exceed 30m, and isolators should be used for long-distance or cross building communication.

Summary and Precautions for System Wiring

Safety first: All wiring operations must be carried out in a power-off state.

Interference prevention: Reasonable wiring, correct grounding, and the use of shielded cables are the core of anti-interference.

Module compatibility: Some modules (such as DX571, AO561) cannot be used for FBP remote expansion.

Power stability: If the power supply voltage of the analog module is lower than 10V, it may cause abnormal output.

Diagnosis and maintenance: Unused analog channels should be set to "unused" to avoid false alarms.
