Introduction

In modern industrial automation and process control systems, reliable and timely status monitoring and abnormal alarm are key links to ensure safe and stable operation. The SACO16D1 alarm display, as one of the core components of the SPACOM substation secondary equipment integration system, represents an advanced alarm and monitoring solution based on microprocessor technology. This device integrates 16 channel on-site contact monitoring, programmable logic control, event sequence recording, and serial communication functions, and is suitable for various high reliability requirements such as power plants, substations, industrial processes, ships, offshore platforms, and building technology facilities. This article is based on the official technical manual "SACO16D1-EN_S", comprehensively analyzing its design principles, functional characteristics, installation and configuration, programming methods, and maintenance points, aiming to provide in-depth and practical technical references for engineering design, system integration, and operation and maintenance personnel.

1、 Product Overview and Core Architecture

SACO16D1 is a highly integrated and fully functional compact alarm display, designed based on the modular Euro card (100 mm x 160 mm) standard, ensuring system scalability and maintenance convenience. The whole machine is mainly composed of three core modules:

Power module (SPGU 240A1 or SPGU 48B2): Provides a wide range of auxiliary power supply (80-265 V AC/DC or 18-80 V DC), and is equipped with an independent 48 V DC on-site contact voltage source, achieving complete electrical isolation between the on-site circuit and the internal electronic circuit.

Input/Output Module (SWIM 2A1): Supports all external wiring terminals, including four auxiliary output relays.

The alarm display main module (SWPM 3A1) includes a microprocessor, memory, display interface, and control logic, and is the core for implementing all intelligent functions.

The device adopts an embedded panel installation method, and the shell is made of extruded aluminum alloy profiles, matched with rubber gaskets, with a protection level of up to IP 54. The front panel is equipped with a transparent polycarbonate cover plate, embedded with 16 channels of ultra-high brightness LED indicator lights, a four digit display, and function buttons. All wiring terminals are located on the back of the chassis and support up to 2.5 mm ² wire connections without the need for a wiring nose.

2、 Core functions and working principles

2.1 Alarm Channel Handling

Each alarm channel can be independently programmed and supports seven types of input signals:

Type 0-1: Conventional normally open (NO) or normally closed (NC) contact signal with return function.

Type 2-4: Triggered only by rising edge, falling edge, or rising/falling edge, specifically designed for event recording (such as circuit breaker trip signal).

Type 5-7: Pulse counting function, capable of counting the opening, closing, or both of the contacts, with a counting capacity of 0-29999 and a maximum frequency of 3 Hz.

Channel processing includes programmable input delay (0.005 s to 160 s) and reset delay, effectively filtering out signal jitter and ensuring alarm accuracy. When the signal state changes continuously beyond the input delay time, the channel is activated, triggering the preset visual and auditory alarm sequence.

2.2 Visual and auditory alarm indication

Visual indication: Each channel is equipped with an independent LED. The system provides five standardized programmable alarm sequences (such as ISA A, ISA M-1, DIN 19235, etc.), defining the behavior logic of confirming, resetting, and returning to normal for sound and light alarms.

Auditory alarm: A dedicated relay (output 4) controls external audio equipment (speakers, buzzers, etc.). The sound system can be 'silenced', while the visual part of the alarm still needs to be 'acknowledged' and 'reset'.

First alarm indication: The letter "A" will be displayed on the four digit display before the first triggered alarm channel number, making it easy to quickly locate the initial fault point.

2.3 Event recording function

The device is equipped with two-level event registers:

Local event register: stores the latest 9 events, which can be queried one by one through the front panel buttons.

Serial communication event register: stores 50 latest events with timestamps, with a time resolution of 5 ms. The time is synchronized by the higher-level SPA bus master station (usually once per second), supporting accurate analysis of disturbance processes.

2.4 Auxiliary output and group alarm flashing signal

The device provides four auxiliary output relays:

Relays 1&2: User configurable group alarm flashing output. Each alarm channel generates two flashing signals, A and B, which can be freely grouped into these two relays to form a flexible group alarm function.

Relay 3: Internal self-monitoring system output, activated when an internal fault is detected.

Relay 4: Audio equipment control output.

The flashing signal mode can be selected through programming, for example:

FCFR: On site contacts follow flashing lights.

AACR: Confirm action control flash.

ISR: Pulse shaping flash (fixed 300ms pulse).

2.5 Channel Interlocking Function

Each alarm channel is equipped with three interlocking inputs (types 1-3) and one interlocking output (type 0), achieving complex logical interlocking through eight internal interlocking lines:

Type 1: Only block the Class A flashing signal of this channel.

Type 2/3: Block the entire passage. The difference is that after the interlock is released, the channels return as "confirmed alarm" or "new alarm" respectively.

Type 0: Output interlocking signal when channel is activated, which can trigger interlocking input of other channels.

This feature allows the construction of up to eight levels of interlocking logic, suitable for complex alarm scenarios with priority or mutual exclusion relationships.

2.6 Comprehensive self-monitoring system

The equipment has a complete self-monitoring function and continuously monitors:

Internal logic voltage (5 V, ± 12 V).

48V DC on-site contact voltage.

Microprocessor program execution (watchdog).

Serial communication link status.

Once a fault is detected, the 'FAULT' LED lights up and the self-monitoring relay (normally charged) loses power and releases. Fault information (such as parameter memory errors, on-site contact voltage undervoltage, etc.) can be displayed on the screen and transmitted through the SPA bus. The system also has a "pumping" monitoring function, which can set the maximum number of alarms allowed per minute to prevent event register blockage caused by contact jitter.

3、 Installation, wiring, and startup

3.1 Mechanical Installation

The device is designed for embedded installation and secured with two mounting brackets. To accommodate different panel thicknesses, a lifting frame (SPA-ZX 101/102/103) of 40mm, 80mm, or 120mm can be selected. During installation, ensure that the panel opening size is accurate and tighten the fixing screws to ensure IP 54 protection level.

3.2 Electrical Wiring

All wiring terminals are located on the back of the chassis:

Auxiliary power supply (terminals 20-24): Note that the voltage range should match the selected power module. If dual power supply is used, the two power sources must be electrically isolated (such as using isolation transformers).

Protective grounding (terminal 22): must be reliably connected.

On site contact input (terminals 49-72): Connect passive dry contacts.

External confirmation/reset (terminals 16-18): Remote buttons can be connected.

Flash output relay (terminals 5-12).

Serial interface (terminals 1-3, 13-14): using RS-485 standard, supporting SPA bus protocol.

Important reminder: Before wiring, be sure to confirm the power supply voltage specifications; Ensure that the protective grounding is firm; If dual power sources are used, their networks must be electrically isolated.

3.3 Power on and Operation Testing

After power on, all active alarm channels will display as "confirmed" status. The device provides convenient operation testing:

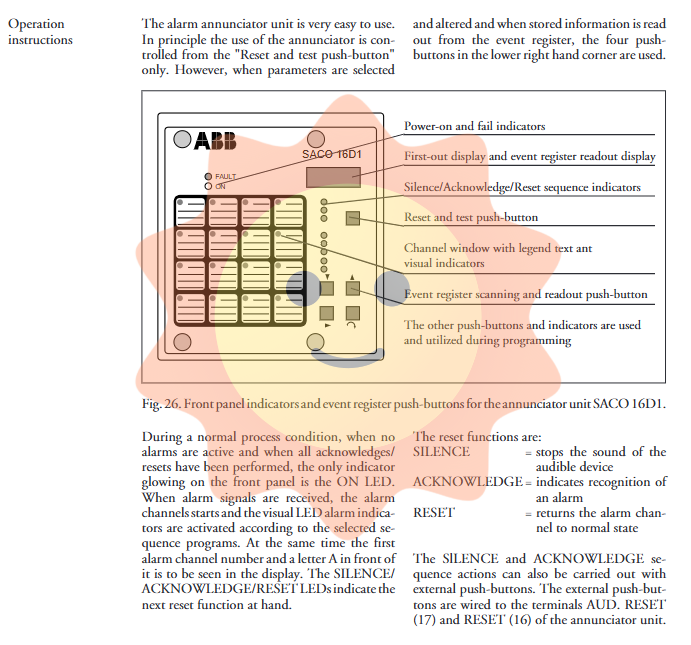

Long press the "Confirm/Reset/Test" button on the front panel for about 1 second: all LEDs (except for FAULT) light up, and the display shows "8888" for visual testing.

Long press for more than 15 seconds: triggers self-monitoring relay action, FAULT LED lights up.

The on-site contact circuit and external audio equipment need to undergo separate functional testing.

3.4 Nameplate Labels

The equipment comes with drawing film for making channel nameplates. Users can use a stylus or typewriter to fill in channel description text in a 20mm x 20mm square, and then insert the film into the slot on the left side of the front panel. Note that the starting position of the text should be slightly to the left to avoid blocking the channel LED indicator light.

4、 Programming and Parameter Configuration

The core advantage of SACO16D1 lies in its high on-site programmability. All parameters are stored in non-volatile EEPROM and can be set through the five buttons on the front panel or via a serial interface (using PC software such as SMS 010). The selector plug (S1/S2 position) on the front panel PCB can be used to prohibit unauthorized programming.

4.1 Programming buttons and interface

Channel selection key (∩): Cycle through channels 1-16.

Parameter selection key (↓): Switch between five parameter groups (INPUT, GROUP, OUTPUT, INTERLOCK, MODULE).

Cursor control key (→): Move the cursor (flashing position) between the numbers on the four digit display.

Data value selection key (↑): Change the value of the current cursor position.

Enter command key (Reset): Store the currently displayed parameter values in memory.

4.2 Main parameter configuration steps

Channel related parameters (INPUT group):

S1: Input delay, S2: Reset delay.

S3: On site contact type (0-7, as mentioned earlier).

S4: Channel designation indication (0=standard sequence; 1=standard sequence+return time sound; 2=only touch point following indication without sound).

S11: Jitter monitoring (00=disabled; 01-99=allowed number of events per minute).

Group alarm configuration (GROUP group):

Assign connections to Group 1 or Group 2 (S5, S6) for the A/B flashing signals of each channel.

Output relay mode (OUTPUT group):

Select the working mode (FCFR, AACR, ISR, etc.) for group alarm flashing relays 1 and 2 respectively.

Interlock configuration (INTERLOCK group):

Configure up to two interlocking functions for each channel, specifying the type (0-3) and the corresponding interlocking line (1-8). You can refer to the interlocking diagram in the manual for planning.

Module related parameters (MODULE group):

SPA bus slave address (01-99, no need to set when there is no bus connection).

Alarm sequence type selection (0=ISA A... 4=DIN 19235).

Serial communication port settings:

Communication speed selection (300-9600 bps).

Synchronization mode selection: When multiple displays are interconnected and there is no higher-level system, one needs to be designated as a synchronization pulse transmitter (V201=1) and the rest as receivers (V201=0) to achieve flash sequence synchronization.

Attention: If there is no button operation within one minute, the device will automatically exit programming mode. Entering programming mode will erase the local 9 event register (but does not affect the serial communication of the 50 event register).

5、 Serial Communication and System Integration

The device is equipped with an RS-485 standard serial interface, supports SPA bus protocol, and has a default speed of 9600 bps. Through this interface, it is possible to achieve:

Information reading: event register (with timestamp), channel status, parameter value, pulse count value.

Command writing: time synchronization, audio reset, alarm channel confirmation/reset, output relay control, interlock control, parameter setting, equipment testing.

System connection: It can be connected to the SPACOM system through electrical connections (distance of 20-30 m) or fiber optic modules (SPA-ZC 17/21, plastic fiber optic about 30 m, glass fiber optic up to 2 km). In environments with strong interference, such as substations, it is strongly recommended to use fiber optic communication. Through the LON/SPA gateway (SPA-ZC 100), it is also possible to access the LON bus network.

6、 Technical data and maintenance

6.1 Main Technical Specifications

Auxiliary power supply: 80-265 V AC/DC or 18-80 V DC.

Power consumption: 10 W (minimum)/15 W (maximum).

On site contact voltage: 48 V DC (supplied by the equipment).

Insulation withstand voltage: 2 kV AC, 1 minute for each port to the casing and between each other.

Working temperature: -10 to+55 ° C.

Storage temperature: -40 to+70 ° C.

Protection level: IP 54 (after panel installation).

Weight: Approximately 3.1 kg.

6.2 Maintenance and Repair

Under the specified environmental conditions, the equipment is basically maintenance free. If the environment is harsh, it is recommended to conduct a visual inspection in conjunction with a secondary test, paying attention to mechanical damage, signs of oxidation, and dust accumulation.

When a malfunction occurs, it is recommended to have an authorized repair station handle it. Usually, faults can be resolved by replacing plug-in modules. Key tip: When replacing the alarm main module (SWPM 3A1), the parameter memory (D17) on the old module can be unplugged and inserted into the new module, so that the new module immediately inherits the original configuration without the need for reprogramming. When operating electronic circuits, it is necessary to take electrostatic discharge (ESD) protection measures.
