KONGSBERG RCU 500 Remote Controller

Chapter 1 Introduction: The Core Hub of Maritime and Industrial Automation

In the fields of modern industrial automation and ocean engineering, the stability, real-time performance, and reliability of process control systems are key factors determining the success or failure of projects. As one of the core products of Konigsberg Maritime, a global maritime technology leader, the RCU500 (Remote Controller Unit 500) remote control unit has become an indispensable "nerve center" in complex control systems due to its excellent design concept and powerful hardware performance.

RCU500 is not just a simple controller, it is a real-time single board computer tailored specifically for process control purposes. Its original design intention is to meet the most demanding industrial environment and offshore operation requirements, and it is widely used in key fields such as power positioning systems, ship control systems, process control systems, and safety systems. This article will provide a detailed technical breakdown and in-depth analysis of RCU500 from multiple dimensions, including hardware architecture, interface communication, redundancy design, environmental adaptability, and industry standards.

Chapter 2 Core Computing Architecture: The Power Source of Real time Processing

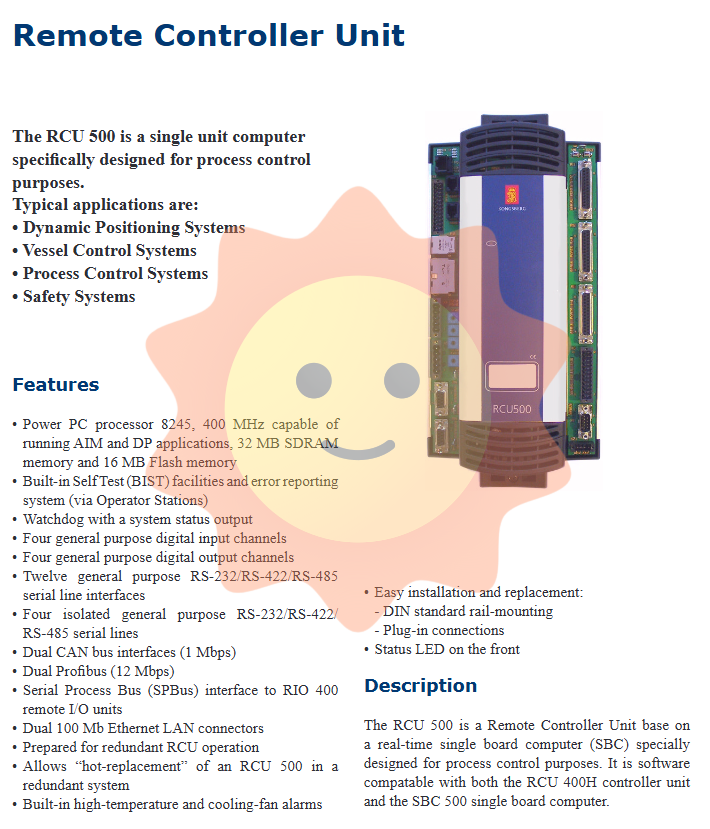

As a controller based on real-time single board computer technology, the core brain of RCU500 adopts Power PC 8245 processor with a clock speed of up to 400 MHz. This configuration represents a perfect balance between high performance and low power consumption in the field of industrial control. The Power PC architecture endows the RCU500 with the ability to run both AIM (Application Programming Interface Management) and DP (Dynamic Positioning) complex applications simultaneously, thanks to its outstanding floating-point computing capabilities and deterministic real-time response characteristics.

In terms of storage architecture, RCU500 is equipped with 32 MB SDRAM memory and 16 MB Flash flash memory. Although this storage combination may seem streamlined, it is extremely efficient in the field of embedded industrial control. The 32 MB SDRAM provides ample cache space for real-time data processing, logical operations, and storage of intermediate variables, ensuring smooth operation of the system under high loads; The 16 MB Flash memory is used to solidify the operating system, application programs, and critical configuration data, ensuring non-volatile storage of data after power failure. This hardware and software compatibility design enables RCU500 to seamlessly integrate with RCU 400H controller units and SBC 500 single board computers, greatly reducing the technical threshold for system upgrades and maintenance.

Chapter 3: Interconnected Neural Networks: Diversified Interfaces and Bus Technologies

In complex industrial sites, controllers need to connect various sensors, actuators, and upper computer systems, and the richness of interfaces directly determines the expansion potential of the system. RCU500 performs outstandingly in this regard, providing highly forward-looking interface configurations.

3.1 Serial Communication Interface

The RCU500 is equipped with an amazing sixteen channel serial communication interface, which includes twelve universal RS-232/RS-422/RS-485 serial line interfaces and four isolated universal serial lines. This configuration allows it to easily connect to traditional RS-232 devices and also to industrial bus networks for long-distance transmission through RS-422/485. Of particular note is the four-way isolation interface, which effectively cuts off the interference of the on-site ground loop through optoelectronic isolation technology, protecting the core controller from high-voltage impact. This is particularly important for ship decks with complex electromagnetic environments.

3.2 Industrial Bus and Network

In order to meet the needs of modern high-speed industrial networks, RCU500 integrates dual CAN bus interfaces (up to 1 Mbps) and dual Profibus bus interfaces (up to 12 Mbps). The CAN bus is commonly used in vehicle and ship internal control networks due to its high reliability and real-time performance; And Profibus is the king of European standard fieldbus, widely used in manufacturing automation. In addition, the addition of dual 100 Mb Ethernet LAN connectors enables RCU500 to seamlessly integrate into the information management layer of modern enterprises, enabling remote monitoring and high-speed uploading and downloading of data.

3.3 Dedicated SPBus Interface

As a featured feature of the Konigsberg system, the RCU500 is specifically equipped with an SPBus (Serial Process Bus) interface for connecting to RIO 400 remote I/O units. The interface is based on RS-485 physical layer (multipoint Drops), adopts Manchester coding, has self clock characteristics, and the maximum frequency can reach 2 MHz. The SPBus interface adopts 500V optocoupler isolation and supports a wide range of power supply voltages from 10 to 28.8 VDC, ensuring high-speed and safe data transmission between remote I/O modules and building a high-speed data channel from the control core to on-site I/O.

Chapter 4 Key Task Assurance: Redundancy Design and System Reliability

In maritime dynamic positioning (DP) and safety systems, any momentary shutdown can lead to catastrophic consequences. The design of RCU500 deeply embodies the engineering philosophy of "reliability first".

4.1 Redundancy and Hot Replacement

RCU500 is pre configured for redundant RCU operations. This means that the system can be configured as a dual machine hot standby mode, where the standby controller can seamlessly take over control in the event of a main controller failure, ensuring zero system interruptions. Even more stunning is that RCU500 allows for "hot swapping" in redundant systems. The operator can directly replace the faulty RCU500 unit without interrupting the system operation. This feature has extremely high practical value for ocean engineering platforms that require 24-hour continuous operation, greatly improving the system's mean time between failures (MTBF).

4.2 Self inspection and monitoring mechanism

In order to prevent potential problems, RCU500 is equipped with comprehensive BIST (Built in Self Test) facilities. During system startup and operation, it can automatically detect hardware status and report errors through the operation station. At the same time, the device integrates a watchdog circuit and a system status output interface. Once the program crashes or crashes, the watchdog will immediately trigger a reset or alarm to ensure that the system is always in a controlled state.

4.3 Adaptability to Physical Environment

RCU500 also fully considers harsh environments in its physical design. Its built-in high temperature and cooling fan alarm functions can monitor the internal temperature of the chassis in real time, preventing performance degradation caused by overheating. In terms of environmental adaptability, the device can operate normally within a wide temperature range of 0 ° C to 70 ° C, with storage temperatures covering -25 ° C to 70 ° C. At the same time, it can withstand up to 98% relative humidity. Its protection level is IP20, complying with DIN standard rail installation specifications, and designed with plug and play connectors, ensuring both installation convenience and connection reliability in vibration environments.

Chapter 5 Analysis of Electrical Characteristics and Mechanical Specifications

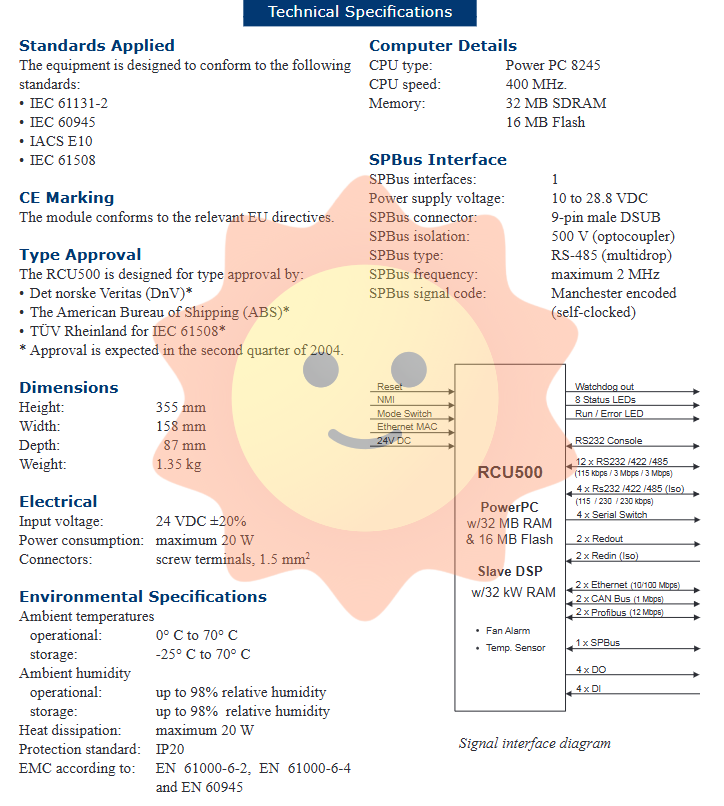

In terms of electrical design, RCU500 exhibits typical characteristics of industrial grade equipment. Its input voltage range is 24 VDC ± 20%, which means it can withstand common voltage fluctuations in ship power grids. The maximum power consumption of 20 W enables the device's heat generation to be controlled within a reasonable range, while also reducing the burden on the cooling system. The connector adopts a screw terminal design, supporting a wire diameter of 1.5 mm ², ensuring the firmness of on-site wiring.

In terms of mechanical dimensions, the RCU500 has the following dimensions: height 355 mm, width 158 mm, depth 87 mm, and weighs only 1.35 kg. This compact design (relative to its functionality) allows it to be easily integrated into control cabinets with limited space. In addition, the status LED lights on the front panel (including Run/Error LED and 8 other status LEDs) provide on-site engineers with an intuitive visual diagnostic tool to quickly determine the system status without the need to connect to a computer.

Chapter 6 Certification Standards and Compliance: A Passport to Global Markets

As a high-end control device sold globally, RCU500 strictly follows multiple international standards in its design and manufacturing process, which is also a strong endorsement of its professionalism.

6.1 Basic Standards

The equipment design complies with IEC 61131-2 (Programmable Logic Controllers Part 2: Equipment Requirements and Testing), which is the core international standard for Programmable Logic Controllers (PLCs). At the same time, compliance with IEC 60945 (Maritime Navigation and Radio Communication Equipment and Systems) and IACS E10 (Uniform Requirements for Marine Electrical and Electronic Equipment) ensures its applicability in maritime environments.

6.2 Functional Safety and Type Certification

Of particular note is that the design of RCU500 complies with the IEC 61508 standard, which is an international standard for functional safety of electrical/electronic/programmable electronic safety related systems. This means that RCU500 can be used for high integrity security systems. In terms of type certification, RCU500 has obtained certifications from Det Norske Veritas, American Bureau of Shipping (ABS), and T Ü V Rheinland (for IEC 61508). Although the document indicates that the certification is expected to be completed in the second quarter of 2004, this is sufficient to demonstrate the design level of the product in terms of Safety Integrity Level (SIL).

In addition, RCU500 complies with the CE marking directive and meets EN 61000-6-2 (industrial environment immunity) and EN 61000-6-4 (industrial environment emission) standards in terms of EMC (electromagnetic compatibility), ensuring that it is both a "good citizen" and a "strong warrior" in complex electromagnetic environments.
