Microchip dsPIC30F High Performance 16 Bit Digital Signal Controller Field Application and Troubleshooting Guide

Microchip dsPIC30F High Performance 16 Bit Digital Signal Controller Field Application and Troubleshooting Guide

In the fields of industrial control, motor drive, power electronics, and automotive electronics, Microchip's dsPIC30F series digital signal controller (DSC) has become the core of many real-time control systems by perfectly integrating the control capabilities of a 16 bit microcontroller (MCU) with the computational performance of a digital signal processor (DSP). This series of devices provides processing power of up to 30 MIPS, with built-in up to 144KB FLASH, 8KB RAM, and 4KB EEPROM, and integrates rich peripherals such as PWM, QEI, CAN, multi-channel ADC, etc. It is widely used in three-phase AC motor control, switched reluctance motors, brushless DC motors, UPS power supplies, and sensor data acquisition scenarios.

However, as the product lifecycle evolves, engineers often face difficulties in firmware debugging, abnormal peripheral configurations, power issues, communication failures, and even the need for replacement after chip discontinuation. This article is based on the official technical manual of the dsPIC30F series. From the perspective of on-site maintenance and troubleshooting, it systematically outlines the architecture key points, common peripheral fault diagnosis methods, development tool usage skills, and upgrade migration strategies of this DSC, helping embedded engineers quickly locate problems and restore stable system operation.

Chapter 1: Core Architecture and Exception Handling of dsPIC30F

1.1 Architecture Overview

The dsPIC30F adopts an improved Harvard architecture with an instruction width of 24 bits and a data path of 16 bits. The program counter (PC) is 23 bits (with a minimum bit constant of 0) and has a linear addressing capability of 4M x 24 bit program memory. The data space is 64KB (32K words) and is divided into two data blocks, X and Y. DSP instructions can simultaneously take one operand from each of the X and Y spaces, while MCU instructions consider both as continuous linear spaces. This design not only ensures the convenience of traditional MCU programming, but also provides single cycle dual data reading capability for algorithms such as FFT and FIR filtering.

Key performance indicators:

Maximum 120MHz clock input (4 x/8 x/16 x PLL), 30 MIPS

16 × 16 bit working register array (W0~W15), W15 serves as the software stack pointer

Two 40 bit accumulators with optional saturation logic

40 level barrel shifter (single cycle left shift 16 positions or right shift 15 positions)

Single cycle 16 × 16 bit multiply accumulate (MAC)

Zero overhead loop support (DO/REPEAT instruction)

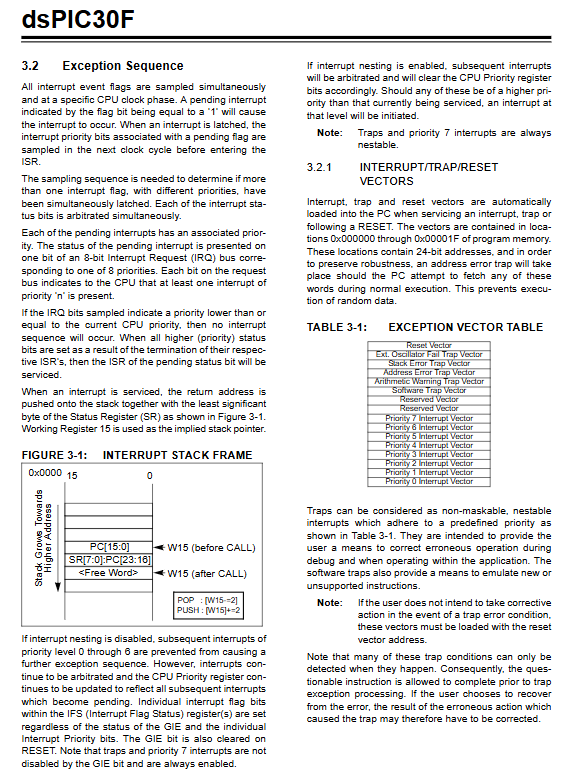

1.2 Common Exception and Trap Handling

The dsPIC30F has 15 exception sources (excluding reset), including 7 traps and 8 programmable priority interrupts. A trap is an unshieldable nested interrupt used to capture serious errors. The common traps and troubleshooting methods on site are as follows:

Address Error Trap

Trigger condition:

Unaligned word data access (e.g. reading 16 bit data from odd addresses)

Accessing unrealized data address space

Never implemented program address space indexing

Attempting to retrieve a pointer from the vector address space

On site diagnosis:

Check if there are any word operations on byte variables or address misalignment caused by pointer cast in the code.

Use MPLAB SIM emulator to enable 'Address Error Detection' and reproduce the fault.

If the trap occurs in the Interrupt Service Routine (ISR), check if the stack overflows (W15 exceeds the SPLIM setting).

Arithmetic Error Trap

Trigger scenario:

Zero division operation (the divisor in the DIV instruction is 0)

Accumulator overflow (overflow from bit 31 without using protection bit)

Catastrophic overflow (overflow from bit 39 and saturation disabled)

Exclusion method:

Check the divisor register before the division instruction, and if it is zero, jump to the processing code.

Enable accumulator saturation mode (SATA/SATB bits in CORCON register) to prevent erroneous results after overflow.

If precise overflow handling is not required, a reset instruction or null operation can be placed in the trap vector, but it is recommended to record the error status.

Stack Error Trap

Trigger condition: Stack pointer W15>SPLIM (overflow) or W15<0x0200 (underflow).

handle:

Set SPLIM to the highest stack address in the initialization code.

Check the depth of interrupt nesting to ensure that the stack size is sufficient.

If DSP instructions are used and a large number of fields are simultaneously loaded, the stack needs to be manually increased.

1.3 Hardware Reset and Power Monitoring

The dsPIC30F supports multiple reset sources: power on reset (POR), external MCLR reset, watchdog reset (WDT), programmable under voltage reset (PBOR), and RESET command. The most common reasons for inexplicable reset on site are undervoltage detection and watchdog timeout.

Under voltage reset (BOR): When VDD drops below the set threshold (e.g. 2.5V system drops to 2.3V), BOR will be forcibly reset. If the system power supply is unstable (such as voltage drop caused by the start of a large motor), the BOR can be disabled through the configuration word or a higher threshold BOR option can be used instead.

Watchdog Timer (WDT): default enabled (factory configuration word WDTEN=1). If the CLRWDT instruction is not executed in a timely manner in the main loop, a reset will be triggered after a few milliseconds. During the development phase, it is recommended to disable WDT in the configuration word or control it through the _SWDTEN software.

Reason identification for reset: Read the RCON register (reset control register), where bits such as BOR, WDTO, EXTR can indicate the last reset source. Saving this value during firmware startup and outputting it through the communication port greatly facilitates remote fault diagnosis.

Chapter 2 Troubleshooting of Advanced Analog Peripherals

2.1 10 bit/12 bit ADC module

The dsPIC30F offers two types of ADCs: a 500 ksps 10 bit ADC and a 100 ksps 12 bit ADC, both of which support up to 16 channels, differential input, and multi-channel sample and hold. Common ADC faults on site include conversion value jumping, excessive deviation, or complete non conversion.

Problem 1: The ADC conversion result always remains 0 or at full scale

Possible reasons:

The ADC module is not properly enabled (ADON bit is 0)

Insufficient sampling time (SAMC bit set too small, internal capacitor not charged to input voltage)

Reference voltage configuration error (VCFG bit selected non-existent pin)

Troubleshooting process:

Check ADCONx register: ADON=1, ADFM result alignment meets expectations.

Increase sampling time: for example, changing SAMC from 3TAD to 31TAD, or using automatic sampling triggering.

If using external Vref+and Vref - pins, ensure that the circuit board is connected to the correct voltage (not suspended).

Single step debugging: Write ADCON1bits. SAMP=1 to start sampling, delay, then set SAMP=0 to start conversion, and observe the DONE bit.

Problem 2: Nonlinear or noisy conversion results

Reason:

There is high-frequency digital signal (such as PWM, SPI clock) crosstalk near the analog input pins.

Internal Vref is unstable.

The ADC clock is higher than the recommended value (the maximum ADCLK of a 10 bit ADC is about 5MHz).

Solution:

Separate analog and digital ground on PCB and connect them at a single point.

Add RC low-pass filtering (R=1k Ω, C=0.1μF）。

Place the CPU in SLEEP or IDLE mode during conversion to reduce digital noise (ADC can operate in sleep mode).

Using oversampling and averaging techniques: taking the average after 8 consecutive conversions to effectively improve resolution.

2.2 Low Voltage Detection (LVD)

The LVD module allows software to set a voltage trigger point (internal reference voltage) that generates an interrupt (priority 7, non maskable) when VDD is below a threshold. This is crucial for applications that require saving critical data before power outages. Common false triggering problems are usually caused by excessive power ripple or setting thresholds too close to the operating voltage. It is recommended to set a hysteresis window of at least 0.2V and add digital filtering (responding after detecting low voltage twice in a row) to the interrupt service routine.

Chapter 3 On site Debugging of Motor Control Peripherals

3.1 Pulse Width Modulation (PWM) Module

The PWM module of dsPIC30F is the core of motor control, supporting up to 8 PWM outputs (4 duty cycle generators), 16 bit resolution, edge alignment or center alignment mode, and has a "special event trigger" function for synchronous ADC sampling.

Typical fault: PWM has no output or abnormal waveform

PWM module not enabled: Check if PTCONbits.PTEN is set to 1.

Pin reuse conflict: PWM pins may be configured as general-purpose I/O or other peripherals. It is necessary to correctly set the PWM function in registers such as TRISx and OCxx.

Dead time incorrect setting: In complementary mode, if the dead time register DTCON1 is set too large, it may cause the effective pulse width to be zero. The oscilloscope observation should show a clear dead zone between the upper and lower bridge arms, but there are still pulses.

Fault pin (FLTX) activation: If fault protection (FLTACON) is enabled, the external fault signal will force the PWM output to a safe state (high resistance or low level). Check the FLTACON register and fault input pin levels.

Dual update in center aligned mode: In center aligned PWM, the duty cycle can be updated at the beginning and midpoint of the cycle to improve control bandwidth. If PTMOD and PTCON are not configured correctly, it may cause update delays or waveform asymmetry.

3.2 Orthogonal Encoder Interface (QEI)

The QEI module is used to read the A, B, and Z phase signals of the incremental encoder, providing a 16 bit position counter, supporting x 2 and x 4 modes, and built-in digital filtering.

common problem:

Counter not counting or direction error: Check if encoder A and B phases are connected in reverse (swapping wiring can solve the problem); Confirm that the QEIEN bit in QEICON is 1; Is the sampling clock of the digital filter set too high to filter out effective pulses.

Position jump: It is often caused by interference with the encoder signal. Use differential encoders (such as RS-422) and twisted shielded wires on the PCB, while enabling the Schmitt trigger for QEI input.

Index pulse (Z) loss: Check if the Z-phase of the encoder is a narrow pulse. The minimum width of the index pulse in the QEI module needs to be greater than two system clock cycles.

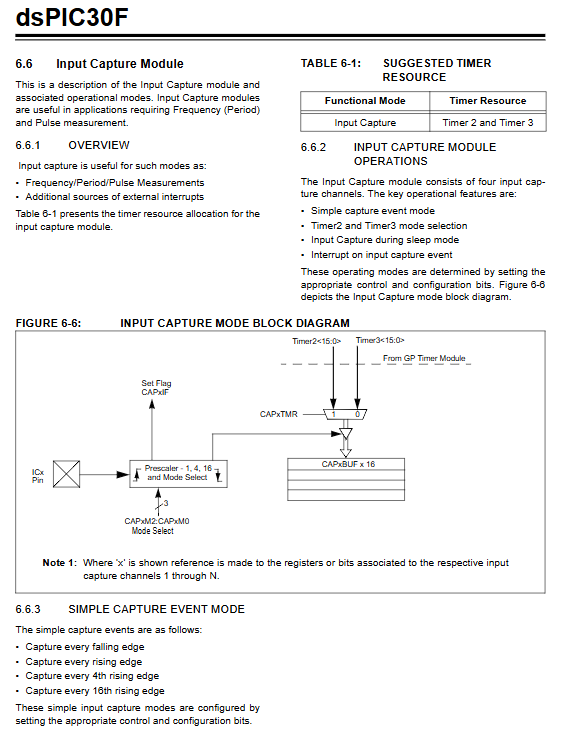

3.3 Input Capture and Output Comparison

The input capture module can measure frequency, period, and pulse width, but it should be noted that its timer sources are only Timer2 and Timer3. If multiple capture channels are used simultaneously, ensure that their shared timebases do not conflict. The output comparison module can be used to generate variable width pulses or simple PWM (resolution of 16 bits). The common problem on site is that the matching interrupt does not trigger - the corresponding interrupt enable bits (ICxIE, OCxIE) and global interrupts (INTCON1bits. GIE) should be checked.

Chapter 4 Troubleshooting of Digital Communication Interface Malfunctions

4.1 UART serial port

The UART of dsPIC30F supports full duplex, 8/9-bit data, checksum, hardware flow control (CTS/RTS), and IrDA. The most common on-site problem encountered is "inability to communicate" or "garbled code".

Diagnostic steps:

Pin configuration: UART function pins (UTX, URX) must have the corresponding TRIS bit set as input/output, and typically require disabling the analog function (ADPCFG).

Baud rate calculation: UxBRG value=(Fcy/(16 × Baud)) -1. If 40MIPS (Fcy=40MHz) is used, 9600 baud should be obtained, BRG≈259。 Calculation errors will result in timing errors in both directions.

Parity matching: The parity settings of the master and slave stations must be consistent. 8-bit data+odd parity is the most common combination.

Hardware flow control impact: If CTS/RTS is enabled but the corresponding pin is not connected, UART will hang. Flow control can be disabled during debugging.

Buffer overflow: An OERR bit of 1 indicates a receive overflow, which requires software to reset and reinitialize the receiver.

4.2 SPI and I ² C bus

The SPI module supports all four modes and has frame synchronization (FSYNC) for audio codecs. On site SPI issues are often caused by mode mismatch (clock polarity/phase) or incorrect control of device chip selection. Logic analyzer is a powerful tool for troubleshooting: check the timing diagram of SCK, SDO, SDI in the setting mode.

The I ² C module supports multi master, 7-bit/10 bit addressing, and hardware implementation of arbitration and clock synchronization. Common faults:

Bus hang up (SDA consistently low): A device has not released the bus. You can try to force the generation of 9 clock pulses for recovery.

Arbitration loss: In a multi master environment, if two masters simultaneously send different data, the loss arbitrator will interrupt the transmission. Check the bus competition conditions.

100k/400k speed switching: I2CBRG must be configured correctly, and the rising edge time must meet the specifications (adjusted by external pull-up resistor resistance).

4.3 CAN bus module

Integrated CAN 2.0B controller, supporting standard frames and extended frames, up to 1Mbps. Common issues include:

Bit timing configuration error: SJW, TQ, and sampling point positions in BRCON1/2 do not match, resulting in an increase in error frames. Collect erroneous waveforms using a CAN analyzer.

Improper setting of receiving filter masking: If 6 filters (2 for high priority buffer and 4 for low priority) are not initialized correctly, the expected message will be discarded.

Priority of sending buffer: Three sending buffers can be set with priority, but if all buffers are full and have the same priority, low priority messages may never be sent out. Use the send abort function to clear specific buffers.

Chapter 5 Development Tools and On site Firmware Maintenance

5.1 MPLAB IDE and Debugging Toolchain

Microchip offers free MPLAB IDE (such as version 6.00 or later), integrated editor, project manager, MPLAB SIM software simulator, MPLAB ICE 4000 online simulator, MPLAB ICD 2 debugger, and PRO MATE II programmer.

MPLAB SIM: Suitable for algorithm validation and can finely control time. But it cannot truly reflect the I/O timing and electrical characteristics.

MPLAB ICD 2: A low-cost online debugger that occupies two I/O pins (PGC/PGD) and a portion of program memory and RAM. Note: ICD2 may not be able to maintain connectivity in some low-power modes (SLEEP).

MPLAB ICE 4000: A fully functional simulator that supports complex triggering, tracing, and code coverage analysis. It is essential to solve extremely difficult timing problems.

5.2 Programming and Code Protection

DsPIC30F supports online serial programming (ICSP) through 3 pins (PGC, PGD, MCLR). During the mass production stage, it can be programmed using PRO MATE II or a third-party general-purpose programmer. Code protection configuration bits (GCP, GSS, etc.) can prevent FLASH and EEPROM from being read externally. However, it should be noted that once code protection is enabled, the chip will not be able to read existing firmware through the programmer (but it can be completely erased and re burned). When replacing faulty components on site, it should be ensured that the newly burned firmware version is consistent with the original.

5.3 Shutdown Replacement Strategy

If the dsPIC30F models used in the original design (such as 30F4011, 30F6010, etc.) are announced to be discontinued or difficult to purchase, the following upgrade path is recommended:

Same series compatibility type: Within the same package and pin count model, such as 30F4011, it can be replaced with 30F4013 (higher FLASH), but attention should be paid to the difference in peripheral address mapping.

Cross generational upgrade to dsPIC33E/F series: The dsPIC33EP series provides faster instruction speed (70 MIPS), more PWM and ADC channels, and pin compatibility (power and oscillator configurations need to be checked). The main tasks during transplantation are:

Changes in header file and register names (e.g. ADCON1 → AD1CON1).

The oscillator configuration bits are different (FOCSEL, FOSC).

Most peripheral modules can retain initialization logic, but the functionality of each control bit needs to be carefully checked.

Retain original film refurbishment: Purchase discontinued inventory from authorized distributors or purchase from reputable refurbishment channels, but strictly test stability in high and low temperature environments.

Replace verification checklist:

After program burning, confirm that all peripherals are working properly through JTAG/ICD2.

Motor control applications require self-tuning of current loop PID parameters (due to ADC delay and possible slight changes in PWM accuracy).

The bit timing of the communication protocol must be recalculated (if using a different frequency master oscillator).
