OMRON 3G3MV Inverter Practical Guide

OMRON 3G3MV Inverter Practical Guide: Full Analysis from Installation, Debugging to Troubleshooting

In the field of industrial automation, the OMRON SYSDRIVE 3G3MV series multifunctional compact frequency converter is widely used in small conveying equipment, packaging machinery, fans and pumps due to its high reliability, rich control functions and compact structural design. Despite the emergence of new frequency converters, 3G3MV is still in service in a large number of old equipment and renovation projects. For on-site engineers, a deep understanding of hardware installation, parameter configuration logic, fault code diagnosis, and maintenance points is the key to ensuring stable equipment operation and quickly troubleshooting. This article will take the 3G3MV series as an example to systematically summarize the technical points of the entire process from unboxing to on-site operation and maintenance.

Safety first: unbreakable installation and operation red line

The operation of frequency converters involves high voltage electricity, and safety must be given top priority. The 3G3MV manual repeatedly emphasizes the following prohibitions:

Residual charge hazard: After the main circuit is powered off, it is necessary to wait for the CHARGE indicator light to turn off and wait for the time indicated on the front cover (usually at least 1 minute) before touching the internal components. The internal capacitor still carries dangerous voltage.

Strictly prohibit live operation: It is absolutely not allowed to remove the front cover, terminal cover, operator or option while powered on, and signal inspection is also not allowed.

Mandatory grounding: 200V level grounding resistance ≤ 100 Ω, 400V level ≤ 10 Ω. Special grounding terminals must be used and directly connected to the motor frame grounding.

Output terminal must not be connected to power supply: The main circuit output terminals U/T1, V/T2, W/T3 must not be connected to AC power supply, otherwise it will directly damage the frequency converter.

Voltage withstand test prohibited: Do not conduct voltage withstand tests on any part of the frequency converter, as it contains a large number of semiconductor components and is extremely sensitive to high voltage.

In addition, the manual specifically states that an independent external emergency stop device should be provided, as the STOP button on the operator is only valid under specific functional settings and cannot be used as the only means of safe stopping. When using the fault retry function or instantaneous power outage recovery function, the machine may suddenly start and personnel should not approach.

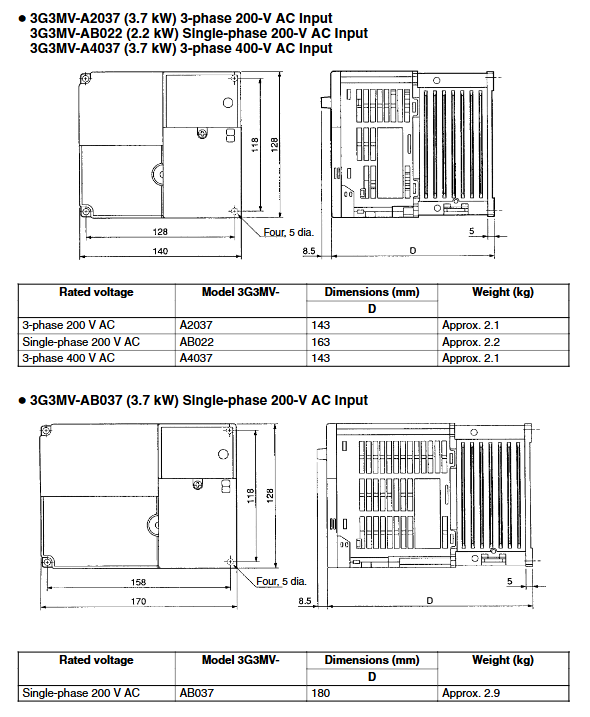

Installation and environment: details that determine lifespan

The installation environment of 3G3MV directly affects its reliability and lifespan:

Environmental temperature: Panel mounted type (IP20): -10 ° C to 50 ° C (0.1-3.7kW); Enclosed wall mounted type (NEMA1/IP20): -10 ° C to 40 ° C (5.5-7.5kW). If the top and bottom covers are removed, 5.5-7.5kW can be used as an IP00 panel installation type, allowing -10 ° C to 50 ° C.

Protection requirements: Avoid direct sunlight, corrosive gases, flammable gases, dust (especially iron powder), salt, oil mist, water, and chemicals.

Installation direction: It must be installed vertically, with the nameplate characters facing upwards, and ensure that there is sufficient heat dissipation space around (100mm up and down, 50mm left and right).

Heat dissipation control: The surface temperature of the frequency converter may be about 30 ° C higher than the ambient temperature, and thermal sensitive devices should be kept away. When installed in a closed cabinet, a cooling fan or air conditioner must be used to keep the temperature inside the cabinet below 50 ° C to extend the life of the electrolytic capacitor.

Foreign object prevention: During installation, a cover should be used to cover the frequency converter to prevent metal powder from entering. After completion, the cover must be removed to avoid affecting ventilation.

Practical Wiring: Essentials of Main Circuit and Control Circuit

1. Main circuit terminals

The main circuit terminals of 3G3MV vary depending on power and voltage levels, and key terminals include:

Terminal symbol name description

R/L1, S/L2, T/L3 power input 3G3MV-A2: three-phase 200-230V; 3G3MV-AB: single-phase 200-240V (connected to R/L1 and S/L2); 3G3MV-A4: Three phase 380-460V

U/T1, V/T2, W/T3 motors output three-phase output, with a maximum voltage equal to the input power supply voltage

B1 and B2 braking resistors are connected to external braking resistors or braking units for absorbing regenerative energy

+1. Connect the+2 DC reactor to suppress harmonics in the DC reactor

+1. - DC power input: When supplying DC power, input the positive and negative poles

Grounding terminal protection grounding: 200V level ≤ 100 Ω, 400V level ≤ 10 Ω

Wiring points:

The main circuit wire uses 600V PVC insulated copper wire, and the terminal screw torque is 0.8-2.5N · m (depending on the model).

For long-distance wiring, it is necessary to consider voltage drop and increase the wire diameter.

When using single-phase input, the power supply must be connected to the R/L1 and S/L2 terminals.

It is strictly prohibited to install contactors on the output side for frequent starting and stopping, otherwise it may damage the frequency converter.

2. Control circuit terminals

The control terminal is located under the front cover, and the main signals include:

Terminal symbol function (default) specifications

S1 multifunctional input 1 forward/stop optocoupler isolation, 8mA/24VDC

S2 multifunctional input 2 reverse/stop as above

S3 multifunctional input 3 external fault (normally open) as above

S4 multifunctional input 4 fault reset as above

S5 multifunctional input 5 multi-stage speed command 1 as above

S6 multifunctional input 6 multi-stage speed command 2 as above

S7 multifunctional input 7-point dynamic frequency command as above

SC sequence input common terminal - common terminal

FS frequency setting power supply 12V/20mA for external potentiometer

FR frequency given input 0-10V input impedance 20k Ω

FC frequency given common terminal 0V -

RP pulse input 0-33kHz H: 3.5-13.2V, L: ≤ 0.8V

MA/MB/MC fault relay output normally open/normally closed contact 250VAC/30VDC, 1A

P1/PC, P2/PC multifunctional optocoupler output default running/frequency consistent 48V/50mA

Important settings:

SW1 is used to select NPN (default) or PNP input mode. If using an external 24V power supply with a common positive pole, switch SW1 to the PNP position.

Pin1 of SW2 is used for RS-422/485 terminal resistor (end node needs to be ON).

Pin2 of SW2 is used to select the frequency setting mode: OFF=voltage input (0-10V), ON=current input (4-20mA).

Example of 3-wire wiring: n052 (multi-function input 3) needs to be set to 0, where S1=RUN (normally open), S2=STOP (normally closed), and S3=direction.

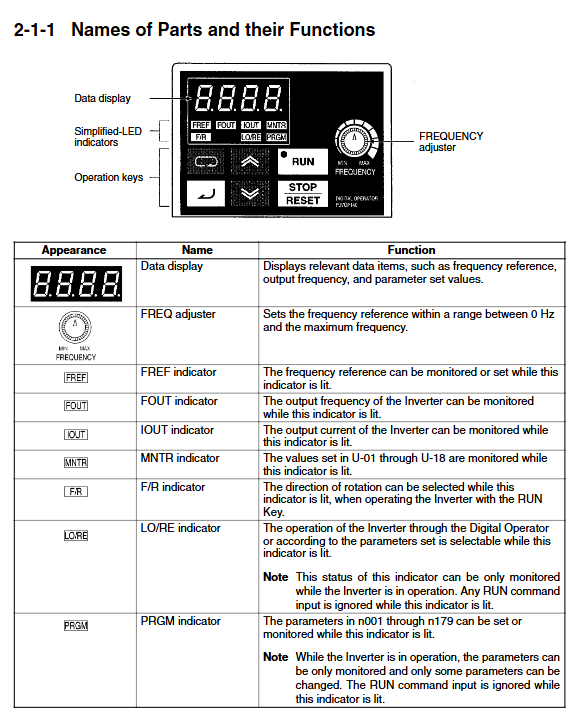

Detailed explanation of core parameter settings and functions

The parameters of 3G3MV are grouped by function, and the accessible groups (0-4, 5, 8-11, etc.) are controlled through n001 (parameter write prohibition/initialization). The following are the most commonly used and critical parameters.

1. Basic operating parameters (functional group 1)

Parameter Name Range Factory Value Description

N002 control mode selection 0/1 0=V/f control, 1=vector control (open-loop)

The n003 RUN command selects 0-3 0=operator, 1=control terminal, 2=RS-422/485, 3=DeviceNet

N004 frequency setting selection 0-9 0=operator, 1=frequency reference 1 (n024), 2=0-10V, 3=4-20mA, 5=pulse input, 6=communication, etc

N005 stop method 0/1 0=deceleration stop, 1=free sliding stop

N006 reversal prohibited 0/1 0=reversal allowed, 1=reversal prohibited

N007 STOP key function 0/1 0=STOP key is valid in remote mode, 1=invalid

N008 local frequency setting 0/1 0=FREQ adjuster, 1=operator button (n024)

2. V/f characteristic settings (n011-n017)

Used to match motor characteristics. The factory produces a 60Hz saturated type. The parameter relationship must satisfy: n016 ≤ n014<n013 ≤ n011.

Parameter Name Range Factory Value

N011 maximum frequency (FMAX) 50-400Hz 60.0Hz

N012 maximum voltage (VMAX) 0.1-255V (200V level) 200.0V

N013 maximum voltage frequency (FA) 0.2-400Hz 60.0Hz

N014 intermediate output frequency (FB) 0.1-399.9Hz 1.5Hz

N015 intermediate frequency voltage (VC) 0.1-255V 12.0V

N016 minimum output frequency (FMIN) 0.1-10Hz 1.5Hz

N017 minimum frequency voltage (VMIN) 0.1-50V 12.0V

Note: The voltage value of 400V level is twice that of 200V level. If n014 is equal to n016, then n015 is ignored.

3. Acceleration and deceleration time

Parameter Name Range Factory Value Description

N019 acceleration time 1 0.0-6000s 10.0s 0Hz → maximum frequency

N020 deceleration time 1 0.0-6000s 10.0s maximum frequency → 0Hz

N021 acceleration time 2 is the same as 10.0s, switched through multifunctional input

N022 deceleration time 2 is the same as 10.0s -

N041-044 Acceleration/Deceleration Time 3/4 Same as 10.0s Switching through Two Position Selection Combination

Actual acceleration and deceleration time=set value x (frequency given/maximum frequency)

4. Motor protection parameters (n036-n038)

Electronic thermal overload protection (OL1) is used to prevent motor overheating.

Parameter Name Range Factory Value Description

The rated motor current of N036 is 0.0-150%, and the rated capacity of the frequency converter is set as the rated current on the motor nameplate; Set 0.0 to disable protection

N037 motor protection characteristics 0-200=universal motor, 1=variable frequency dedicated motor, 2=unprotected

N038 motor protection time 1-60min 8min electronic thermal protection time constant

Important: If a frequency converter drives multiple motors, n037 must be set to 2 (unprotected) and independent thermal relays must be installed on each motor.

5. Multiple speed and frequency settings

The internal frequency references 1-8 (n024-n031) and 9-16 (n120-n127) can be selected through a combination of multifunctional inputs (S5/S6, etc.). The jog frequency is set by n032 (default 6.0Hz).

The upper and lower limits (n033/n034) of the frequency are set as a percentage of the maximum frequency. If the lower limit value is less than the minimum output frequency, the frequency converter will have no output when the frequency is set below the lower limit.

6. DC braking (n089-n091)

Used for precise positioning when stopping or to "capture" the rotating motor before starting.

Parameter Name Range Factory Value Description

N089 DC braking current 0-100% 50% at the rated current of the frequency converter of 100%

DC braking time during n090 stop: 0.0-25.5s 0.5s. After deceleration and stop, inject DC braking

DC braking time during n091 startup: 0.0-25.5s. Inject DC braking before startup to prevent reverse rotation

7. Carrier frequency and derating (n080)

The carrier frequency affects motor noise, frequency converter losses, and external interference. Set ranges 1-4 and 7-9, with specific values depending on the capacity. The default value is usually 4 (approximately 10kHz). Attention: If the cable between the frequency converter and the motor is long (>100m), the carrier frequency should be reduced to minimize leakage current and reflected waves. The 5.5-7.5kW model can also enable the low-speed carrier frequency reduction function (n175), which automatically reduces the carrier frequency to 2.5kHz when the output frequency is ≤ 5Hz and the output current is ≥ 110%, improving the low-frequency overload capacity.

8. Multi functional input/output configuration (n050-n059)

Multi functional inputs S1-S7 can assign functions (1-33), default value:

N050 (S1)=1 (forward rotation/stop)

N051 (S2)=2 (reverse/stop)

N052 (S3)=3 (external fault NO)

N053 (S4)=5 (fault reset)

N054 (S5)=6 (multi-stage speed 1)

N055 (S6)=7 (multi-stage speed 2)

N056 (S7)=8 (jog)

Common function codes: 1=forward/stop, 2=reverse/stop, 3/4=external fault, 5=fault reset, 6/7=multi-stage speed, 8=jog, 9=acceleration/deceleration prohibition, 10=local/remote selection, 11=acceleration/deceleration time selection 1, 12=emergency stop, 13=multi-stage speed 3, 27=acceleration/deceleration time selection 2, etc.

Multi functional outputs (n057 MA/MB/MC, n058 P1-PC, n059 P2-PC) can be assigned 0-21 functions, default:

N057=0 (fault output)

N058=1 (in operation)

N059=2 (consistent frequency)

9. Vector control and motor parameters (n106-n110, etc.)

When n002=1 (vector control), the following parameters need to be set correctly to achieve optimal performance:

N036: Rated motor current

N106: Rated motor slip

N107: Motor phase to phase resistance (or half of the line to line resistance)

N108: Motor leakage inductance

N110: Motor no-load current (as a percentage of rated current)

These parameters are pre-set according to standard motors when they leave the factory and usually do not need to be adjusted, but they should be reset when replacing special motors.

10. PID control (n128-n138)

3G3MV built-in PID regulator, suitable for constant pressure water supply, air volume control, etc. Set n128=1-8 (select PID control method), with the following parameters:

N130: Proportional gain (P)

N131: Integral time (I)

N132: Differential time (D)

N129: Feedback value gain

N136-n138: Feedback loss detection

11. Communication parameters (n151-n157)

Supports RS-422/485 Modbus protocol (optional or built-in). Key parameters:

N153: Slave address (1-32)

N154: Baud rate (0=2400,1=4800,2=9600,3=19200)

N155: Parity check (0=even, 1=odd, 2=none)

N151: Communication timeout handling (0-4)

Troubleshooting: Systematic Diagnostic Process

3G3MV has complete protection functions. When there is a fault, the digital operator displays an error code, the fault relay acts, and the motor slides freely to stop. The following are common faults and countermeasures.

1. Fatal Error

Display Name Common Reasons Corrective Actions

OC overcurrent output short circuit, grounding, high V/f, excessive motor capacity check motor cable; Reduce V/f voltage; Extend acceleration and deceleration time

OU overvoltage deceleration too fast, no braking resistor, high power supply voltage connected to braking resistor; Extend deceleration time; Set n092=1 to prohibit stall prevention during deceleration

UV1 main circuit undervoltage phase loss, loose terminals, and instantaneous power outage inspection power supply; Set n081 instantaneous power outage compensation

OH radiator overheating environment with high temperature, heavy load, and fan failure to improve ventilation; Reduce load; Replace the cooling fan

OL1 motor overload, excessive load, improper V/f, n036 setting error to reduce load; Reduce V/f voltage; Check the rated current of the motor

OL2 frequency converter overload, heavy load, short acceleration time to reduce load; Extend acceleration time; Increase the capacity of the frequency converter

EF □ External fault multifunctional input terminal receives external fault signal to eliminate the cause of external fault; Check the NO/NC contact settings

F00/F01 digital operator communication failure. Poor or damaged contact of the operator. Reinstall the operator; Replace the operator

CE communication timeout RS-422/485 line fault, terminal resistance setting error check circuit; Set SW2-1 correctly; Check the main station program

PF/LF/GF/SC input phase loss/output phase loss/grounding/load short circuit power supply phase loss, motor disconnection, insulation damage inspection of main circuit wiring; Measure the insulation of the motor; Reduce the carrier frequency

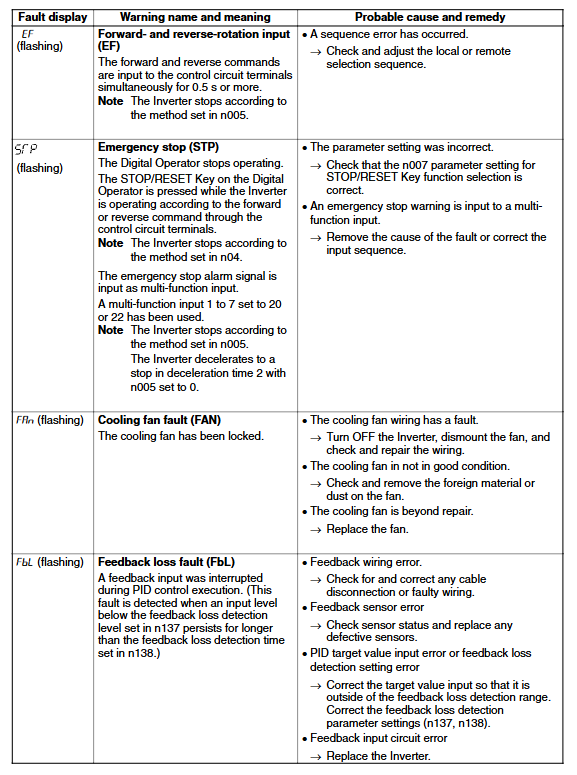

2. Warning (non fatal error, indicator light flashing)

Reason for displaying name and countermeasures

Uu (flashing) main circuit undervoltage power supply voltage low or phase loss check power supply

Ou (flash) overvoltage, high power supply voltage, reduced power supply voltage

Overheating of OH (flash) radiator and OH fault, but did not reach the trip value to improve ventilation

CAL communication standby did not receive normal DSR message. Check the communication line and master station program

OP1-OP5 parameter settings are incorrect, multifunctional input is repeated, V/f conditions are not met, upper and lower limits are reversed, frequency hopping sequence is incorrect, and the parameters are checked and corrected

OL3 (flashing) over torque detection mechanical jamming or over torque inspection mechanical system; Increase the setting value of n098/n099

BB external base block multifunctional input receives BB command to exclude BB signal

EF (flash) forward and reverse, input forward and reverse commands simultaneously, and turn on for more than 0.5 seconds. Check the timing

STP (flashing) emergency stop operator STOP key or emergency stop input action reset and restart

FAN cooling fan malfunction: Fan stuck or poorly wired. Check the fan and replace it if necessary

3. Fault reset method

Connect the multifunctional input (set to 5).

Press the STOP/RESET button on the numeric operator (with the RUN command set to OFF).

Disconnect the power supply of the main circuit and wait for the CHARGE light to turn off before powering it back on.

Note: If the command is in the ON state, the reset signal will be ignored.

Maintenance and replacement of spare parts

1. Regular inspection items

Check if the terminal screws are loose and if the radiator has accumulated dust.

Confirm that the cooling fan is running normally without any abnormal noise.

Clean the interior with dry compressed air (4-6kg/cm ²).

The lifespan of electrolytic capacitors is closely related to the operating environment temperature, and the lifespan is approximately doubled for every 10 ° C decrease.

2. Cooling fan replacement

The 3G3MV fan is located under the radiator. Replacement steps:

Remove the front cover and bottom cover.

Press the left and right sides of the fan cover and lift it up to remove the fan.

Unplug the fan connector (CN4 or CN10, depending on the model) and remove the wire protection tube.

Replace the fan with a new one, ensuring that the wind direction is towards the heat sink (exhaust outward).

Reconnect and reinstall the connector.

3. Parameter replication and validation

By using the built-in EEPROM of the digital controller, parameters can be copied between frequency converters of the same specifications. Operation:

Set n177=1 (read allowed).

Set n176=rEd (read frequency converter parameters to the operator).

Connect the target frequency converter and set n176=Cpy (write).

Using vFy can compare parameter differences.

Parameters that cannot be copied: n176, n177, n178 (fault log), n179 (software number), as well as n011-n017, n036, n080 between different capacities.
