Deep Analysis of SolaHD SDN-D Rail Power Supply: A Comprehensive Guide from Selection to On site Diagnosis

In industrial automation control systems, the rail power supply is a key link in providing stable DC power to core components such as PLCs, I/O modules, sensors, and communication equipment. A high-performance and highly reliable power supply not only determines the operational stability of the control cabinet, but also directly affects the continuous operation of the entire production line. The SDN-D series DIN rail power supply launched by SolaHD has become an ideal choice for harsh industrial environments and hazardous locations due to its high efficiency, compact size, wide operating temperature range, and powerful diagnostic monitoring capabilities. This article will systematically analyze the SDN-D series power supply from multiple dimensions, including technical characteristics, selection specifications, installation points, communication monitoring, and on-site troubleshooting, providing a practical technical guide for on-site engineers.

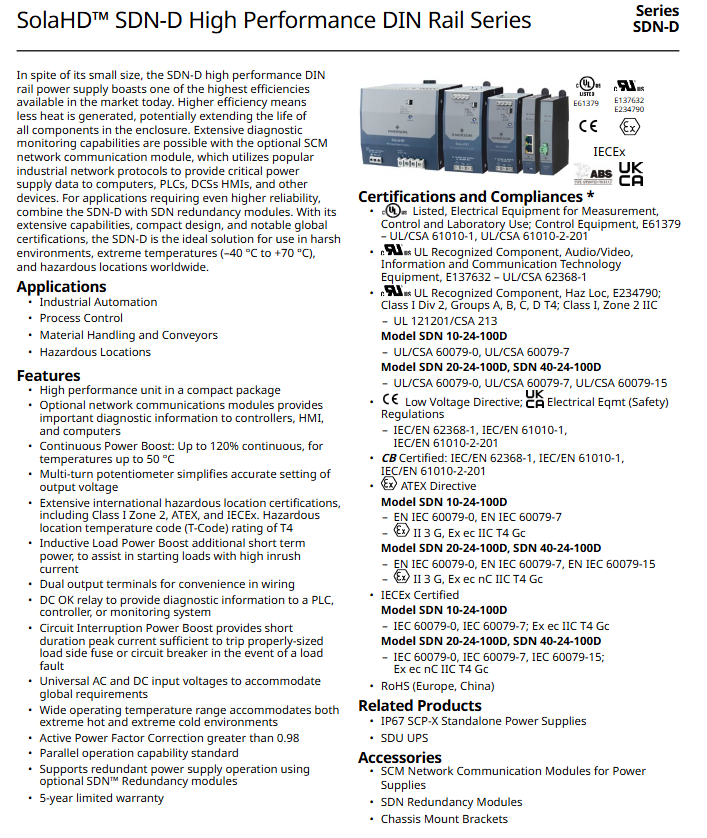

Product Overview: High Performance in Small Sizes

The SDN-D series is a high-performance DIN rail power supply upgraded from the classic SDN-C series by SolaHD. One of its most significant advantages is its extremely high efficiency - taking SDN 10-24-100D as an example, the efficiency can reach 92.8% under 120Vac input and full load conditions, and can even reach 95% under 240Vac input. High efficiency means lower heat generation, thereby extending the service life of all components inside the control cabinet and reducing cooling requirements.

This series covers three power levels of 10A, 20A, and 40A (corresponding to 240W, 480W, and 960W), using natural convection cooling without the need for fans, further improving reliability. Its compact width design (10A model only 50mm, 20A model 60mm, 40A model 125mm) is 31% narrower than the SDN-C series, saving valuable rail space for the control cabinet.


Core technical features and design advantages

1. Continuous Power Boost

The SDN-D series has a unique continuous power boost function: it can provide up to 120% of the rated output current in the temperature range of -40 ° C to+50 ° C. For example, the 10A model can continuously output 12A below 50 ° C, the 20A model can output 22A, and the 40A model can output 44A. This feature allows the power supply to easily cope with additional load requirements under normal operating conditions without the need for excessive selection.

2. Inductive Load Power Boost

For inductive loads with high surge currents during startup (such as solenoid valves, contactors, motors), SDN-D can provide a short-term power boost of 1.5 times the rated current for 4 seconds, effectively avoiding voltage drops or protective actions caused by startup shocks.

3. Circuit Interruption Power Boost

When a fault occurs on the load side, the power supply needs to provide sufficient peak current to blow the fuse or trip the circuit breaker, thereby achieving fault isolation. The SDN-D series can provide up to 6 times the rated current, with a peak current lasting 15 milliseconds (and an output voltage above 19V), ensuring reliable downstream protection devices and preventing the expansion of faults.

4. Extremely wide working temperature range and hazardous location certification

The SDN-D series is capable of operating in ambient temperatures ranging from -40 ° C to+70 ° C, from extremely cold cold storage to high-temperature desert environments. In the temperature range of 60 ° C to 70 ° C, the output power is linearly reduced (from 240W to 216W for 10A models). More importantly, this series has passed rigorous hazardous location certification:

Class I Div 2, Groups A, B, C, D T4 (North American Standard)

Class I, Zone 2, Ex ec / Ex ec nC IIC T4 Gc(ATEX、IECEx)

Temperature level T4, suitable for flammable gas environments.

5. Comprehensive protection function

Short circuit protection: The output automatically drops to near zero and automatically recovers after the fault is eliminated.

Overvoltage protection: When the output voltage exceeds 32V, it will be turned off and automatically restored.

Over temperature protection: When the internal temperature is too high, the output will be turned off, the LED will alarm, and it will automatically recover after cooling.

Reverse EMF immunity: can withstand up to 35V reverse electromotive force without damage.

Parallel/Redundant Operation: The standard supports parallel output to increase power (technical support needs to be consulted), and can be paired with SDN redundant modules to achieve 1+1 redundant power supply.

6. Diagnostic and communication capabilities

The power supply body is equipped with dual color LED indicator lights (green: normal output; red: protective action or fault), and provides DC OK relay dry contacts, which can be directly connected to PLC or monitoring system. Further diagnostic monitoring can be achieved through the optional SCM network communication module, which can read key data such as voltage, current, temperature, and event logs in real time, and upload them to the upper system through EtherNet/IP, Modbus TCP, or HART protocols.


Quick check of selection specifications

The main models and core parameters of SDN-D series are as follows:

Parameter SDN 10-24-100D SDN 20-24-100D SDN 40-24-100D

Rated output current 10A @ 60 ° C 20A @ 60 ° C 40A @ 60 ° C

Continuous power increase of 12A (-40~50 ° C), 22A (-40~50 ° C), 44A (-40~50 ° C)

Input voltage range 100-240Vac (90-275VDC) same left same left

Input current (100Vac) 3.0A 6.2A 10.6A

Efficiency (240Vac full load) 95% 94.5% 94.9%

Output voltage adjustable 24-29Vdc (multi turn potentiometer) same left same left

Ripple noise (typical)<50mV p-p<50mV p-p<50mV p-p

Holding time (100Vac)>150ms>150ms>150ms

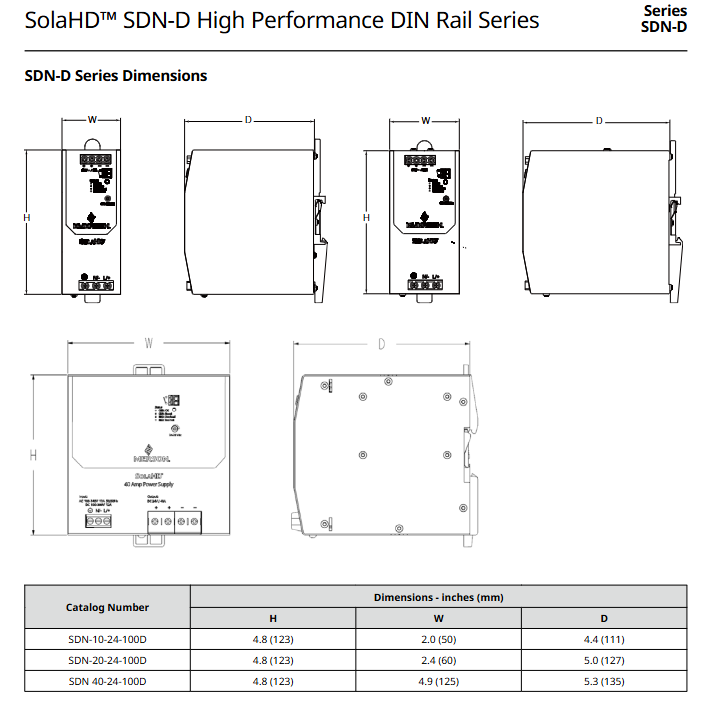

Dimensions H × W × D (mm) 123 × 50 × 111 123 × 60 × 127 123 × 125 × 135

Weight approximately 0.8kg, 1.1kg, 1.8kg

Key selection points:

Select the rated current based on the total power consumption of the load and consider the demand for power increase.

If the working environment temperature exceeds 50 ° C but is below 60 ° C, it can be used according to the rated current; 60-70 ° C needs to be calculated according to the derating curve.

For high wave loads, confirm whether the 1.5-fold/4-second lifting capacity is sufficient.

When remote monitoring is required, select the SCM module corresponding to the protocol.

Practical installation and wiring

1. DIN rail installation

The SDN-D series adopts standard 35mm DIN rail installation, with simple and reliable steps:

Tilt the power supply slightly backwards and clip it into the upper edge of the DIN rail.

Press down until the bottom claw contacts the guide rail.

Push forward on the lower leading edge and lock it with a "click" sound.

Slight shaking confirms that the buckle is securely locked.

2. Panel installation

For applications directly fixed on the panel, the SDN-PMBRK3 panel mounting bracket kit (two brackets per set) can be selected. The bracket will increase the depth by about 2-4mm. Please refer to the kit manual for specific installation steps.

3. Wiring precautions

The input terminals support AC (L, N) and DC (+/-) sharing, with a wide voltage range (90-275Vac/90-300Vdc).

The dual output terminal design facilitates parallel wiring or looping to the next device.

The DC OK relay contacts (normally open/normally closed) can be used to report the power status to the PLC digital input module.

It is recommended to install a suitable circuit breaker or fuse at the input end (depending on the input current and surge characteristics).

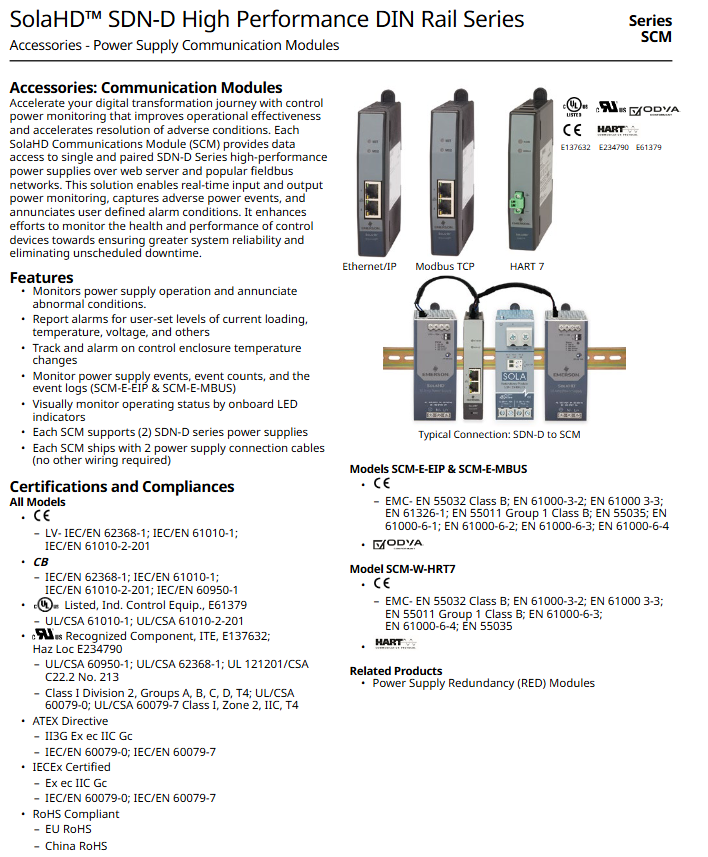

Communication and Diagnostic Monitoring: Detailed Explanation of SCM Module

To achieve Industry 4.0 level power health management, SolaHD provides the SCM (SolaHD Communications Module) series of communication modules. Each SCM module can be connected to 1 or 2 SDN-D series power supplies, which can be directly plugged in through the included 8-inch connection cable without additional wiring.

1. Supported protocols and models

Model Protocol Network Interface

SCM-E-EIP EtherNet/IP (ODVA certified) dual RJ45, supporting star and wire types Device Level Ring

SCM-E-MBUS Modbus TCP dual RJ45, as above

SCM-W-HTR7 HART 7 (Fieldcomm Group registration) 2-wire terminal, point-to-point or multi-point

2. Monitored data items

Through the SCM module, users can obtain the following key parameters in real-time:

Power parameters: output voltage, output current, input voltage, internal temperature of the power supply, maximum/minimum value recording.

Alarm and Warning: Output short circuit, overvoltage, overheating, power boost activation.

Users can configure warnings: output current threshold, temperature threshold.

Counter and Timer: Total lifespan of power supply operation, running time since last power on, and number of occurrences of various faults.

Equipment information: model, serial number, firmware version, power status, SCM status.

3. LED status indication

The SCM module provides module status and network status LEDs for quick diagnosis:

Module status: Green constantly on (normal), green flashing (standby/not configured), red flashing (recoverable fault).

Network status: Green constantly on (connected), green flashing (no connection), red flashing (connection timeout), red constantly on (IP conflict).

4. Typical application scenarios

Predictive maintenance: By monitoring the temperature rise trend inside the power supply, early warning of poor heat dissipation or overload can be given.

Fault tracing: The event log records the time point when the power supply abnormality occurred, assisting in analyzing the cause of system shutdown.

Remote diagnosis: The health status of all cabinet power supplies can be viewed in the central control room, reducing on-site inspections.

Redundant configuration and system reliability improvement

For critical process controls such as petrochemicals, water treatment, and continuous production lines, a single power failure may cause the entire system to shut down. The SDN-D series can be paired with SDN redundant modules to form a 1+1 redundant power supply system:

Working principle: Two SDN-D power supplies of the same specifications are connected to a redundant module, which uses diode "OR" logic internally to automatically select the power supply with the higher output voltage. When one power supply fails or the output drops, the other seamlessly takes over.

Attention: When configuring redundancy, the DC OK signal of each power supply can still be independently connected to the SCM module or PLC for fault alarm.

Parallel Capacity Expansion: If you need to increase the total output power (rather than redundancy), you can directly connect multiple power sources in parallel (consult technical support), but pay attention to the current sharing characteristics.


On site fault diagnosis and common problem handling

The SDN-D series power supply has comprehensive protection functions, and problems can be quickly located through LED indicator lights and DC OK contacts.

1. Interpretation of LED indicator status

Measures to deal with the meaning of indicator light status

Green constant light output is normal

Green flashing (4-second on/4-second off) power supply alternate start stop check for power boost mode or intermittent overload

Red flashing overload or overheating check whether the load exceeds the rated value or the continuous power increase range; Check if the ambient temperature is too high and if the heat dissipation is good

The red constant light protection action (short circuit, overvoltage, overheating) disconnects the load. If it is still red, it may be an internal fault; If the green color is restored, investigate the short circuit on the load side

2. DC OK relay logic

Contact closure: Normal output (voltage within rated range).

Contact disconnection: Abnormal output (no output, under voltage, protection action in progress).

This contact can be connected in series to the PLC emergency stop circuit or alarm input module.

3. Common troubleshooting table

Possible causes and solutions for the fault phenomenon

No output, LED off, input power not connected. Measure the input voltage (L-N or+/-) and check the circuit breaker/fuse

No output, LED red is always on, short circuit or overvoltage disconnects the load. If restored, check the insulation of the load circuit and whether the equipment is damaged

No output, red flashing LED for over temperature protection. Check if the ambient temperature is>70 ° C and clean the heat dissipation holes; reduce the load

Measure whether the output current exceeds the rated value when the output voltage is too low or the load is too large or the input is under voltage; Measure whether the input voltage is below 90Vac

Intermittent restart power boost mode repeatedly triggers to check for frequent inductive load startup; If normal, it can be regarded as a protective action

SCM module cannot communicate with network wiring or IP configuration errors. Check for twisted pair connections; Confirm that the IP address does not conflict; Use ping to test connectivity

4. Preventive maintenance recommendations

Check the tightening torque of input/output terminals every six months to prevent loosening and heating.

Use an infrared thermal imaging device to detect the temperature of the power supply body, with a focus on the capacitor and transformer areas.

Regularly read event logs through SCM modules and record the frequency of abnormal events.

For systems operating in extremely cold environments of -40 ° C, allow the power supply to preheat for a few minutes before powering on.


Technical certification and compliance

The SDN-D series has passed safety certifications in major global markets, making it convenient for equipment exports

North America: cULus Listed (industrial control equipment E61379, information technology equipment E137632, hazardous area E234790).

Europe: CE Low Voltage Directive, ATEX Directive (II 3 G Ex ec IIC T4 Gc).

International: IECEx certification, CB certification (IEC/EN 62368-1, 61010-1, etc.).

Environmental Protection: RoHS (EU, China).
