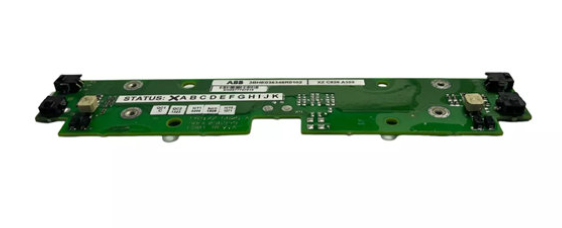

ABB XZC826A102 3BHE036348R0102 control module

ABB XZC826A102 3BHE036348R0102 control module

Module Overview

ABB XZC826A102 (order number: 3BHE036348R0102) is a high-performance control module designed specifically for industrial automation control systems, belonging to ABB's advanced process control product line. This module has the core advantages of high reliability, precise control capability, and strong compatibility, and is widely used in fields such as power, chemical, metallurgical, and manufacturing industries that require strict control accuracy and system stability. As the core execution unit of the control system, it undertakes key tasks such as signal processing, logical operations, and equipment control, providing solid guarantees for the safe and efficient operation of industrial production processes.

Core functional features

2.1 Multidimensional signal processing

The module has rich signal interfaces and can simultaneously process analog input/output (AI/AO) and digital input/output (DI/DO) signals. It supports multiple common signal types, such as 4-20mA analog current signal, 0-10V analog voltage signal, and dry contact digital signal. Through the built-in high-precision signal conditioning circuit, electromagnetic interference in industrial sites can be effectively suppressed, ensuring the accuracy of signal acquisition and the stability of output signals, providing a reliable data foundation for subsequent control logic operations.

2.2 Efficient Logic Control and Operations

Equipped with high-performance microprocessors, it has the ability to execute instructions quickly and perform complex logical operations. It supports various industrial standard programming languages such as ladder diagram (LD), functional block diagram (FBD), structured text (ST), etc., making it convenient for engineers to develop and debug programs according to actual control needs. The module is equipped with a comprehensive control algorithm library, covering commonly used algorithms such as PID control, logic interlocking, and timing control. It can quickly achieve closed-loop control and process linkage control of industrial equipment, improving the automation level of the production process.

2.3 High reliability and redundant design

Adopting industrial grade high stability components and strict production processes, it has a wide temperature working range (usually supporting -20 ℃~60 ℃) and good vibration and impact resistance, and can adapt to harsh industrial site environments. For critical control scenarios, the module supports redundant configuration function. When the main module fails, the backup module can seamlessly switch within milliseconds, ensuring that the control system is not interrupted and greatly improving the reliability and fault tolerance of the entire industrial control system.

2.4 Flexible Communication and Compatibility

Supports multiple mainstream industrial communication protocols, such as PROFINET, Modbus TCP, EtherNet/IP, etc., allowing easy access to different brands of industrial control systems and communication networks, achieving data exchange and information sharing with devices such as upper computers, PLCs, HMIs, etc. At the same time, this module has perfect compatibility with ABB's own AC800M, S400 and other series control systems, and can be directly used as a system expansion module, reducing the difficulty and cost of system integration.

2.5 Convenient Diagnosis and Maintenance

The module is equipped with a comprehensive self diagnostic function, which can monitor the working status, power supply voltage, communication link, and I/O interface status of the module in real time. When a fault occurs, it can quickly feedback fault information (such as fault code, fault location, etc.) through indicator lights, communication interfaces, etc., helping maintenance personnel quickly locate and eliminate the fault. In addition, the module supports online programming, online debugging, and firmware upgrade functions, which can complete maintenance operations without interrupting system operation and improve maintenance efficiency.

Key technical parameters

Basic Information

Model/Order Number

XZC826A102 / 3BHE036348R0102

Power parameters

Rated working voltage

24V DC (typical value), allowable fluctuation range: 18V~32V DC

Rated power consumption

≤ 15W (full load state)

power protection

Equipped with overcurrent, overvoltage, and reverse connection protection functions

Input/output parameters

Analog input (AI)

8 channels, 4-20mA/0-10V optional, accuracy ± 0.1%

Analog Output (AO)

4-channel, 4-20mA, load capacity ≤ 500 Ω, accuracy ± 0.1%

Digital Input (DI)

16 channels, dry contact/PNP/PNN optional, response time ≤ 1ms

Digital Output (DO)

8 channels, relay output (capacity 2A/250V AC) or transistor output (NPN/PNP)

Communication parameters

communication interface

2 RJ45 Ethernet interfaces, 1 RS485 serial interface

Supported Protocols

PROFINET V2.3，Modbus TCP/RTU，EtherNet/IP

environmental parameters

Operating Temperature

-20℃~60℃

Storage temperature

-40℃~85℃

relative humidity

5%~95% (no condensation)

mechanical parameters

Installation method

Standard DIN rail installation (35mm), dimensions: 140mm x 100mm x 60mm (length x width x height)

Applicable scenarios

This control module has been widely used in multiple industrial fields due to its comprehensive functionality and high reliability, mainly including:

-Power industry: used for boiler combustion control of thermal power units, speed regulation of steam turbine units, and equipment status monitoring and interlocking control of substations to ensure stable and efficient power production.

-Chemical industry: Suitable for closed-loop control of process parameters such as temperature, pressure, and liquid level in chemical reaction vessels, as well as logical control of material ratio and valve linkage in chemical processes, to ensure the safety of production processes and the stability of product quality.

-Metallurgical industry: used for process control in steel production processes such as blast furnace ironmaking and converter steelmaking, such as temperature monitoring and regulation, equipment operation status control, etc., to enhance the automation level of metallurgical production.

-Manufacturing industry: In the automation of production lines, it undertakes tasks such as equipment start stop control, process linkage, quality inspection data collection and feedback, and is suitable for discrete manufacturing scenarios such as automobile manufacturing and mechanical processing.

-Municipal engineering: used for water quality parameter control of sewage treatment plants, linkage control of water pumps and valves, as well as temperature regulation of urban heating systems and other livelihood areas, to improve the operational efficiency of municipal facilities.

Installation and usage precautions

1. Module installation must strictly follow the DIN rail installation specifications to ensure a secure installation and avoid vibration affecting module operation; The installation location should be far away from strong electromagnetic interference sources (such as high-power frequency converters, contactors, etc.), and shielding measures should be taken if necessary.

2. Before wiring, it is necessary to confirm that the power supply voltage level is consistent with the rated voltage of the module, and strictly follow the definition of the wiring terminal to avoid reverse connection of the positive and negative poles of the power supply or strong current connection to the signal terminal, in order to prevent module damage.

Before the first use, it is necessary to complete module parameter configuration and program download through ABB's dedicated programming software (such as Control Builder M) to ensure that communication protocol, I/O signal type, and other parameters match the system requirements.

During the operation of the module, the status of the indicator lights (power light, running light, fault light, etc.) should be regularly checked, and potential faults should be promptly identified in conjunction with diagnostic functions; During daily maintenance, it is necessary to cut off the power supply of the module to avoid live operation.

5. Module firmware upgrade requires the use of ABB's official upgrade program and firmware version to avoid using unofficial resources that may cause module functionality abnormalities.
