  • ABB PCD237A101 3BHE028915R0101 excitation control module
    ❤ Add to collection
  • ABB PCD237A101 3BHE028915R0101 excitation control module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    This module is a supporting component of ABB Advant OCS or Freelance control system, adopting standardized hardware design, with good compatibility and scalability. The core parameters are as follows:

    -Model identification: PCD237A101 is the module functional model, and 3BHE028915R0101 is the ABB global unified ordering number, which can be used for accurate procurement and traceability.

    -Power supply specifications: usually supports DC 24V wide voltage input, with overvoltage and overcurrent protection functions, suitable for complex power supply environments in industrial sites.

    -Installation method: Adopt rail or rack installation, comply with IEC standard installation dimensions, and facilitate quick integration into existing control system cabinets.

    -Environmental adaptability: The working temperature range is -10 ℃~60 ℃, the relative humidity is ≤ 95% (no condensation), and it has certain dustproof and anti-interference capabilities, meeting the requirements of industrial grade use.


    • ¥17858.00
      ¥17473.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.650KG
    • Quantity:
    • (Inventory: 99999)
Description

This module is a supporting component of ABB Advant OCS or Freelance control system, adopting standardized hardware design, with good compatibility and scalability. The core parameters are as follows:

-Model identification: PCD237A101 is the module functional model, and 3BHE028915R0101 is the ABB global unified ordering number, which can be used for accurate procurement and traceability.

-Power supply specifications: usually supports DC 24V wide voltage input, with overvoltage and overcurrent protection functions, suitable for complex power supply environments in industrial sites.

-Installation method: Adopt rail or rack installation, comply with IEC standard installation dimensions, and facilitate quick integration into existing control system cabinets.

-Environmental adaptability: The working temperature range is -10 ℃~60 ℃, the relative humidity is ≤ 95% (no condensation), and it has certain dustproof and anti-interference capabilities, meeting the requirements of industrial grade use.

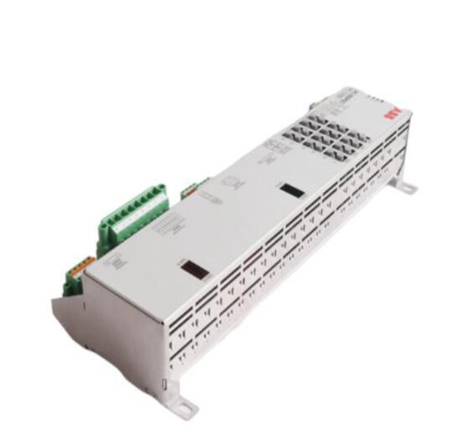

ABB PCD237A101 3BHE028915R0101 excitation control module

Basic information of module

This module is a supporting component of ABB Advant OCS or Freelance control system, adopting standardized hardware design, with good compatibility and scalability. The core parameters are as follows:

-Model identification: PCD237A101 is the module functional model, and 3BHE028915R0101 is the ABB global unified ordering number, which can be used for accurate procurement and traceability.

-Power supply specifications: usually supports DC 24V wide voltage input, with overvoltage and overcurrent protection functions, suitable for complex power supply environments in industrial sites.

-Installation method: Adopt rail or rack installation, comply with IEC standard installation dimensions, and facilitate quick integration into existing control system cabinets.

-Environmental adaptability: The working temperature range is -10 ℃~60 ℃, the relative humidity is ≤ 95% (no condensation), and it has certain dustproof and anti-interference capabilities, meeting the requirements of industrial grade use.


Core functions and working principles

The PCD237A101 module has the core workflow of "signal acquisition logic operation excitation output state feedback", and its functional design revolves around the precise excitation requirements in industrial process control, including:

1. Multi channel signal processing

The module integrates multiple analog and digital input channels, which can collect real-time sensor signals such as temperature, pressure, and flow in industrial sites, as well as switch signals of equipment operating status. After internal filtering, amplification, and A/D conversion, the input signal is converted into a digital signal recognizable by the control system, providing data support for precise control. At the same time, the module has signal calibration function, which can correct signal errors through software or hardware methods and improve data acquisition accuracy.

2. High precision excitation output

As a core function, the module can output stable analog excitation signals (such as 4-20mA current signals, 0-10V voltage signals) or digital control signals for driving actuators (such as valves, pumps, motors, etc.). Its output accuracy can reach ± 0.1% FS, with extremely low temperature and time drift characteristics, ensuring the stability of the output signal during long-term operation. For different load characteristics, the module supports load adaptive adjustment and can match execution devices with different impedances.

3. Logical control and linkage function

The module is equipped with a high-performance microprocessor that can perform local logic operations and autonomously make control decisions based on preset control strategies (such as PID regulation, interlocking logic, etc.), reducing dependence on the upper level controller and improving system response speed. At the same time, the module supports communication with the upper computer through industrial buses such as PROFIBUS, Modbus, EtherNet/IP, etc., to receive control instructions, upload operational data, and configure parameters, facilitating centralized monitoring and remote management.

4. Comprehensive fault diagnosis and protection

To ensure the continuity of industrial production, the module has a comprehensive fault diagnosis mechanism that can monitor its own operating status in real time (such as power supply abnormalities, channel faults, communication interruptions, etc.) and feedback signals from controlled equipment. When a fault is detected, it immediately triggers a local alarm (indicator light flashes) and sends fault information to the upper computer. In addition, the module also has functions such as output circuit short-circuit protection and overload protection, which can effectively avoid module damage caused by external faults and reduce maintenance costs.


Typical application scenarios

With its high reliability and precise control capabilities, the PCD237A101 module has been widely used in multiple industrial fields, with typical scenarios including:

1. Power industry: Used for boiler combustion control systems in thermal power units, providing precise excitation signals for burner ignition devices and damper actuators, achieving stable control of the combustion process, and improving boiler thermal efficiency.

2. Metallurgical industry: Applied to blast furnace coal injection system and continuous casting crystallizer cooling control system in steel production, precise adjustment of medium flow rate is achieved by controlling the operation status of pump valves, ensuring the stability of the smelting process.

3. Chemical industry: In the control system of chemical reaction vessels, modules are used to drive equipment such as stirring motors and regulating valves, and output corresponding excitation signals based on parameters such as reaction temperature and pressure to ensure that chemical reactions proceed according to preset processes.

4. Water treatment industry: In the aeration system and dosing system of sewage treatment plants, modules control the operation of aeration fans and dosing pumps to achieve precise control of dissolved oxygen content and dosage of chemicals, thereby improving the effectiveness of sewage treatment.


Installation and maintenance precautions

1. Installation specifications

Before installation, it is necessary to confirm the compatibility between the module model and the system, check the appearance of the module for any damage, and ensure that the pins are not bent; During the installation process, it is necessary to strictly follow the wiring diagram to distinguish between input, output, and power circuits, in order to avoid module burnout caused by reverse wiring; A certain heat dissipation distance should be maintained between the module and other devices to ensure good ventilation and avoid high temperature environments affecting operational stability.

2. Daily maintenance

Regularly clean the surface dust of the module, check whether the wiring terminals are loose or oxidized, and promptly tighten and remove rust; By monitoring the operating parameters of the upper computer module and regularly calibrating the input and output signals, the control accuracy is ensured; Establish a module operation file to record the time, cause, and handling of faults, providing reference for subsequent maintenance.

3. Fault handling

When the module malfunctions, first check whether the power supply is normal and eliminate external power supply problems; Next, check if the input and output wiring is reliable, and if there are any short circuits or open circuits; If the above investigation shows no abnormalities, testing can be carried out by replacing the spare module. After confirming the faulty module, contact ABB's official after-sales service for repair or replacement to avoid disassembling the module on your own and causing the fault to expand.
