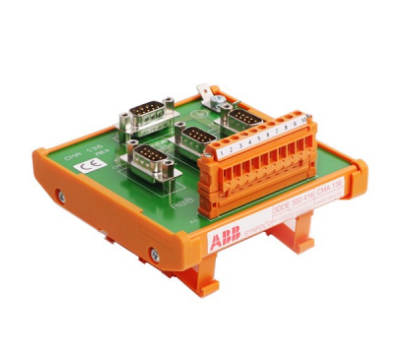

ABB SAFT183VMC Safety Monitoring and Control Module



ABB SAFT183VMC Safety Monitoring and Control Module

Product Overview

ABB SAFT183VMC is a high-performance safety monitoring and control module that meets international safety standards. It belongs to the ABB safety automation product series and is designed specifically for the safety protection of personnel, equipment, and production processes in industrial scenarios. This module is centered around high reliability safety logic control, multi-dimensional monitoring capabilities, and flexible integration features. It integrates safety signal acquisition, logic operation, safety output, and fault diagnosis, and can achieve emergency shutdown, safety interlock control, and real-time monitoring of key parameters for hazardous equipment. It is widely used in industries such as automobile manufacturing, mechanical processing, food and beverage, logistics and warehousing, and is a core component for building industrial safety automation systems.

As a safety level control device, SAFT183VMC complies with IEC 61508 Safety Integrity Level (SIL 3) and EN ISO 13849-1 PL e-level standards. It has a complete fault detection and fault tolerance mechanism, which can quickly respond to faults in itself or external devices, ensuring that safety functions do not fail and building a solid safety defense line for industrial production.

Core Features

1. High security level design to ensure compliance

The module strictly follows international mainstream safety standards such as IEC 61508 (SIL 3), EN ISO 13849-1 (PL e), EN 62061, etc. It adopts hardware redundancy and software fault-tolerant design, and the core control circuit has fault self diagnosis function, with a diagnostic coverage rate of ≥ 99%. Through a dual CPU architecture, independent secure channels, and cross validation mechanism, it effectively avoids safety function failures caused by a single fault, ensuring reliable execution of critical safety actions such as emergency shutdown and safety interlocking under any operating conditions, and meeting the strict compliance requirements of various industries for safety systems.

2. Multi dimensional monitoring and flexible control capability

Support the collection and processing of multiple types of safety signals, including emergency stop button signals, safety door switch signals, manual operation button signals, protection signals for light curtains/laser scanners, and safety related process parameter signals such as temperature and pressure. The module is equipped with rich safety logic function blocks, such as AND, OR, NOT, delay, voting, dual hand control, etc., which can be flexibly combined through configuration software to achieve customized safety control logic. It can meet the safety control needs of different scenarios without complex programming, such as interlocking control of safety doors and spindles in mechanical processing equipment, and regional safety protection of production lines.

3. Rapid response performance, reducing the risk of accidents

Using high-speed signal processing chips and optimized safety logic operation algorithms, the response time for collecting safety signals is ≤ 1ms, the safety logic operation time is ≤ 5ms, and the output delay of emergency stop signals is ≤ 10ms. It can trigger safety actions instantly when a dangerous event occurs, quickly cut off the power source of dangerous equipment, minimize the exposure time of danger, and reduce the risk of personnel injury and equipment damage. For example, when the light curtain detects that personnel have entered a dangerous area, the module can quickly control the equipment to stop, avoiding collision accidents.

4. Powerful integration and communication capabilities

Featuring flexible integration features, it supports seamless integration with mainstream PLCs such as ABB AC 800M and S7-1500, as well as HMI and SCADA systems. Equipped with multiple industrial standard communication interfaces, including EtherNet/IP, PROFINET, Modbus TCP, and RS485 serial interfaces, it supports real-time transmission of safety related data. It can upload module operation status, fault information, safety event records, and other data to the upper level monitoring system, while also receiving safety parameter configuration instructions from the control system. In addition, it supports safety communication protocols such as PROFIsafe and CIP Safety, enabling long-distance and highly reliable transmission of safety signals.

5. Convenient diagnostic and operational functions

Equipped with high-definition LED status indicator lights, it can intuitively display the power status, module operation status, input/output signal status, and fault type, making it easy for on-site personnel to quickly judge the equipment operation status. Through ABB safety configuration software such as Safe Eplan and Control Builder, engineers can achieve functions such as module parameter configuration, safety logic programming, fault diagnosis, and event record query. The module is equipped with a large capacity event recording memory, which can store ≥ 1000 security events (including information such as fault occurrence time, type, location, etc.), providing accurate data support for accident tracing and system optimization.

Key technical parameters

parameter category

specific parameters

Instructions

Basic Information

model

SAFT183VMC

Basic Information

Product Type

Safety monitoring and control module (safety PLC submodule)

security level

IEC 61508

SIL 3

security level

EN ISO 13849-1

PL e，Cat. 4

input parameters

Digital input

16 secure digital inputs, supporting PNP/NPN signals, rated input voltage 24V DC

input parameters

Analog input (optional)

4-channel 4-20mA analog input with an accuracy of ± 0.1%, used for monitoring safety related process parameters

output parameters

digital output

8-channel safety digital output, relay output (contact capacity AC 250V/5A, DC 30V/5A)

Response performance

Input response time

≤1ms

Response performance

Logical operation time

≤ 5ms (complex logic)

Response performance

Output delay time

≤ 10ms (emergency stop signal)

Power requirements

input voltage

24V DC redundant input, allowable fluctuation range 18V DC -30V DC

Power requirements

Typical power consumption

≤ 12W (without expansion module)

communication interface

Mainstream interface

2 Gigabit Ethernet interfaces (supporting PROFINET and EtherNet/IP)

communication interface

Auxiliary interface

1 RS485 interface (supporting Modbus RTU), 1 USB configuration interface

communication interface

Secure Communication Protocol

Supports PROFIsafe V2.4 and CIP Safety

environmental adaptability

Operating Temperature

-20℃ - +60℃

environmental adaptability

Storage temperature

-40℃ - +85℃

environmental adaptability

relative humidity

5% -95% (non condensing)

environmental adaptability

Protection level

IP20 (module itself), IP65 (with protective casing)

Mechanical dimensions

Length x Width x Height

100mm × 140mm × 220mm (standard rack installation size)

Installation method

Installation Type

35mm DIN rail installation, supports horizontal/vertical installation

Applicable scenarios

1. Automotive manufacturing industry: applied in automotive welding production lines, assembly lines and other scenarios, connecting safety equipment such as safety light curtains, safety door switches, emergency stop buttons, etc., to achieve safety interlock control of robot workstations and conveying equipment. When personnel accidentally enter a dangerous area or equipment malfunctions, the module quickly triggers a shutdown command to prevent mechanical injury accidents and ensure the safety of production line operators.

2. Mechanical processing industry: used for safety control of CNC machine tools, stamping machine tools, bending machines and other equipment, monitoring the safety door status of the equipment, the signal of the manual operation button and the tool running position, realizing the safe start and emergency stop control of the equipment through safety logic judgment, and avoiding personal injury caused by operator misoperation or equipment failure.

3. Food and beverage industry: In key links such as sterilization equipment and filling equipment in food processing production lines, this module can monitor safety parameters such as temperature and pressure, as well as the status of protective doors. When the parameters exceed the safety range or the protective doors are not closed, the power source of the equipment is immediately cut off to prevent equipment damage or personnel burns caused by high temperature and high pressure, while ensuring food production safety.

4. Logistics and warehousing industry: Suitable for intelligent warehousing equipment such as stacker cranes and conveyor belts, connected to safety monitoring devices such as laser scanners and limit switches, to achieve safety protection in the operating area of the equipment. When personnel or obstacles are detected entering the equipment operation area, the module quickly controls the equipment to slow down or stop, avoiding collision accidents and ensuring safe and efficient warehousing operations.

5. New energy industry: In the mixing, coating, assembly and other processes of lithium battery production workshops, this module can be connected to explosion-proof safety sensors and equipment interlocking devices to monitor the concentration of combustible gases and the operation status of equipment in the workshop. When safety hazards occur, timely safety actions such as ventilation and shutdown can be triggered to prevent safety accidents caused by flammable and explosive substances in the production process of lithium batteries.
