In the field of industrial water treatment and process control, GE Sensing (now under Baker Hughes) has launched the AT868 AquaTrans ™  Ultrasonic flow transmitters are widely used for flow monitoring of water, wastewater, and various industrial fluids due to their high precision, non-invasive measurement, and dual channel support capabilities. However, as the service life of the equipment increases, on-site engineers often face problems such as abnormal display, signal loss, and unstable output.

This article is based on the official technical manual of AT868 and combines practical maintenance experience to systematically review the common fault diagnosis process, key component replacement methods, and system calibration techniques of the equipment. The aim is to provide engineers with an operational on-site maintenance guide to help them respond quickly and reduce downtime when equipment malfunctions.

Chapter 1: Overview of AT868 System Architecture and Common Malfunctions

AT868 is a flow transmitter based on the principle of ultrasonic propagation time difference, supporting 1 or 2 channel configurations, suitable for wet or clamp type sensors. Its core components include:

Electronic casing: NEMA 4X/IP66 protection level, including LCD display screen, keypad, main control board (Channel 1/2 board), and power module.

Sensors (transducers): divided into wet and clamp on types, with a frequency range of 500 kHz to 4 MHz.

Input/output interface: 4-20 mA analog output, frequency/accumulator pulse output, RS232/RS485 serial port.

External reset switch: used to remotely reset the accumulator.

Common fault manifestations include:

LCD has no display or blurry display

The flow reading is unstable or zero

Error codes such as E1, E2, E3, E9 frequently appear

Abnormal analog output current or poor linearity

Accumulator does not count or overflows

The following chapters will analyze the root causes and steps for addressing these issues one by one.

Chapter 2: In depth Analysis of Error Codes and On site Countermeasures

AT868 has a rich built-in self diagnostic mechanism, which displays an error code starting with "E" on the LCD when the system detects an abnormality. Understanding the meaning of these codes is the first step in quickly troubleshooting.

2.1 E1: Low Signal

Possible reasons:

Broken or poor contact of transducer cable

Improper installation of sensors (poor coupling or positional deviation)

Excessive bubbles or solid particles in the fluid

Internal signal processing board failure of electronic casing

On site countermeasures:

Check if the transducer cable connection is secure and if the cable shielding layer is grounded.

Reapply the coupling agent (clamp type sensor) and confirm the alignment mark of the sensor.

Use the diagnostic menu to check the signal strength (SS up/dn), which should normally be between 50-75.

Attempt to replace the backup transducer pair (must be replaced in pairs).

2.2 E2: Sound Speed Error

Possible reasons:

The fluid type entered in the program does not match the actual one

Fluid temperature changes cause sound velocity drift beyond the ± 20% limit

On site countermeasures:

Enter CHx → PIPE → FLUID TYPE and confirm that the fluid selection is correct.

If a custom fluid is used, adjust the "Sound Speed ± Limit" in CHx → SETUP → SIGNL to more than 30%.

Enable the "Tracking Window" function (CHx → PIPE → Tracing Window=YES) to allow the device to automatically track changes in sound speed.

2.3 E3: Velocity Range Exceeding Limits

Possible reasons:

Flow rate exceeds the set range (default ± 40 ft/s)

The sensor is installed near sources of disturbance such as bends and valves

On site countermeasures:

Check and expand the 'Velocity Low/High Limit' in CHx → SETUP → SIGNL.

Ensure that there are sufficient straight pipe sections upstream and downstream of the sensor (upstream 10D, downstream 5D).

Check if it is bidirectional flow and turn off reverse measurement if necessary.

2.4 E9: Totalizer Overflow

Possible reasons:

The programming pulse unit is too small (e.g. 0.001 gallon per pulse)

Excessive traffic leads to accumulator count exceeding the upper limit

On site countermeasures:

Enter GLOBL → I/O → OPTN → TTLZR, increase the "UNITS/PULSE" value (e.g. change from 1 gal/pulse to 10 gal/pulse).

Simultaneously adjust the Min Pulse On Time to avoid pulse overlap.

2.5 E13: Volumetric Overflow

Possible reasons:

The measurement unit selection is too small (such as ml/s instead of m ³/h)

Incorrect setting of fluid density or viscosity parameters

On site countermeasures:

Select larger units (such as m ³/h, MGAL/d) from CHx → SYSTM → VOLUMETRIC UNITS.

If MASS FLOW is enabled, check if the density value is reasonable.

Chapter 3: On site Hardware Replacement and Maintenance Operations

When software diagnosis fails to solve the problem, it may be necessary to replace physical components. The following are the three most common replacement tasks for AT868.

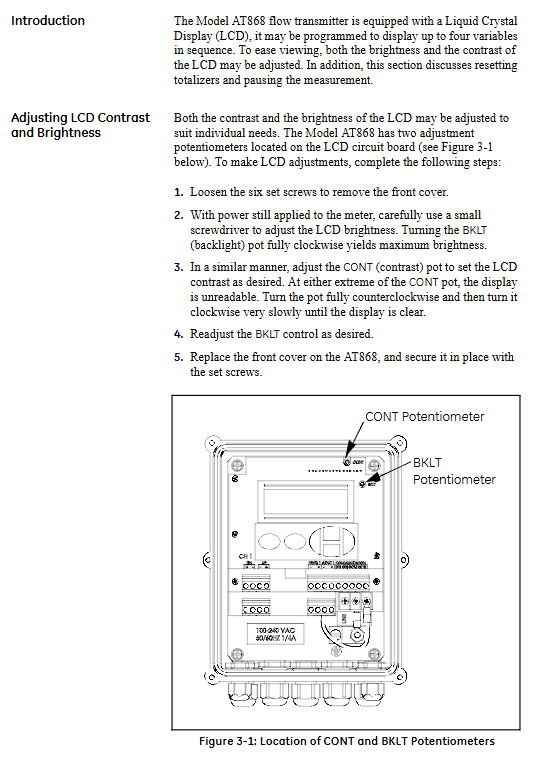

3.1 Replace LCD display screen and keypad

Applicable scenarios: No display on the screen, no backlight, no response to buttons.
