Allen Bradley Guardmaster Safety Relay (440R/440C-CR30) Selection, Integration, and Troubleshooting Complete Guide

In industrial machinery safety control, safety relays are key logic components that connect input devices such as emergency stop buttons, safety door switches, and light curtains with output loads such as contactors and servo drives. The Allen Bradley Guardmaster series safety relays under Rockwell Automation are widely used in various mechanical equipment due to their high reliability, modularity, and intelligent network capabilities. However, faced with diverse models - from the single function GSR series to the software configurable 440C-CR30, and to the 440R-ENETR network interface supporting EtherNet/IP - engineers often need to make the right decisions in selection, wiring, network integration, and troubleshooting. This article is based on the technical content of the Guardmaster product manual, combined with on-site experience, to systematically explain the selection points, hardware installation, network topology construction, and common troubleshooting methods (such as input point not recognized, output not switching, network communication timeout, etc.) of this series of safety relays, helping engineers quickly restore safety functions and meet the compliance requirements of ISO 13849 or IEC 62061.

Overview of Guardmaster Safety Relay Family

The Guardmaster series is divided into three categories, covering security control requirements from small single machines to complex integrated systems.

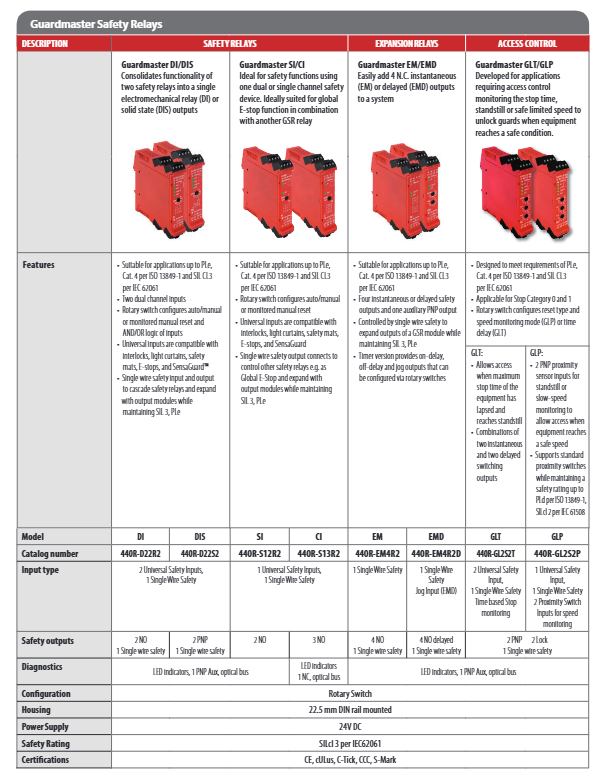

2.1 Single function safety relay (GSR series)

The GSR series is a specialized relay designed for specific safety functions, with a simple model that does not require software programming and can be configured through hard wiring. Typical models include:

Catalog Number Function Description

440R-D22R2 Guardmaster DI， Dual channel emergency stop/safety door monitoring

440R-D22S2 Guardmaster DIS， Dual channel input with short circuit detection function

440R-EMAR2 Guardmaster EM， Emergency stop monitoring

440R-EMAR2D Guardmaster EMD， Emergency stop+delayed output

440R-GL2S2P Guardmaster GLP， Light curtain/safety switch monitoring

440R-GL2S2T Guardmaster GLT， Light curtain/safety switch+delay

The common features of these single function relays are no programming required, plug and play, and cost-effectiveness. Suitable for safety circuits with fixed points and simple logic, such as emergency stop or protective door monitoring of a single conveyor.

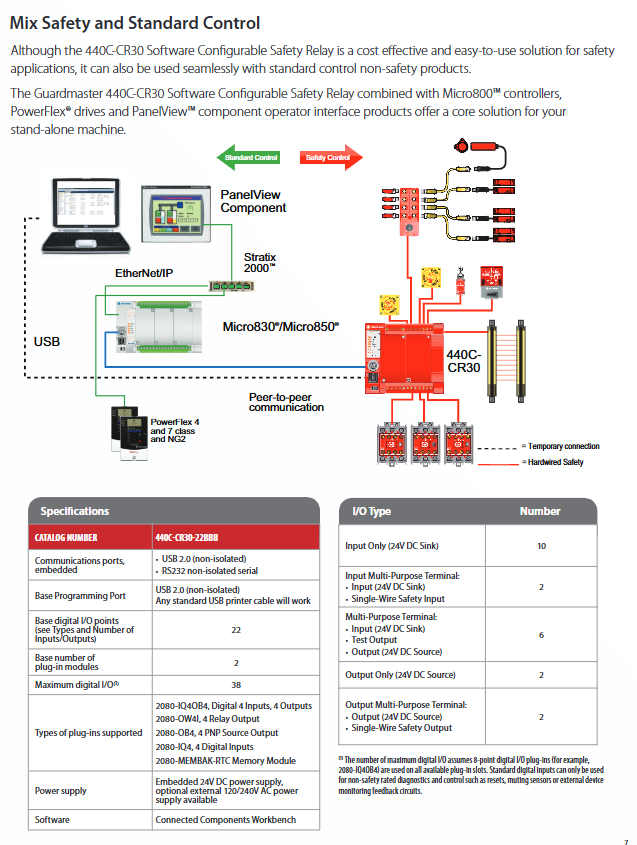

2.2 Configurable safety relay (440C-CR30)

440C-CR30 is a software configurable safety relay that can be logically configured through Connected Components Workbench (CCW) software. It supports up to 38 digital I/O (via extension plugins) and can flexibly achieve control of multiple safety zones and complex logic (such as dual channel interlocking, delay, bypass, etc.). It has built-in USB and RS232 programming ports, and supports seamless integration with Micro800 controllers and PowerFlex drives, achieving a hybrid architecture of safety and standard control.

2.3 EtherNet/IP Network Interface (440R-ENETR)

For scenarios where the status of safety relays needs to be integrated into the upper monitoring or PLC system, 440R-ENETR provides a bridge: it connects up to 6 Guardmaster safety relays (such as 440R-D22R2, etc.) through an optical bus and sends their diagnostic information, contact status, fault logs, etc. to the EtherNet/IP network, supporting linear, star, and ring topologies. This interface complies with the ODVA standard, which can significantly reduce downtime and improve startup efficiency.

Selection Guide: How to Choose the Right Guardmaster Model

3.1 Select based on input device type

Recommended GSR model description for safety equipment

Single channel emergency stop 440R-EMAR2 is suitable for simple non redundant applications, but does not comply with Cat.4

Dual channel emergency stop (without short circuit detection) 440R-D22R2 is suitable for most standard applications and can reach Cat.3/4 (depending on external wiring)

Dual channel emergency stop (requires detection of jumper short circuit) 440R-D22S2 is used for long-distance wiring or high safety level requirements (PL e)

Light curtain/safety switch (OSSD output) 440R-GL2S2P supports automatic/manual reset and is compatible with pulse signals

Light curtain+delayed output 440R-GL2S2T is suitable for hazardous areas that require delayed shutdown (such as machines with long sliding time)

Emergency stop+delay 440R-EMAR2D is used in situations where delayed release of brakes or pressure relief is required after stopping the machine

3.2 Selection based on logical complexity

Simple logic (≤ 3 safety inputs, single output): Choose GSR single function relay, high cost-effectiveness, no software required.

Medium logic (4-9 safety inputs, multi zone control): Choose 440C-CR30, which can be freely configured through CCW logic, reducing external hard wiring and facilitating later modifications.

Network monitoring or integration with Logix controller is required: choose GSR+440R-ENETR, or directly use GuardLogix safety PLC. But if the budget is limited and only needs to monitor the status of safety relays, ENETR is the best choice.

Installation and wiring specifications

4.1 Mechanical Installation

All Guardmaster relays are designed for 35mm DIN rail installation with a panel protection level of IP20. Ensure that the heat dissipation space is at least 50mm above and below during installation.

Environmental temperature range: -10 ° C~+55 ° C (GSR), -20 ° C~+60 ° C (440C-CR30), avoid approaching high-power heating elements.

4.2 Power Wiring

Power supply voltage: 24V DC (± 20%), power consumption varies depending on the model (typical value 2-5W).

SELV/PELV certified power supply must be used, and 0V must be grounded (to prevent floating ground interference).

For 440C-CR30, an external 120/240V AC power module is also available as an option.

Important reminder: Multiple safety relays can share the same 24V power supply, but it is necessary to ensure that the power capacity is sufficient (total power does not exceed the rated value) and install a fast fuse (2A recommended).

4.3 Input circuit wiring

The GSR series typically offers two or three secure input channels (such as S11-S12, S21-S22, etc.). Wiring method:

Single channel (not recommended for high security level): using only one normally open contact, suitable for secondary protection that does not require redundancy.

Dual channel (standard): Using two independent normally open contacts (or a pair of normally open+normally closed), Cat.3/4 can be achieved.

Dual channel with short circuit detection: It is necessary to connect the two wires of the input circuit to the corresponding detection terminals (for example, S11 and S12 are not short circuited, but are connected to the two ends of the emergency stop contact), and use auxiliary terminals to detect the jumper short circuit. This wiring method has strict limitations on cable resistance (usually<10 Ω), otherwise it may trigger incorrectly.

Common wiring errors:

Sharing the normally open contacts of the dual channels on one COM terminal resulted in the inability to detect short circuits between the two channels.

The external reset button (S33-S34) was not connected, resulting in the device being unable to restart (if configured for monitored startup, manual reset is required).

4.4 Output Circuit Wiring

The safety output contacts are usually labeled as 13-14, 23-24, 33-34, etc., and the contact rating is generally 6A (240V AC) or 5A (24V DC).

For inductive loads (contactor coils, solenoid valves), surge suppressors (such as RC absorption circuits or freewheeling diodes) must be connected in parallel at both ends of the contacts, otherwise it will seriously shorten the contact life and generate electromagnetic interference.

To prevent contact fusion welding, the output circuit should be connected in series with fuses of appropriate specifications (slow melting 6A or fast melting 10A is recommended).

4.5 Description of Multi functional Terminals for 440C-CR30

The terminals of 440C-CR30 are configurable:

Dedicated input (10 points): 24V DC leakage type input, used for standard safety input.

Multi functional terminal (2-point): can be configured as input, single wire safety input, or test output.

Multi functional terminal (6 points): can be configured as input, test output, or safety output (24V DC source type).

Dedicated output (2-point): 24V DC source type output, used to directly drive contactors or indicator lights.

Multi functional output (2 points): can be configured as standard output or single line safe output (SWO).

This flexibility allows a module to handle multiple applications, but the terminal functions must be configured correctly during programming, otherwise it may lead to the failure of safety functions.

Integration with EtherNet/IP: Detailed explanation for using 440R-ENETR

5.1 Hardware Connection

Connect 440R-ENETR to an industrial Ethernet switch (or directly connect to a controller) via RJ45 interface.

Connect ENETR and up to 6 Guardmaster GSR relays (such as 440R-D22R2, etc.) using optical bus cables. The optical bus adopts a dedicated plug, with a maximum transmission distance of about 10 meters.

Power supply: 24V DC.

5.2 Network Configuration

Assign a fixed IP address to ENETR through BOOTP/DHCP servers or using Rockwell's BOOTP-DHCP tool.

Add the EDS file of ENETR module in RSLogix 5000/Studio 5000 and add it as Generic Ethernet Module to the I/O configuration.

Data Mapping: As an adapter, ENETR's input/output data instance size depends on the number and type of GSRs connected. Each GSR relay will occupy a certain amount of bytes of status information (such as channel status, fault codes, contact positions, etc.).

In PLC programs, these status words can be read to monitor the operation status of safety relays and generate diagnostic alarms.

5.3 Common Network Malfunctions and Troubleshooting

Possible causes and solutions for the fault phenomenon

ENETR is not communicating, MS/NS light is flashing red, IP address conflict and network fault are detected. Check network cables, use Ping command to test, and reassign IP addresses

ENETR can ping, but PLC cannot establish connection. EDS file version mismatch, instance size error. Reinstall EDS file and check input/output data length (usually 1-20 bytes)

The status of some relays connected to ENETR cannot be read. If the optical bus connection is interrupted or the relay is not powered on, check if the optical cable plug is secure and if the relay power supply is normal

Occasionally losing or delaying relay status due to high network load or short scan cycle setting. Increase RPI (Request Packet Interval) to 50ms or more to optimize the network

Programming of configurable safety relays - taking 440C-CR30 as an example

6.1 Software Environment Preparation

Download and install Connected Components Workbench (CCW), version 12.0 or above is recommended.

Connect the USB port of 440C-CR30 to the computer using a standard USB printer cable (type A to type B).

The first connection requires the installation of a USB driver (automatically completed or downloaded from the Rockwell website).

6.2 Creating Projects and Configuring Logic

Create a new project in CCW and select 440C-CR30-22BBB.

Import hardware configuration: Add the required extension plugins (such as 2080-IQ4, 2080-OB4, etc.) in the "I/O Configuration".

Configure secure input: Map physical terminals to input variables in the secure logic editor.

Write security logic using security function blocks (SF_STOP, SF_GateMonitor, etc.). Each functional block has inputs (such as Input1, Input2, Reset), outputs (such as Out, Error), and status bits.

Map logical outputs to physical security output terminals (multifunctional terminals require "Output" mode to be enabled).

Compile the project and download it to the relay.

Important security reminder: The security logic must be tested and verified, and password protection must be set in the software to prevent unauthorized modifications. Functional testing must be conducted after each modification (such as actual triggering of emergency stop and confirmation of output disconnection).

6.3 Common Configuration Errors

Possible causes and solutions for error phenomena

Compile error: "Input not connected" function block. Input pins are not connected to constants or variables. Force all unused inputs to be inactive (False) or use the "Unused" placeholder

After downloading, the relay cannot enter the running state. There is a deadlock in the logic (such as the reset condition never being met). Check the reset logic: usually requires a rising edge from False to True, and the safety input has been restored to closed

The safety output does not conduct. The multifunctional terminal is not configured as an output or the output mapping is incorrect. Confirm in the hardware configuration that the purpose of the terminal is "Output" and check if the logical output address is correct

Single Wire Safety Input (SWI) is invalid. The SWI function has not been enabled in the module properties. Enter the module properties and set the corresponding channel as "Single Wire Safety Input" with the source address set

Common on-site troubleshooting (no programming version - GSR series)

7.1 Fault phenomenon: POWER LED does not light up after power on

Possible reasons:

The 24V power supply is not connected or the voltage is too low (<19V).

Reverse power supply (A1/A2 polarity error).

Internal fuse burnout (rare).

Troubleshooting steps:

Measure the voltage at terminals A1-A2 with a multimeter, which should be 24V DC ± 20%.

Check if the power module output is normal and confirm that the wiring terminal screws are tightened.

If the voltage is normal but still does not light up, measure the resistance between A1-A2 after cutting off the power. The normal resistance should be several thousand ohms. If it is close to 0 Ω or infinity, it may be internally damaged and the relay needs to be replaced.

7.2 Fault phenomenon: After the input is closed, the safety contact does not close (START LED does not light up or flashes)

Possible reasons:

The dual channel input is not synchronized (the time difference between the two signals exceeds the rated value, usually 3 seconds).

The startup circuit (S33-S34) is not closed as required (if a relay needs to be monitored for startup, the reset button must be pressed and a certain period of time must be waited for).

The external wiring of the feedback loop is open (if EDM function is used, Y1-Y2 needs to be connected in series with the normally closed auxiliary contacts of the external contactor).

There is a short circuit or ground fault in the input circuit (models with short circuit detection will be locked).

Troubleshooting steps:

Check if the security input indicator lights (such as CH1, CH2) are constantly on. If any channel is not lit, check the corresponding switch contacts and wiring.

If CH1 and CH2 light up simultaneously but K1/K2 do not engage, check the reset circuit: for automatic reset models, there should be a jumper between S33-S34; For manual reset, press the button and observe if the START LED lights up.

If EDM (contact monitoring) is used, measure the resistance between terminals Y1-Y2: under normal circumstances, it should be conductive (~0 Ω). If it is an open circuit, check whether the auxiliary contacts of the external contactor are working or if the wiring is disconnected.

For models with short circuit detection (such as 440R-D22S2), if the input cable is too long (resistance>10 Ω), it may cause false detection. At this point, the detection terminal can be temporarily short circuited to verify (but ultimately the cable should be shortened or the wire diameter increased).

7.3 Fault phenomenon: The safety output contact cannot be disconnected (even if the input is open)

Dangerous situation: This malfunction may cause the machine to continue running even after an emergency stop and must be dealt with immediately.

Possible reasons:

Output contact welding (due to overcurrent or inductive load without suppression circuit).

The internal relay is mechanically stuck.

The delay time of the delay model has not ended (such as 440R-EMAR2D or GL2S2T).

troubleshoot

Disconnect the input circuit (turn off CH1 and CH2 LEDs) and measure the resistance between output contacts 13-14. If the resistance is less than 1 Ω, it indicates that the contact is welded.

Check if the load current exceeds the rated value of the contacts (6A AC/5A DC). If it does, an intermediate contactor should be used for isolation.

For models with delayed output, wait for the longest delay time before measuring again. If it still conducts, it may be a delay circuit fault and needs to be replaced.

Emergency measures: Immediately cut off the main power supply of the equipment, replace the safety relay, and check if the load circuit is short circuited or if the surge suppressor is malfunctioning.

7.4 Fault phenomenon: Frequent misoperation of relays or output jitter

Possible reasons:

The input signal is subject to electromagnetic interference (such as using shielded cables for long lines or sharing conduits with power lines).

Excessive power ripple or unstable 24V voltage.

The external reset button contacts shake.

solve:

Connect a 0.1 μ F/50V capacitor in parallel at the input end to filter out spikes (note that the capacitor may affect the short-circuit detection function).

Use shielded twisted pair cables and ground the shielding layer at one end.

Check if the power supply comes from a switch power supply, and if necessary, install ferrite magnetic rings or replace with a higher quality power supply.

Preventive maintenance and lifespan management

8.1 Regular Inspection (According to ISO 13849-1)

PL e/SIL 3: At least one functional test per month - triggering an emergency stop to confirm that all safety outputs are disconnected and cannot be automatically reset (unless manually reset).

PL d/SIL 2: Once every six months or annually.

8.2 Mechanical lifespan

The mechanical lifespan of GSR series relays is usually 10 million operations, and the electrical lifespan depends on the load. At rated current (AC15, 5A), the electrical lifespan is approximately 100000 cycles. When the machine frequently starts and stops every day, replacement should be considered within 5 years.

8.3 Cleaning and Inspection

Clean the dust inside the relay with compressed air every year (be careful not to damage the components).

Check the torque of the terminal screws (0.5~0.6Nm) to ensure there is no looseness.

Check all external surge suppressors for damage (such as RC burning or diode breakdown).

8.4 Firmware Update (440C-CR30 only)

After connecting through CCW, you can view the firmware version and download the update package from the Rockwell website. Before updating, it is necessary to back up the project and ensure network stability (to avoid relay bricking caused by update interruptions).
