Classic Programmable Controller Maintenance Guide: In Depth Memory Management and I/O Configuration

In the field of industrial automation, many factory production lines still rely on classic programmable logic controllers (PLCs) that have been in service for decades. These systems are retained due to their stability and maturity in specific processes. However, with the iteration of the original manufacturer's product line and the replacement of technical personnel, maintaining these "veterans" has become challenging. It is crucial to master a systematic set of operations and troubleshooting methods when facing a controller with an unknown status that requires configuring new I/O modules or diagnosing an intermittent logic fault.

This article will provide you with an in-depth technical guide using a classic controller architecture (similar to the 884 model) as an example. We will bypass tedious theories and focus directly on the most challenging core tasks that engineers face in daily maintenance: thorough cleaning and initialization of system memory, construction and diagnosis of I/O configuration (flow tables), and efficient editing and debugging techniques for ladder diagram logic. By mastering these skills, you can confidently tackle most maintenance challenges without original factory support.

System 'Hard Startup': Deep Memory Cleanup and Initialization

When you take over a controller with an unknown state or when a program encounters an unexplained exception, the most thorough solution is often to perform a "hard boot" of the system - that is, to perform a comprehensive memory cleanup and initialization. This is not simply deleting the program, but resetting all storage areas of the controller to a known, clean initial state.

Before performing any memory operations, it is necessary to confirm the physical hardware security. There is usually a physical key switch or jumper on the controller body for memory write protection. Before attempting to modify any configuration or logic, this switch must be placed in the "unlocked" or "programmed" position. This is the first line of defense against accidental modifications and also the standard operating habit of engineers.

Once it is confirmed that modifications can be made, we can perform different levels of memory cleaning. The highest level operation is to clear all memory. This operation will perform all of the following steps, equivalent to formatting the controller once:

User logic reset: All user program cascades in the controller memory will be replaced with "logic end" nodes, which is equivalent to wiping out the entire program.

Coil state reset: All internal coils and physical output points will be set to the "disabled off" state.

Register reset: All hold registers (such as 4xxxx) and internal registers used for data storage will be reset to 0.

I/O configuration table reset: The Traffic Cop configuration you created for the input/output module will be cleared. This means that the controller will no longer know which physical slot has installed which module.

Password table clearing: Any level of access password will be removed, ensuring that you can access the system completely and unobstructed.

This operation is usually used before the system is first put into use or when it is necessary to completely abandon the original program. After execution, the controller will become blank like a newly manufactured device.

In many cases, such extreme actions are not necessary. You can clean more targetedly:

Clear User Logic Only: This operation only erases the program, but retains the values in the I/O configuration and registers. When you need to rewrite a program but keep the hardware configuration unchanged, this is the most efficient choice.

Selectively clear registers: You can specify a register range (e.g. from 40001 to 40100) for clearing. This is very useful when debugging data collection or recipe management logic, as it can avoid the interference of historical data on new logic.

Initialize Tables: This is an advanced repair tool. When some system tables inside the controller are damaged, causing abnormal system behavior, the system may prompt you to initialize specific tables (for example, type 'C' and perform an operation). This is the 'miracle drug' to solve 'stubborn' software errors.

Understanding these different levels of memory operations is the first step towards efficient maintenance. It can help you solve problems accurately without losing necessary configurations.

The Art of "Flow Meter": Configuration and Diagnosis of I/O Modules

In the classic PLC system, the process of allowing the controller to "recognize" its physical I/O modules is called configuring a "Traffic Cop". This name is very vivid - it's like a traffic police officer directing the orderly flow of data between physical slots and memory addresses. Proper configuration of a flow meter is a prerequisite for any program to correctly read inputs and control outputs. For system integration and troubleshooting, this is usually the first step that needs to be checked.

The core of building a flow meter is to establish a mapping relationship that tells the controller: Is an 8-point input module or a 16 point output module installed on channel 1, rack 1, and slot 4 (for example)? Where should the corresponding memory address (reference number) start?

A typical configuration process is as follows:

Stop controller: Before modifying the flow meter, it is necessary to ensure that the PLC is in stop mode, which is the safety red line.

Enter the I/O configuration interface: Enter the relevant configuration program through the main menu of the programming software.

Locate the target slot: The screen will display a spreadsheet like interface, with rows representing racks and slots and columns representing various parameters.

Input module type: For an empty slot, a placeholder (such as "B8") is usually displayed by default. You need to enter the suffix number of its model code based on the actual installed module (for example, for B805 module, type "05"). A very practical feature is that the controller can communicate with the physical module and read its model. If the model of a module is highlighted on the screen, it means that your software configuration does not match the actual module on the physical slot. This is an extremely important visual warning!

Assign reference number: Assign a starting address to this module. For a 16 point input module, you may type "10001". The system will automatically calculate the end address "10016" for you. For the output module, allocate "00001" and so on. The selection of reference numbers is crucial, ensuring that they do not overlap with the addresses of other modules.

The most powerful diagnostic tools in flow meter configuration are the Health and Mismatch functions.

Health check during operation: Perform health check function while the controller is running. It will query the I/O modules you have configured one by one and report whether they are communicating normally. A healthy system will display 'This channel module is normal' on the screen. If a module is configured incorrectly, physically damaged, or communication interrupted, it will be clearly listed as' unhealthy '.

Stop mismatch check: This function is executed when the controller is stopped. It will compare your software configuration list with the actual scanned physical module list one by one and list all inconsistencies. For example, it will report: 'Slot 104: Software configured as B802 (8-point output), actually detected as B805 (16 point input)'.

These two functions are powerful tools for troubleshooting I/O issues. When you are at a loss when faced with a cabinet of flashing indicator lights, they can instantly focus your attention on the problem point and say goodbye to blind guessing.

The Art of Logic: Ladder Diagram Editing and Efficient Debugging

With the correct hardware configuration, the next task is to write and debug user logic. The classic PLC uses the Ladder Logic programming language, which simulates relay control circuits and is very intuitive for electrical engineers.

The program consists of individual "networks", each of which is equivalent to a "cascade" in a relay circuit diagram.

1. The cornerstone of network programming: elements and editors

A network has a fixed maximum size, such as a width of 11 columns and a height of 7 rows. The rightmost column is dedicated to placing coils. A network can be freely composed of contacts, coils, and various functional blocks such as timers, counters, and mathematical operation blocks.

Programming software usually provides two editing modes, and understanding their differences can greatly improve programming efficiency:

Online editing mode (Element Editor): In this mode, any modifications you make on the programmer (such as adding a contact) will be immediately sent to the PLC and affect the logical execution of the next scanning cycle. This is the ideal mode for fine-tuning and online troubleshooting, as it allows you to observe in real-time the impact of logical changes on physical processes. When the PLC is running, the "power rail" on the screen is highlighted, indicating that the logic is being scanned.

Offline editing mode (Network Editor): This mode is safer, especially when making significant program modifications. You can create or edit the entire network in this mode, but the modifications will not be immediately sent to the PLC. The entire set of modifications will only take effect once you execute the 'Replace Network' or 'Insert Network' command. The most valuable application of this mode is the Exchange Network function: you can read a network from the PLC into the programmer, modify it in offline mode (while the PLC is still running old logic), and then "exchange" the old network in the PLC with the modified network. If there is a problem with the new logic, you can use the "Flip Stack" function to immediately restore the previous version. This provides a secure and fallback experimental environment for testing and validating new programs.

2. Flexible editing techniques: unfolding, compressing, and inserting

To make your ladder diagram neat and easy to read, mastering network editing skills is a compulsory course.

Vertical operation: You can expand (add one line) or compress (delete one line) the space above the current cursor line. If you enter a numerical value (such as 2), you can expand or compress 2 elements at once instead of the entire line. This is very useful for inserting a single additional contact in compact logic.

Horizontal operation: Similarly, you can expand or compress space to the right of the current column to insert additional conditions in the logical path.

3. The wonderful use of coils and transition contacts

The coil is the final output of logical operations. In addition to ordinary non holding coils, there is also a type of latch coil that can maintain its state after power failure. This is crucial for remembering events that have occurred, such as emergency stop alarms.

Transitional Contact is a powerful tool in ladder diagram debugging. Unlike ordinary contacts, it only conducts during one scanning cycle after detecting a change in its reference signal from "off to on" (rising edge) or "on to off" (falling edge). You should always use transition touchpoints in the following scenarios:

Drive counter: Ensure that each button press counts only one number, rather than counting thousands of times throughout the entire press period.

Perform a one-time data migration operation: When you want a certain condition to be met, copy the data only once instead of copying every scan cycle.

Triggering event: such as initiating a single pulse.

4. Advanced Debugging Features: Force and Disable

This is the most powerful tool for maintenance engineers. Through the programmer, you can force a physical input point or internal coil to "turn on" or "turn off". But before being enforced, this point must be disabled first. Disabling the operation will disconnect the point from the actual signal or logical solution results on site. Then, you can force it to ON or OFF as you wish.

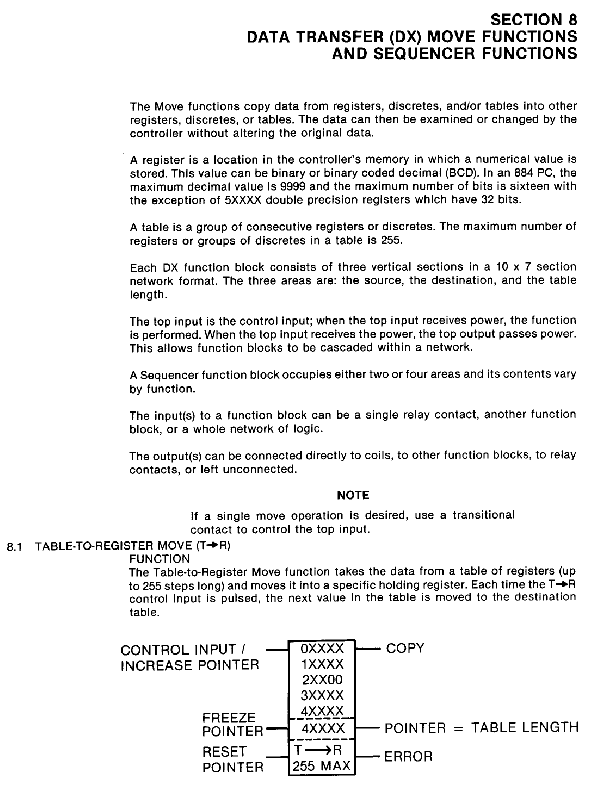

Warning: Mandatory functionality is a double-edged sword. When using data transfer (DX) function blocks, especially block shift (BLKM) or bit modification (MBIT) instructions, they will override the disabled state of the target coil. This means that even if you think you have disabled an output point and forced it to turn off, an active DX command may still turn it on, causing danger. Therefore, the safest way to perform maintenance involving output points is to disconnect the load power supply, rather than relying solely on software forced functions.

Practical troubleshooting: a classic case analysis

Using the above knowledge, let's take a look at a typical troubleshooting process.

Fault phenomenon: A device controlled by a classic PLC on the production line has abnormal operation of one of its cylinders (controlled by output point 00005), sometimes not operating, and sometimes malfunctioning.

Troubleshooting steps:

Observe I/O status: Firstly, use the "Partial Reference" or "Full Reference" screen of the programmer to monitor the actual status of output point 00005. At the process where the device should trigger the cylinder, observe whether 00005 becomes ON.

Check logic: If the physical state of 00005 changes correctly but the cylinder does not move, the problem may lie in the periphery (solenoid valve, air source, cylinder itself). If the status of 00005 does not change as expected, the problem lies within the program.

Online logic tracking: Switch to online editing mode and display the entire network controlling the 00005 coil. At this point, the ladder diagram on the screen should dynamically display "energy flow". You can see which path is disconnected due to which contact, causing the coil to be unable to receive power. This can quickly locate whether the input signal has not arrived, there is an internal intermediate relay logic error, or if the timer/counter conditions are not met.

Utilize the disable/force function:

To test whether the output point itself is normal, the output coil 00005 can be disabled and then forced to ON. If the cylinder is operating at this time, it indicates that the output point and peripheral hardware are intact.

To test a critical input signal (such as limit switch 10002), input 10002 can be disabled and observed when its normally open contact appears in the logic. Then force 10002 to ON. If the logic can conduct normally, it indicates that the signal acquisition and processing part is normal, and the physical switches or wiring on site should be checked.

Check configuration: If online tracking reveals that the contact behavior of input signal 10002 does not match the actual switch status on site, you should return to the flow meter configuration interface and check the health status of the I/O module. Possible reasons could be damage to the input module itself or incorrect module type configuration for that slot.

Review special function blocks: If the logic appears correct but the output behavior is strange, check if there are any networks skipped by SKIP instructions, or if there are data transfer instructions that modify the same memory address in the background. A common error is accidentally writing the same output or register address multiple times in different networks or functional blocks.

Through this systematic process, from physical I/O status checks, to online logical energy flow analysis, to utilizing forced functional isolation issues, and finally to examining underlying configurations and special functions, the vast majority of faults can be accurately located and resolved.
