PILZ PNOZ m B0 Safety Controller On site Troubleshooting and Debugging Guide

In the industrial automation safety circuit, Pilz's PNOZmulti 2 series configurable safety system is widely used in emergency stop, safety door, two hand button and other scenarios due to its high flexibility and high safety level. As the fundamental unit of this series, PNOZ m B0 undertakes the core tasks of secure input acquisition, logical operation, and secure output cutoff. However, in actual debugging and maintenance, engineers often encounter problems such as project failure to load, non-conductive safety outputs, and display screen errors. This article will take PNOZ m B0 as the object, and provide a systematic troubleshooting and debugging method based on its hardware characteristics, installation specifications, project download process, and diagnostic functions.

Understanding PNOZ m B0: Core Features and Security Levels

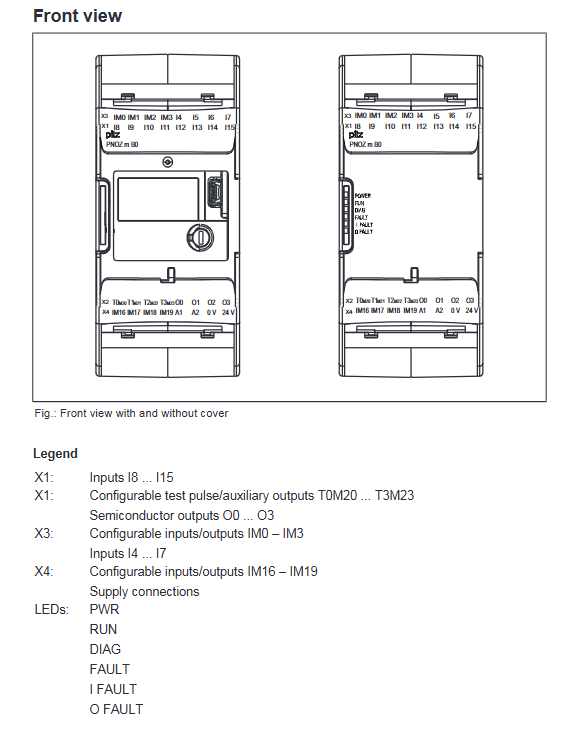

Understanding the basic capabilities of the equipment is crucial before starting to troubleshoot. PNOZ m B0 is a configurable safety controller base unit, whose main features include:

Safe output: 4 semiconductor safe outputs (O0-O3), each with a rated current of 2A, supporting resistive, capacitive, and inductive loads. The highest safety level can reach PL e of EN ISO 13849-1 and SIL CL 3 of EN 62061.

Safety inputs: 12 dedicated safety inputs that can be connected to emergency stop buttons, safety door switches, dual hand buttons, light curtains, enable switches, etc.

Configurable I/O: 8 terminals that can be configured as input or auxiliary output, and 4 terminals that can be configured as auxiliary output or test pulse output.

Test pulse output: 4 test pulse outputs (T0 – T3), used for monitoring the short circuit of the input circuit.

Project storage: Secure projects must be saved using a chip card (8kByte or 32kByte) and loaded onto the device via a knob.

Diagnosis and Display: Equipped with a backlit LCD display screen and multiple LEDs (PWR, RUN, DIAG, FAULT, I FAULT, O FAULT), supporting local error stack queries.

The device adopts a dual microcontroller redundant architecture and is equipped with periodic output open circuit testing to ensure that safety functions remain effective in the event of a single component failure. Any modification or replacement involving safety features must undergo a complete functional test.

Key points during the installation phase: avoiding fundamental errors

A significant portion of the on-site malfunctions are caused by non-standard installations. Following the following guidelines can significantly reduce the difficulty of subsequent debugging.

2.1 Installation and heat dissipation of control cabinet

PNOZ m B0 must be installed vertically on a horizontal guide rail (with ventilation ducts facing up/down) and installed in a control cabinet with a minimum protection level of IP54. The following minimum spacing (in millimeters) must be maintained:

Up and down with other devices: ≥ 40 mm (to ensure air convection)

Left and right compared to other devices: ≥ 20 mm

It should be noted that if installed with the minimum spacing, it will be very difficult to plug and unplug the chip card from above. Therefore, it is recommended to reserve more space or remove the base from the guide rail when replacing the chip card.

In strong vibration environments (such as stamping equipment), additional fixed brackets or end corner fixing devices should be used, and relying solely on guide rail buckles may not be sufficient for long-term fixation.

2.2 EMC and Grounding Requirements

In order to meet electromagnetic compatibility, the installation guide rail must be connected to the grounding bar of the control cabinet with low impedance. This can effectively discharge high-frequency interference currents. In addition, static discharge (such as touching grounded metal) must be carried out before contacting the equipment to prevent static electricity from damaging internal components.

2.3 Connection of Expansion Modules

If I/O expansion is required, the expansion module must be installed on the left or right side of the base in the order configured in PNOZmulti Configurator (depending on the type). Modules are connected using jumper wires, and unused interfaces must be plugged in with a Terminator resistor. Important note: Before connecting or disconnecting the expansion module, all power sources must be cut off.

Wiring and Power Supply: The Most Common Error Points

The power supply of PNOZ m B0 is divided into two independent power terminals:

System power supply (A1/A2): Provides power to the CPU and internal logic. Voltage DC 24V, allowable fluctuation -20%/+25% (i.e. 19.2V-30V). The maximum continuous current is 1.6A, and the surge current is 3A.

Semiconductor output power supply (+24V/0V): provides safe power supply for O0-O3 output. Same DC 24V, allowing the same fluctuation, the maximum continuous current needs to be calculated based on the load (but not exceeding the total current limit).

Key points:

Even if semiconductor output is not used, power must be supplied to the output power terminal, otherwise the safe output cannot conduct.
