Toshiba Discrete IGBTs: Core Architecture, Technological Evolution, and Application Details

Application scenarios and selection strategies: from industrial drive to consumer electronics

Toshiba's extensive product line of discrete IGBTs can cover a wide range of applications from heavy industry to precision consumer electronics.

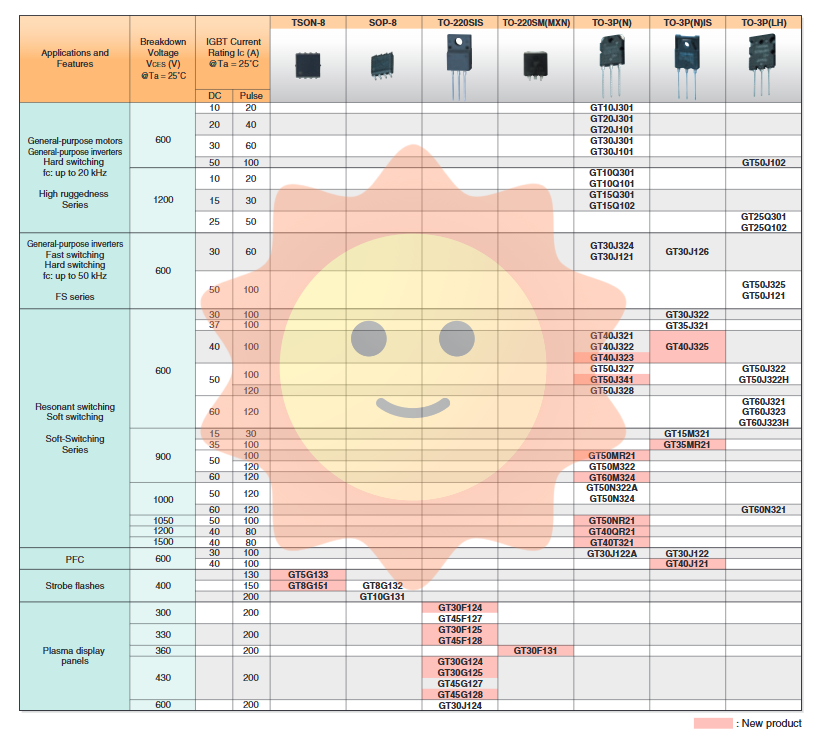

General purpose inverters and motor drives (hard switch): For standard inverters and motor drives, Toshiba offers the FS (high-speed) series, such as the GT10J, GT20J, GT30J, and GT60J3xx series. These devices are designed for hard switching and support switching frequencies up to 20 to 50 kHz. Although hard switching characteristics can lead to high switching losses and EMI, they are essential in applications that require high bandwidth and fast dynamic response. Many models adopt isolation packaging (such as GT30J324, GT40J325) to provide additional electrical isolation and safety margin.

Soft switch applications: In uninterruptible power supplies (UPS), power factor correction circuits, and IH cooking appliances, Toshiba's RC-IGBT (reverse conducting) and FWD-IGBT (freely rotating diode) series dominate. These devices are specifically designed to provide soft switching characteristics by controlling the gate voltage to regulate the rising edge of the current, significantly reducing switching losses, minimizing EMI noise, and suppressing voltage spikes caused by large current variations. This feature is particularly important for induction heaters as it allows for more precise temperature control and reduces standby energy consumption. FWD-IGBT further reduces forward voltage drop and improves overall efficiency by integrating diodes inside the chip.

Flash: From early hard switch designs to the evolution of high-frequency/soft switches, the flash market has also benefited from Toshiba IGBT's technological advancements. Flashlights need to be able to switch large currents (such as 100A pulse currents) and withstand high voltages. Toshiba offers dedicated IGBTs such as GT5G, GT8G, and GT10G series. These devices not only have high current ratings, but are also optimized for low gate driving voltages (typically in the range of 2.5V to 4.0V), so that they can be directly driven by the logic levels inside the camera, simplifying circuit design. The 6th generation and later devices also exhibit excellent high-frequency switching characteristics, supporting more compact flash designs.

Plasma display panel: Plasma display panel (PDP) represents one of the most demanding fields in power semiconductor applications. Driving plasma requires hundreds of amperes of current and can withstand breakdown voltages of tens of thousands of volts. Toshiba has launched dedicated IGBT series for this application, such as the GT30F and GT45F series. These modules not only support continuous currents of up to 120A and pulsed currents of 200A (for specific models), but also achieve low conduction losses at voltages ranging from 300V to 400V. Many devices designed for PDP integrate built-in fast recovery diodes (FRDs), which are necessary for quickly restoring circuit functionality in the event of a hard short circuit or commutation fault in the plasma drive circuit.

Packaging and integration: adaptable to harsh environments

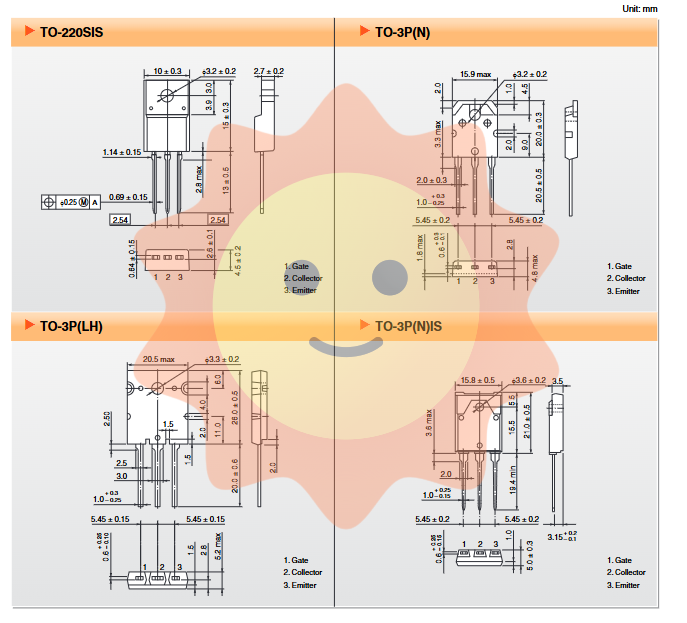

In order to meet different mechanical design and thermal management requirements, Toshiba has packaged its discrete IGBT in a variety of configurations, such as TO-220SIS, TO-3P (N), and TO-3P (LH).

TO-220SIS series: adopts a direct copper substrate, providing a low thermal resistance path from the device to the heat sink, which is very suitable for the rapid heat dissipation needs in high-power applications.

TO-3P (N) series: It is a semi insulated package that allows for more flexible heat sink design while maintaining electrical isolation, typically utilizing thermal interface materials.

TO-3P (LH) series: designed specifically for high thermal resistance applications, utilizing advanced thermal interface technology to ensure high reliability in compact spaces.

In addition, for specific markets such as flash in digital cameras, Toshiba also offers extremely small packages to meet the space limitations of compact camera modules.

Conclusion

In summary, Toshiba's discrete IGBT product line has established a technological benchmark in the field of power semiconductors with its n-pn-p four layer structure and RC-IGBT innovative design. From the high robustness of the third-generation products, to the soft switching RC-IGBT technology of the fourth/fifth generations, and to the high-frequency and high current solutions for plasma displays in the seventh/eighth generations, Toshiba continues to push the boundaries of IGBT performance. Whether it is industrial inverters that pursue ultimate energy efficiency or household appliances that require silent operation, Toshiba provides rigorously validated and technologically advanced solutions to ensure the stability, reliability, and long-term lifespan of the system in different application scenarios.
