XP POWER AQM200 Series 200W Natural Cooling Medical Grade AC-DC External Power Supply

XP POWER AQM200 Series 200W Natural Cooling Medical Grade AC-DC External Power Supply

The extremely high power density AQM200 series of medical external power supplies is fully approved to international medical safety standards. It has been designed with very high efficiency and low standby power, enabling it to meet the latest environmental legislation. The use of new technology allows the volume to be typically half that of a traditional design.

The unit has a fully sealed enclosure complying with IP22 and a smooth surface finish making it easier to keep clean in a clinical setting.

Class I and Class II versions ensure versatility for both hospital and non hospital applications.

Core Technical Specifications and Features

The AQM200 series is designed with safety, efficiency, and structural integrity in mind, making it an ideal choice for medical devices such as home healthcare

and diagnostics.

Medical Safety and Compliance

Safety Certifications: The product has received medical safety approvals, including UL (ANSI/AAMI ES 60601-1), CSA (CSA C22.2 No. 60601-1),

TUV (EN60601-1/EN60601-1-11), CB (IEC60601-1/IEC60601-1-11), CE, and UKCA certifications.

Home Healthcare: Specifically approved for home healthcare applications.

EMC Compliance: Complies with the 4th edition of medical EMC standards.

Leakage Current: Features low ground leakage current; the maximum ground leakage current for the Class I version is 500A (264VAC, 60Hz),

and the maximum patient outflow current is 100A (264VAC, 60Hz).

Performance and Efficiency

Power output: 200W convection cooling

Efficiency: Complies with Energy Efficiency Level VI and EU CoC tier 2 standards with an efficiency range of 91.5% to 93.5%, depending on the model

Right side power consumption: Right side power consumption is less than<0.15 watts

Input voltage: The input voltage range is 85VAC to 264VAC

Output Model: Provides multiple output voltage options, including 12.0V, 15.0V, 19.0V, 24.0V, and 48.0V

Model, output voltage, output current, efficiency (average)

AQM200PS12, 12.0 volts, 16.0A, 91.5%

AQM200PS19, 19.0 volts, 10.6A, 92.0%

AQM200PS48, 48.0 volts, 4.2A, 93.5%

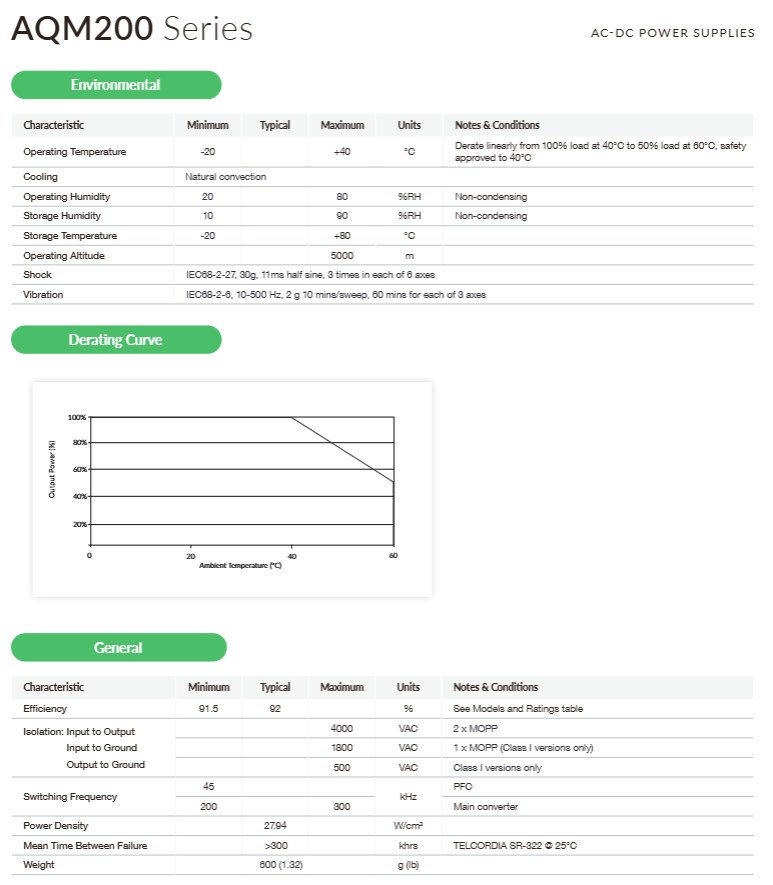

Environmental and mechanical characteristics

Size: Compact design, size 166.5 x 54.2 x 33.0mm (6.56 "x 2.13" x 1.30 ")

Protection level: Adopting a fully sealed shell, it meets the IP22 environmental protection level

Working temperature: The operating temperature range is from 0 ° C to 60 ° C. Between 40 ° C and 60 ° C, a linear derating to 50% load is required

Weight: Approximately 600 grams

Cooling method: natural convection cooling

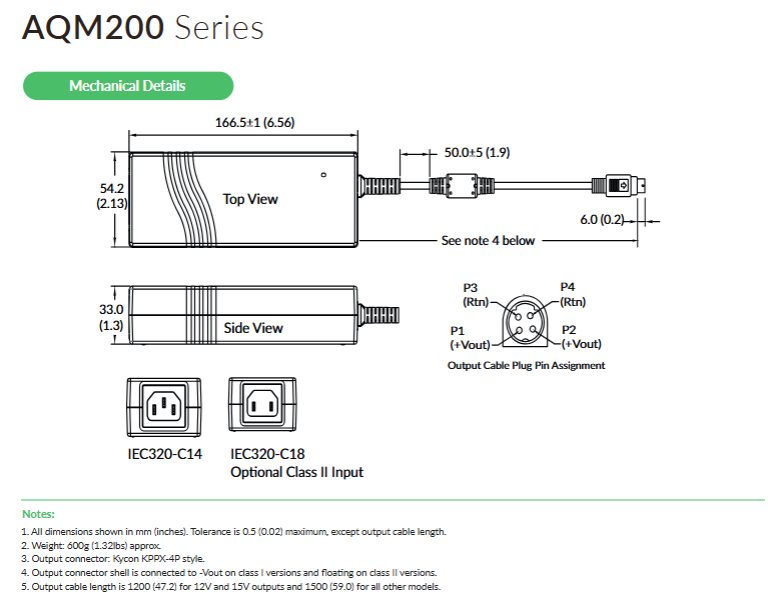

Mechanical details and connections

The AQM200 series offers flexible connection options:

Input connector: optional IEC320-C14 (Class I) or IEC320-C18 (optional Class II input)

Output connector: using Kycon KPPX-4P style connector

Pin P1 and P2 are assigned as+Vout

Pin P3 and P4 are assigned as Rtn (return)

Class II version: For Class II version, the suffix 'C2' needs to be added to the part number (e.g. AQM200PS24C2)
