GE MM2 Motor Manager Complete Guide

GE MM2 Motor Manager Complete Guide: Engineering Practice from Configuration to Troubleshooting

Introduction: Why do we need an intelligent motor manager

In modern industrial low-voltage motor control centers (MCC), the integration of motor protection and control directly affects the reliability and maintenance costs of the production line. Traditional discrete component solutions such as thermal relays, ammeters, contactors, PLC input modules, etc. not only occupy a large amount of cabinet space, but also have scattered parameter settings and opaque fault information. When the motor stops abnormally, maintenance personnel often need to spend several hours troubleshooting whether it is an overload, phase loss, grounding fault, or a control circuit problem.

The MM2 (Motor Manager 2) launched by GE Multilin is designed to address these pain points. It integrates three-phase overload protection (49/51), ground fault (50G/51G), locked rotor protection (48), undercurrent/underpower (37), voltage protection (27/59), thermistor input, programmable logic control function, and Modbus RTU communication into a compact unit. This article will elaborate on the hardware features, key settings, typical troubleshooting steps, and application wiring of MM2 from the perspective of on-site engineers, helping you quickly master the configuration and maintenance of this device.

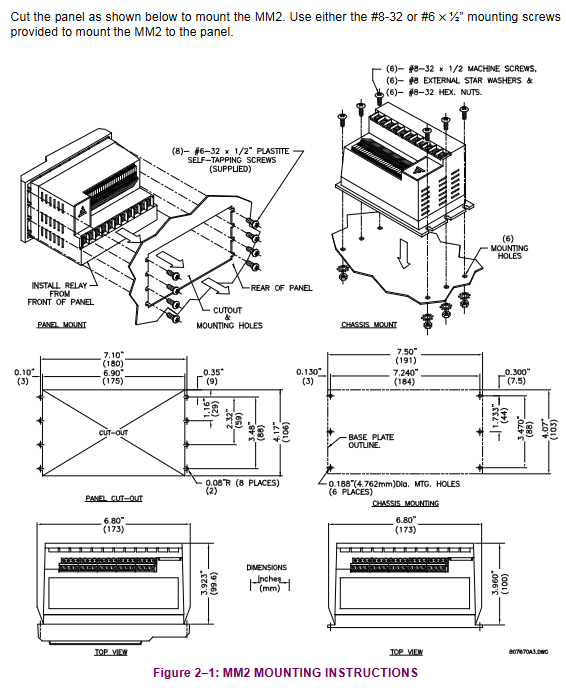

Key points for hardware installation and wiring

1. Selection and wiring of current transformers (CT)

MM2 supports both 5A and 1A phase current transformers on the secondary side. Each phase current input terminal has three terminals: 5A input, 1A input, and common terminal. For example, if a 200:5 CT is used on site, the CT secondary side needs to be connected to the 5A input terminal. For applications where the motor's full load current does not exceed 10A and the CT terminal voltage does not exceed 600V RMS, the phase wires can also be directly connected to MM2 without the need for an external CT.

There are three options for ground fault CT input:

50:0.025 Zero sequence CT: Used for high impedance grounding systems, providing the highest sensitivity (can detect 0.1A level).

5A secondary side zero sequence CT: used for low impedance or directly grounded systems.

5A residual connection method: using the residual current of three-phase CT to synthesize the grounding fault current, with a sensitivity of about 5% of the primary rated value of phase CT.

Important warning: In low resistance grounding or direct grounding systems, if the contactor or circuit breaker does not have the ability to break the grounding fault current, the grounding fault tripping function should be "disabled". Alternatively, this function can be assigned to auxiliary relays to trip upstream devices with breaking capabilities.

2. Control power supply and switch input

Power supply: MM2 accepts 120V AC or 240V AC (50/60Hz), and the voltage level can be selected through the sliding switch on the back. The maximum power consumption when powered on is 27VA.

Switching input: All 16 switching inputs operate at 120V AC (the same as the selected control voltage). Special attention: Terminals 57 and 58 are the common terminals of the switch, with a current of 120V AC. All switch inputs are optocoupler isolated, and the closing condition is that 120V AC is applied to the corresponding terminal. An external AC power source with the same frequency can also be used.

Stop input (terminal 51): It must remain closed for MM2 to process any start command. This is an important safety circuit design.

3. RS485 communication port

MM2 supports Modbus RTU protocol and two-wire half duplex RS485. Up to 32 MM2s can be connected on a communication link, with a total length not exceeding 4000 feet. Wiring must use shielded twisted pair cables (such as Belden 9841, with a characteristic impedance of 120 Ω) and adopt a daisy chain topology. Each MM2 terminal 38 (485 common terminal) should be connected together, and the shielding layer should also be connected to this common terminal, but only grounded at a single point at the end (or host side). A terminal matching network must be installed at both ends of the link (the host end and the farthest slave station): a 120 Ω resistor and a 1nF capacitor are connected in series across the positive (+, terminal 39) and negative (-, terminal 40) terminals. Polarity must be uniform: all positive poles are connected, and all negative poles are connected.

Interpretation of Core Protection Functions and Setpoints

The protection setting points of MM2 are divided into 6 pages (S1 to S6). The following focuses on analyzing the most commonly used parameters in practical engineering.

1. Thermal overload protection (S2: Protection)

FULL LOAD CURRENT (FLC): Motor nameplate rated current (unit: A). When the CT rated value is greater than 50A, the step size is 1A; when it is ≤ 50A, the step size is 0.1A. If the input value is lower than the nameplate, it will be "overprotected", and if it is higher than the nameplate, it may cause motor damage.

OVERLOAD CURVE NUMBER: Standard I ² t curves 1-8 or NEMA grade curves (10/15/20/30) can be selected. If there is no data from the motor manufacturer, the curve is generally chosen so that the tripping time at 6 times overload is equal to the motor stalling time.
