Yaskawa VS-616PC5/P5 frequency converter practical application

Yaskawa VS-616PC5/P5 Inverter: Complete Technical Manual from Installation to Advanced Applications

In applications with variable torque loads such as fans and pumps, the performance of the frequency converter directly determines the energy efficiency and reliability of the system. Yaskawa VS-616PC5/P5 series (software versions 5110/5120 and updates) is a high-quality frequency converter optimized for variable torque conditions, with a power range covering 0.5 HP to 500 HP. It integrates advanced features such as full range automatic torque boosting, electronic thermal overload protection, energy-saving control, PID regulation, and MODBUS communication. This article is based on the original factory technical manual and provides a comprehensive guide for on-site engineers, system integrators, and maintenance personnel, covering hardware installation, parameter debugging, fault diagnosis, and advanced functional applications.

Chapter 1: Reception and Installation - Ensuring Long term Stable Operation of Equipment

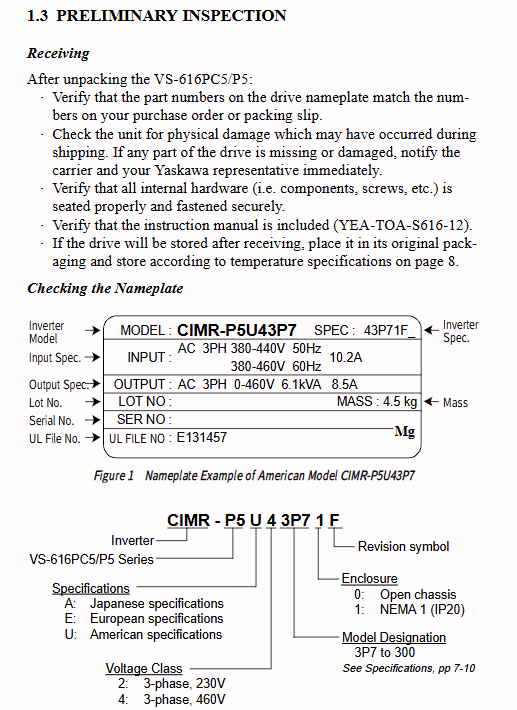

1.1 Unpacking inspection and storage

After receiving VS-616PC5/P5, first check whether the nameplate model is consistent with the order and inspect for transportation damage. Confirm that the internal hardware (screws, components, etc.) are not loose. If not installed temporarily, the original packaging should be stored in an environment between -20 ℃ and+60 ℃ to avoid condensation.

1.2 Installation environment requirements

The frequency converter must be installed indoors to avoid the following environments:

Extreme temperature: Open type (IP00) allows -10 ℃ to+45 ℃; NEMA Type 1 allows temperatures ranging from -10 ℃ to+40 ℃.

Direct sunlight, rainwater, high humidity (>95% RH condensation).

Oil mist, salt mist, corrosive gases (such as sulfurized gases) or liquids.

Metal dust, vibration (≤ 9.8 m/s ² below 20 Hz, ≤ 1.96 m/s ² at 20-50 Hz), magnetic noise (such as welding machines).

1.3 Installation method and heat dissipation

The frequency converter must be installed vertically and sufficient ventilation clearance should be reserved (not less than 100mm in all directions). For models with 25 HP and below, the top and bottom covers can be removed to convert NEMA 1 to an open type for improved heat dissipation. When multiple units are installed in parallel, a fan must be installed inside the cabinet to ensure that the inlet air temperature does not exceed the specified value. When transporting, be sure to support the base and do not lift the front cover.

1.4 Disassembly and Assembly of Digital Operators

The digital operator (model JVOP-130P) can be handheld or panel mounted. Press the lever of the operator and lift it up during disassembly; Insert the bottom claw first during installation, and then press the top to lock it. Attention: The operator can be plugged in and out while powered on, but touching the control circuit board during operation is strictly prohibited.

Chapter 2: Wiring of Main Circuit and Control Circuit - Key to Safety and Anti Interference

2.1 Main circuit wiring specifications

Input power supply: three-phase 220~230V or 380~460V, 50/60 Hz. Connect the power cord to L1, L2, and L3 (phase sequence independent). Molded case Circuit Breaker (MCCB) or fuse must be configured. It is recommended to use Mitsubishi NV series or Fuji EGSG series residual current circuit breakers (anti high-frequency interference, operating current ≥ 200 mA, operating time ≥ 0.1 s).

Output terminals: T1, T2, T3 are connected to the motor. When running in the forward direction, the extended end of the motor shaft rotates counterclockwise; If reverse is required, swap the output lines of the two phases arbitrarily.

Prohibited items: Do not connect the power supply to the output terminal; Do not install power factor compensation capacitors or LC/RC filters on the output side; Do not open or close the output side contactor during operation.

Grounding: 230V level grounding resistance ≤ 100 Ω, 460V level ≤ 10 Ω. It must be grounded separately and cannot share the grounding electrode with welding machines or large motors. When multiple cabinets are connected in parallel, the ground wire can be connected and grounded at a single point, but it is strictly prohibited to form a loop.

2.2 Wire diameter and terminal torque

The recommended main circuit conductor is a 600V vinyl insulated cable. For example, the 0.5-10 HP model uses AWG 14-10 (2-5.5 mm ²) and M4 screw torque of 12.4 lb in (1.4 N · m). The 30-125 HP models use AWG 4/0 or even dual 4/0, with M10 screw torque of 203.6 lb in (23 N · m). The control circuit uses 20-16 AWG shielded twisted pair cables with M3.5 screws and a torque of 8.9 lb in (1.0 N · m). The voltage drop should be less than 2% of the rated voltage.

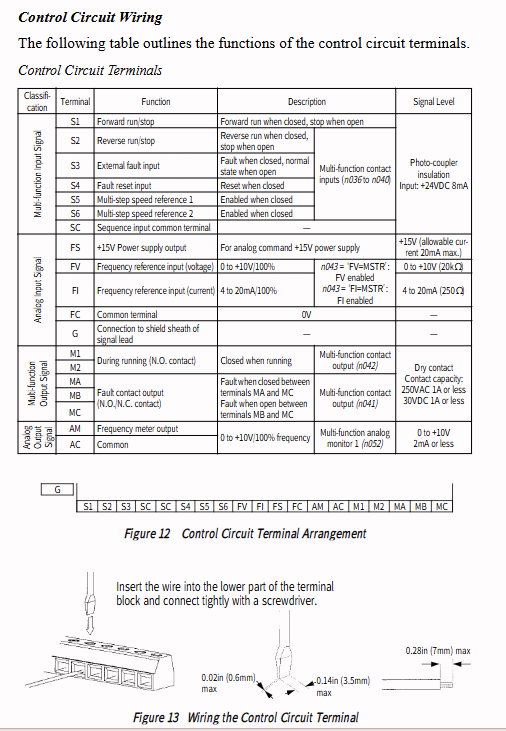

2.3 Control circuit terminal function

Control terminals are divided into four categories: sequence input, analog input, output, and fault contacts:

Sequence input (optocoupler isolation,+24 VDC, 8 mA):

S1: Forward rotation operation (closed operation)

S2: Reverse operation (closed operation)

S3: External fault input (normally open, closed fault)

S4: Fault reset (closed reset)

S5, S6: Multi speed command 1/2 (programmable multifunctional input)

SC: Public end

Analog input:

FS:+15 V power supply (20 mA max)

FV: Frequency Command Voltage (0~10 V, 20 k Ω)

FI: Frequency command current (4~20 mA, 250 Ω)

FC: Simulate Public End

Output signal:

M1, M2: Multi functional optocoupler output (such as in operation, consistent frequency, etc.)

MA, MB, MC: Fault relay contacts (MA-MC normally open, MB-MC normally closed, 250 VAC/1A or 30 VDC/1A)

AM, AC: Analog output (0~10 V, can be set as frequency, current, power, or DC bus voltage)

2.4 Anti interference measures

Control lines and power lines should be routed separately, with a minimum distance of 10 cm between them.

To simulate the given signal (FV/FI), shielded twisted pair cables must be used, with the shielding layer grounded at the single end of the frequency converter side.

Relays and contactor coils need to be connected in parallel with surge absorbers (such as MARCON series).

When the frequency converter is connected in parallel with a large capacity transformer (above 600 kVA) or switched into phase capacitors, a DC reactor (connected to ⊕ 1 and ⊕ 2) or an AC input reactor needs to be installed.

Chapter 3: Trial Operation and Basic Operations - Quick Get Started

3.1 Pre power on inspection

Confirm that the wiring is correct, especially if the power supply is not connected to the output terminal; Remove internal wire ends; Screw locking; The motor can rotate freely (it is recommended to disconnect the load).

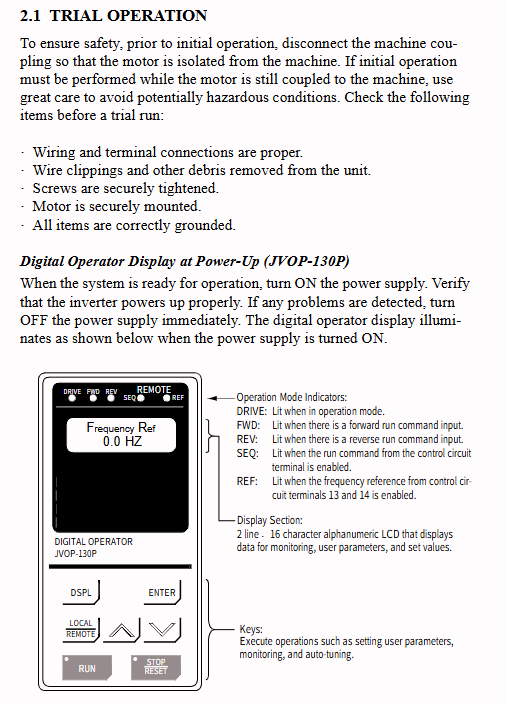

3.2 Power on display and operation mode

After the power is turned on, the digital operator displays the frequency reference value (factory default is REMOTE mode). In REMOTE mode, the running command and frequency reference come from the control terminal; The LOCAL mode is controlled by the operator. Press the LOCAL/REMOTE key to switch modes while in shutdown mode. The SEQ and REF LEDs on the operator indicate the current reference source:

SEQ=TRM: Run command from terminal

REF=TRM: The frequency reference comes from FV/FI

SEQ=OPR: Run command from operator

REF=OPR: The frequency reference comes from the operator

3.3 Basic operating steps

Run through the operator:

Press the LOCAL/REMOTE key to enter LOCAL mode (SEQ/REF LED off).

Press the up and down keys to set the frequency reference.

Press the RUN key to start, press the STOP key to stop.

Running through terminals:

Ensure REMOTE mode (SEQ=TRM, REF=TRM).

FV input 0~10 V or FI input 4~20 mA set frequency.

Close S1 (forward rotation) or S2 (reverse rotation) to start. If disconnected, slow down and stop.

Chapter 4: Detailed Explanation of Core Parameters - Fine Debugging

The parameters of VS-616PC5/P5 are divided into n001~n116, and the access level is controlled through parameter n001 (password/initialization). When leaving the factory, n001=1, readable and writable n001~n035, and read-only for the rest. Set to 3 to access all parameters.

4.1 Password and Initialization (n001)

N001=0: Only n001 can read and write, the rest are read-only.

N001=1 (default): n001~n035 can be read and written.

N001=2: n001~n053 can be read and written.

N001=3: All parameters are readable and writable.

N001=8:2 wire system initialization (American standard).

N001=9:3 wire system initialization (American standard).

4.2 Operation mode selection (n002)

N002 determines the source combination for running commands and frequency references. Common settings:

3 (default): SEQ=TRM, REF=TRM (terminal control).

0: SEQ=OPR, REF=OPR (operator control).

1: SEQ=TRM, REF=OPR (terminal start stop, operator set frequency).

4.3 V/f characteristic adjustment (n010~n017)

N010="60Hz Preset": Standard linear V/f, non adjustable parameter.

N010="User defined V/f": Custom V/f curve must meet the requirement of n016 ≤ n014<n013 ≤ n011.

Main parameters:

N011 maximum frequency (50~400 Hz, default 60 Hz)

N012 maximum voltage (230V level 0.1~255 V, default 230 V)

N013 fundamental frequency (default 60 Hz)

N014 intermediate frequency (default 3.0 Hz)

N015 intermediate voltage (default 17.2 V)

N016 minimum frequency (0.1~10 Hz, default 1.5 Hz)

Variable torque loads (fans, pumps) typically use a decreasing square V/f curve, which can be manually set to n014=30 Hz and n015=57.5 V (doubled for 460V levels).

4.4 Acceleration and deceleration time (n018~n021)

N018 acceleration time 1, N019 deceleration time 1 (default 10.0 seconds)

N020 acceleration time 2, N021 deceleration time 2 (switchable through multifunctional terminals)

Set the time from 0 Hz to the maximum frequency (n011). 0.0~3600 seconds can be set, with a resolution of 1 second when ≥ 1000 seconds.

4.5 Torque Boosting and Automatic Torque Compensation

Full range automatic torque boost (n071): Automatically adjust the output voltage according to the load. Default 1.0, generally does not require adjustment. When the motor cable is too long or the motor vibrates, a fine adjustment of 0.1 step size can be made. Increasing n071 can improve low-speed torque, but excessive torque may cause overexcitation, overcurrent, or motor overheating.

Energy saving control (n096~n099): n096=1 enabled. Prevent light load stall by using n097 energy-saving gain (default optimal) and n098/n099 voltage lower limit (at 6 Hz and 60 Hz).

4.6 DC braking (n068~n070)

N068 DC braking current (0~100% rated frequency converter, default 50%)

N069 shutdown DC braking time (0.0~5.0 s, default 0.5 s)

N070 starts DC braking time (default 0.0 s)

Used for precise positioning before parking or starting. The larger the braking current, the stronger the braking torque, but the motor heats up more.

4.7 Carrier frequency (n054)

The carrier frequency (IGBT switching frequency) can be set to 1-6, corresponding to 2.5 kHz, 5.0 kHz, 8.0 kHz, 10 kHz, 12.5 kHz, and 15 kHz. The default value is automatically set according to the capacity. Increasing the carrier frequency can reduce motor noise, but it increases leakage current and RFI, and requires derating for use. When the length of the motor cable exceeds 50 meters, it is recommended to reduce the carrier frequency to below 5 kHz.

4.8 Stall prevention (current limiting)

Acceleration stall prevention (n073): If the current exceeds the set value (default is about 170%) during acceleration, the acceleration stops and continues after the current drops.

Constant speed stall prevention (n074): If the current exceeds the set value (default about 160%) during constant speed, deceleration will begin; Accelerate again after the current drops.

Deceleration stall prevention (n072): Prevent overvoltage during deceleration. When connecting an external braking resistor, it should be set to "Disabled".

4.9 Frequency Limitation and Jump Frequency

Frequency upper limit (n031) and frequency lower limit (n032): set as a percentage of the maximum frequency.

Jump frequency (n062~n064): Avoid mechanical resonance points. N062 and n063 are the two hopping center frequencies, and n064 is the hopping bandwidth (±). Satisfy n062 ≤ n063, otherwise report OPE6 error.

4.10 PID Control (n084~n095)

Used for closed-loop control of constant voltage, constant current, constant temperature, etc. Enable n084=1 (standard PID) or 2 (with feedforward). The given value can be set through FV voltage or multi-stage speed, and the feedback value is input through FI (4~20 mA or 0~10 V). parameter

N086 proportional gain (P, default 1.0)

N087 Integral Time (I, default 10.0 seconds)

N088 differential time (D, default 0.00 s)

N089 integral limit (default 100%)

N094/n095 sleep function: When the PID output is lower than n094 and the duration exceeds n095, the inverter stops outputting to save energy.

4.11 MODBUS Communication (n103~n106)

SI-K2/P communication card needs to be installed. parameter

N103 frequency reference unit (0.1 Hz or 0.01 Hz or 0.1%)

N104 slave station address (1-31)

N105 baud rate (2400/4800/9600 bps)

N106 parity check (none/odd/even)

Communication can achieve start stop, frequency setting, parameter reading and writing, fault reset, etc. Select 'COM' as the source for SEQ or REF in n002.

4.12 Multi functional Input/Output Programming

Multi functional input (n036~n040): The S2~S6 terminals can be defined as 28 functions, including external fault, fault reset, multi-stage speed command 1/2, jog, acceleration/deceleration time switching, speed search, PID disable, etc.

Multi functional output (n041, n042): M1 and M2 can be defined as 17 types of signals including running, consistent frequency, over torque detection, base blockade, ready, timer output, etc.

Frequency consistency detection (n075): Set a frequency comparison threshold and cooperate with the output terminal to achieve speed arrival indication.

Chapter 5: Fault Diagnosis and Maintenance - Quickly Locate Problems

5.1 Fault Display and Handling

When the protection function is activated, the frequency converter cuts off the output, the motor stops freely, the fault relay acts, and the digital operator displays a fault code. Common faults and countermeasures:

Display the name of the fault, common causes, and handling measures

OC overcurrent output short circuit, rapid acceleration and deceleration, and excessive load GD ². Check the output insulation; Extend acceleration and deceleration time; Enable speed search

GF grounding fault motor or cable short circuit to ground, shake test insulation resistance; Check the junction box

OV overvoltage deceleration time is too short, load regeneration prolongs deceleration time; Install brake resistor (PC5 series optional)

PUV undervoltage input voltage too low, phase loss check power supply and wiring; Set instantaneous power outage to continue operation

OH1 radiator overheating, high ambient temperature, fan failure, dust accumulation, cleaning of heat sink; Replace the fan; Reduce the carrier frequency

OL1 motor overload and heavy load, long-term low-speed operation to reduce load; Adjust V/f; Check the rated current setting of the motor

OL2 frequency converter overload load exceeds 120% (VT)/150% (CT) for 1 minute to increase frequency converter capacity; Extend acceleration and deceleration time

OL3 over/under torque detection for mechanical faults and load mutation inspection for machinery; Adjust the detection level (n078) and time (n079)

SPI input phase loss three-phase input phase loss inspection power supply and MCCB; Adjust the detection level (n083)

Close the EFx external fault terminal S3 (or set S2~S6 as external fault) and check the external emergency stop circuit

CPF05 A/D converter failure, hardware failure, power outage, retry; If it still exists, replace the frequency converter

Automatic fault retry (n060): can be set 0-10 times, automatically resetting and restarting for OC, OV, PUV, GF, RR faults. If there is no fault for 10 consecutive minutes, reset the counter to zero.

5.2 Instantaneous power outage continues operation (n055)

N055="Not Provided": Trip immediately if power outage>15 ms.

N055="2 Seconds Max": If the power outage is restored within 2 seconds, it will automatically continue to run (the command to keep running needs to be maintained).

N055="CPU Power Active": Control the power supply to resume during the holding period without any fault output.

5.3 Speed search function

When starting, the motor is already rotating (such as fan inertia, bypass switching). It can be triggered through a multifunctional terminal (set as "SpdSrch (MAXFRQ)" or "SpdSrch (SETFRQ)"). The parameters n056 (search current level, default 110%), n057 (minimum base blocking time, default 0.5 s), and n058 (V/f reduction ratio during search) jointly determine the search effect.

5.4 Regular maintenance

Check every 6-12 months: terminal fastening, dust accumulation on heat sink (blown with dry compressed air at 4-6 kg/cm ²), abnormal noise from cooling fan (recommended to replace after running for more than 20000 hours), discoloration/leakage of electrolytic capacitor.

It is strictly prohibited to conduct voltage withstand tests or megohmmeter tests (semiconductors are prone to breakdown).

After power failure, wait for at least 5 minutes to confirm that the CHARGE light is off before touching the interior.

Chapter 6: Advanced Application Techniques

6.1 Multi speed and Jogging

By combining S5 and S6 (with n039 and n040 set as "Multi Step Spd 1/2"), a maximum of 4 speeds can be achieved (including the main speed for a total of 4 speeds). The jog frequency is set by n030 (default 6.0 Hz), and the jog command has a higher priority than the multi-stage speed.

6.2 Analog input gain/bias adjustment (n048~n051)

When the given signal range is not 0~10 V or 4~20 mA, it can be adjusted:

Example: If 0~5 V corresponds to 0~60 Hz, then FV gain n048=200% and bias n049=0%.

Example: If 0~10 V corresponds to 30~60 Hz, then the gain is 100% and the bias is 50%.

6.3 Analog output calibration (n052, n053)

Terminal AM can output frequency, current, power, or DC bus voltage. N053 gain (0.01~2.00) is used for calibrating external instruments.

6.4 S-curve acceleration and deceleration (n022)

Select the S-curve time (0.2 s, 0.5 s, 1.0 s, or none) through the third and fourth digits of n022. The S-curve can reduce start stop impact and is suitable for situations such as conveyor belts and cranes that require high smoothness in acceleration and deceleration.

6.5 Over/Under Torque Detection (n077~n079)

N077 selection detection conditions: consistent speed or during operation, over torque or under torque, alarm or fault.

N078 detects voltage level (30-200%, default 160%).

N079 detection delay (0.1~10.0 s, default 0.1 s).

Used to protect machinery, such as belt breakage (under torque) or stalling (over torque).

6.6 Energy saving control application

For fans and water pumps, when n096=1 is enabled, the frequency converter automatically searches for the optimal voltage point to reduce excitation losses under light loads. Actual measurements have shown that it can save 10% to 30% of electrical energy. However, attention should be paid to setting n098 (lower limit of 60 Hz voltage) and n099 (lower limit of 6 Hz voltage) to avoid light load stall.

Chapter 7: Quick troubleshooting of common problems

Possible causes and solutions for the phenomenon

Motor does not rotate, no running command, frequency reference is zero, operation mode error check if S1 is closed; Is there a signal from FV/FI; Is n002 correct; View the frequency display of the operator

Motor cannot adjust speed, analog input gain/bias error, frequency upper and lower limit setting check n048~n051; Check n031 and n032

Overvoltage tripping during deceleration, too short deceleration time, and no braking resistor extension n019/n021; Install brake resistor (PC5 only)

The motor overheating V/f setting is too high, the carrier frequency is too low, and the load is too large, reducing n015; Increase n054; Reduce load

Frequency jumping during operation, mechanical resonance, improper setting of PID parameters, jumping frequency n062~n064; Adjust PID gain n086~n088

Check n104~n106 for inconsistencies in communication failure address, baud rate, and parity check; Check the wiring; Confirm the installation of the communication card
