Parker Compumotor ZETA6000 Single Axis Drive Controller

Parker Compumotor ZETA6000 Single Axis Drive Controller

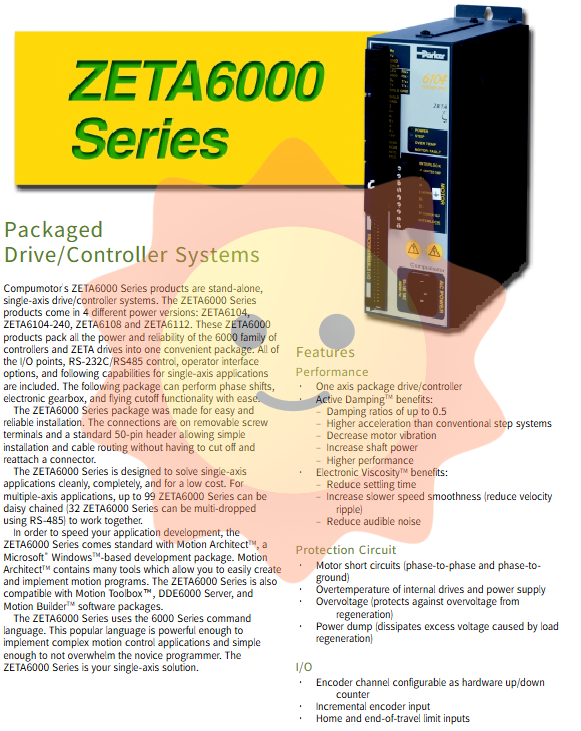

Product Series Overview

In the field of modern industrial automation, the performance, reliability, and integration of single axis motion control systems often directly affect the operational efficiency and development cycle of the entire equipment. The ZETA6000 series drive controller is an integrated single axis solution designed to meet this demand. This series integrates the controller and driver into the same compact package, retaining the powerful instruction set of the 6000 series controller while incorporating the advanced micro stepping technology of the ZETA series stepper driver, making it particularly suitable for single axis applications that require high-precision positioning, smooth motion, and fast response.

The ZETA6000 series includes four power versions to adapt to different loads and voltage environments: ZETA6104, ZETA6104-240, ZETA6108, and ZETA6112. Among them, ZETA6104 is suitable for 120VAC power supply environment and can provide 0-4 ampere peak current; ZETA6108 provides 0-8 ampere output capability; ZETA6112 is designed for situations that require greater torque and supports peak currents of 0-12 amperes; The ZETA6104-240 adopts a wide voltage input design (95-264VAC), which can automatically adapt to 120VAC or 240VAC power supply, generating 170VDC or 340VDC bus voltage respectively. This flexible power grading enables the ZETA6000 series to drive a wide range of loads, from small stepper motors to medium-sized industrial stepper motors.

Core driving technology: active damping and electronic viscosity

The most prominent technological highlight of the ZETA6000 series is its integrated Active Damping ™）  Electronic Viscosity ™）  Two patented technologies. Traditional stepper motor drive systems often experience vibration, noise, and torque drop during high-speed operation, mainly due to the inherent back electromotive force of the motor and system resonance. Active damping technology increases the damping ratio of the system to 0.5 by detecting the back electromotive force of the motor in real time and applying appropriate damping current, which is much higher than the level of 0.1-0.2 in conventional stepper systems. This breakthrough brings four advantages: firstly, the motor can still maintain stability under high acceleration conditions, effectively suppressing vibration in the medium and high speed sections; Secondly, due to reduced vibration, the motor rotor can more efficiently convert input electrical energy into mechanical shaft power, resulting in a significant increase in output torque at the same current; Thirdly, lower vibration means smaller mechanical wear and smoother motion trajectories, especially suitable for precision machining applications with strict requirements for surface smoothness; Fourthly, active damping allows the system to adopt higher acceleration values than traditional solutions, thereby shortening the positioning time.

Complementary to active damping is electronic viscosity technology. This technology mainly targets the "crawling" phenomenon in low-speed motion and the residual oscillation problem after positioning. When traditional stepper systems operate at extremely low speeds, significant speed ripples are generated due to the discreteness of the step angle, while electronic viscosity constructs electrical characteristics similar to viscous dampers in the motor winding by finely adjusting the current waveform and phase. The actual effect is as follows: the tuning time of the system after reaching the target position is significantly reduced, and the positioning jitter in typical applications can be reduced by more than 50%; At the same time, within the ultra-low speed range of several tens of revolutions per minute, the speed fluctuation amplitude is suppressed to a level close to that of the servo motor. In addition, due to the optimization of current waveform, the electromagnetic noise emitted by the motor at rest or low speed is significantly reduced, which is particularly important for applications such as medical equipment and laboratory instruments that are sensitive to environmental noise.

Complete protection circuit and reliability design

Electrical and thermal stresses in industrial environments are common failure factors for drivers, and the ZETA6000 series has designed multi-layer protection mechanisms for this purpose. In terms of short circuit protection, the driver can monitor the phase to phase short circuit and any relative to ground short circuit between the motor windings in real time. Once abnormal current is detected, the driver stage will immediately turn off the output and report the fault to prevent damage to the power transistor. For power fluctuations, the system has built-in undervoltage protection (Brownout). When the AC input drops below 85VAC, the driver automatically enters a protective state to avoid abnormal behavior caused by insufficient power supply. The ZETA6000 series is equipped with overvoltage protection circuit and power dump circuit to address the common issue of regenerative energy in stepper systems, where mechanical energy is converted into electrical energy during motor deceleration and fed back to the bus capacitor, resulting in voltage rise. When the bus voltage exceeds the safety threshold, the discharge resistor will automatically activate, converting excess electrical energy into heat energy and consuming it, thereby protecting the driver and power module from breakdown. In addition, there is a temperature sensor inside the drive. When the temperature of the power device or power supply reaches 55 ° C (113 ° F), the system will trigger an overheat shutdown fault, which can resume operation after the temperature drops. This series of protection mechanisms enables the ZETA6000 series to withstand harsh operating conditions of continuous full load operation.

Performance parameters of motion control

The ZETA6000 series demonstrates strong flexibility in motion planning ability. Its position command range is ± 2147483648 steps (i.e. a 32-bit signed integer range), which is sufficient to cover the total travel required for most linear or rotational movements. The speed range starts from 1 step/second and can reach up to 2000000 steps/second. This span supports both ultra low speed precision positioning (such as microscope stage movement) and high-speed material conveying. The acceleration range is wider: 1 to 24999975 steps per second ², which means the system can achieve acceleration and deceleration curves from gentle start-up to extremely rapid acceleration and deceleration. The update cycle for all kinematic parameters is 2 milliseconds, which means that the controller will recalculate the target position, velocity, and current commands every 2 milliseconds to ensure the smoothness of the trajectory. The input channel of the encoder can be configured as a hardware up/down counter to directly read the orthogonal signal of the incremental encoder, achieving closed-loop position verification or full closed-loop control. In addition, two Fast Trigger inputs support hardware level position capture functionality: when an external sensor signal arrives, the system immediately locks the current encoder position or instruction position, with a delay typically in microseconds, making it ideal for high-speed registration or snapshot positioning.

Input/output and programmable capability

The interaction ability between controllers and peripheral devices is crucial in industrial automation systems. The ZETA6000 series provides extremely rich I/O resources. Its 16 programmable digital inputs are compatible with the Opto-22 standard and can be directly connected to a 24V DC signal source. Each input can be customized by the user, such as serving as a start signal, program selection, emergency stop, or external status monitoring. The 8-channel programmable digital output is also compatible with Opto-22 and can drive indicator lights, relays, or small solenoid valves. In addition, there is a dedicated auxiliary programmable output port that can be used to generate pulse signals or indicate operating status. For the unique sensor requirements of motion control, the driver is equipped with limit inputs (positive and negative limits) and origin input, which have the highest priority. Once triggered, the controller will respond in a preset mode (emergency stop, deceleration stop, or ignore). Two quick trigger inputs can be used not only for position capture, but also as external clock sources for high-speed counters. All I/O signals are connected through detachable screw terminals, greatly simplifying on-site wiring work without the need for soldering or crimping specialized connectors.

Programming languages and software development environments

The ZETA6000 series uses the 6000 series command language, which is a structured text language designed specifically for motion control. It is powerful enough to implement complex multitasking logic, conditional branching, mathematical operations, and variable storage, yet concise enough for engineers who are new to it to write their first motion program within hours. The system is equipped with 150000 bytes of non-volatile memory for storing user programs, motion path parameters, and variable data. During program execution, if an error occurs (such as limit triggering, driver failure, or communication timeout), the controller can interrupt the current program and jump to the designated error handling subroutine to improve system robustness. Programming and debugging tools include single step execution, trace mode, breakpoint setting, detailed error message prompts, and I/O signal simulation functions, which can significantly shorten the development cycle of complex motion logic.

In terms of software ecology, the ZETA6000 series comes with Motion Architect at the factory ™—— A software for developing applications based on the Microsoft Windows platform. This software provides various tools such as waveform monitoring, online parameter modification, program editing and downloading, and diagnostic terminals. For developers who need to integrate drivers into larger systems such as C++or C # upper computers, Compumotor provides dynamic link libraries (DLLs) that support Windows and Windows NT environments. By calling functions in the DLL, the upper computer can easily send instructions, read state, and handle events for ZETA6000. In addition, there are multiple optional software options that expand the development method: Motion Toolbox ™  It is a virtual instrument library for LabVIEW, allowing engineers to build motion control programs in a graphical icon format, which is very suitable for users in the field of testing and measurement; The DDE6000 server provides a dynamic data exchange interface, enabling ZETA6000 to exchange data in real-time with software that supports the DDE protocol, such as Excel and Wonderware; Motion Builder ™  It provides a complete visual programming environment, where users can generate motion logic by dragging and dropping icons, reducing the programming threshold.

Communication and networking capabilities

The ZETA6000 series supports two serial communication interfaces, RS-232C and RS-485, and has flexible networking capabilities. Among them, the RS-232C interface adopts a three wire system (RX, TX, GND), connected through COM1 or COM2 ports, suitable for single machine debugging or point-to-point control. The RS-485 interface is configured on the COM2 port and can operate in either two-wire (half duplex) or four wire (full duplex) mode. When multiple ZETA6000 drivers need to collaborate to complete multi axis tasks, they can be connected to multiple stations through the RS-485 bus, supporting up to 99 devices. In a typical multi site configuration, each driver is assigned a unique address (set through a dip switch or ADDR command), and the host uses 9600 baud rate, 8 data bits, 1 stop bit, no checksum, half duplex parameters to send instruction frames with addresses, thereby achieving polling control. Another networking method is to use RS-232C for daisy chain connection, which also supports up to 99 drives, but requires the COM1 and COM2 ports of each drive to be connected in series. This flexible networking approach enables the ZETA6000 series to independently perform complex multi axis interpolation or synchronization tasks in single axis applications, such as electronic gear and flying shear functions, through communication and collaboration. In practical applications, electronic gears can enable the speed and phase of the slave shaft to follow the main shaft encoder signal, achieving precise proportional synchronization; The flying shear function adds automatic calculation and execution of fixed length cutting on this basis, which is highly valuable for the packaging, printing, and cable processing industries.

Physical installation and human-computer interaction

The physical design of the ZETA6000 series fully considers the convenience and reliability of installation in industrial sites. All power, motor, I/O, and communication interfaces use detachable screw terminal blocks, which means that when the driver needs to be replaced or maintained, there is no need to disconnect each wire individually. Simply loosen the terminal block to pull it out as a whole. In addition, a standard 50 pin pin header interface provides additional signal expansion capability, which can be used to connect external operation panels or custom expansion boards. The four status/fault LED indicators (diagnostic LED) on the front panel allow the operator to quickly determine whether the driver is powered on normally, whether it is in a fault state, whether communication is active, and whether the motor is enabled. For applications that require remote monitoring, the ZETA6000 series can be directly connected to the RP240 remote control panel, which has an LCD display screen and numeric keypad that can display current coordinates, speed, I/O status, and allow users to manually input commands or select pre stored programs. In independent operation mode, ZETA6000 can execute motion programs stored in non-volatile memory without connecting to an upper computer. It can be triggered to start through external I/O signals or RP240 panel, which enables it to be integrated as an embedded motion controller into automation equipment.

Application Fields and Typical Scenarios

With its high precision, rich I/O, and powerful networking capabilities, the ZETA6000 series is widely used in the following fields:

Electronic assembly and testing equipment, such as surface mount machines, flying pin testing machines, and wafer probe stations, require fast point-to-point positioning and low vibration to avoid damaging components.

Packaging and Printing Machinery: Utilizing electronic gears and fly cutting functions to achieve label positioning, die-cutting, cross cutting, and other processes, ensuring precise cutting during continuous material movement.

Medical equipment, such as sample processing systems, scanning tables, and infusion pumps, have strict requirements for low-speed smoothness and low noise.

Laboratory automation: Liquid processing workstation, microplate conveying system, requiring multi axis (multiple single axis drivers coordinated through RS-485) coordination and high reliability.

Semiconductor manufacturing: wafer transfer robotic arms and probe stations require extremely high positioning resolution and long-term stability.

General automation machines such as winding machines, dispensing machines, and engraving machines. The single axis feature of the ZETA6000 series simplifies the control system architecture and reduces development costs.
