ABB UNITROL 6000 excitation system: full cycle practical analysis from engineering selection to grid compliance

In the fields of power production and large-scale industrial drive, the stable operation of synchronous generator sets and motors is directly related to the safety and production efficiency of the power grid. As the core control link of a synchronous machine, the performance of the excitation system determines the voltage regulation accuracy, transient response capability, and stability of grid connected operation of the unit. ABB UNITROL ®  6000 series excitation system is designed to meet this stringent demand. It is not only the representative of progressiveness technology, but also the industry benchmark of high availability and grid compliance.

This article will deeply analyze the system architecture, core control functions, hardware selection strategies, communication integration methods, and service and troubleshooting strategies covering the entire lifecycle of UNITOL 6000 from the perspective of frontline engineering personnel, providing a practical technical guide for engineers engaged in electrical commissioning, maintenance, and renovation of power plants.

System positioning and selection: precise matching of Medium and X-power

The UNITOL 6000 series is not a single product, but a family of systems covering small to ultra large power generation units. Its original design intention is to serve a wide range of industrial scenarios: from generator excitation for steam, gas, nuclear power, and hydropower units, to large electric motor drives for steel plants, pulp and paper, chemical, natural gas production, and refineries. Based on output capability and application scale, this series is mainly divided into two versions.

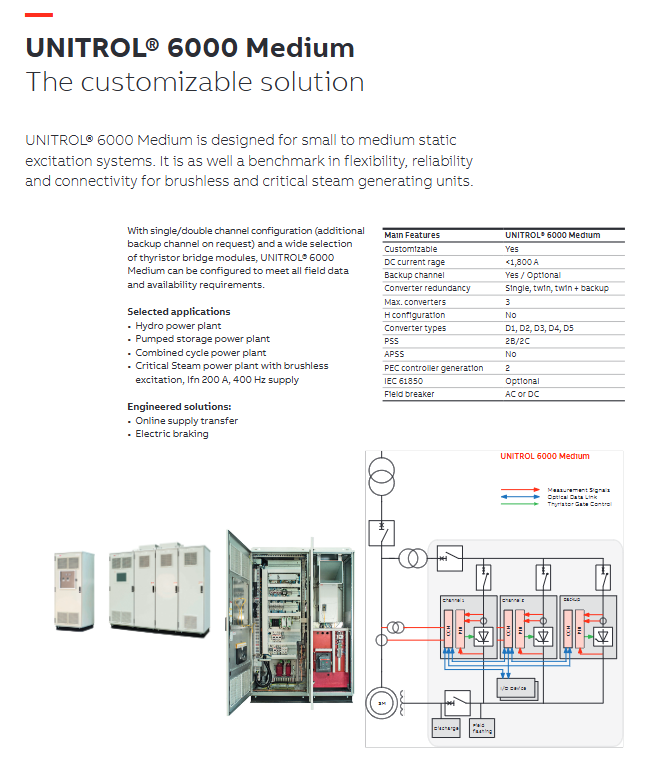

1. UNITROL 6000 Medium: Customizable solution for small and medium-sized units

The Medium version is designed specifically for small and medium-sized static excitation systems, and is also suitable for brushless excitation and critical steam generator sets. Its core advantage lies in a high balance of flexibility, reliability, and connectivity.

DC current range: below 1800 A, covering the vast majority of industrial and medium-sized power generation needs.

Redundant configuration: Supports single channel or dual channel control, with optional additional backup channels. The redundancy methods for converters include single, dual, and dual backup, supporting up to 3 converters.

Typical applications: hydropower stations, pumped storage power stations, combined cycle power stations, as well as key steam power stations with brushless excitation and excitation current of 200A and 400Hz.

Additional engineering solution: Supports online power switching and electrical braking.

For scenarios that are not extremely demanding but require good availability, the Medium version offers excellent cost-effectiveness and engineering adaptability.

2. UNITROL 6000 X-power: the flagship solution for high-power applications

The X-power version is a benchmark product tailored for large generator sets, setting new standards in flexibility, reliability, and connectivity.

DC current range: 1800 A to 12000 A, meeting the high current requirements of nuclear power plants and other facilities.

Redundant configuration: Supports single, dual, and N-X redundancy, with a maximum configuration of 8 converters. Supporting H-bridge configuration is an important topology for achieving four quadrant operation or critical backup functions.

Controller Generation: Adopting the third-generation PEC controller with stronger computing power.

Typical application: Nuclear power plants with excitation current exceeding 10000 A; An underground hydropower station equipped with redundant air-water heat exchanger system and excitation current of 4500 A; A gas turbine power station equipped with MEGATROL complete solution, excitation current of 6000 A, and integrated 15 MW static variable frequency starting device (SFC); And coal-fired power plants where the excitation cabinet is more than 150 meters away from the AVR control cabinet.

Communication and switch: Standard IEC 61850 protocol, supporting AC (up to 4000 A) or DC field circuit breakers.

When selecting engineering models, engineers need to accurately choose the Medium or X-power platform based on factors such as the rated excitation current, voltage, available space, redundancy requirements, and whether SFC startup is included, and determine the corresponding converter type (such as D1-D5, UNL13300, UNL14300).

Core control function: Beyond PID for complete regulation and ecological protection

The strength of the UNITOL 6000 lies not only in its hardware, but also in its highly integrated and configurable software functionality. All necessary adjustment, protection, and monitoring functions have been built into the system as standard features, while allowing engineers to flexibly adapt according to specific applications.

1. Closed loop control core

Automatic mode (AUTO): a voltage regulator based on PID filters. This is the preferred mode during normal operation, maintaining a constant terminal voltage.

Manual mode (MAN): Excitation current regulator based on PI filter. As a backup mode, the excitation current can be manually maintained when the PT signal is lost.

Compensation and limitation: including active/reactive current droop compensation, as well as a series of limiter circuits to ensure that the generator operates within safe limits:

Maximum/minimum excitation current limit

Maximum stator current limit based on cooling medium temperature

P/Q under excitation limit

Volt/Hertz (V/Hz) limit

Independent limiter in manual mode

Additional controls: power factor/reactive load control, and power system stabilizer (PSS).

2. Protection and monitoring

All monitoring and protection functions can be freely configured at three action levels:

Only issue an alarm signal: reminding the operation and maintenance personnel of the abnormality, but the unit continues to operate.

Switching to redundant channel: When the main channel fails, it automatically switches to the backup controller or converter to achieve disturbance free switching.

Immediate excitation trip: In case of serious faults such as overcurrent and demagnetization, immediately demagnetize to protect the generator rotor and stator.

The main available protection functions include overcurrent protection (instantaneous/inverse time limit), volt/hertz protection, demagnetization protection, rotor temperature monitoring, thyristor conduction monitoring, and actual value monitoring. This layered protection mechanism allows engineers to make the most reasonable response strategy based on equipment importance and fault severity.

3. Data and event recording

The internal event recorder of the system can process and store up to 2000 events with real-time timestamps. The data logger is pre configured with the function of collecting a large number of measurement values and internal signals, and automatically triggers when a fault occurs, greatly facilitating fault diagnosis and continuous improvement. In addition, a freely configurable high-speed recorder is provided for compliance testing or power grid event analysis.

4. Power System Stabilizer (PSS)

PSS is a key function for improving the dynamic stability of the power grid. It dampens power oscillations between the generator and the transmission system by modulating excitation. The UNITOL 6000 offers multiple advanced PSS options:

PSS 2A/2B/2C: Compliant with IEEE 421.5-2016 standard.

PSS 4B/4C: also compliant with IEEE standards, using different compensation structures.

Adaptive PSS (APSS): Developed by ABB Switzerland, it can dynamically optimize PSS parameters based on current grid conditions, maximize availability in weak grid environments, and avoid tripping caused by insufficient damping.

For the compliance audit of power grid companies, selecting and verifying appropriate PSS models is a key step in grid connected power generation projects.

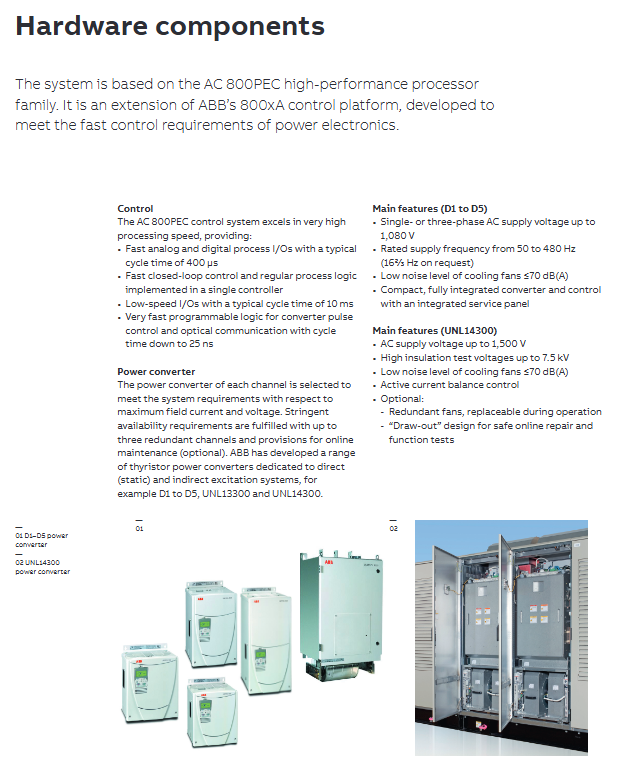

Hardware Platform and Power Converter: Physical Bearer of High Performance Computing

The UNITOL 6000 is based on ABB's AC 800PEC high-performance processor platform. This platform is an extension of the ABB 800xA control system, designed specifically to meet the high-speed requirements of power electronic control.

1. Control unit (AC 800PEC)

The core advantage of AC 800PEC lies in its extremely high processing speed:

Fast I/O: The typical cycle time for analog and digital process I/O is 400 microseconds.

Integration of closed-loop and logic: High speed closed-loop control and conventional process logic can be implemented in the same controller.

Low speed I/O: Typical cycle time is 10 milliseconds, used for non critical signals.

Fast Logic: Programmable logic used for converter pulse control and fiber optic communication, with a cycle time as low as 25 nanoseconds.

This means that whether it is fast voltage regulation response or complex trigger pulse generation, AC 800PEC can be completed on a unified hardware platform, simplifying the system architecture and improving reliability.

2. Power Converter Series

The converter is selected based on the system's requirements for maximum excitation current and voltage. To meet high availability requirements, up to three redundant channels can be configured, and online maintenance functions can be optionally selected. The main converter series include:

D1 to D5 series:

The maximum voltage of single-phase or three-phase AC power supply is 1080 V.

The rated power frequency is 50 to 480 Hz (16 2/3 Hz can be customized).

Cooling fan noise ≤ 70 dB (A).

Compact fully integrated converter and control unit with integrated service panel.

UNL14300 series (for X-power):

The AC power supply voltage can reach up to 1500 V.

The high insulation test voltage can reach up to 7.5 kV.

Active current sharing control ensures that the current of each bridge arm is balanced during parallel operation.

Optional: Redundant fans that can be replaced during operation, drawer style design to support online safety maintenance and functional testing.

In engineering practice, the choice between D series or UNL series depends on the excitation voltage level of the generator, insulation requirements, and whether hot swapping maintenance is required. For example, for high-voltage excitation circuits or critical units that require online maintainability, UNL14300 is a more suitable choice.

Communication, human-computer interaction, and remote services

A modern excitation system must be able to seamlessly integrate into the control network of the power plant. UNITOL 6000 provides comprehensive communication and human-computer interaction solutions.

1. Excitation Control Terminal (ECT)

ECT is an industrial grade touchscreen PC running the Windows 10 operating system, independent of the controller, used for operation, monitoring, and maintenance. It can record events and system data for a long time, and display the real-time status of the system in graphical and numerical form. ECT can also be installed on any PC used for debugging, which greatly facilitates engineers' on-site work.

2. Factory level communication protocol

The communication with power plant DCS or PLC is mainly based on Ethernet and fieldbus, and the supported protocols include:

Modbus RTU and Modbus TCP

Profibus DP-V0

IEC 61850 (X-power standard, Medium optional): For digital substations and smart grids, IEC 61850 support is key to achieving interoperability and future upgrades.

The emergency control signal can still be directly connected to the control board through hard wiring, ensuring the highest level of reliability.

3. Remote service and support

UNITROL 6000 supports remote access through ABB RAP platform or user internal tools. This means that the on-site maintenance team can always receive technical support from ABB service experts. 24/7/365 hotline (+41 844 845 845) and dedicated email（ unitrol.supportline@ch.abb.com ）Ensure that emergency technical assistance is within reach.

Engineering Practice: Debugging, Modeling, and Full Lifecycle Maintenance

For engineers in the 'solution seeking' stage, the convenience of system debugging, model accuracy, and long-term maintenance strategy are crucial.

1. Hardware in the loop simulation: SMTS-RT 6000

SMTS-RT 6000 is a "Hardware in the Loop" simulator that can simulate generators/motors, their prime movers/loads, and the power grid. Connecting the actual UNITOL 6000 controller to the simulator for closed-loop testing can analyze its static and transient behavior without compromising the safety of real equipment and the power grid. Its engineering value is reflected in:

Pre tuning parameters: Before the actual unit is put into operation, simulators and controllers can be used to optimize control parameters, greatly reducing on-site debugging time.

Training tool: an ideal training platform for maintenance and operation personnel.

Extreme condition testing: Simulate the most severe plant or grid conditions, which are usually not safe to test in actual systems.

2. Grid compliance testing

The control function design of UNITROL 6000 supports any grid specification. Its powerful testing capabilities and data logger (built-in to ECT) can be used to test, tune, and validate the performance of controls, stabilizers, and limiters. The built-in white noise generator can quickly and accurately analyze the system frequency response, completing compliance verification with minimal testing time. The recorded data can be easily copied and integrated into electronic documents, directly as part of the grid compliance report.

3. Life Cycle Management

ABB has provided a clear lifecycle management model for the UNITOL 6000, helping customers extend and maximize asset life at the lowest cost.

Active and Classic Stage: During this stage, ABB guarantees to provide complete lifecycle services, including technical optimization support, remote services, maintenance and repair, expansion and upgrading, and modernization.

Limited stage: When the system enters a limited stage, ABB will advise customers to start planning upgrades or modifications to the latest technology.

Specific examples of lifecycle services include: technical support for optimizing reliability, remote services, maintenance and repair, expansion, upgrading, and transformation.

4. Training and Support

ABB University offers standard and customized training courses, covering both virtual and on-site training formats. In addition, the 'Excitation Care' program provides a structured service framework that includes optional service packages to cover different maintenance needs. Its benefits include simplifying service delivery, reducing maintenance costs, supporting operations through digital services such as ABB Ability Remote Insights, improving system reliability, and achieving knowledge transfer through training.

Troubleshooting and Maintenance Strategy

Although the UNITOL 6000 is designed with high availability as its goal, a systematic troubleshooting strategy remains an essential skill for on-site engineers.

Preliminary diagnosis:

View ECT alarm and event records: First, check the event recorder (up to 2000 events) and data recorder (automatically triggered by faults). Real time timestamp and waveform recording are the fastest paths to locate the root cause of the problem.

Check the controller status LED: The status indicator lights on the AC 800PEC controller provide preliminary information on the hardware health status.

Common problem classification:

Communication failure: Check the network connection between ECT and controller. For Profibus DP or Modbus, check the configuration of the bus cable, terminal resistance, and DCS side. For IEC 61850, check GOOSE subscription and SV sampling value configuration.

Abnormal voltage regulation: Check if the secondary side wiring of the PT (voltage transformer) is normal and if there is a blown fuse. Use ECT to view the voltage setpoint and feedback values in AUTO mode. Check if the PID parameters are suitable for the current operating point.

Abnormal excitation current (MAN mode): Check the CT (current transformer) signal. Check if the trigger pulse of the thyristor is normal, and use the thyristor conduction monitoring function. Check if the rotor grounding protection is activated.

PSS not effective: Confirm that PSS has been enabled and put into operation. Check if the active power of the generator is above the PSS start-up threshold. Check if the PSS output limiter is activated. Use a white noise generator for frequency response testing to verify PSS parameters.

Limiter misoperation: Check if the limiter settings (such as U/F limit, under excitation limit) match the actual capacity curve of the generator. View the status and action values of the limiter in ECT.

Advanced diagnosis:

Using SMTS-RT 6000 to reproduce faults: For occasional faults that are difficult to reproduce on site, the controller can be connected to a simulator to reproduce the operating conditions and observe whether the fault is reproduced.

Remote support: If the on-site team is unable to resolve the issue, authorize ABB experts through the RAP platform for remote diagnosis. This is one of the most effective ways to shorten downtime.

Spare parts and maintenance: Plan key spare parts (such as power modules, I/O boards, cooling fans) in advance based on the lifecycle stage. For UNL series converters, use their drawer style design to achieve online replacement.
