  • ABB PPD113-B03-23-111615 Excitation system controller
    ❤ Add to collection
  • ABB PPD113-B03-23-111615 Excitation system controller

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    The ABB PPD113-B03-23-111615 excitation system controller is a core control unit designed specifically for synchronous generator excitation regulation. It integrates advanced digital control technology and high reliability hardware, and can accurately regulate the excitation current of the generator to ensure stable output voltage under different working conditions. At the same time, it realizes fault protection and dynamic response optimization. It is a key equipment to ensure the safe and efficient operation of the generator in scenarios such as power systems and industrial self owned power plants.

    • ¥28364.00
      ¥27573.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:12.760KG
    • Quantity:
    • (Inventory: 99999)
Description

The ABB PPD113-B03-23-111615 excitation system controller is a core control unit designed specifically for synchronous generator excitation regulation. It integrates advanced digital control technology and high reliability hardware, and can accurately regulate the excitation current of the generator to ensure stable output voltage under different working conditions. At the same time, it realizes fault protection and dynamic response optimization. It is a key equipment to ensure the safe and efficient operation of the generator in scenarios such as power systems and industrial self owned power plants.

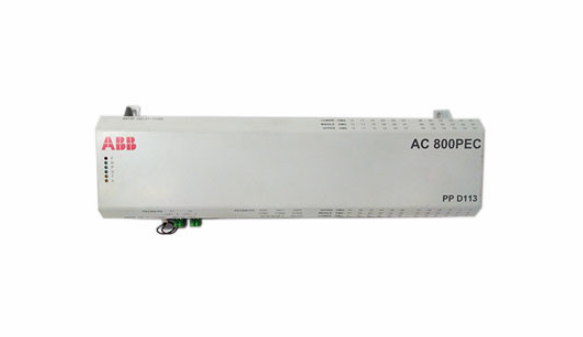

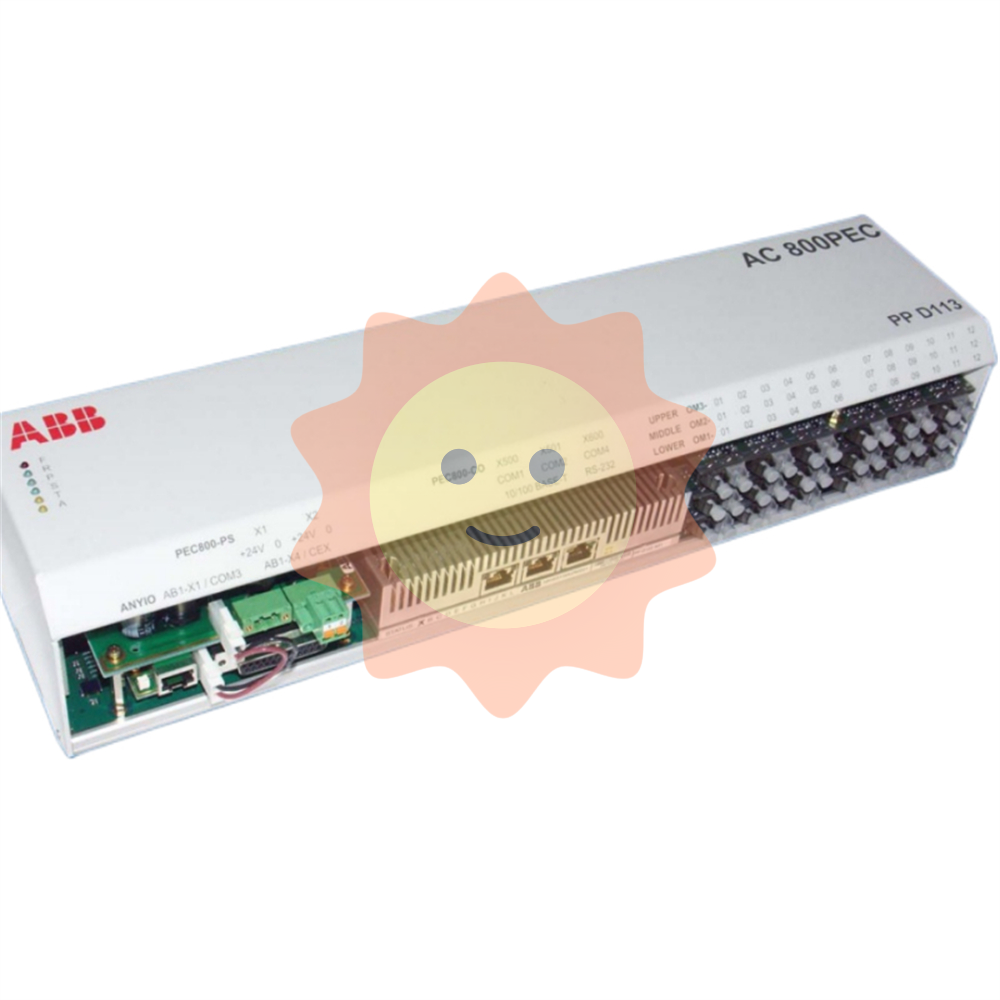

ABB PPD113-B03-23-111615 Excitation system controller

Product core positioning

The ABB PPD113-B03-23-111615 excitation system controller is a core control unit designed specifically for synchronous generator excitation regulation. It integrates advanced digital control technology and high reliability hardware, and can accurately regulate the excitation current of the generator to ensure stable output voltage under different working conditions. At the same time, it realizes fault protection and dynamic response optimization. It is a key equipment to ensure the safe and efficient operation of the generator in scenarios such as power systems and industrial self owned power plants.


Key features and advantages

High precision excitation regulation capability

Adopting a dual closed-loop control strategy (voltage closed-loop+current closed-loop), the voltage regulation accuracy can reach ± 0.2% of the rated value, effectively suppressing the impact of grid voltage fluctuations on generator output;

Support seamless switching between automatic voltage regulation (AVR) and manual excitation regulation (MVR) modes. In case of automatic mode failure, manual mode can quickly take over to ensure continuous system operation;

Equipped with functions such as excitation current limitation and voltage limitation, the threshold can be flexibly set according to the rated parameters of the generator to prevent equipment overload damage.

High reliability and anti-interference design

The hardware adopts industrial grade components, and the core chip has anti electromagnetic interference (EMC) design, which complies with the IEC 61000-6-2 industrial environment anti-interference standard. It can work stably in scenarios such as power plant workshops and substations with strong electromagnetic interference;

Support redundant configuration (optional dual controller hot backup), when the main controller fails, the backup controller can automatically switch within ≤ 100ms, without disturbance taking over control tasks, greatly reducing the risk of system shutdown;

The shell adopts an IP40 protection level design, which is dust-proof and can resist slight liquid splashes, suitable for installation needs in complex industrial environments such as power plants and chemical industries.

Intelligent monitoring and diagnosis

Equipped with a high-definition LCD display interface, it can display key operating parameters such as generator voltage, excitation current, power factor, etc. in real time. It supports bilingual operation in Chinese/English, making it convenient for on-site personnel to view;

Built in comprehensive fault diagnosis function, can monitor controller hardware faults (such as power supply abnormalities, communication interruptions), generator operation faults (such as overvoltage, overexcitation), and notify operation and maintenance personnel through sound and light alarms, fault code prompts, etc. At the same time, it automatically records fault information (storage capacity ≥ 1000 pieces) for easy retrospective analysis afterwards;

Supports remote communication function, compatible with mainstream communication protocols such as Modbus RTU and IEC 61850, and can be connected to power plant SCADA systems or remote monitoring platforms to achieve centralized monitoring and remote operation and maintenance of the excitation system.

Flexible adaptation and expansion

Suitable for synchronous generators of different capacities (rated excitation voltage range: 0-200V DC, rated excitation current range: 0-500A DC), which can meet the control requirements of different types of equipment such as steam turbine generators and hydro generators through parameter settings;

Reserve expansion interfaces, which can be equipped with excitation transformer monitoring modules, speed measurement modules, etc. according to user needs to enrich system functions;

Support online parameter modification and firmware upgrade, configuration updates can be completed without power outage, reducing system downtime.


Core technical parameters

Power supply

Main power supply: 220V AC/DC (± 10%), backup power supply: 24V DC (± 15%)

Control accuracy

Voltage regulation accuracy: ± 0.2% of rated value, current regulation accuracy: ± 1% of rated value

Response time

Voltage step response time: ≤ 0.1s (overshoot ≤ 5%)

Excitation limit function

Overexcitation limit, underexcitation limit, overvoltage limit, overcurrent limit (threshold can be programmed)

Communication interface

1 RS485 (Modbus RTU), 1 Ethernet (IEC 61850)

Display and operation

3.5-inch LCD color display screen, 4 function buttons (parameter settings, mode switching, fault reset, etc.)

Working environment

Temperature: -10 ° C to+55 ° C, humidity: ≤ 95% (no condensation), altitude: ≤ 2000m (if exceeded, reduce capacity for use)

External dimensions

482mm (width) x 177mm (height) x 260mm (depth) (standard 19 inch rack installation)

Weight

About 5.5kg


Typical application scenarios

Thermal power generation/hydropower generation scenario

Used for excitation regulation of the main synchronous generator in power plants, by accurately controlling the excitation current, the generator ensures stable output voltage during load fluctuations (such as grid load increase or decrease, unit start and stop), meeting the requirements of the power grid for power quality;

Cooperate with the generator protection system to achieve rapid removal of faults such as overexcitation and overvoltage, and protect core components such as the generator stator and rotor winding from damage.

Industrial self owned power plant scenario

In the self owned power plants of large industrial enterprises such as steel, chemical, and cement, excitation control is provided for the self owned generators to ensure the stability of the internal power grid voltage and avoid the impact of external power grid fluctuations on the normal operation of production equipment;

Support communication with the Enterprise Energy Management System (EMS) to achieve collaborative control between the excitation system and other production equipment, optimizing energy utilization efficiency.

New energy supporting scenarios

In new energy power plants such as biomass power generation and waste incineration power generation, adapting to the characteristics of new energy generators, solving the problem of large output fluctuations, and improving the stability of generator grid connected operation by stabilizing excitation output;

It can be linked with the control system of new energy generation systems such as photovoltaics and wind power to achieve coordinated control of multi energy complementary power stations.

Emergency power supply scenario

In emergency diesel generator systems in key locations such as data centers, hospitals, and large shopping malls, as the excitation control core, it ensures that the emergency generator can quickly start and stably output voltage in the event of a power outage, ensuring reliable operation of emergency loads such as servers, medical equipment, and lighting systems.


Operation and Maintenance Guide

1. Installation precautions

The controller needs to be installed on a 19 inch standard rack, which should be securely fixed to avoid vibration affecting equipment operation; The installation location should be far away from high-temperature heat sources (such as generators and transformers) and strong electromagnetic interference sources (such as high-voltage cables and frequency converters), while reserving a heat dissipation space of ≥ 30cm;

When wiring, it is necessary to strictly distinguish between power circuits, signal circuits, and control circuits to avoid interference caused by mixing cables from different circuits; The excitation current cable should use shielded wire, with the shielding layer grounded at one end (grounding resistance ≤ 4 Ω) to reduce electromagnetic interference;

Communication cables need to be wired separately to avoid parallel laying with power cables. If it cannot be avoided, the spacing should be ≥ 30cm, or shielded with metal pipes to prevent interference with communication signals.

2. Daily operating procedures

Power on operation: First, connect the main power supply of the controller. After the display screen shows normal, check whether the parameters (such as rated voltage and rated current) match the generator. After confirming that there are no errors, switch to the "Automatic Voltage Regulation (AVR)" mode. After the generator starts, the controller will automatically adjust the excitation current to the rated value;

Parameter setting: Enter the "Parameter Setting" interface to adjust parameters such as voltage setpoint and excitation limit threshold according to operational needs. After setting, save the parameters and restart the controller (some parameters support online effectiveness);

Mode switching: During normal operation, AVR mode is used. When manual adjustment of excitation current is required, it can be switched to MVR mode, and the excitation current output can be adjusted through buttons or remote commands; Before switching, it is necessary to confirm that the generator is running stably to avoid excessive voltage fluctuations during the switching process.

3. Troubleshooting and maintenance

Common troubleshooting:

Power failure: If the controller does not display, first check if the main power supply voltage is normal and if the backup power supply is turned on. If the power supply is normal, check if the power module wiring is loose and replace the power module if necessary;

Abnormal voltage regulation: If the output voltage deviation of the generator is too large, first check whether the voltage setpoint is correct, and then check whether the voltage sampling signal is normal (such as the wiring of the voltage transformer). If the sampling signal is abnormal, troubleshoot the transformer or sampling cable; If the sampling is normal, it may be due to controller parameter drift, and the voltage regulation parameters need to be recalibrated;

Communication failure: If unable to communicate with the SCADA system, first check whether the communication cable wiring is correct, whether the communication protocol parameters (such as baud rate and address) match, and then use a multimeter to detect the communication interface voltage (the voltage difference between RS485 interface A and B lines should be 2-6V). If the voltage is abnormal, replace the communication module;

Regular maintenance:

Clean the controller casing and cooling fan monthly to prevent dust accumulation from affecting heat dissipation; Check if the wiring terminals are loose, and if they are loose, tighten them (tightening torque: 0.8-1.2Nm for M3 screws);

Check whether the controller parameters are normal every quarter, compare historical operating data, and determine whether there is parameter drift; Test the AVR/MVR mode switching function to ensure a smooth switching process;

Conduct comprehensive maintenance once a year, including calibrating voltage and current sampling accuracy (using standard signal source input, adjusting controller calibration parameters), testing the switching function of redundant configurations (if equipped), checking the charging and discharging performance of the backup power supply, and ensuring that the backup power supply can be put into operation normally in the event of a main power supply failure.
