Application of MOOG G77x servo valve

MOOG G77x series two-stage electro-hydraulic servo valve: full analysis of selection, installation, commissioning and maintenance

In the field of electro-hydraulic servo control, high dynamic response, high reliability, and long lifespan are key indicators for measuring core components. As the inventor and industry standard setter of servo valves, Moog's G77x series (including G771, G772, G773) two-stage flow control servo valves, with their simple and durable design, excellent stability, and wide flow coverage range, have become the preferred choice for hydraulic systems in high-end equipment such as injection molding machines, presses, gas turbines, testing equipment, and aerospace. This article will systematically explain the technical characteristics, installation integration points, electrical parameter matching, performance debugging, daily maintenance, and common troubleshooting of the G77x series from an engineering application perspective, helping engineers better select and use this series of products in practical projects.

Product Series Overview: Core Differences of G771, G772, G773

The G77x series is a high-performance two-stage electro-hydraulic servo valve launched by Moog, suitable for three-way or more common four-way throttling control. Its output stage is a closed center four-way slide valve, and the pilot stage is a symmetrical dual nozzle baffle, driven by a dual air gap dry torque motor and using a cantilever spring to achieve mechanical feedback of the main valve core. This mature two-level structure balances control accuracy and anti pollution capability.

According to the different installation interface sizes and rated flow rates, this series is divided into three sub series:

Characteristics G771/771 G772/772 G773/773

Installation surface standard ISO 10372-02-0-0-92 ISO 10372-03-0-0-92 Moog specific

Maximum flow rate 17 L/min (4.4 gpm) 57 L/min (15 gpm) 63 L/min (16.5 gpm)

Rated flow rate (@ 35 bar/valve port) 4 or 10 L/min 10, 19 or 38 L/min 38 or 57 L/min

0-100% step response time 4 ms 4 ms 10 ms

Maximum working pressure 210 bar (3000 psi) Universal 210 bar 210 bar

Key points of engineering selection:

For applications with small flow rates (≤ 10 L/min) and compact spaces, G771 is the preferred choice, with an installation surface of ISO 02 size.

Medium flow (10-38 L/min) industrial applications, G772 is the most common, with an installation surface of ISO 03 size.

For situations with high flow rates (38-57 L/min) or special interface requirements, choose G773.

All sub series offer intrinsically safe versions that comply with ATEX, FM, CSA, IECEx certifications, and can be safely used in hazardous environments such as oil and gas, chemical, etc.

Working principle and structural advantages

Understanding the working principle of G77x is helpful for fault analysis and debugging. Its core structure includes:

Dry Torque Motor: Polarized electromagnet drives the armature assembly. Two coils surround the armature, isolating the electromagnetic part from the hydraulic part through a flexible tube and serving as the pivot of the armature. This' dry 'design means that hydraulic oil will not come into contact with the coil, significantly improving the insulation reliability and service life of the coil.

Dual nozzle baffle pilot stage: The baffle in the middle of the armature extends through the flexible tube and is located between two nozzles, forming two variable throttling holes. When the input current causes the armature to deflect, the baffle approaches one nozzle and moves away from the other, resulting in a pressure difference in the back pressure chambers of the two nozzles. The pressure difference acts on both ends of the main valve core, pushing it to move.

Main valve and mechanical feedback: The main valve core is a four-way slide valve, and the valve core position is mechanically connected to the baffle/armature assembly through a cantilever feedback spring. The displacement of the valve core will twist the feedback spring, generating a mechanical torque opposite to the electromagnetic torque of the torque motor. When the two are balanced, the valve core stops moving. Therefore, the position of the valve core is precisely proportional to the input current and independent of changes in load pressure.

Failure safety: When the input signal is lost (such as power outage), the torque motor has no torque output, and the feedback spring pulls the valve core back to the neutral position (zero position), causing the P, A, B, and T oil ports to be disconnected from each other, achieving fault safety.

Engineering insights:

The "zero position" of the valve core can be adjusted by mechanical zero adjustment screws (within ± 10% of the rated flow range), making it easy to match the system on site.

Due to the use of mechanical feedback, there is no need for external displacement sensors, making the system simple and reliable.

Practical installation and mechanical integration

Correct installation is the foundation for ensuring the performance of servo valves. The following key points must be strictly followed:

1. Surface requirements for installation

Flatness: 0.05 mm/100 mm (0.002 in/3.94 in)

Surface roughness: better than Ra 0.8 μ m (0.000032 in)

Non compliant surfaces can cause valve body deformation, seal failure, or valve core jamming.

2. Oil ports and seals

G771: Port diameter 4.85 mm, using O-ring (section 1.78 mm, inner diameter 6.07 mm, size -010)

G772: Port diameter 6.60 mm, O-ring inner diameter 9.24 mm (dimension-012)

G773: Port diameter 7.92 mm, O-ring inner diameter 10.82 mm (dimension-013)

Material recommendation: Fluorocarbon rubber (FKM, Viton) ®  B）90 Shore， Compatible with mineral oil and various synthetic oils.

3. Electrical connection

Standard connector: MS3106F14S-2S (4-pin), Moog P/N：-49054F0145002S

The coil leads are all connected to the connector and can be configured externally as series, parallel, or differential connections.

For explosion-proof environments, intrinsically safe valves and corresponding safety barriers should be used.

4. Zero adjustment steps

Disconnect the electrical signal (zero current).

Use a 3/8-inch angled wrench to loosen the self-locking screw sleeve (usually less than half a turn), do not remove it.

Use a 3/32 inch hex wrench to rotate the zero pin clockwise to provide flow output to port B, and counterclockwise to do the opposite.

After reaching the required zero bias flow rate, tighten the self-locking screw again to a torque of 57 in · lbs (approximately 6.4 N · m).

Matching electrical parameters with coils

G77x offers multiple coil specifications to accommodate different servo amplifier outputs. The coil is wound with copper wire, and the resistance changes significantly with temperature (the temperature coefficient of copper resistance is about 0.4%/℃). Therefore, it is recommended to use a current feedback servo amplifier (high output impedance) to eliminate the influence of coil resistance changes on valve characteristics.

Standard coil parameters (at 25 ℃):

Recommended ordering code: rated current (single coil), coil resistance (Ω/coil), power consumption (single coil)

H ±15 mA 2060 0.023 W

L ±40 mA 800 0.128 W

Inductance value (measured at 50Hz, under pressure conditions):

H coil: single coil 0.72 H, series 2.2 H, parallel 0.59 H

L coil: single coil 0.22 H, series 0.66 H, parallel 0.18 H

Wiring configuration and valve opening direction:

Series connection: Coil B is connected to coil C, and A+and D - → currents flow through both coils, generating a large inductance and suitable for high impedance amplifiers.

Parallel connection: A is connected to C, B is connected to D, A is connected to C+, B is connected to D - → The total resistance is half of a single coil, suitable for low-voltage driving.

Single coil: Only use A+/B - or C+/D -, with the other pair of coils suspended.

Valve opening phase: When connected in series or parallel to allow flow from port B, the corresponding input current polarity is as shown above.

Engineering suggestion:

Priority should be given to valves with ± 40 mA (L coil), as they have lower resistance, better noise resistance, and most industrial servo amplifiers can be directly driven.

If using an old-fashioned voltage type amplifier, it is necessary to ensure that the amplifier has sufficient output voltage to overcome the influence of coil inductance.

Performance characteristics and dynamic response

The core advantage of the G77x series lies in its high dynamics and low nonlinearity, which are crucial for closed-loop position/pressure control systems.

Key static indicators:

Threshold: ≤ 0.5% rated signal. The minimum input signal required to initiate the movement of the valve core reflects the friction and viscosity characteristics of the valve. A low threshold means higher resolution.

Hysteresis: ≤ 3.0% rated signal. The maximum difference between forward and reverse outputs under the same input signal. Low hysteresis loop helps improve repeatability accuracy.

Zero shift (Δ T=38 ℃): ≤ 2.0% rated signal. The impact of temperature changes on the zero position is crucial for a wide temperature working environment.

Dynamic characteristics:

Step response time (0-100% travel):

4 L/min, 10 L/min, 19 L/min specifications: typical value 4 ms

38 L/min specification: 10 ms

57 L/min specification: 17 ms

This indicates that small flow valves have extremely high response speeds and are suitable for high-frequency applications.

Frequency response (can be estimated from the performance curve): At ± 40% of the rated signal, a -3dB bandwidth can typically reach over 100Hz (depending on the model).

Traffic calculation:

Due to the sharp edge throttling of the valve port, the flow rate is proportional to the square root of the pressure drop:

Q=QN×ΔpΔpN

Q=Q N× Δp N Δp

Among them, Q_n is the rated flow rate (corresponding to pressure drop Δ p_N=35 bar/valve port), and Δ p is the actual working pressure drop. For example, if a valve rated at 10 L/min is subjected to a pressure drop of 70 bar/port, the actual flow rate is approximately 14.1 L/min (70/35).

Valve core zero cutting options:

Standard Axis Cut: default option, used for most position control systems.

Open Center Spool: Used in hydraulic motor circuits, allowing for a small amount of leakage to cause the motor to coast.

Closed Center Spool: Used for fail safe applications, with minimal leakage at zero position, but increased valve core coverage and slightly decreased resolution.

Maintenance and troubleshooting

The G77x series is designed to be sturdy and durable, but following proper maintenance practices can maximize its lifespan.

1. Oil cleanliness management - the most important maintenance measure

Moog explicitly recommends:

To ensure functional safety: The filter accuracy β 10 ≥ 75 (absolute 10 μ m) should be installed in front of the valve or in critical areas.

To extend the lifespan: filter accuracy β 5 ≥ 75 (absolute 5 μ m), installed in the return oil or bypass.

Target pollution level: ISO 4406:1999 code 17/14/11 (or 1987 version 16/13), ideally reaching 16/13/10.

Attention: New oil is often not clean and must be carefully filtered before filling.

2. Regular inspections (every 6 months or 4000 hours)

Replace the hydraulic filter element.

Give the valve a full stroke step signal and observe if the motion is smooth. If there is shaking or irregular movement, it may be due to valve core wear, pilot stage blockage, or actuator/mechanical problems.

3. Common fault phenomena and troubleshooting

Troubleshooting steps for possible causes of fault phenomena

The system has no action or extremely slow response, no input signal, amplifier failure, coil open circuit, pilot stage blockage. Check if the connector is loose, measure the coil resistance (should be within ± 12% of the nominal value), disconnect and manually push the valve core (if there are auxiliary functions)

If the zero offset is too large and the zero screw is loose, the oil temperature changes causing thermal drift, and the feedback spring deforms and needs to be readjusted (see Section 3), if zeroing cannot be eliminated, it may be due to internal mechanical damage

Output jitter or oscillation due to improper amplifier parameters, nozzle baffle jamming caused by oil contamination, and valve core wear. Check if the amplifier output is a stable current; Test the step response of the valve separately using a portable Moog Valve Tester

Excessive leakage, wear of valve core/sleeve, aging of sealing ring, uneven installation surface. Measure the leakage rate (usually zero position leakage ≤ 1.9 L/min). If it exceeds the standard, replace the valve or repair it

Coil burnout or insulation degradation, amplifier over drive, coil overheating, oil entering torque motor. Check if the amplifier output exceeds the rated current; Measure the insulation of the coil to ground with a megohmmeter

4. Long term storage guide

If spare valves need to be stored, the following should be followed:

Install the transport board on the installation surface of the valve to prevent contamination and sealing components from being affected by ozone/ultraviolet radiation.

Store in original packaging or vacuum packaging (if the environment is highly corrosive).

Environmental requirements: -40 to+60 ℃, no vibration, dust-free, relative humidity<65%, avoid direct sunlight.

Storage for more than 5 years: It is recommended to return to the factory for inspection; Over 10 years: Must return to the factory for maintenance.

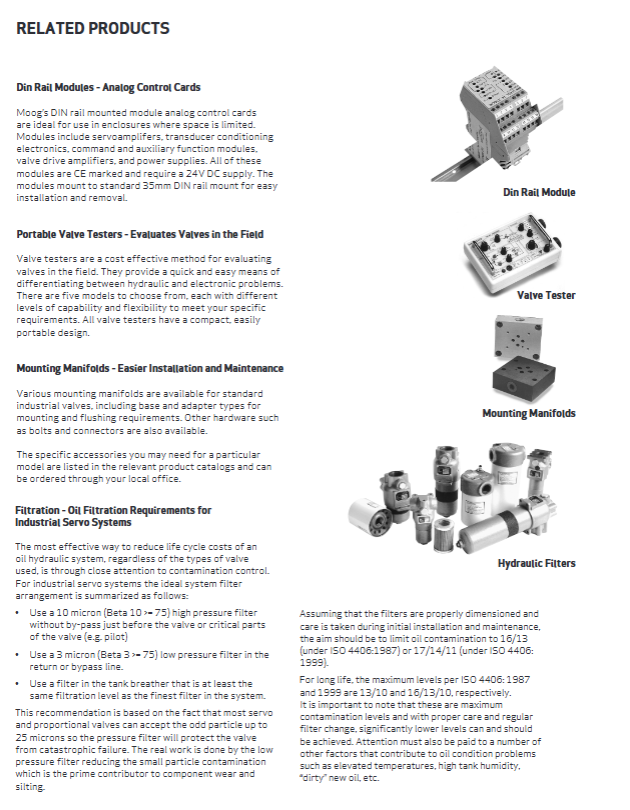

Accessories selection and global support

Moog provides a wide range of supporting products for the G77x series, helping engineers simplify system integration and fault diagnosis:

DIN rail analog control card: including servo amplifier, sensor conditioning module, command module, etc., powered by 24V, occupying small space.

Portable valve tester: Five models to choose from, can quickly distinguish whether it is a hydraulic valve problem or an electronic signal problem, and is a powerful tool for on-site troubleshooting.

Install manifold: Provide base or adaptive mounting blocks for easy pipeline connection and flushing.

Moog Global Support: Service centers are located in 26 countries worldwide, providing original factory repairs, spare parts inventory, preventive maintenance contracts, on-site services, and more. Repair using OEM parts to ensure performance is restored to the latest specifications.
