The demand for high performance, high reliability, and flexible customization is increasing in modern industrial control, structural health monitoring, and embedded testing systems. The RIO (Reconfigure I/O) platform launched by National Instruments (now Emerson's testing and measurement business) integrates Intel or Arm processors, user programmable FPGAs, modular I/O, industrial communication interfaces, and LabVIEW development environment into a unified architecture, providing engineers with powerful embedded solutions. The two main hardware forms of the platform - rugged CompactRIO and compact Single Board RIO (sbRIO) - have been optimized for distributed industrial control and batch OEM embedded applications, respectively. This article will provide a comprehensive and in-depth technical analysis of the NI RIO platform from the perspectives of platform advantages, system architecture, module selection, software development, industrial connectivity, and practical cases.

Core advantages of RIO platform

The design goal of the RIO platform is to provide a powerful and easy-to-use hardware foundation for testing, measuring, and controlling applications. The three core advantages are as follows:

excellent performance

Compared to traditional PLCs or PACs, RIO platforms are capable of handling more challenging real-time tasks. High speed deterministic operation implemented through FPGA, with a control cycle rate exceeding 1 kHz and an I/O sampling rate of up to 1 MS/s per channel. FPGA provides precise timing and control capabilities, allowing complex algorithms to run directly in hardware without being affected by processor load.

Accelerated development process

By using ready-made hardware and a unified software environment (LabVIEW), developers can quickly prototype and easily deploy to different RIO hardware forms without the need for extensive software modifications. Compared to customized hardware design from scratch, this commercial off the shelf (COTS) approach significantly shortens product time to market.

Robust reliability

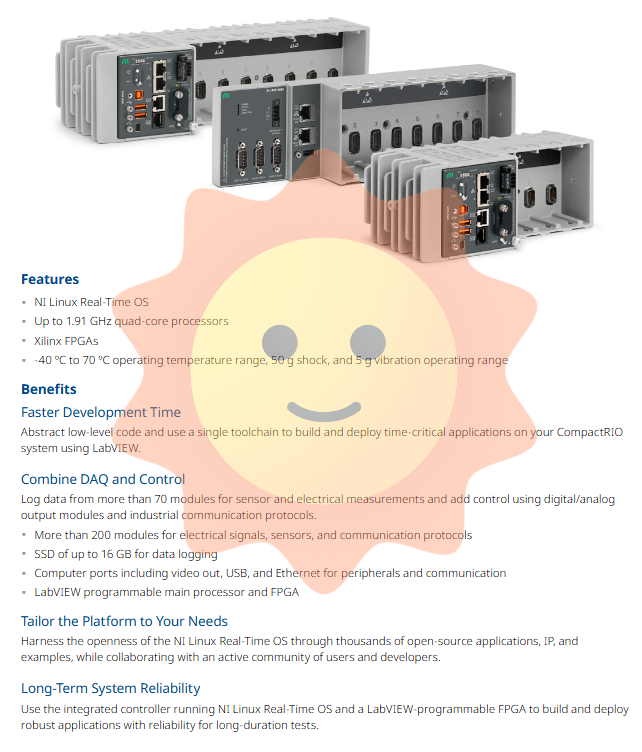

CompactRIO adopts a cast aluminum shell and a fanless passive heat dissipation design, meeting strict industrial environment specifications: operating temperature of -40 ° C to 70 ° C, able to withstand 50g impact and 5g vibration (RMS). This reduces mechanical design time and ensures long-term reliability in harsh environments.

CompactRIO System Architecture

All CompactRIO hardware consists of three key components: real-time processor, FPGA, and connection to signal converters (typically located in C-series modules).

Real time processor: runs a standard kernel based real-time operating system (NI Linux Real Time or VxWorks) designed for reliable and deterministic operation. The LabVIEW VI on the processor receives module data, network system data, or data from peripheral devices (such as HMI) forwarded by FPGA. Users can host web services, read/write disks, or run deterministic PID loops on the processor.

User programmable FPGA: Using Xilinx's FPGA technology, programming is carried out through LabVIEW FPGA modules. FPGA is directly connected to all onboard I/O and C-series modules, enabling offloading of time critical tasks such as advanced control algorithms, signal processing, filtering, or custom timing logic. The key point is that users can independently decide whether the analysis and control logic occurs on the processor or FPGA according to application requirements, and even achieve closed-loop control that runs entirely within the FPGA without the need for processor intervention, thereby achieving extremely low latency.

C-series I/O modules: Provides over 70 module options for measuring electrical signals, reading and writing digital lines, connecting sensors, or generating output signals. Signal conditioning and analog-to-digital conversion are completed within the module, and digital values are collected by LabVIEW FPGA VI. Engineers can design application specific timing, logic, and synchronization parameters in FPGA VI.

C-series modules: rich I/O options

The C-series module is the I/O front-end for CompactRIO and sbRIO systems, covering a wide range of types from basic voltage and current measurement to professional sensor interfaces. The following are typical module specifications organized according to the document:

Analog input module:

Voltage: Up to 32 channels, optional range from ± 200 mV to ± 800 Vrms, maximum sampling rate of 1 MS/s/ch, supports inter channel isolation and anti aliasing filtering.

Current: Up to 16 channels, ± 20 mA or 0-50 A rms, 200 kS/s, with channel diagnostics.

Universal input: up to 4 channels, supporting voltage, current, thermocouple RTD、 Strain, resistance IEPE，51.2 kS/s/ch， Bridge compensation and anti aliasing filtering.

Thermocouple: Up to 16 channels, supports J/K/T/E/N/B/R/S types, 95 S/s/ch, with cold end compensation.

RTD: Up to 8 channels, 100 Ω or 1000 Ω, 400 S/s, with 50/60 Hz filtering.

Strain/Bridge Path: Up to 8 channels, 1/4, 1/2, full bridge (120 or 350 Ω), 50 kS/s/ch, external excitation.
