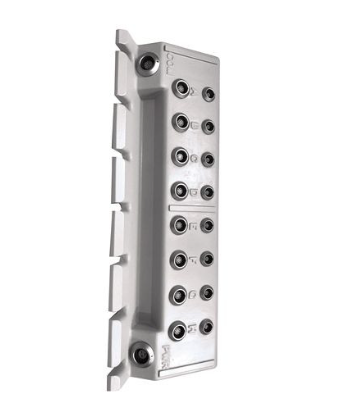

ABB 129740-002 134177-001 Intelligent I/O Module

ABB 129740-002 134177-001 Intelligent I/O Module

Module Overview

ABB 129740-002 and 134177-001 are both industrial grade intelligent input/output (I/O) modules, which are core peripheral components in ABB automation control systems. Both are designed specifically for complex industrial environments, with high reliability, strong anti-interference ability, and flexible configuration characteristics. They can achieve precise acquisition of various sensor signals on site and reliable control of actuators, providing key data transmission and instruction execution guarantees for the stable operation of automated production processes. They are widely used in multiple industrial fields such as power, metallurgy, chemical, and manufacturing.

Core functional characteristics

2.1 General core functions

-Intelligent signal processing: Equipped with high-precision signal conditioning circuits and microprocessors, it can filter, amplify, and linearize analog signals (such as current and voltage), and perform anti shake and level conversion on digital signals to ensure the accuracy and stability of signal transmission.

-Flexible communication compatibility: Supports seamless integration with mainstream ABB PLCs (such as AC500, AC800M series) and automation control systems, compatible with standard industrial communication protocols (such as PROFINET, EtherNet/IP, Modbus, etc., specific protocol support needs to be combined with the actual module configuration), achieving high-speed bidirectional data transmission.

-Diagnostic and monitoring capabilities: Equipped with comprehensive self diagnostic functions, it can monitor the real-time working status of the module itself (such as power failure, communication abnormalities) and channel status (such as short circuit, open circuit, signal overload), and upload diagnostic information to the control system through the communication bus, making it easy for operation and maintenance personnel to quickly locate faults.

-Industrial grade reliability: Adopting a wide temperature design (usually supporting working environments of -20 ℃~60 ℃), it has anti electromagnetic interference (EMC) characteristics, complies with the IEC 61000 series industrial electromagnetic compatibility standards, and can adapt to harsh industrial site environments such as dust and vibration.

-Convenient configuration and maintenance: Supports module parameter configuration, channel mapping, and functional debugging through ABB's dedicated configuration software (such as Control Builder M). The module comes with status indicator lights (power, communication, channel faults, etc.), which can intuitively feedback the operating status and reduce maintenance costs.

2.2 Module specific features (differentiation explanation)

ABB 129740-002

-Typically positioned as an analog input (AI) module, it focuses on the acquisition of on-site analog signals.

-Supports multiple types of signal inputs, with common compatible signals including 4-20mA DC current signal and 0-10V DC voltage signal. It can be matched with mainstream industrial sensors such as pressure sensors, temperature transmitters, and liquid level sensors.

-Equipped with channel isolation function, photoelectric isolation design is adopted between each input channel and between channels and module power supply, effectively avoiding signal crosstalk and improving anti-interference ability.

-High sampling accuracy, usually 16 bits or higher resolution, ensures precise capture of small signal changes and meets the requirements of high-precision measurement scenarios.

ABB 134177-001

-Multi configured as a digital input/output (DI/DO) hybrid module, balancing the acquisition of digital signals and the execution of control instructions.

-The digital input channel supports dry contact and wet contact signals, and can be connected to status signals of limit switches, proximity switches, and other devices. It has a configurable function for signal stabilization time (such as 1ms~100ms).

-The digital output channel adopts relay or transistor output mode (depending on the model). The relay output supports AC/DC loads, and the transistor output is suitable for high-frequency switch control scenarios. The output load capacity matches industrial standard actuators (such as solenoid valves and indicator lights).

-Some models support channel diagnosis function, which can monitor the open circuit and overload status of the output channel, improving the reliability of the control circuit.

Key technical parameters

parameter category

ABB 129740-002 (typical value)

ABB 134177-001 (typical value)

Module Type

Analog input module

Digital input/output hybrid module

number of channels

8 channels/16 channels (subject to actual product)

DI 8 channels+DO 8 channels/DI 16 channels+DO 16 channels (specific subject to physical object)

Input/output signal

4~20mA DC、0~10V DC

DI: Dry contact/Wet contact (24V DC); DO: Relay (AC 250V/5A, DC 30V/5A) or transistor (24V DC/2A)

sampling precision

± 0.1% FS (full scale)

DI: response time ≤ 1ms; DO: action time ≤ 10ms (relay)

power supply

24V DC ±10%

24V DC ±10%

power consumption

≤ 5W (unloaded)

≤ 8W (full load)

Working temperature range

-20℃~60℃

-20℃~60℃

Protection level

IP20 (module itself), IP65 (with protective casing)

IP20 (module itself), IP65 (with protective casing)

communication interface

PROFINET/EtherNet/IP

PROFINET/EtherNet/IP

Installation and wiring specifications

4.1 Installation Requirements

-The module needs to be installed on a standard DIN rail (35mm), and the installation environment should be well ventilated, avoiding direct sunlight, rainwater immersion, and corrosive gas erosion.

-At least 5mm of heat dissipation gap should be reserved between modules to ensure smooth heat dissipation and prevent performance degradation due to high temperature.

-During the installation process, it is necessary to take measures to protect against static electricity. Operators should wear anti-static wristbands to prevent static electricity from damaging the internal circuits of the module.

4.2 Wiring specifications

-Power wiring: Strictly distinguish the positive and negative poles of the module power supply (L+connected to 24V DC positive pole, M connected to negative pole) to avoid module burnout caused by reverse connection.

-Signal wiring: Analog signal cables should use shielded twisted pair cables, with the shielding layer grounded at one end (near the sensor end); Digital signal cables need to be laid separately from power cables to avoid electromagnetic interference.

-Output wiring: When connecting the digital output channel to the actuator, it is necessary to match the appropriate wire cross-sectional area according to the actuator power, and install surge suppressors (such as relay output current diodes) to protect the module output circuit.

-After the wiring is completed, it is necessary to check whether the wiring terminals are tightened to avoid signal abnormalities or module failures caused by poor contact.

Key points of configuration and debugging

1. Software preparation: Install ABB Control Builder M or the corresponding configuration software for the control system, ensuring that the software version is compatible with the module firmware version.

2. Module addition: Create a new project in the configuration software, add the corresponding module from the equipment library according to the module model (129740-002/134177-001), and configure communication parameters (IP address, subnet mask, gateway, etc.) to ensure normal communication with the PLC or control system.

3. Parameter configuration:

129740-002: Configure signal types (current/voltage), sampling periods, signal ranges, and alarm thresholds for each channel.

4. 134177-001: Configure DI channel anti shake time, DO channel output mode (normally open/normally closed), and enable fault diagnosis function status.

5. Debugging and verification:

Analog input: Input standard signals (such as 4mA, 20mA) to the module through a signal generator, view the collected values in the configuration software, and confirm that they are consistent with the input signal.

6. Digital input/output: Simulate signal input through short circuiting the DI channel and observe changes in channel status in the software; By issuing DO control instructions through software, check whether the actuator action is normal, and monitor the feedback of module status indicator lights.
