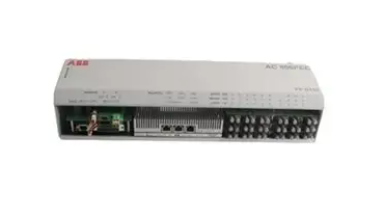

  • ABB 3BHE023784R2530 PPD113B01-25-111000 Controller Module
    ❤ Add to collection
  • ABB 3BHE023784R2530 PPD113B01-25-111000 Controller Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    The ABB 3BHE023784R2530 PPD113B01-25-11000 controller module is a high-performance core control unit launched by ABB in the field of industrial control. "3BHE023784R2530" is the ABB standard product code used to accurately locate product models, production batches, and compliance information, while "PPD113B01-25-11000" is the specific model identification of the module, representing its exclusive functional configuration and hardware specifications. As a key component of industrial automation systems, this module integrates ABB's advanced control algorithms and reliable hardware design. It has the characteristics of fast data processing speed, precise control logic, and strong environmental adaptability. It is widely used in control systems in major industrial fields such as power, chemical, metallurgical, and rail transit. It undertakes core tasks such as signal acquisition, logical operation, instruction output, and system linkage, providing solid guarantees for the stable operation and efficient control of industrial equipment.

    • ¥8955.00
      ¥7053.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.650KG
    • Quantity:
    • (Inventory: 99999)
Description

The ABB 3BHE023784R2530 PPD113B01-25-11000 controller module is a high-performance core control unit launched by ABB in the field of industrial control. "3BHE023784R2530" is the ABB standard product code used to accurately locate product models, production batches, and compliance information, while "PPD113B01-25-11000" is the specific model identification of the module, representing its exclusive functional configuration and hardware specifications. As a key component of industrial automation systems, this module integrates ABB's advanced control algorithms and reliable hardware design. It has the characteristics of fast data processing speed, precise control logic, and strong environmental adaptability. It is widely used in control systems in major industrial fields such as power, chemical, metallurgical, and rail transit. It undertakes core tasks such as signal acquisition, logical operation, instruction output, and system linkage, providing solid guarantees for the stable operation and efficient control of industrial equipment.


ABB 3BHE023784R2530 PPD113B01-25-111000 Controller Module

Product Overview

The ABB 3BHE023784R2530 PPD113B01-25-11000 controller module is a high-performance core control unit launched by ABB in the field of industrial control. "3BHE023784R2530" is the ABB standard product code used to accurately locate product models, production batches, and compliance information, while "PPD113B01-25-11000" is the specific model identification of the module, representing its exclusive functional configuration and hardware specifications. As a key component of industrial automation systems, this module integrates ABB's advanced control algorithms and reliable hardware design. It has the characteristics of fast data processing speed, precise control logic, and strong environmental adaptability. It is widely used in control systems in major industrial fields such as power, chemical, metallurgical, and rail transit. It undertakes core tasks such as signal acquisition, logical operation, instruction output, and system linkage, providing solid guarantees for the stable operation and efficient control of industrial equipment.


Core technical parameters

parameter category

specific parameters

Parameter Description

Product Code

3BHE023784R2530

ABB official unique product identification, used for procurement, traceability, and after-sales support

Core model

PPD113B01-25-111000

Core identification of module functions and hardware specifications, distinguishing different configuration versions

power supply

DC 24V ± 10% or AC 220V ± 15% (dual power supply optional)

Adapt to various power supply scenarios in industrial sites to enhance power compatibility

Processor specifications

32-bit industrial grade ARM processor with a clock frequency of ≥ 800MHz

High speed data processing capability to meet complex control logic operation requirements

Input/output channel

16 digital inputs and 8 digital outputs; Analog input 8 channels (4-20mA), analog output 4 channels (4-20mA)

Rich I/O interfaces that can directly connect external devices such as sensors and actuators

control accuracy

Analog input accuracy ± 0.05% FS, control response time ≤ 1ms

High precision signal acquisition and fast response ensure the accuracy of control instructions

communication interface

2 RS485 channels (supporting Modbus RTU), 1 EtherNet/IP channel, 1 PROFINET channel

Supports multiple industrial communication protocols for easy access to distributed control systems

working environment

Temperature: -20 ℃~60 ℃; Humidity: 10%~90% (no condensation)

Adapt to complex industrial environments such as high temperature and humidity, and improve operational stability

Protection level

IP20 (module body), supporting DIN rail installation

Suitable for standardized installation inside control cabinets to prevent dust intrusion

redundant function

Support dual module hot redundancy configuration

Key scenarios can achieve undisturbed switching, improving system reliability


Core functional features

1. High speed and precise control performance

The module is equipped with a 32-bit high-performance ARM processor with a main frequency of not less than 800MHz. Combined with ABB's independently developed control algorithm, it can quickly process complex logical operations and data processing tasks, with a control response time as low as 1ms. The analog input accuracy reaches ± 0.05% FS, and can accurately collect various sensor signals such as pressure, temperature, and flow rate, ensuring precise output of control instructions and effectively improving the operational accuracy and process stability of industrial equipment.

2. Rich I/O interfaces and compatibility with peripherals

Equipped with 16 digital inputs, 8 digital outputs, 8 analog inputs, and 4 analog output interfaces, the digital input supports dry/wet contact signals, and the analog interface is compatible with 4-20mA standard signals. It can be directly connected to various industrial sensors, solenoid valves, contactors, and other external devices without the need for additional signal conversion modules, reducing system integration costs and complexity.

3. Diversified communication and system integration capabilities

Integrated with 2 RS485, 1 EtherNet/IP, and 1 PROFINET communication interfaces, supporting mainstream industrial communication protocols such as Modbus RTU, EtherNet/IP, and PROFINET, it can flexibly connect to various industrial control systems such as PLC, DCS, SCADA, etc., realizing real-time data exchange, remote parameter configuration, and status monitoring between modules, upper computers, and other devices, facilitating the construction of centralized and intelligent industrial control networks.

4. High reliability and redundancy guarantee

Adopting industrial grade components and reinforced circuit design, it has passed EMC electromagnetic compatibility testing (compliant with IEC 61000 standard) and has strong anti electromagnetic interference, overcurrent, overvoltage, and short-circuit protection capabilities. Support dual module hot redundancy configuration, when the main module fails, the backup module can complete undisturbed switching in milliseconds, ensuring continuous execution of control tasks, suitable for critical scenarios such as power and chemical industries that require extremely high system reliability.

5. Convenient programming and debugging functions

Support control logic programming through ABB dedicated programming software (such as Control Builder Plus), compatible with various programming methods such as ladder diagram (LD), functional block diagram (FBD), structured text (ST), etc., to meet the usage habits of different engineers. The module comes with diagnostic indicator lights and fault storage functions, which can provide real-time feedback on the operating status of power, communication, I/O interfaces, etc., making it easy for engineers to quickly locate and troubleshoot faults.

6. Wide environmental adaptability

The working temperature range covers -20 ℃~60 ℃, and the humidity adapts to 10%~90% (without condensation). It can operate stably in harsh industrial environments such as high temperature, low temperature, and high humidity, without the need for additional constant temperature and humidity equipment, reducing on-site installation and maintenance costs. It is suitable for various complex industrial scenarios.


Typical application scenarios

-Power industry: used for boiler control systems, turbine regulation systems, and generator monitoring systems in thermal power plants and hydropower stations, to achieve precise control of key parameters such as temperature, pressure, and liquid level, ensuring stable operation and efficient power generation of generator sets.

-Chemical industry: In the control system of chemical reaction vessels, distillation towers and other equipment, responsible for collecting signals such as reaction temperature, pressure, material flow rate, etc., executing precise valve adjustment and material ratio control, ensuring the stability and safety of chemical production processes.

-Metallurgical industry: suitable for blast furnace ironmaking, converter steelmaking, and steel rolling production line control systems in steel plants, controlling parameters such as heating furnace temperature, rolling speed, tension, etc., to improve the quality and production efficiency of steel products.

-Rail Transit Industry: Used for traction inverter control systems and train braking control systems in urban rail transit and railways, to achieve precise control of traction motors and braking devices, ensuring the safety and stability of train operation.

-Water treatment industry: In sewage treatment and tap water purification systems, control the start stop and operation status of water pumps and valves, accurately adjust water quality indicators (such as pH value and turbidity), and improve water treatment efficiency and water quality compliance rate.


Installation and usage precautions

1. The module should be installed in a control cabinet with good ventilation, no dust, no corrosive gases, and no strong electromagnetic radiation. It should be installed using standard DIN rails, and the installation spacing should not be less than 10mm to ensure good heat dissipation. Avoid installation in direct sunlight, severe vibration, or near high-temperature heat sources.

2. Before wiring, it is necessary to confirm that the specifications of the power supply match the rated voltage of the module. Strictly distinguish the power end, I/O interface end, and communication interface end according to the product wiring diagram to avoid module damage caused by misconnection or reverse connection. After the wiring is completed, the terminal screws should be tightened to prevent poor contact.

3. The signal cables connected to the module should use shielded cables, with the shielding layer grounded at one end to reduce the impact of electromagnetic interference on signal transmission. Analog cables and digital cables should be routed separately to avoid cross interference.

Before the first use, the control logic needs to be written and downloaded through programming software, and the I/O interface and communication parameters need to be calibrated and configured. During debugging, a no-load test should be conducted first to confirm that the module is running normally before connecting to the load device.

5. During daily maintenance, the operation status of the module should be regularly checked (monitored by indicator lights or upper computer), the dust on the surface of the module and inside the control cabinet should be cleaned, and the wiring terminals should be checked for looseness. Regularly backup control programs and parameters for easy fault recovery.

When replacing or repairing modules, the power supply should be cut off first, and the module should be completely powered off before operation to avoid equipment damage or personnel safety accidents caused by live work.
