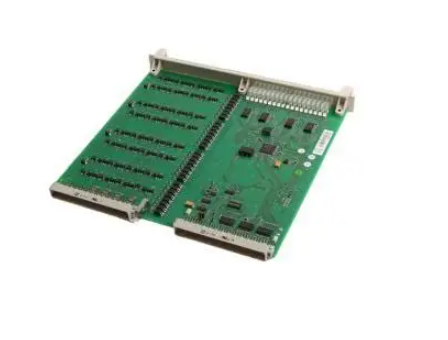

  • ABB DSDO115A 3BSE018298R1 Digital Output Module
    ❤ Add to collection
  • ABB DSDO115A 3BSE018298R1 Digital Output Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    As a specialized output module in ABB's industrial automation field, its key technical indicators are as follows (calibrated with comprehensive authoritative data sources):

    Basic configuration

    32 channel digital output

    Single channel independent control, supporting parallel operation

    Electrical performance

    Working voltage: 24VDC ± 20%


    • ¥12532.00
      ¥13142.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:5.350KG
    • Quantity:
    • (Inventory: 99999)
Description

As a specialized output module in ABB's industrial automation field, its key technical indicators are as follows (calibrated with comprehensive authoritative data sources):

Basic configuration

32 channel digital output

Single channel independent control, supporting parallel operation

Electrical performance

Working voltage: 24VDC ± 20%



ABB DSDO115A 3BSE018298R1 Digital Output Module

Core parameters of the product

As a specialized output module in ABB's industrial automation field, its key technical indicators are as follows (calibrated with comprehensive authoritative data sources):

Basic configuration

32 channel digital output

Single channel independent control, supporting parallel operation

Electrical performance

Working voltage: 24VDC ± 20%

Adapt to industrial standard low-voltage power supply system

Single channel output current: maximum 2A

Capable of driving medium power loads such as motors and valves

Isolation voltage: 2500V

Dual isolation between channels and systems, strong anti-interference ability

Response capability

Response time:<1ms

Including delay, rise/fall time (<100ns)


Switching frequency: up to 100kHz

Meet the requirements of high-speed pulse control

Environmental adaptability

Working temperature: -25 ° C to+60 ° C

Tolerate extreme industrial environment temperature fluctuations


Protection level: IP67

Dustproof and waterproof, suitable for humid/dusty environments

Physical specifications

Size: 324mm × 225mm × 22mm

Weight approximately 1kg, standard DIN rail installation


Core functions and technological advantages

High speed precision control

By using a dedicated signal processing chip with a data processing speed of 550 μ s and a response time of less than 1ms, millisecond level motion control of production line actuators and robot joints can be achieved. The 100kHz switching frequency supports pulse width modulation (PWM) and is suitable for precision scenarios such as speed regulation and flow control.

Multi dimensional reliability design

Hardware level: 2500V electrical isolation+IP67 protection to avoid external electromagnetic interference and environmental erosion;

At the system level, it supports CEX bus expansion and redundant configuration, and can achieve communication link redundancy through BC810 interconnect units to improve system availability;

Maintenance level: Integrated LED status indicator light and Initiat reset button, supporting remote diagnosis and fault location, reducing downtime.

Flexible Communication and Integration

Standard configuration includes Modbus RTU serial interface (COM4, isolated design) and dual RJ45 Ethernet ports (CN1/CN2), which can seamlessly connect to ABB Advant OCS, S100 I/O, and AC500 PLC systems, compatible with mainstream industrial control network architectures.


Adaptation system and application scenarios

1. Compatible with control systems

Main adaptation: ABB Advant OCS distributed control system, S100 I/O module system;

Extended adaptation: AC500 PLC series (requires dedicated interface module), Safeguard 400 safety system.

2. Typical application areas

Manufacturing industry

Production line valve/motor control, packaging machine start stop

Accurately trigger the actuator and synchronize the production pace

Automotive industry

Robot welding trajectory compensation, vehicle assembly positioning

Real time output adjustment signal to improve welding accuracy

Energy industry

Photovoltaic inverter switch control, wind power variable pitch drive

High reliability ensures continuous energy supply

Building automation

Intelligent lighting and ventilation system linkage control

Multi channel parallel output for scene based control

Medical equipment

Detection instrument action execution, reagent distribution control

Low jitter (<1ns) ensures operational accuracy


Substitution Relationship and Key Points for Purchasing

1. Model substitution logic

Direct replacement: replaces the old model DSDO 110 (24V system version), especially suitable for scenarios with a maximum load current of 150mA or more;

Function upgrade: Compared to DSDO 110, the number of channels has been expanded from 16 to 32, response speed has been increased by 30%, and isolation level has been upgraded from 1500V to 2500V

2. Precautions for selection and use

Load matching: The maximum output of a single channel is 2A, and external relays are required to drive heavy loads exceeding 5A;

Redundant configuration: The CEX bus supports up to 4 redundant communication interfaces and needs to be paired with BC810 bus isolation units;

Warranty and Supply: The brand new original product has a one-year warranty period, and the market spot price is approximately $900 per unit.


Common problem explanation

Channel no output fault: Prioritize checking the status of the LED indicator light. If the light goes off, investigate the 24V power supply; If the light is on, it may be a load short circuit, and isolation testing can be used to determine whether the channel is damaged.

Communication interruption: Confirm Ethernet/Modbus wiring, use shielded cable for COM4 port, and add a repeater if the distance exceeds 100 meters.
