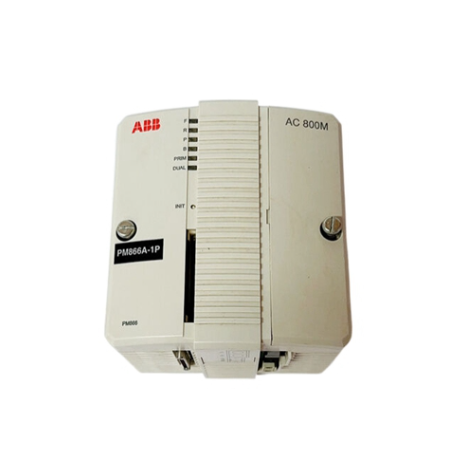

  • ABB PM866 3BSE050200R1 AC800M series PLC core controller
    ❤ Add to collection
  • ABB PM866 3BSE050200R1 AC800M series PLC core controller

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    ABB PM866 3BSE050200R1 is the high-end core controller of ABB AC800M series programmable logic controller (PLC), belonging to industrial grade high reliability control unit, originating from Switzerland. Its core function is to serve as the "computation and control center" of industrial automation systems, integrating signals collected by various I/O modules on site, performing high-speed computation and decision-making through built-in control algorithms (such as PID regulation, logic control, sequential control), outputting control instructions to drive actuator actions, and supporting multi protocol communication and system redundancy, providing core control support for the stable, efficient, and safe operation of large and complex industrial processes. It is widely used in scenarios that require extremely high control accuracy, response speed, and system reliability.

    • ¥37366.00
      ¥38577.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:5.830KG
    • Quantity:
    • (Inventory: 99999)
Description

ABB PM866 3BSE050200R1 is the high-end core controller of ABB AC800M series programmable logic controller (PLC), belonging to industrial grade high reliability control unit, originating from Switzerland. Its core function is to serve as the "computation and control center" of industrial automation systems, integrating signals collected by various I/O modules on site, performing high-speed computation and decision-making through built-in control algorithms (such as PID regulation, logic control, sequential control), outputting control instructions to drive actuator actions, and supporting multi protocol communication and system redundancy, providing core control support for the stable, efficient, and safe operation of large and complex industrial processes. It is widely used in scenarios that require extremely high control accuracy, response speed, and system reliability.




ABB PM866 3BSE050200R1 AC800M series PLC core controller

Core positioning and basic information

ABB PM866 3BSE050200R1 is the high-end core controller of ABB AC800M series programmable logic controller (PLC), belonging to industrial grade high reliability control unit, originating from Switzerland. Its core function is to serve as the "computation and control center" of industrial automation systems, integrating signals collected by various I/O modules on site, performing high-speed computation and decision-making through built-in control algorithms (such as PID regulation, logic control, sequential control), outputting control instructions to drive actuator actions, and supporting multi protocol communication and system redundancy, providing core control support for the stable, efficient, and safe operation of large and complex industrial processes. It is widely used in scenarios that require extremely high control accuracy, response speed, and system reliability.


Key technical specifications

Processor performance

Dual core 1.2GHz industrial grade processor

Powerful data computation and logic processing capabilities, supporting parallel execution of multiple tasks, meeting the operational requirements of large and complex control programs

Memory configuration

2GB DDR3 RAM (running memory)+8GB Flash (storage memory)

Large capacity memory supports complex control program storage and massive real-time data caching, ensuring smooth system operation and avoiding program lag caused by insufficient memory

Control cycle

Minimum control cycle ≤ 1ms

Ultra short control cycle can quickly respond to on-site signal changes, achieving high-precision dynamic control of industrial equipment, especially suitable for high-speed production line scenarios

Communication interface

2 Gigabit Ethernet interfaces (supporting PROFINET IRT, EtherNet/IP), 1 RS485 interface, 1 CANopen interface

Rich high-speed communication interfaces that can flexibly connect to industrial Ethernet and fieldbus networks, enabling high-speed data exchange with upper computers, I/O modules, and intelligent devices (Ethernet transmission rate up to 1000Mbps)

Redundant functions

Support controller redundancy (1:1 hot standby), communication redundancy, and power redundancy

Triple redundancy design, when the main controller, communication link or power supply fails, the backup unit can seamlessly switch within ≤ 100ms, ensuring uninterrupted operation of the system and greatly reducing the risk of downtime

Number of I/O modules supported

Up to 32 local I/O modules and 128 remote I/O modules can be expanded

Powerful scalability, capable of covering signal acquisition and control needs from small to large industrial sites, and adaptable to complex equipment layouts

Working power supply

24VDC ±15%

Wide voltage input design, suitable for industrial power supply voltage fluctuations, and equipped with overvoltage and overcurrent protection functions to prevent abnormal power supply from damaging the controller

Working temperature range

-40 ℃ to+70 ℃

Strong adaptability to extreme environments, capable of stable operation in severe cold (such as outdoor power facilities) and high temperature (such as metallurgical workshops) scenarios, without the need for additional temperature control equipment

Protection level

IP20 (Controller Body)

Suitable for installation inside control cabinets, it needs to be coordinated with the cabinet to achieve dust and moisture protection, avoiding direct contact with harsh environments such as dust and water vapor

Programming language

Supports the full range of IEC 61131-3 standard languages (ladder diagram LD, function block diagram FBD, structured text ST, sequential function diagram SFC, instruction list IL)

Complies with international programming standards, compatible with the programming habits of different engineers, and facilitates the development, debugging, and maintenance of control programs


Typical application areas

Chemical process control

In the continuous production process of large petrochemical parks, such as ethylene synthesis and PX units, thousands of on-site signals such as temperature, pressure, liquid level, and flow rate are integrated. Through complex PID cascade control and logic interlocking, key parameters such as reactor temperature, feed ratio, and distillation tower liquid level are accurately adjusted. At the same time, redundant functions are relied upon to ensure 24/7 uninterrupted production, avoiding safety accidents and economic losses caused by control interruptions.

Power system automation

In the auxiliary systems of large thermal power plants and nuclear power plants (such as boiler feedwater systems, desulfurization and denitrification systems), as the core control unit, it coordinates and controls the operation of hundreds of equipment such as water pumps, fans, valves, etc., monitors the equipment status and process parameters in real time, uploads data to the power plant DCS system through communication interfaces, and receives dispatch instructions to adjust equipment operating loads, ensuring stable and efficient power production.

Full process control of metallurgical steel

In the entire process of "ironmaking steelmaking rolling" in the steel plant, from the control of material distribution in the blast furnace, the regulation of oxygen flow in the converter, to the control of rolling speed and pressure in the hot rolling mill, all are centrally managed by this controller. Its high-speed control cycle (≤ 1ms) can accurately synchronize the actions of multiple rolling mills, ensuring that the thickness deviation of steel plates is controlled within ± 0.1mm. At the same time, its redundant function avoids steel rolling interruptions caused by equipment failures, improving product qualification rate and production efficiency.

Intelligent manufacturing factory

In intelligent factories in industries such as automotive and electronics, it is used to build flexible production control systems that achieve real-time communication with robots, CNC equipment, and conveyor lines through the PROFINET IRT protocol (response time ≤ 1ms), coordinate the production pace of each device, and achieve rapid switching production of multiple varieties and small batches of products. Simultaneously supporting integration with MES system (Manufacturing Execution System), uploading production data (such as output and qualification rate), receiving production planning instructions, and achieving intelligent management of the production process.


Key points of installation and operation and maintenance

(1) Installation specifications

It needs to be installed on the guide rail inside the standard 19 inch industrial control cabinet, and the installation position should be away from strong electromagnetic interference sources such as frequency converters and high-power motors (distance ≥ 30cm) to prevent electromagnetic radiation from affecting the stability of controller operation and communication; At the same time, reserve ≥ 10cm of upper and lower heat dissipation space to avoid performance degradation of the controller due to poor heat dissipation.

When wiring, it is necessary to strictly distinguish between power terminals, communication terminals, and grounding terminals. Copper core wires with a cross-sectional area of ≥ 1.5mm ² should be used for power lines, and shielded twisted pair wires (such as CAT6 shielded network cables) should be used for communication lines. The shielding layer should be grounded at one end (grounding resistance ≤ 1 Ω); The grounding terminal needs to be separately connected to the dedicated grounding strip of the control cabinet to avoid sharing with the power grounding and prevent grounding interference.

If a redundant system is configured, the installation positions of the main and backup controllers need to be consistent, and the communication cables and power cables need to be of the same specifications and laid in parallel to ensure consistency between the signal and power during switching. At the same time, redundant parameters (such as switching delay and heartbeat detection interval) need to be configured in the software.

(2) Debugging and Calibration

Before the initial debugging, it is necessary to use a multimeter to check whether the power supply voltage and grounding resistance meet the requirements, confirm that the wiring is correct, and then turn on the power; Connect the controller through ABB Control Builder M software to complete firmware version check (recommended upgrade to the latest stable version), control program download, and communication parameter configuration (such as IP address, protocol type).

Perform I/O signal calibration: For analog input channels, use a standard signal generator to input 4mA, 12mA, and 20mA standard signals. Monitor the deviation between the collected values and the standard values through software. If the deviation exceeds ± 0.1%, perform linear calibration in the software; Test the on/off status of each digital input/output channel to ensure accurate logical response.

Redundancy function test: Simulate a main controller failure (such as disconnecting the main controller power), observe whether the backup controller automatically switches within 100ms, and check whether the on-site equipment operation status remains stable (such as no fluctuations in motor speed and valve opening); After the test is completed, the main controller needs to be restored and the main and backup states should be confirmed to switch normally.

(3) Maintenance strategy

Daily maintenance (weekly): Check the running status of the controller (such as CPU usage, memory usage, temperature) through the upper computer monitoring software to ensure that the CPU usage is ≤ 70% and the memory usage is ≤ 60%. If any abnormalities occur, troubleshoot the control program or communication load; At the same time, check whether the controller indicator lights (power light, running light, redundant light) are normal and there are no fault alarms.

Regular maintenance (monthly): After power failure, open the control cabinet and use dry compressed air (pressure ≤ 0.2MPa) to clean the dust on the surface of the controller and the heat dissipation holes to avoid dust accumulation that affects heat dissipation; Check whether the wiring terminals are oxidized or loose, and tighten the loose screws again (reference torque for tightening: M3 screws 0.5-0.8N · m); Backup control programs and system configuration files, store them on encrypted USB drives and the cloud to prevent program loss.

Annual maintenance: Conduct comprehensive performance testing on the controller, including communication rate testing (using a network analyzer to detect Ethernet transmission delay and packet loss rate, requiring delay ≤ 1ms and packet loss rate=0), redundant switching time testing (using an oscilloscope to measure switching delay, ensuring ≤ 100ms); If the controller has been running for more than 5 years, it is recommended to replace the backup battery (if built-in) to prevent configuration data loss after power failure.

Fault handling: If the controller experiences a fault alarm (such as a flashing red light), first check the fault code through software (such as "E01: Communication Interruption" or "E05: Memory Error"), and identify the corresponding fault point (communication line, memory module) based on the code; If it cannot be repaired by oneself, it is necessary to contact an authorized ABB service provider for repair or replacement. It is prohibited to disassemble the controller by oneself (to avoid damaging the core chip).


Selection and substitution instructions

Differences within the same series: The AC800M series PLC core controller includes models such as PM851, PM860, PM866, PM869, etc. The core differences lie in processor performance, redundant functions, and expansion capabilities. The specific comparison is as follows:

PM851

Single core 800MHz

None

16 local I/O+32 remote I/O

Small and medium-sized simple control (such as small water treatment equipment)

PM860

Single core 1.0GHz

Optional controller redundancy

24 local I/O+64 remote I/O

Small and medium-sized complex control systems (such as automotive parts production lines)

PM866

Dual core 1.2GHz

Full redundancy (controller+communication+power supply)

32 local I/O+128 remote I/O

Large scale critical processes (such as chemical and metallurgical industries)

PM869

Four core 1.5GHz

Full redundancy+edge computing function

64 local I/O+256 remote I/O

Ultra large intelligent factory (requiring integration with AI algorithms and cloud platforms)

When selecting, it is necessary to determine the control scale, response speed, and redundancy requirements. For example, PM860 can be selected for small and medium-sized non critical scenarios, and PM866 is preferred for large critical production processes.

Alternative compatibility:

Backward compatibility: PM866 can directly replace old controllers of the same series (such as PM865 3BSE042236R1). When replacing, please note that the old control program needs to be converted to the format supported by PM866 through Control Builder M software (the software will automatically adapt the instruction set), and the redundant communication module needs to be replaced (the old module does not support Gigabit Ethernet);

Cross series substitution: If it is necessary to replace other brands of PLCs (such as Siemens S7-400H), the control program needs to be redeveloped (because although the programming language complies with IEC 61131-3, there are differences in manufacturer specific instructions), and the signal type and communication protocol of the I/O module need to be confirmed to match. If necessary, a signal conversion module or communication gateway (such as PROFINET to Profibus gateway) should be added.
