ABB S-053M 3BHB012897R0003 Phase controller module

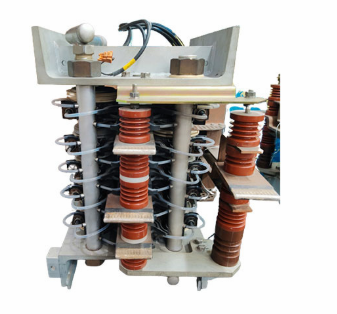

ABB S-053M 3BHB012897R0003 Phase Controller Module

Product Overview

The ABB S-053M 3BHB012897R0003 phase controller module is a high-precision control module developed by ABB specifically for the fields of power electronics and industrial control. It belongs to the S series core control components and is mainly used in high-voltage frequency converters, SVG (Static Var Generator), thyristor rectification devices and other power electronic equipment. Its core function is to achieve phase detection, phase adjustment and synchronous control of voltage and current signals, ensuring phase matching between power electronic devices and the grid or load. This module integrates a high-precision signal acquisition unit, a fast phase operation chip, and a reliable output drive circuit, which can achieve microsecond level phase response in complex power environments. It is a key core component to ensure the efficient, safe, and stable operation of high-voltage power electronic equipment, and is widely used in fields such as power systems, metallurgy, chemical engineering, and rail transit that require strict power quality.

Core Features

1. High precision phase detection and computational capability

The module is equipped with a dedicated high-precision phase detection chip and a 32-bit floating-point arithmetic processor, with a phase detection accuracy of ± 0.1 °. It supports 50Hz/60Hz power grid frequency adaptation and can real-time collect voltage and current signals of the power grid or load. Through the built-in phase-locked loop (PLL) technology, it quickly tracks signal phase changes and has a response time of less than 10 μ s. In response to issues such as voltage fluctuations and harmonic interference in the power grid, the module is equipped with an adaptive filtering algorithm that can effectively eliminate interference signals, ensure the stability and accuracy of phase detection, and provide reliable basis for precise control of power electronic devices.

2. Flexible phase adjustment and control mode

This module supports multiple phase control modes, including phase tracking control, fixed phase output control, phase difference closed-loop adjustment, etc., and can be flexibly switched according to the needs of different power electronic devices. Through the parameter configuration interface of the module, engineers can accurately set the phase adjustment range (0 ° -360 ° continuously adjustable), adjustment step size, and response speed to meet the control requirements of different scenarios such as vector control of high-voltage inverters, reactive power compensation adjustment of SVGs, and trigger synchronization of thyristor devices. Meanwhile, the module supports collaborative work among multiple modules, enabling synchronous control of multi-channel phases and adapting to high-power multi unit power electronic devices.

3. Strong anti-interference and high reliability design

In response to the strong electromagnetic interference problem in the operating environment of high-voltage power electronic equipment, the module adopts a triple anti-interference design: the signal input circuit uses an isolation amplifier for photoelectric isolation, and the isolation voltage can reach 2500Vrms, effectively blocking the transmission of interference signals; The power circuit is equipped with EMC filters to suppress common mode and differential mode interference; The core circuit adopts industrial grade wide temperature element devices, which can adapt to extreme working environments ranging from -25 ℃ to 75 ℃, and have good anti vibration (in accordance with IEC 60068-2-6 standard) and anti impact performance. In addition, the module has a built-in fault self diagnostic circuit that can monitor the status of power supply, input signals, output drivers, and other circuits in real time. When abnormalities occur, an alarm signal is immediately output and protective actions are taken.

4. Comprehensive interfaces and compatibility capabilities

The module is equipped with rich interface resources, including: 3 analog input interfaces (for collecting voltage/current signals, supporting 0-10V/4-20mA signal types), 4 digital input interfaces (for receiving external control commands), 6 pulse output interfaces (for driving power devices such as thyristors and IGBTs), 1 RS485 communication interface (supporting Modbus RTU protocol for communication with upper computer or PLC), and 1 CAN bus interface (for multi module collaborative control). The module strictly follows industrial control standards and has seamless compatibility with ABB's ACS series high-voltage inverters, PVS series photovoltaic inverters, and other equipment. It can also adapt to other mainstream brands' power electronic control systems.

5. Convenient debugging and operation functions

The module supports parameter configuration and status monitoring through ABB dedicated debugging software or general HMI devices. The software interface provides real-time display of phase waveforms, parameter modification records, fault log queries, and other functions. Engineers can intuitively observe the phase tracking effect and module operation status. The front of the module is equipped with 6 status indicator lights, which respectively indicate the status of power, operation, synchronization, alarm, etc., making it easy for on-site personnel to quickly judge the working condition of the module. In addition, the module supports online parameter modification and program upgrade, which can complete maintenance and upgrade work without disassembling the equipment, significantly reducing operation and maintenance costs.

Key technical parameters

core functionality

Phase detection, phase adjustment, synchronous control, fault diagnosis

Phase detection accuracy

±0.1°

Frequency adaptation range

45Hz -65Hz (adaptive)

Analog input (AI)

3 channels, 0-10V/4-20mA, accuracy ± 0.2%

Digital Input (DI)

4 channels, dry contact/PNP, response time ≤ 1 μ s

pulse output

6 channels, trigger pulse width adjustable from 10 μ s to 1000 μ s, maximum output current 1A

communication interface

1 RS485 (Modbus RTU), 1 CAN bus (CANopen protocol)

working power supply

DC 24V ± 15%, power consumption ≤ 8W

Input signal isolation

Optoelectronic isolation, isolation voltage 2500Vrms

Operating Temperature

-25℃ ~ 75℃

Storage temperature

-40℃ ~ 85℃

Protection level

IP20 (module level), compatible with IP54 control cabinet installation

Dimensions (length x width x height)

150mm × 100mm × 40mm (excluding plug-in terminals)

Electromagnetic compatibility standards

Compliant with IEC 61000-4-2/3/4/6 standards

Applicable scenarios

The ABB S-053M 3BHB012897R0003 phase controller module plays a core role in multiple key areas due to its high precision and reliability

-In the field of power systems, it is used for power quality control equipment such as SVG (Static Var Generator) and STATCOM (Static Synchronous Compensator). Through precise phase detection and adjustment, it compensates for reactive power in the power grid in real time, suppresses harmonics, stabilizes power grid voltage, and improves the quality of power grid operation.

-In the field of high-voltage frequency conversion: as the core synchronous control module of high-voltage frequency converters, it achieves phase synchronization between the output voltage of the frequency converter and the grid voltage, ensuring that the frequency converter has no surge current during startup, grid connection, and switching, protecting the frequency converter and motor equipment, and is suitable for frequency conversion speed regulation of high-power loads such as fans, water pumps, compressors, etc.

-In the field of metallurgy and chemical engineering, it is used in thyristor rectification devices and intermediate frequency induction heating equipment to accurately control the triggering phase of thyristors, achieve smooth adjustment of DC output voltage or frequency and phase control of intermediate frequency power supply, and meet the strict requirements of electrical energy control in processes such as metallurgical electrolysis and chemical reactor heating.

-In the field of rail transit, it is applied in traction converters for subways and high-speed trains to achieve phase synchronization control between the traction converter and the traction power grid, ensuring stable power supply for the traction system and improving the safety and reliability of train operation.

-In the field of new energy, it undertakes the task of grid synchronization in photovoltaic inverters and wind power converters, achieving precise phase and frequency matching between inverter output energy and the grid, ensuring smooth integration of new energy power into the grid, and improving the grid efficiency of new energy generation systems.

Precautions for use

1. Installation requirements: The module should be installed in a closed and well ventilated control cabinet, avoiding direct exposure to dust, oil, and humid environments. The installation location should be far away from strong electromagnetic interference sources such as high-voltage busbars and high-power contactors. The module spacing should not be less than 50mm to ensure good heat dissipation. Special guide rails or fixed brackets should be used during installation to avoid interface looseness caused by vibration.

2. Wiring specifications: Strictly distinguish between strong electrical signals (such as grid voltage input) and weak electrical signals (such as control command input) according to the product wiring diagram. Strong electrical circuits and weak electrical circuits should be wired separately with a spacing of not less than 100mm to avoid cross interference. The signal input line should use shielded twisted pair, with one end of the shielding layer reliably grounded (grounding resistance ≤ 4 Ω), and the wiring terminals should be tightened to prevent signal distortion caused by poor contact.

3. Power configuration: A stable DC 24V switching power supply must be used to power the module, and the power output ripple factor should be less than 1%. It is recommended to install surge protectors and fuses (recommended specification 1A) at the power input end to prevent power voltage fluctuations or surge impact from damaging the module. It is strictly prohibited to reverse the positive and negative terminals of the module power supply, otherwise it will directly burn out the core circuit.

4. Parameter configuration: Before debugging, it is necessary to clarify the control requirements of the equipment. Based on the equipment type (such as frequency converter, SVG), the core parameters such as phase detection method, adjustment range, and response speed should be correctly configured through debugging software. After the parameter configuration is completed, it needs to be saved. Before the first start-up, parameter verification should be carried out to ensure that it matches the equipment control logic and avoids equipment failure caused by parameter errors.

5. Synchronization test: Before the module is put into operation, a phase synchronization test must be conducted. The phase relationship between the input signal and the output trigger signal of the module must be observed through an oscilloscope to ensure that the phase difference is controlled within the allowable range (usually ≤ 1 °). In scenarios with significant voltage fluctuations in the power grid, it is necessary to test the frequency adaptation and phase tracking capabilities of the module to ensure stable operation even under extreme conditions.

6. Daily maintenance and troubleshooting: Regularly inspect the module status indicator lights to confirm that the power, operation, and synchronization indicator lights are normal; Clean the dust on the surface of the module and inside the control cabinet once a month, and check whether the wiring terminals are loose or oxidized. If the module has an alarm, the fault code should be read through the debugging software first, and the cause should be investigated according to the fault manual. When repairing, the module power should be cut off first, and anti-static tools should be used to avoid static electricity damaging the chip. For complex faults, ABB professional technicians should be contacted for handling.
