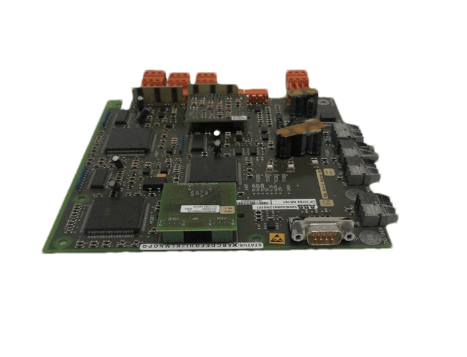

  • ABB UFC762AE101 3BHE006412R0101 motor control interface
    ❤ Add to collection
  • ABB UFC762AE101 3BHE006412R0101 motor control interface

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    ABB UFC762AE101 3BHE006412R0101 is a dedicated control interface unit developed by ABB specifically for medium and high voltage motor control systems. It belongs to the ABB motor control core component series and is widely compatible with ABB ACS8000 series high-voltage frequency converters, MVD series medium voltage soft starters, and various customized motor drive systems. As the "signal center" between the motor drive unit and the upper control system, this interface undertakes key tasks such as control instruction parsing, motor status feedback, safety signal isolation, and fault information transmission. It can achieve bidirectional precise communication between the upper computer and the motor drive equipment, while ensuring the stability and safety of the motor start stop, speed regulation and other control processes through multiple safety designs. It is the core component for achieving instruction interaction and status monitoring in medium and high voltage motor control systems.

    • ¥8484.00
      ¥8949.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:1.740KG
    • Quantity:
    • (Inventory: 99999)
Description

ABB UFC762AE101 3BHE006412R0101 is a dedicated control interface unit developed by ABB specifically for medium and high voltage motor control systems. It belongs to the ABB motor control core component series and is widely compatible with ABB ACS8000 series high-voltage frequency converters, MVD series medium voltage soft starters, and various customized motor drive systems. As the "signal center" between the motor drive unit and the upper control system, this interface undertakes key tasks such as control instruction parsing, motor status feedback, safety signal isolation, and fault information transmission. It can achieve bidirectional precise communication between the upper computer and the motor drive equipment, while ensuring the stability and safety of the motor start stop, speed regulation and other control processes through multiple safety designs. It is the core component for achieving instruction interaction and status monitoring in medium and high voltage motor control systems.




ABB UFC762AE101 3BHE006412R0101 motor control interface

Interface Overview

ABB UFC762AE101 3BHE006412R0101 is a dedicated control interface unit developed by ABB specifically for medium and high voltage motor control systems. It belongs to the ABB motor control core component series and is widely compatible with ABB ACS8000 series high-voltage frequency converters, MVD series medium voltage soft starters, and various customized motor drive systems. As the "signal center" between the motor drive unit and the upper control system, this interface undertakes key tasks such as control instruction parsing, motor status feedback, safety signal isolation, and fault information transmission. It can achieve bidirectional precise communication between the upper computer and the motor drive equipment, while ensuring the stability and safety of the motor start stop, speed regulation and other control processes through multiple safety designs. It is the core component for achieving instruction interaction and status monitoring in medium and high voltage motor control systems.

Its design strictly follows the IEC 61800-5-1 motor control equipment standard, integrating ABB's advanced signal isolation technology and motor control logic. It has the characteristics of high anti-interference, wide adaptability, and high reliability, and can work stably in high-temperature, high dust, and strong electromagnetic interference industrial environments in metallurgy, power, chemical and other industries. It effectively solves the problems of signal compatibility, delay, and safety isolation in the motor control process, providing a solid interface guarantee for the efficient and safe operation of the motor.


Core technical parameters

Suitable motor type

Three phase asynchronous motor, synchronous motor

Suitable for medium and high voltage level (3kV-15kV) motors, with a power range of 500kW-10000kW

Control signal input

DC 24V switch quantity (8 channels), DC 4-20mA analog quantity (4 channels)

The switch quantity is used for inputting commands such as start stop and forward/reverse rotation; Analog quantities are used for continuous control of speed and torque settings

Status signal output

DC 24V switch quantity (8 channels), DC 4-20mA analog quantity (4 channels)

Switching output states such as operation, malfunction, and readiness; Analog output of actual parameters such as speed, current, torque, etc

communication interface

Standard configuration includes Profibus DP and RS485; Support Profinet extension

Support real-time communication with upper level systems such as PLC and HMI, with a maximum communication speed of 12Mbps

Isolation performance

Control side and motor drive side: AC 10kV/1min, insulation resistance ≥ 1000M Ω

Multiple isolation design, blocking high-voltage interference and dangerous signals, ensuring the safety of the control system

power supply voltage

DC 24V ± 10%, power consumption ≤ 20W

Adapt to industrial standard low-voltage power supply, with the ability to adapt to wide voltage, and operate stably during voltage fluctuations

response time

Switching value ≤ 1ms, analog value ≤ 5ms

Quickly respond to control instructions and status feedback to ensure real-time motor control

Working temperature range

-25℃~70℃

Wide temperature design, suitable for extreme industrial environments with high and low temperatures, without the need for additional temperature control equipment


Structural Design and Core Features

3.1 Safety isolation and modular structure

This interface adopts a three zone modular design of "control signal area+power signal area+communication area", with a physical isolation distance of ≥ 25mm between the control side and the motor drive side. The interior is protected by epoxy resin encapsulation and metal shielding, effectively improving insulation performance and electromagnetic interference resistance. The front of the interface is equipped with plug-in terminal blocks, arranged in zones according to signal types (power, control input, status output, communication), with clear identification and anti misoperation card buckles, greatly simplifying the wiring process and avoiding wiring errors.

The module is installed using DIN 35mm standard rails, with an overall size of 140mm × 80mm × 35mm. It can be compatible with other ABB motor control components for installation, saving control cabinet space; The panel integrates 16 LED status indicator lights, corresponding to input and output signals and communication status. On site personnel can quickly determine the interface operation status and fault type through the color (red/green/yellow) and flashing mode of the indicator lights, improving the efficiency of fault diagnosis.

3.2 Core technological advantages

-Multiple safety protection design: The control signal and motor drive signal adopt a dual design of photoelectric isolation and electromagnetic isolation, combined with reinforced insulation materials, to achieve insulation strength of AC 10kV and effectively block the transmission of dangerous signals from the high-voltage side to the low-voltage control system; At the same time, it is equipped with overcurrent protection, overvoltage protection, and surge suppression circuits. When the input voltage or current is abnormal, the signal channel is immediately cut off and an alarm is triggered to protect the interface and upper equipment from damage.

-High precision signal transmission capability: The analog signal circuit adopts a 16 bit AD/DA conversion chip and a high-precision signal conditioning circuit, combined with ABB's optimized linear compensation algorithm. The signal transmission error is ≤± 0.1%, ensuring the accurate transmission of key parameters such as speed setting and torque feedback; The switch signal adopts a Schmitt trigger circuit design, which can effectively filter out on-site jitter interference and ensure the reliable execution of commands such as start stop and forward/reverse rotation.

-Flexible adaptability and scalability: The analog signal range (4-20mA/0-10V), switch signal type (PNP/NPN), and communication protocol parameters can be configured through hardware dip switches. It is compatible with ABB ACS8000, MVD and other series of motor drive equipment, and supports seamless integration with third-party PLC systems such as Siemens and Schneider; Reserve expansion interfaces, which can be equipped with temperature monitoring, vibration monitoring and other functional modules according to needs, to enhance the comprehensiveness of motor status monitoring.

-Strong anti-interference and environmental adaptability: compliant with IEC 61000-4 series anti-interference standards, ESD protection level up to ± 15kV, EFT protection level up to ± 4kV, can effectively resist electromagnetic interference such as static electricity and pulse trains in industrial sites; Using industrial grade wide temperature element devices, the board undergoes multiple environmental stress tests such as high and low temperature cycling, vibration impact, and humid heat. The surface of the board is treated with a three proof coating, and it can operate stably in an environment of -25 ℃~70 ℃ and humidity ≤ 95%.

-Intelligent fault diagnosis function: Equipped with a built-in fault diagnosis chip, it can monitor the working status of the interface itself (such as power supply voltage, chip temperature) and the integrity of external signals in real time. When there are problems such as signal interruption, communication abnormalities, insulation degradation, etc., the status indicator light will flash and alarm immediately, and the fault code will be uploaded to the upper control system through the communication interface, making it easy for engineers to quickly locate the fault point and shorten downtime.


Typical application scenarios

Based on its high security, high-precision transmission, and strong adaptability, the UFC762AE101 3BHE006412R0101 motor control interface is widely used in various medium and high voltage motor control scenarios, becoming the core hub connecting the upper system and motor drive unit, mainly including:

1. High voltage motor control in the metallurgical industry: used for the control system of the main drive motor of the steel rolling mill and the blast furnace fan motor in the steel plant, connected to the PLC main controller and ACS8000 high-voltage frequency converter, transmitting speed given commands and motor operating current, torque and other status signals, achieving precise speed regulation and load balancing control in the steel rolling process, and ensuring stable quality of steel rolling products.

2. Auxiliary motor control in the power industry: Suitable for medium voltage motor control systems such as induced draft fans, supply fans, and feed pumps in thermal power plants, connected to DCS systems and MVD soft starters to achieve remote start stop control and operation status monitoring of motors. When the motor experiences overcurrent or overload faults, the fault signal is quickly fed back and the protection mechanism is triggered to ensure stable operation of the generator set.

3. Compressor motor control in the chemical industry: used in the motor control system of centrifugal compressors and reciprocating compressors in chemical plants, connected to PLC and high-voltage variable frequency drive unit, transmitting the speed given signal corresponding to the outlet pressure of the compressor, and providing feedback on key parameters such as motor vibration and bearing temperature, to achieve closed-loop pressure control and predictive maintenance of the compressor.

4. Control of rotary kiln motors in the building materials industry: adapted to the control system of the main drive motor of the rotary kiln in cement plants and the fan motor of the melting furnace in glass plants, connected to the upper monitoring system and motor drive equipment, accurately transmitted speed control commands, real-time feedback of motor operating power and speed, ensuring stable calcination temperature of the rotary kiln and improving the quality of building materials products.

5. Mining industry hoist motor control: used for the main motor control system of coal mine and metal mine hoists, connected to PLC safety control units and high-voltage frequency converters, transmitting hoist start stop and speed control commands, while feeding back motor current, speed, and brake status signals, cooperating with safety circuits to achieve smooth operation and emergency braking protection of the hoist, ensuring the safety of mining operations.
