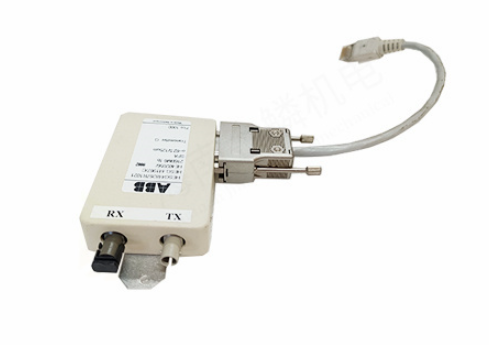

ABB 216BM61b HESG448267R1021 Advanced Process Control Module

ABB 216BM61b HESG448267R1021 Advanced Process Control  Module

Module Overview

ABB 216BM41b (order number: HESG448267R1021) is an advanced process control module designed specifically for the industrial automation field, belonging to the core component series of ABB industrial control systems. This module, with its high reliability, precise control performance, and flexible integration capability, is widely used in industries such as petrochemicals, power energy, metallurgy and building materials, and intelligent manufacturing that require strict process control accuracy and system stability. It provides core support for closed-loop control, data processing, and collaborative scheduling of complex industrial processes.

As a control unit optimized and upgraded by ABB for modern Industry 4.0 requirements, it not only continues the anti-interference advantage of ABB products in harsh industrial environments, but also integrates advanced control algorithms and efficient data exchange technology. It can seamlessly integrate with mainstream control systems such as ABB AC800M and S800I/O, achieve efficient collaboration with on-site sensors, actuators, and upper monitoring systems, and improve the automation level and production efficiency of industrial processes.

Core technical parameters

Basic Information

Model: 216BM41b; Order number: HESG448267R1021

ABB official unique identifier, used for ordering and after-sales traceability

power input

Usually 24V DC (± 10%)

Wide voltage range suitable for complex power supply environments in industrial sites

Operating Temperature

-20℃ ~ +60℃

Meet the needs of extreme industrial scenarios such as high and low temperatures

Storage temperature

-40℃ ~ +85℃

Adapt to long-distance transportation and harsh storage conditions

control channel

Multi channel analog input/output (AI/AO), digital input/output (DI/DO)

The specific number of channels should refer to the official manual, which supports simultaneous acquisition and control of multiple parameters

communication interface

Support mainstream industrial buses such as PROFINET, Modbus, EtherNet/IP, etc

Realize high-speed data exchange with control systems and other devices

Anti interference level

Meets the industrial anti-interference requirements of IEC 61000-6-2 standard

Resist on-site interference sources such as electromagnetic radiation and pulse interference

Core functions and advantages

1. High precision process control

The module is equipped with advanced PID (Proportional Integral Derivative) control algorithm and adaptive control logic, which can real-time collect and accurately adjust key parameters such as temperature, pressure, flow rate, and liquid level in industrial processes. Its control cycle can be as low as milliseconds, ensuring quick response when parameters fluctuate, stabilizing the controlled quantity within the set range, reducing product quality fluctuations in the production process, and improving production stability. For example, in temperature control of chemical reaction vessels, it can effectively suppress temperature deviations caused by changes in raw material composition and environmental temperature fluctuations, ensuring reaction efficiency and product purity.

2. Efficient data processing and interaction

Having strong local data processing capabilities, it can perform preprocessing such as filtering, calibration, and logical operations on multi-channel data collected on site, reducing the data processing pressure on the upper system. At the same time, by being compatible with multiple industrial communication protocols, the module can achieve seamless integration with upper monitoring systems (such as ABB OCS, WinCC, etc.), other control modules, and intelligent instruments, supporting bidirectional data transmission - it can upload real-time data from the site to the monitoring center and receive control instructions issued by the upper system, achieving an industrial control architecture of "centralized monitoring and decentralized control".

3. High reliability and redundant design

Adopting industrial grade reinforced hardware design, the shell has dustproof, moisture-proof, and anti vibration characteristics, and the internal circuit adopts isolation protection technology, effectively avoiding damage to the core components of the module due to on-site short circuits, overvoltage, and other faults. In some application scenarios, redundant configuration is supported. When the main module fails, the backup module can complete the switch in milliseconds, ensuring uninterrupted control process and greatly improving the system's fault tolerance. It is suitable for key industries such as petrochemicals and power that require uninterrupted production.

4. Flexible configuration and maintenance

Support parameter configuration, control logic programming, and fault diagnosis through ABB dedicated configuration software (such as Control Builder M). The graphical programming interface reduces the difficulty of development and debugging, making it easy for engineers to quickly adjust control strategies according to different production process requirements. The module has built-in self diagnostic function, which can monitor its hardware status in real time (such as power, communication, channel faults, etc.), and upload fault information through alarm signals to help operation and maintenance personnel quickly locate problems and shorten downtime for maintenance.

Typical application scenarios

-Petrochemical industry: used for temperature, pressure, flow, and liquid level control in refining units and chemical reaction units, achieving precise control of reaction processes and ensuring production safety and product quality.

-Power and energy industry: Adapt to power generation systems such as thermal power and hydropower, control boiler combustion parameters and turbine unit operating parameters in real time, and improve power generation efficiency and unit operation stability.

-Metallurgical building materials industry: applied to furnace temperature control in steel smelting and calcination process control in cement production, ensuring that production process parameters meet standards and reducing energy consumption and raw material loss.

-Intelligent manufacturing industry: As a production line control unit, it connects with robots, intelligent sensors and other equipment to achieve automated collaborative control of the production process, improve production pace and product qualification rate.

Installation and usage precautions

1. Module installation must comply with the electromagnetic compatibility requirements of industrial control systems, stay away from strong interference equipment such as high-power motors and frequency converters, and take shielding measures if necessary.

2. Before wiring, it is necessary to confirm that the power supply voltage matches the rated voltage of the module, and strictly distinguish the input/output channels according to the wiring manual to avoid module damage caused by reverse wiring.

Before configuring, it is necessary to clarify the control requirements of the production process, reasonably set PID parameters, alarm thresholds, etc., to avoid control failure caused by improper parameter settings.

4. During daily maintenance, it is necessary to regularly check the module's operating status, loose wiring, and heat dissipation environment to ensure that the module operates in good working conditions.

5. Maintenance of module faults should be carried out by ABB authorized technicians or professional engineers to avoid unauthorized disassembly and expansion of the fault.
