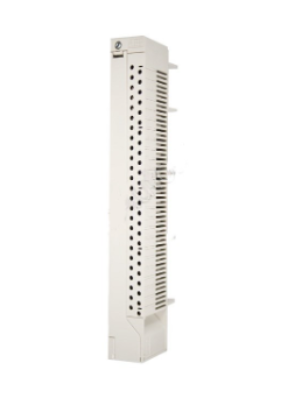

  • ABB AD02 multi-channel integrated I/O module
    ❤ Add to collection
  • ABB AD02 multi-channel integrated I/O module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    The core positioning of AD02 multi-channel integrated I/O module is "high-precision acquisition and efficient output unit for industrial field signals". Its design revolves around the three core requirements of "multi-channel integration, high reliability, and strong adaptability".

    • ¥33622.00
      ¥36666.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:7.740KG
    • Quantity:
    • (Inventory: 99999)
Description

The core positioning of AD02 multi-channel integrated I/O module is "high-precision acquisition and efficient output unit for industrial field signals". Its design revolves around the three core requirements of "multi-channel integration, high reliability, and strong adaptability".




ABB AD02 multi-channel integrated I/O module

Core positioning and technical characteristics

The core positioning of AD02 multi-channel integrated I/O module is "high-precision acquisition and efficient output unit for industrial field signals". Its design revolves around the three core requirements of "multi-channel integration, high reliability, and strong adaptability". Compared with traditional discrete I/O modules, it has the following outstanding technical characteristics:

1. High density channel integration: Adopting a compact packaging design, it integrates up to 16 channels of analog input (AI), 8 channels of analog output (AO), or 16 channels of digital input (DI)/16 channels of digital output (DO) within the standard module size (specific channel configuration is subdivided by model), with channel density increased by more than 30% compared to traditional modules, effectively saving installation space in control cabinets.

2. High precision signal processing: The analog channel adopts a 16 bit high-resolution AD/DA conversion chip, with an acquisition accuracy of ± 0.05% FS and an output accuracy of ± 0.1% FS. It supports multiple signal types such as 4-20mA, 0-10V, RTD (thermistor), TC (thermocouple), etc., which can meet the precise acquisition and control requirements of key process parameters such as temperature, pressure, and flow rate.

3. Comprehensive isolation protection: Adopting a dual design of mutual isolation between channels and overall isolation of modules, the isolation voltage of analog channels reaches 2500Vrms, and the isolation voltage of digital channels reaches 1500Vrms. It also has overcurrent, overvoltage, and reverse connection protection functions, effectively resisting common mode interference, series mode interference, and power supply fluctuations in industrial sites, ensuring signal transmission and module safety.

4. Flexible configuration and compatibility: Supports flexible configuration of channel signal types, sampling rates, alarm thresholds, and other parameters through ABB Control Builder or dedicated configuration software. Compatible with mainstream industrial buses such as PROFIBUS DP and EtherNet/IP, it can seamlessly integrate with ABB and third-party control systems, and adapt to different automation scene requirements.

5. Industrial grade stable operation: The working temperature range covers -40 ℃~+70 ℃, with IP20 protection level, able to withstand dust, vibration (in accordance with IEC 60068-2-6 standard) and wide range power input (DC 24V ± 20%) in industrial sites, with an average time between failures (MTBF) of over 200000 hours.


Core functions and application value

The AD02 multi-channel integrated I/O module serves as the "signal processing front-end" of industrial control systems, covering the entire process from on-site signal acquisition, conditioning, conversion to control instruction output. The specific core functions and application value are as follows:

1. Accurate acquisition of multiple types of signals

The module has rich signal acquisition capabilities and can adapt to most sensor signals in industrial sites. For 4-20mA current signals (such as pressure transmitters and liquid level sensors), distortion free acquisition is achieved through built-in high-precision sampling resistors and filtering circuits; For RTD (such as PT100, Cu50) and TC (such as K-type, J-type thermocouples) signals, a dedicated signal conditioning circuit is integrated to support cold junction compensation and wire breakage detection, ensuring temperature measurement accuracy; For digital signals such as limit switches and photoelectric sensors, it supports dry contacts, PNP/NPN and other types, with signal stabilization and level conversion functions. In the chemical reaction kettle control system, reaction temperature (TC signal), kettle pressure (4-20mA), and stirring motor operation status (DI signal) can be collected simultaneously, providing comprehensive data support for process control.

2. Reliable control command output

The analog output channel can accurately output 4-20mA or 0-10V standard signals, which are used to control actuators such as regulating valves, frequency converters, and proportional valves. The output signal has high stability, with a temperature drift of less than 50ppm/℃, ensuring precise action of the actuators; The digital output channel supports relay or transistor output, which can directly drive devices such as contactors and indicator lights. The relay output capacity can reach 2A/250VAC, meeting the control needs of small and medium-sized loads. In power substations, modules can control transformer tap changers through AO channels and circuit breaker opening and closing control through DO channels to ensure stable grid voltage.

3. Signal conditioning and anti-interference processing

Built in multi-level signal conditioning circuit amplifies, filters, and linearizes the collected raw signals: high-frequency noise interference is filtered out through a low-pass filtering circuit, non-linear sensor errors are corrected through linearization algorithms, and interference signal propagation paths are blocked through isolation technology. In the high-temperature workshop of the metallurgical plant, strong electromagnetic interference generated by the electric arc furnace can be effectively filtered out, ensuring stable collection of steel temperature signals and providing reliable basis for smelting process control.

4. Real time status monitoring and fault diagnosis

The integrated self diagnosis and fault monitoring function can monitor the module power status, channel signal status, and bus communication status in real time. When faults such as signal over range, disconnection, short circuit, and power abnormality occur, the fault information (including fault channel address and fault type) is immediately uploaded to the upper system through the bus. At the same time, local alarms are triggered through the module's own LED indicator lights (such as channel fault lights, power lights, and communication lights). In intelligent manufacturing production lines, faulty sensors or actuators can be quickly located, reducing troubleshooting time and improving production line utilization.

5. Hot plugging and convenient maintenance

Supports hot swapping function, allowing for module installation and replacement without shutting down the system. Combined with modular wiring terminals, it greatly simplifies on-site wiring and maintenance processes. In the continuous production process of petrochemicals, faulty modules can be replaced without interrupting production to avoid economic losses caused by unplanned shutdowns.


Structural composition and key interfaces

The AD02 multi-channel integrated I/O module adopts a standardized industrial design, with a compact structure and easy installation and maintenance. It mainly consists of a signal acquisition unit, a signal output unit, a core processing unit, a bus communication unit, a power supply unit, and a status indication unit. The functions of each part are coordinated and complementary:

component

core component

Key interfaces/features

function and role

Signal acquisition unit

16 bit AD conversion chip, signal conditioning circuit, isolation chip

Up to 16 AI channels, supporting 4-20mA/0-10V/RTD/TC

Realize precise acquisition and isolation conversion of on-site sensor signals

Signal output unit

16 bit DA conversion chip, power drive circuit, relay/transistor

Up to 8 AO channels (4-20mA/0-10V) and 16 DO channels

Output control instructions to drive the action of the executing mechanism

Core processing unit

32-bit embedded microprocessor, program memory

Supports multi-channel parallel processing, with a sampling rate of up to 100Hz per channel

Coordinate signal processing, parameter calculation, fault diagnosis, and instruction distribution

Bus communication unit

Bus controller, isolation chip

1 PROFIBUS DP/EtherNet/IP interface, communication speed up to 12Mbps

Realize data interaction with the controller and upper system

Power supply unit

Wide range power adapter, overcurrent protection circuit

Input: DC 24V ± 20%, with reverse polarity protection

Provide stable and safe power supply for each unit of the module

Status indicator unit

LED indicator light group

PWR (power supply), RUN (running), ERR (fault), CHx (channel status)

Intuitive feedback module and operational status of each channel for easy troubleshooting


Typical application scenarios

The AD02 multi-channel integrated I/O module, with its advantages of high-density channels, high-precision acquisition, and strong anti-interference ability, is widely used in various industrial automation scenarios, especially for complex control requirements that require centralized processing of multiple types of signals. Typical applications include:

1. Petrochemical process control

In the catalytic cracking unit of a refinery and the control system of a chemical plant reaction kettle, as the core signal acquisition unit, multiple channels are used to simultaneously collect parameters such as raw material feed flow rate, reaction temperature, kettle pressure, and product composition. After calculation by the controller, the module outputs channels to control the opening of the feed valve, heating power, stirring speed, etc., achieving closed-loop control of the chemical process. Its high isolation performance can effectively resist corrosive gases and strong electromagnetic interference in chemical workshops, ensuring stable system operation.

2. Power energy monitoring system

In the boiler control system of thermal power plants and the wind turbine monitoring system of wind power plants, it is used to collect multidimensional parameters such as boiler steam drum water level, steam pressure, fan speed, generator voltage/current, etc. It controls the feedwater regulating valve and induced draft fan baffle through the AO channel, and controls the fan start stop, fault tripping, etc. through the DO channel. Its wide temperature design can adapt to the high temperature and high humidity operating environment of power plants, ensuring real-time and accurate monitoring data.

3. Intelligent manufacturing production line

In automated production lines such as automotive parts processing and electronic component assembly, as the signal interface unit of equipment, it collects machine tool spindle temperature, mechanical arm position, workpiece detection signals, etc., and is linked with PLC and robot controller through bus to output control instructions to achieve machine tool processing parameter adjustment, mechanical arm action coordination, conveyor line start stop and other functions. Its hot swappable feature facilitates quick maintenance of the production line and improves production efficiency.

4. Production control of metallurgical building materials

In the control system of continuous casting machines in steel plants and the monitoring system of rotary kilns in cement plants, it is used to collect parameters such as molten steel temperature, slab thickness, kiln body temperature, and material flow rate. The cooling water volume and kiln body speed of the crystallizer are controlled through the AO channel, and equipment such as conveyor belts and feeders are controlled through the DO channel. Its strong anti vibration and anti-interference ability can adapt to the harsh operating environment of metallurgical building materials workshops, ensuring stable production processes.

5. Control of municipal public works

In the urban water supply system and sewage treatment plant control system, parameters such as water tank level, pipe network pressure, sewage pH value, dissolved oxygen content, etc. are collected, and the start and stop of water pumps, dosing pump flow rate, valve opening, etc. are controlled through output channels to achieve stable water supply pressure and standard discharge of sewage treatment. Its industrial grade stability can ensure 24-hour continuous operation of municipal engineering and meet the needs of people's livelihood.


Key points for installation, debugging, usage, and maintenance

To fully leverage the performance advantages of the AD02 multi-channel integrated I/O module and ensure long-term stable operation of the control system, it is necessary to strictly follow the following installation, debugging, and maintenance specifications:

1. Installation specifications

-The module needs to be installed on standard DIN rails and is recommended to be installed in a 19 inch control cabinet. The installation position should be away from high-temperature heat sources (such as heaters and power modules) and strong electromagnetic radiation sources (such as frequency converters and high-power motors), ensuring good ventilation inside the control cabinet. The ambient temperature should be controlled at -40 ℃~+70 ℃, and the humidity should be 5%~95% without condensation.

-When wiring, it is necessary to strictly distinguish between power terminals, AI/AO channel terminals, and DI/DO channel terminals. Power lines should be separately wired and equipped with 1A fuses. Analog signals should use shielded twisted pair cables (shielded layer single end grounding, grounding resistance less than 4 Ω), digital signals should use ordinary twisted pair cables, and bus lines should use dedicated industrial bus cables to avoid parallel laying with strong current lines (spacing not less than 50cm).

-The module installation should be firm to avoid loose wiring caused by equipment vibration; When multiple modules are installed side by side, the spacing between modules should not be less than 5mm to ensure good heat dissipation; After the wiring is completed, it is necessary to check whether the connections of each terminal are reliable to avoid false connections that may cause signal abnormalities.

2. Key debugging points

-Before debugging, it is necessary to configure the bus address, communication rate, channel signal type, sampling rate and other parameters of the module through ABB Control Builder or specialized configuration software to ensure consistency with the communication protocol and parameters of the controller.

-When powering on for debugging, first connect the module power supply, observe whether the PWR light is always on (normal), then connect the controller power supply, check the status of the RUN light (always on) and communication light (flashing), and confirm that the communication between the module and the controller is normal; Subsequently, each channel is calibrated by inputting analog signals through a standard signal generator to verify the accuracy of AI channel acquisition. The controller issues instructions to detect the accuracy of AO/DO channel output.

-During the system integration stage, simulate various working conditions on site, test the real-time signal acquisition and output of the module, and manually simulate faults such as channel disconnection and short circuit to verify whether the module fault diagnosis function is normal (ERR light is on and the upper system displays detailed fault information).

3. Daily maintenance

-During daily inspections, focus on observing the status of module indicator lights, checking the temperature and humidity inside the control cabinet, cleaning the surface dust of the module (using a dry soft cloth), ensuring good heat dissipation and no abnormal heating phenomenon.

-Regularly check the module operation logs through the upper system every month, analyze the fluctuation of channel signals, focus on abnormal records such as signal over range and communication interruption, and promptly investigate potential problems.

-Conduct a comprehensive inspection of the module every quarter, including the tightness of the wiring terminals, the aging of the cables, the reliability of the shielding layer grounding, re tighten loose terminals, and replace aging cables.

-Conduct channel accuracy calibration and software firmware upgrade once a year, test and correct the accuracy of each AI/AO channel through standard calibration equipment, obtain the latest firmware version from ABB official channels and complete the upgrade to improve module performance and compatibility.

4. Common fault handling

-The power light (PWR) is not on: check if the power input is normal, if the fuse is blown, and if the power terminal wiring is loose or reversed; If the power supply is normal, it may be a module power unit failure, and ABB after-sales maintenance needs to be contacted.

-Communication light not on/constantly on: Check whether the bus cable connection is reliable, whether the module bus address and communication rate configuration are consistent with the controller, whether the bus terminal resistance is connected (only the bus end module needs to be connected), and investigate whether there is a fault in the bus controller or other modules.

-Channel fault light (CHx) on: If the corresponding channel experiences signal over range, disconnection or short circuit faults, check whether the sensor/actuator of the channel is normal, whether the wiring is loose, and whether there is interference in the signal circuit; If the device is functioning properly, recalibrate the module channel.

-Decreased acquisition/output accuracy: Check for strong interference in the signal circuit and recalibrate the channel. If the problem persists, it may be a fault in the AD/DA conversion chip and the module needs to be replaced.
