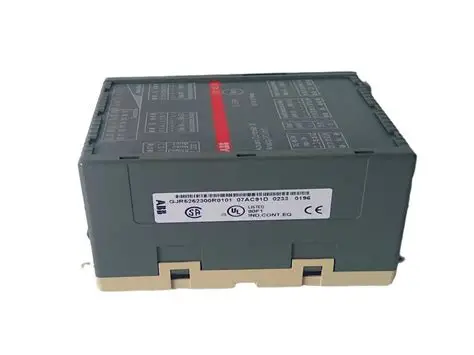

ABB GJR5252300R3101 07AC91H Analog Input/Output Module

ABB GJR5252300R3101 07AC91H Analog Input/Output Module

Product core positioning

This module is a configurable analog input/output unit launched by ABB for the industrial automation field. The model number GJR5252300R3101 is the internal material code, and 07AC91H is the series identifier. It is a key component of the AC 31 series module. Its core function is to achieve bidirectional interaction between on-site analog signals (such as temperature and pressure) and control systems. It can convert sensor signals into digital signals for PLC/upper computer processing, and also output analog commands to drive actuators (such as valves and frequency converters).

Key technical parameters

1. Signal and channel configuration

Total number of channels: 16 configurable channels, supporting input/output function switching

Mode configuration:

12 bit mode: 8 inputs+8 outputs, each can be independently set to ± 10V, 0~10V voltage, or 0~20mA current signal

8-bit mode: 16 channel paired configuration, only supports 0~10V/0~20mA signal types

Accuracy and Response: Resolution 8/12 bit optional, measurement accuracy ± 0.1%, response time ≤ 1ms

2. System and electrical characteristics

Communication interface: Supports CS31 system bus (remote module role), some versions integrate RS485 interface compatible with Modbus protocol

Power supply and protection: 24VDC power supply, power consumption only 2W; protection level IP20, suitable for industrial environments

Environmental adaptability: Operating temperature range -40 ° C to 70 ° C, able to withstand harsh industrial temperature and humidity conditions

3. Physical and installation parameters

Size: approximately 100mm x 70mm x 35mm, weight 0.81kg

Installation method: DIN rail or screw fixation, compatible with standard industrial control cabinet layout

Core functions and features

Dual mode flexible switching: Select 8-bit/12 bit mode through DIL switch, balancing channel quantity and accuracy requirements. For example, the 12 bit mode is suitable for high-precision temperature control of chemical reaction vessels, while the 8-bit mode can meet the simple pressure monitoring of multiple points on the assembly line.

Diagnostic and testing functions: Equipped with LED status indicator lights and testing buttons, it can quickly locate channel faults, bus communication abnormalities, and other issues, reducing maintenance time.

System compatibility: Seamless integration with ABB Advant series control systems, capable of measuring 4-20mA signals with PLCs such as 907 PC 331 through ANAI4_20 interconnect components.

Typical application scenarios

1. Core application areas

Process industry

Chemical/petroleum storage tank level monitoring and reaction pressure regulation

Collecting sensor signals and controlling the opening of regulating valves

Energy Management

Photovoltaic inverter current monitoring, substation voltage regulation

Analog data acquisition and reactive power compensation control

Manufacturing industry

Production line temperature closed-loop control, equipment vibration monitoring

Signal conversion and actuator drive

Environmental monitoring

Collection of pH value and analysis of flue gas concentration in sewage treatment plants

Continuous signal acquisition and linkage with environmental protection equipment

2. Example of System Integration

In the CS31 bus distributed control system, this module can be deployed as a remote I/O station near field devices, communicating with the central controller through the bus to reduce analog signal transmission losses, especially suitable for distributed monitoring needs in large factories.
