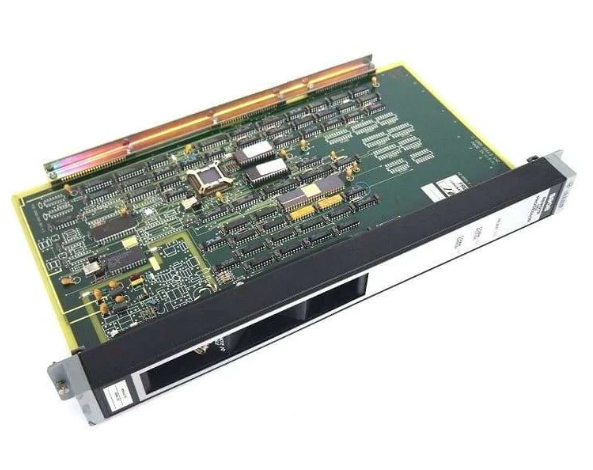

  • GE IS215UCVGM06A IS215UCVGH1A VMIVMME-7666-11000 Serial Communication Module
    ❤ Add to collection
  • GE IS215UCVGM06A IS215UCVGH1A VMIVMME-7666-11000 Serial Communication Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    IS215UCVGM06A is a high-performance serial communication module designed by GE specifically for industrial control systems. It belongs to the Mark VIe control system series and is mainly used to achieve bidirectional data exchange between control systems and external serial devices (such as sensors, actuators, human-machine interfaces, etc.). It has strong anti-interference ability and stable communication rate, and is suitable for harsh industrial environments.

    • ¥15387.00
      ¥17375.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:1.470KG
    • Quantity:
    • (Inventory: 99999)
Description

IS215UCVGM06A is a high-performance serial communication module designed by GE specifically for industrial control systems. It belongs to the Mark VIe control system series and is mainly used to achieve bidirectional data exchange between control systems and external serial devices (such as sensors, actuators, human-machine interfaces, etc.). It has strong anti-interference ability and stable communication rate, and is suitable for harsh industrial environments.




GE IS215UCVGM06A IS215UCVGH1A VMIVMME-7666-11000 Serial Communication Module

IS215UCVGM06A Serial Communication Module

1.1 Module Overview

IS215UCVGM06A is a high-performance serial communication module designed by GE specifically for industrial control systems. It belongs to the Mark VIe control system series and is mainly used to achieve bidirectional data exchange between control systems and external serial devices (such as sensors, actuators, human-machine interfaces, etc.). It has strong anti-interference ability and stable communication rate, and is suitable for harsh industrial environments.

1.2 Core Parameters

-Communication interface: Supports dual interface mode of RS-232/RS-485, which can be switched according to on-site requirements. The RS-485 interface supports multi node communication (up to 32 slave devices can be connected).

-Communication speed: adjustable from 1200bps to 115200bps, supports adaptive baud rate function, and can be flexibly configured according to data transmission needs.

-Power supply voltage: DC 24V, voltage fluctuation range ± 10%, with overvoltage and overcurrent protection functions.

-Working temperature: -40 ℃ -70 ℃, suitable for high and low temperature industrial site environments.

-Bus protocol: Supports Modbus RTU and ASCII protocols, compatible with mainstream industrial communication standards, and easy to interface with third-party devices.

1.3 Functional Features

This module adopts an isolated design, with a signal isolation voltage of up to 2500Vrms, effectively suppressing electromagnetic interference (EMI) and radio frequency interference (RFI) in industrial sites, ensuring the accuracy of data transmission; Equipped with fault self diagnosis function, it can monitor the status of communication links in real time. When problems such as disconnection or parity check errors occur, it can promptly provide feedback through indicator lights or system alarms; The module supports hot swapping function, which can be replaced without interrupting system operation, improving equipment maintenance efficiency.

1.4 Applicable Scenarios

Mark VIe control systems are widely used in industries such as power, petrochemicals, metallurgy, etc. They are used to connect field instruments, valve controllers, and other equipment to achieve data collection and control command issuance during production processes, such as monitoring auxiliary equipment for generator sets and parameter transmission for chemical reaction vessels.


IS215UCVGH1A Serial Communication Module

2.1 Module Overview

IS215UCVGH1A is also a dedicated serial communication module for GE Mark VIe control systems, belonging to the same product series as IS215UCVGM06A. However, there are differences in interface configuration and functional focus, with a greater emphasis on high reliability multi device serial communication management. It is an important node for serial data exchange in industrial control systems.

2.2 Core Parameters

-Communication interface: equipped with 2 independent RS-485 interfaces, each of which can independently configure communication parameters and support multi link parallel communication to improve data transmission efficiency.

-Communication speed: adjustable from 300bps to 115200bps, supporting custom baud rate settings to meet the communication speed requirements of different devices.

-Power supply voltage: 24V DC, with anti reverse protection function to avoid module damage caused by wiring errors.

-Working environment: Working temperature -40 ℃ -70 ℃, relative humidity 5% -95% (no condensation), suitable for humid and dusty industrial scenes.

-Protocol support: Compatible with Modbus RTU, DF1 protocol, and can achieve seamless communication with devices from brands such as Rockwell.

-Data Cache: Built in 16KB data cache area, which can temporarily store large amounts of sudden data to avoid data loss.

2.3 Functional Features

The module adopts a dual port isolation design, and each RS-485 interface has independent signal isolation and surge protection functions. The surge protection level reaches the IEC 61000-4-5 standard (± 2kV), which can effectively resist instantaneous overvoltage impact in industrial sites; Support online configuration of communication parameters, allowing users to modify parameters such as baud rate, parity, and data bits through control system software without the need for power outage, improving debugging convenience; Equipped with link redundancy function, when the main communication link fails, it can automatically switch to the backup link (subject to system configuration) to ensure communication continuity.

2.4 Applicable Scenarios

Suitable for industrial scenarios that require high reliability of communication links, such as monitoring multiple sets of production equipment in large chemical industrial parks and cluster communication of production line equipment in metallurgical enterprises. It can simultaneously connect multiple on-site devices to achieve centralized data collection and control, ensuring the coordinated operation of the production process.


VMIVME-7666-111000 Serial Communication Module

3.1 Module Overview

VMIVME-7666-111000 is a serial communication module designed by GE based on the VME bus standard. It is mainly used in industrial control systems with VME bus architecture to achieve communication connection between the system and external serial devices. It has the characteristics of rich interfaces and strong expansion capabilities, and is a key component of VME system serial communication.

3.2 Core Parameters

-Communication interface: Provides 4 universal serial interfaces, each configurable for RS-232, RS-422, RS-485 modes, with high interface flexibility and adaptability to different types of external devices.

-Communication speed: Supports up to 921600bps to meet high-speed data transmission requirements, such as image data transmission for industrial cameras and real-time signal feedback for high-speed sensors.

-Bus type: Complies with the VMEbus Rev. C. standard, with a bus data width of 32 bits and a bus speed of up to 40MB/s, ensuring high-speed data exchange between the module and the system host.

-Power supply voltage: compatible with VME bus power supply (+5V,+12V, -12V), no additional independent power supply required, simplifying system wiring.

-Protocol support: Supports custom communication protocols and is compatible with mainstream industrial protocols such as Modbus and Profibus. Protocol configuration can be done through software.

3.3 Functional Features

The module is equipped with a high-performance microprocessor that has independent data processing capabilities, which can reduce the communication burden on the system host and improve the overall system efficiency; Adopting modular design, supporting interface expansion modules (requiring separate configuration), the number of communication interfaces can be increased according to on-site requirements; Equipped with comprehensive hardware diagnostic functions, it can monitor parameters such as interface level and bus status, and the diagnostic results are fed back to the system host through the VME bus; Supports hot swapping operations, complies with the VME bus hot swapping standard, and facilitates device maintenance and upgrades.

3.4 Applicable Scenarios

Mainly used in industrial control systems based on VME bus, such as aerospace testing equipment, ship control systems, high-end medical equipment, etc., it is used to connect various serial devices, achieve functions such as test data acquisition, equipment status monitoring, control instruction transmission, etc., especially suitable for scenarios with high requirements for interface flexibility and data transmission rate.


Core Differences and Selection Suggestions of Three Modules

4.1 Comparison of Core Differences

comparative dimension

IS215UCVGM06A

IS215UCVGH1A

VMIVME-7666-111000

affiliated system

GE Mark VIe Control System

GE Mark VIe Control System

VME bus architecture system

communication interface

1-channel RS-232/RS-485 switching

2-channel independent RS-485

4-channel configurable serial interface

Maximum communication speed

115200bps

115200bps

921600bps

Core strengths

Single interface flexible switching, strong anti-interference

Dual link redundancy, parallel communication among multiple devices

Rich interfaces, high speed, and strong scalability

4.2 Selection Suggestions

In the Mark VIe control system, if only a small number of serial devices need to be connected on site and the interface type needs to be flexibly switched, IS215UCVGM06A is preferred; If multiple devices need to be connected simultaneously and there is a high requirement for communication link reliability (such as redundancy backup), IS215UCVGH1A is more suitable; For systems based on VME bus or scenarios that require multiple interfaces and high-speed serial communication, VMIVME-7666-111000 is the optimal choice. In addition, when selecting, it is necessary to comprehensively consider factors such as the communication protocol, power supply mode, and working environment of the on-site equipment to ensure compatibility between the module, system, and external devices.
