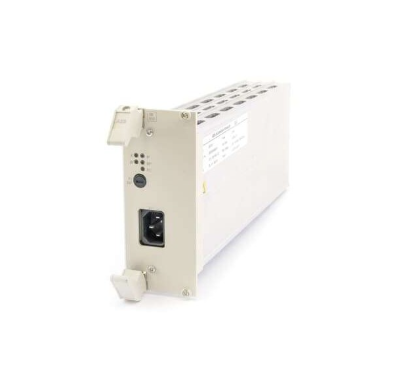

  • ABB SB510 3BSE000861R1 Backup Power Supply 110/230V AC
    ❤ Add to collection
  • ABB SB510 3BSE000861R1 Backup Power Supply 110/230V AC

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    ABB SB510 (order number 3BSE000861R1) is a 110/230V AC input backup power module designed specifically for industrial automation control systems. Its core positioning is to serve as the "emergency energy guarantee unit" of the control system, automatically switching to backup power supply mode when the main power supply network is interrupted or abnormal. It provides continuous and stable DC power supply for core equipment such as DCS controllers, I/O modules, and communication modules, avoiding system shutdown, data loss, and production accidents caused by power interruption. It is a key peripheral equipment to ensure the continuity and safety of industrial production.

    • ¥8474.00
      ¥7346.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:2.570KG
    • Quantity:
    • (Inventory: 99999)
Description

ABB SB510 (order number 3BSE000861R1) is a 110/230V AC input backup power module designed specifically for industrial automation control systems. Its core positioning is to serve as the "emergency energy guarantee unit" of the control system, automatically switching to backup power supply mode when the main power supply network is interrupted or abnormal. It provides continuous and stable DC power supply for core equipment such as DCS controllers, I/O modules, and communication modules, avoiding system shutdown, data loss, and production accidents caused by power interruption. It is a key peripheral equipment to ensure the continuity and safety of industrial production.


ABB SB510 3BSE000861R1 Backup Power Supply 110/230V AC

Module Overview

ABB SB510 (order number 3BSE000861R1) is a 110/230V AC input backup power module designed specifically for industrial automation control systems. Its core positioning is to serve as the "emergency energy guarantee unit" of the control system, automatically switching to backup power supply mode when the main power supply network is interrupted or abnormal. It provides continuous and stable DC power supply for core equipment such as DCS controllers, I/O modules, and communication modules, avoiding system shutdown, data loss, and production accidents caused by power interruption. It is a key peripheral equipment to ensure the continuity and safety of industrial production.

This module is widely compatible with ABB AC 800M, S900 and other series DCS systems, with features such as wide voltage input, fast switching, and intelligent monitoring. It can flexibly configure input voltage according to the on-site main power supply specifications and is suitable for industrial scenarios such as power, chemical, metallurgical, oil and gas that require strict power supply reliability. It builds a "dual power supply guarantee" system for control systems.


Core functions and technological advantages

2.1 Core Functions

-Wide range AC input adaptation: Supports two input specifications of 110V AC or 230V AC, which can be switched through module hardware dialing or software configuration. The input voltage allows for ± 15% fluctuation and can adapt to voltage differences and fluctuation scenarios in industrial power grids in different regions, without the need for additional voltage conversion equipment.

-Intelligent switching between main and backup power supply: Real time monitoring of the status of the main power supply network. When the main power supply experiences abnormal situations such as power outage, overvoltage, undervoltage, etc., the module can automatically switch to the backup power supply circuit (powered by built-in batteries or external backup power supply) within ≤ 5ms, with no voltage fluctuations during the switching process, ensuring the continuous operation of the load equipment.

-Battery management and maintenance: equipped with built-in battery charge and discharge management function, automatically float charge the battery when the main power supply is normal, avoiding overcharging or undercharging; When the battery capacity is insufficient, aging, or malfunctioning, an alarm signal is immediately triggered and uploaded to the control system. At the same time, online battery replacement is supported without interrupting the backup power function.

-Comprehensive state monitoring and diagnosis: built-in high-precision voltage and current sensors and temperature monitoring units, real-time collection of input voltage, output voltage, charging current, battery status and other parameters; Supports multiple protections such as overcurrent, overheating, short circuit, and battery reverse connection. When a fault occurs, quickly cut off the faulty circuit and upload diagnostic information.

-Stable DC output: The output standard 24V DC power supply has an output accuracy of ± 0.5% FS and a ripple voltage of ≤ 100mV. It can directly provide power to various modules of the DCS system that meet the requirements, ensuring the stability of module signal processing and communication.

2.2 Technical advantages

-High reliability switching design: Using a static switch (SSR) instead of traditional mechanical contact switching, there is no mechanical wear and tear, and the switching life is over 100000 times. At the same time, it avoids the delay and arc problems of mechanical switching, ensuring the reliability and safety of the switching process.

-Industrial grade environmental adaptability: Adopting a fully sealed metal shell and a wide temperature design, it can work stably in an environment of -10 ℃~+55 ℃, with good dust, moisture and electromagnetic interference resistance capabilities, in compliance with the IEC 61000-6-2 industrial anti-interference standard, and can adapt to harsh industrial site environments.

-Flexible expansion and compatibility: supports single module independent operation or multi module parallel redundant operation, and can achieve load sharing when parallel, improving overall power supply capacity and reliability; Perfectly compatible with ABB's various series of DCS modules, while supporting integration with third-party devices that meet 24V DC power supply requirements.

-Convenient operation and management: The module is equipped with clear status indicator lights (power, operation, fault, battery status), which can intuitively judge the operation status of the equipment; Connect with the control system through PROFIBUS or MODBUS communication interface to achieve remote monitoring and parameter configuration, reducing operation and maintenance costs.


Key technical parameters

Enter specifications

110V AC / 230V AC,50/60Hz, ± 15% fluctuation

Wide voltage and wide frequency input, suitable for different power grid environments

Output specifications

24V DC, Rated output current 10A, maximum output current 15A (short-term)

Meet the power supply needs of multiple modules simultaneously, with strong short-term overload capability

output accuracy

±0.5%FS(25℃),±1%FS(-10℃~+55℃)

Stable output across the entire temperature range, ensuring the accuracy of load equipment operation

switch time

≤5ms

Unconscious switching to avoid the impact of power interruption on the load

Battery configuration

Supports 12V/7Ah~12V/20Ah lead-acid or lithium batteries, with built-in charging management

Flexible selection of battery capacity based on backup time requirements

charging current

0.5A~2A, Adaptive adjustment

Match batteries of different capacities to achieve efficient and safe charging

Operating Temperature

-10℃~+55℃

Adapt to high and low temperature industrial site environments

Storage temperature

-20℃~+70℃

Meet the requirements of transportation and inventory environment

communication interface

PROFIBUS DP/MODBUS RTU, RS485 isolation interface

Support remote communication with control systems to achieve centralized monitoring

module size

180mm (width) x 150mm (height) x 200mm (depth)

Compact design, saving installation space for control cabinets

protection function

Overcurrent, overvoltage, undervoltage, overheating, short circuit, battery reverse connection protection

Multiple protection mechanisms to ensure module and load security


Applicable scenarios

The SB510 module, with its characteristics of fast switching, stable output, and high reliability, is mainly used in critical scenarios where the main power supply interruption of industrial control systems will lead to serious consequences. Typical applications include:

1. Power industry: Power supply guarantee for DCS control system of thermal power plant units and auxiliary system of nuclear power plants. When the plant power supply is interrupted, the module immediately switches to backup power supply to ensure the continuous operation of key circuits such as boiler water level control and turbine regulation, avoiding unit tripping or equipment damage.

2. Chemical industry: When the main power supply is interrupted, the emergency shutdown system (ESD), regulating valve, and toxic gas detection equipment of the reaction kettle control unit and toxic and harmful medium conveying system of large-scale chemical plants are guaranteed to continue working, preventing reaction loss of control or toxic medium leakage.

3. Oil and gas industry: The control system of oil and gas drilling platforms and the SCADA system of long-distance pipelines provide power supply. In the event of unstable or sudden power outages in the field power grid, they provide backup power for controllers, communication modules, and emergency shut-off valves to ensure drilling safety or the continuity of pipeline transportation.

4. Metallurgical industry: Power supply for control systems of key production equipment such as converters and continuous casting machines in steel plants. When the main power supply is interrupted, ensure stable control of core parameters such as temperature control and crystallizer vibration to avoid equipment scrap and production interruption caused by steel solidification.

5. Data Center and Municipal Dispatch: Industrial data center servers and municipal emergency dispatch systems are powered. In the event of a main power failure, the continuity of data storage and transmission is ensured to avoid data loss, while ensuring the normal issuance of emergency dispatch instructions.


Key points for installation and maintenance

5.1 Installation specifications

-The module should be installed in a control cabinet with a protection level of IP20 or above to prevent the intrusion of dust, water vapor, and corrosive gases; The control cabinet needs to reserve sufficient ventilation space, with a spacing of ≥ 15mm around the modules to ensure good heat dissipation and prevent module performance degradation caused by high temperatures.

-Before installation, it is necessary to set the input voltage (110V AC or 230V AC) through the dip switch on the side of the module according to the specifications of the main power supply voltage on site, to avoid voltage mismatch and module burnout.

-The input and output wiring must be strictly distinguished: the main power input line uses copper core cables (cross-sectional area ≥ 2.5mm ²) and is equipped with air switches (rated current 16A); The output line adopts multi stranded copper core wire (cross-sectional area ≥ 4mm ²) to avoid high current causing heating of the circuit; Attention should be paid to the positive and negative polarity of battery wiring, and reverse connection is strictly prohibited.

-The communication line adopts shielded twisted pair cables, with the shielding layer grounded at one end (grounding resistance ≤ 4 Ω), and is separated from the strong current cable for wiring (spacing ≥ 30cm) to avoid electromagnetic interference affecting communication stability; When multiple modules are connected in parallel, they need to be connected through dedicated synchronous cables to ensure load sharing.

-The module installation needs to be firmly fixed to avoid loose wiring caused by vibration; The installation location should be far away from strong electromagnetic interference sources such as frequency converters and high-power motors to reduce the impact of interference on module switching performance.

5.2 Maintenance Suggestions

-Daily status check: Observe the module status indicator light daily. During normal operation, the "power light" and "running light" are always on, and the "battery light" is always on when the battery is normal; If the "fault light" is on, the fault type (such as overvoltage, battery failure, etc.) needs to be checked immediately through the control system.

-Battery maintenance: Check the appearance of the battery every month (without bulges or leaks), and measure the battery terminal voltage (normal float charge voltage 13.5V~13.8V); Conduct a 'discharge test' once every quarter, disconnect the main power supply and let the battery power for 30 minutes to check if the battery capacity meets the requirements. Replace the aging battery once a year.

-Electrical parameter calibration: Use a high-precision multimeter every six months to calibrate the output voltage of the module, ensuring that the output accuracy is within ± 0.5% range; Check if the switching time is ≤ 5ms, and monitor the voltage waveform at the moment of switching between the main and backup power sources through an oscilloscope.

-Fault handling process: When the module alarms, first disconnect the main power supply and check if the input voltage is normal; If it is a battery failure, replace the battery and reset the module; If it is an output overcurrent, check whether the load is short circuited, eliminate the fault, and then close it again; If there is an internal malfunction in the module, it is necessary to contact professional personnel for repair and self disassembly is prohibited.

-Environment and cleanliness: Clean the dust on the surface of the module and inside the control cabinet every month, and keep the ventilation openings unobstructed; Check the operation of the cooling fan during the high temperature season (if equipped), and install moisture-proof devices in humid environments to prevent the internal circuits of the module from being corroded by moisture.
