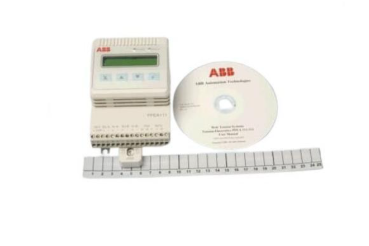

ABB PFEA111 series optical discs



ABB PFEA111 series optical discs

Core content composition of the CD

The content of this series of CDs has been systematically arranged, covering the entire process requirements from basic knowledge to deep operation and maintenance, mainly including the following modules:

1. Product technical documentation

-Product Manual: As the core material, it provides a detailed explanation of the technical parameters of the PFEA111 series instruments (such as input and output signal types, measurement range, accuracy level, working temperature and humidity range, power supply requirements, etc.), product structure (panel button functions, interface definitions, installation dimension diagrams), working principle (tension/pressure signal acquisition and conversion mechanism, control logic), and basic operating specifications. It is a quick guide to familiarize oneself with the product.

-Installation Guide: It includes the full process instructions for hardware installation, such as installation environment requirements (avoiding dust, strong electromagnetic interference, vibration, etc.), installation methods (specific operating steps for wall mounted/rail mounted), wiring diagrams (power wiring, signal input/output wiring, communication line wiring, and polarity instructions), as well as clear safety regulations during the installation process (such as power-off operation, grounding requirements, etc.), to reduce the risk of installation errors.

-Commissioning Manual: focuses on the debugging work before the equipment is put into use, covering the preparation work before debugging (tool list, equipment status check), parameter configuration steps (setting measurement units, alarm thresholds, control modes, etc. through panel buttons or communication software), calibration methods (specific operating procedures and verification standards for zero calibration and range calibration), as well as common problems and solutions during the debugging process.

-Maintenance&Troubleshooting Manual: Provides a daily maintenance plan for equipment (such as regular cleaning, wiring inspection, parameter backup cycle), a list of vulnerable parts and replacement methods, as well as common fault codes (such as signal abnormalities, communication interruptions, alarm false triggering, etc.). It provides possible cause analysis and step-by-step troubleshooting solutions for each fault code to help quickly restore normal equipment operation.

2. Supporting software and drivers

The CD contains PFEA111 series instrument specific upper computer management software (such as ABB Control Builder or dedicated debugging software), which supports remote parameter setting, real-time data monitoring, historical data storage and export, fault information recording and query through RS485, Ethernet and other communication methods with the instrument. Simultaneously provide software installation packages, installation tutorials, and corresponding computer drivers to ensure stable compatibility between software and hardware.

3. Cases and reference materials

-Application Case Collection: Contains practical application cases of PFEA111 series instruments in different industries (such as tension control scenarios in papermaking, metallurgy, textile, printing, or pressure monitoring scenarios in chemical and pharmaceutical industries), detailing the system configuration, parameter setting points, on-site debugging experience, and operational effects in the cases, providing reference for similar scenarios.

-Compliance documents: including international and industry standard certification documents (such as CE certification, UL certification, etc.) that the product complies with, electromagnetic compatibility (EMC) test reports, to meet the review requirements of equipment compliance in industrial sites.

-Frequently Asked Questions (FAQ): Summarize the high-frequency problems encountered by users during use (such as parameter loss, unstable communication, measurement accuracy deviation, etc.), and provide concise and efficient solutions in the form of Q&A for quick reference.

The usage scenarios and value of CDs

1. Core usage scenarios

This CD mainly serves engineering and technical personnel in the field of industrial automation. Its core usage scenarios include: the initial installation and debugging stage of equipment (refer to the installation and debugging guide), the daily operation and maintenance inspection stage (develop a plan based on the maintenance manual), the fault emergency handling stage (troubleshoot problems through the fault diagnosis manual), the new employee training stage (teach based on the product manual), and the development stage of new application scenarios (refer to the case study design plan).

2. Core values

-Standardization guidance: Unify equipment operation and maintenance standards, avoid equipment damage or safety accidents caused by improper operation, and improve equipment operation stability.

-Efficiency improvement: Through clear troubleshooting processes and parameter configuration guidelines, equipment debugging cycles and fault repair time are shortened, reducing production downtime losses.

-Knowledge accumulation: Integrate ABB's official technical experience and industry application cases to provide support for building a product operation knowledge base for enterprises.

Precautions for use

1. Version matching: The PFEA111 series may contain different sub models (such as PFEA111-65, PFEA111-70, etc.). Before use, it is necessary to confirm that the disc content matches the specific model of the device to avoid operational errors caused by parameter differences. This can be checked through the "Model Correspondence Table" in the root directory of the disc.

2. Software compatibility: When installing upper computer software, it is necessary to ensure that the computer operating system version (such as Windows 10/11, 32-bit/64 bit) is consistent with the software requirements. Before installation, turn off antivirus software to prevent drivers or software files from being mistakenly intercepted.

3. Data backup: It is recommended to copy the entire content of the CD to the computer hard drive or enterprise intranet server for backup, in order to avoid physical damage to the CD causing data loss; Regularly follow ABB's official website to check for updated information or software versions.

4. Safety regulations: All operations must strictly follow the safety requirements in the manual, especially when it comes to equipment wiring, live commissioning, and other aspects. They must be operated by qualified electricians or engineers to ensure personal and equipment safety.
