  • ABB PP825A 3BSE042240R3 Touch Screen Panel
    ❤ Add to collection
  • ABB PP825A 3BSE042240R3 Touch Screen Panel

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    The ABB PP825A 3BSE042240R3 touch screen panel is the core human-machine interaction (HMI) device in ABB industrial automation control systems, designed and developed specifically for the operational monitoring needs of industrial sites. This product is centered around high-resolution touch display and integrates multiple functions such as data acquisition, command input, status feedback, and alarm prompts. As a key interaction bridge between operators and automation systems, it is widely used in various industrial scenarios such as power, metallurgy, chemical, and manufacturing industries, providing users with intuitive, efficient, and reliable equipment control and production process monitoring methods.

    • ¥6446.00
      ¥6463.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:1.640KG
    • Quantity:
    • (Inventory: 99999)
Description

The ABB PP825A 3BSE042240R3 touch screen panel is the core human-machine interaction (HMI) device in ABB industrial automation control systems, designed and developed specifically for the operational monitoring needs of industrial sites. This product is centered around high-resolution touch display and integrates multiple functions such as data acquisition, command input, status feedback, and alarm prompts. As a key interaction bridge between operators and automation systems, it is widely used in various industrial scenarios such as power, metallurgy, chemical, and manufacturing industries, providing users with intuitive, efficient, and reliable equipment control and production process monitoring methods.

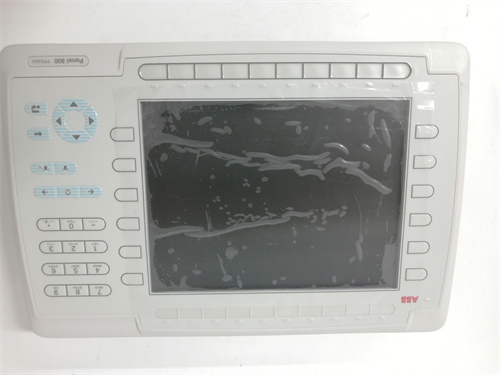

ABB PP825A 3BSE042240R3 Touch Screen Panel

Product Overview

The ABB PP825A 3BSE042240R3 touch screen panel is the core human-machine interaction (HMI) device in ABB industrial automation control systems, designed and developed specifically for the operational monitoring needs of industrial sites. This product is centered around high-resolution touch display and integrates multiple functions such as data acquisition, command input, status feedback, and alarm prompts. As a key interaction bridge between operators and automation systems, it is widely used in various industrial scenarios such as power, metallurgy, chemical, and manufacturing industries, providing users with intuitive, efficient, and reliable equipment control and production process monitoring methods.

Relying on ABB's technological advantages in the field of industrial control, the PP825A touch screen panel has excellent environmental adaptability and stable operating performance, and can continuously work in complex industrial electromagnetic environments and a wide temperature and humidity range. It is compatible with multiple ABB PLCs and control systems, supports custom interface development, and can flexibly configure operation processes and monitoring screens according to the production process requirements of different industries, greatly improving the operational convenience and management efficiency of industrial automation systems.


Core functions and advantages

2.1 Core Functions

-High definition touch interaction: equipped with a large-sized high-resolution touch screen, high touch accuracy, fast response speed, and support for multi touch (some models). Operators can complete parameter settings, command issuance, screen switching and other actions through intuitive operations such as clicking, sliding, zooming, etc., replacing traditional mechanical operation components such as buttons and knobs, simplifying the operation process.

-Real time data monitoring: With powerful data acquisition and display functions, it can receive and display operating parameters from PLC, sensors, actuators and other devices in real time, such as temperature, pressure, flow rate, speed, voltage, current, etc., presented in various visual forms such as numbers, curves, bar charts, instrument panels, etc., making it easy for operators to quickly grasp the system's operating status.

-Parameter setting and instruction issuance: Support operators to directly input or modify system operating parameters (such as set values, thresholds, control logic parameters, etc.) on the touch interface, and accurately issue instructions to the control system to achieve real-time control of the production process. At the same time, it has parameter saving and historical recording functions for easy traceability and analysis.

-Alarm and event management: When the system detects abnormal working conditions (such as parameter exceeding limits, equipment failure, communication interruption, etc.), it can immediately trigger the alarm function, notify operators through interface pop ups, sound and light prompts (requiring external equipment), color flashing, etc., and record detailed information such as alarm time, type, and reason. It supports alarm history query and statistical analysis, helping to quickly troubleshoot.

-Multi system compatibility and communication: Equipped with rich communication interfaces and protocols such as Ethernet, RS485, PROFINET, Modbus, etc., it can seamlessly integrate with ABB AC500, AC800M and other series PLCs, as well as third-party brand control systems, intelligent instruments and other equipment, achieving bidirectional data transmission and sharing, and adapting to complex industrial control networks.

-Custom interface development: Equipped with professional HMI development software (such as ABB Control Builder Plus, Panel Builder), it supports users to customize and develop operation interfaces according to production process requirements, including screen layout, control selection, animation effects, logical associations, etc., to meet the personalized application needs of different industries.

2.2 Product advantages

-Industrial grade reliability: Using industrial grade LCD display screens and touch modules, it has undergone strict environmental testing (high and low temperature, humidity, vibration, impact, electromagnetic compatibility, etc.), and can adapt to harsh industrial site environments. The average time between failures (MTBF) is long, ensuring the continuous and stable operation of the production process.

-Convenient and intuitive operation: Compared with traditional button operation and instrument display, the touch screen adopts a graphical interactive interface, simplifying complex system information into intuitive icons, screens, and data charts, reducing the learning cost and operational difficulty of operators, and improving work efficiency.

-Data Security and Traceability: Equipped with user permission management function, different levels of operation permissions can be set according to job requirements to prevent accidental or illegal operations; Simultaneously, it automatically records operation logs, parameter modification records, alarm records, etc., providing powerful data support for production process traceability, quality control, and fault analysis.

-Easy to integrate and maintain: adopting standardized installation dimensions and interface design, it is easy to integrate into various industrial control cabinets; Supporting online upgrades and remote maintenance, operators can complete software updates, fault diagnosis, and other tasks through the network, reducing equipment operation and maintenance costs.

-Long term durability: The touch screen surface is made of scratch resistant and wear-resistant tempered glass material, which has the characteristics of waterproof, dustproof, and oil proof (some models comply with IP65 protection level), and can withstand daily wear and environmental erosion in industrial sites, extending the service life of equipment.


Key technical parameters

parameter category

Specific parameters

Instructions

Model identification

PP825A 3BSE042240R3

ABB official model, 3BSE042240R3 is the product batch and configuration identification

Display screen parameters

Size: 10.4 inches; Resolution: 1024 × 768 pixels; Display color: 24 bit true color; Backlight type: LED; Backlight lifespan: ≥ 50000 hours

High definition display, full colors, long backlight life, reducing post replacement costs

Touch performance

Touch type: resistive/capacitive (optional); Touch accuracy: ± 1mm; response time: ≤ 5ms; touch frequency: ≥ 10 million times

Precise and sensitive touch control, strong durability, suitable for frequent operation needs in industrial sites

Processor and Memory

Processor: Industrial grade ARM Cortex-A series; Memory: RAM ≥ 512MB; Storage: Flash ≥ 4GB

Powerful computing power ensures multitasking parallel processing and smooth operation of complex interfaces

communication interface

Ethernet interface: 2 (10/100Mbps); RS485 interface: 2; USB interface: 2 (USB 2.0); Optional PROFINET interface

Rich interfaces to meet the communication needs of multiple devices and adapt to different industrial control networks

Supported Protocols

Modbus RTU/TCP, PROFINET, EtherNet/IP, ABB AC500 proprietary protocols, etc

Widely compatible with ABB and third-party control systems, achieving seamless data transmission

working power supply

DC: 24V ± 15%; Power consumption: ≤ 25W

Wide voltage adaptation to meet the power fluctuation requirements of industrial sites, with low power consumption

Environmental adaptation range

Working temperature: -10 ℃~+55 ℃; Relative humidity: 10%~90% (no condensation); Storage temperature: -20 ℃~+70 ℃; Protection level: IP65 (front panel)

Suitable for harsh industrial environments such as high temperature and humidity, the front panel is waterproof and dustproof

Installation method

Embedded panel installation

Meets the standardized installation requirements of industrial control cabinets, saves space, and is securely installed


Applicable scenarios

The PP825A touch screen panel is widely used in various industrial automation control systems due to its flexible adaptability and stable performance. Typical application scenarios include:

1. Process control system: In the process control of industries such as chemical, petroleum, and pharmaceutical, it is used to monitor the temperature, pressure, and liquid level of the reaction kettle, adjust parameters such as material flow rate and valve opening, achieve precise control and real-time monitoring of the production process, and ensure the stability of the production process.

2. Power system monitoring: Used in substations, power stations, and distribution systems to display parameters such as grid voltage, current, power, and frequency, monitor the operating status of equipment such as transformers and circuit breakers, achieve remote operation and fault alarm, and improve the efficiency of power system operation and maintenance.

3. Intelligent manufacturing and production line control: In automotive manufacturing, electronic processing, food packaging and other production lines, as the production line control terminal, it monitors the operating status of each process equipment (such as motor speed, conveyor belt speed, equipment load, etc.), issues production instructions, statistics production data, and realizes automated management of the production line.

4. Metallurgy and building materials industry: In the production equipment of industries such as steel, non-ferrous metals, and cement, it is used to monitor key parameters such as furnace temperature, material ratio, and equipment operating load, adjust production processes, ensure stable product quality, and achieve rapid response to equipment failures.

5. Water treatment system: In waterworks and sewage treatment plants, monitor water quality indicators (such as pH value, turbidity, dissolved oxygen, etc.), control the operation of water pumps, valves, aeration equipment, etc., achieve automated control and data recording of the water treatment process, and ensure that the effluent water quality meets the standards.

6. Logistics and warehousing equipment: In intelligent warehousing and logistics conveying systems, it is used to monitor the operating status of conveyor belts, stackers, AGVs and other equipment, issue scheduling instructions, display logistics information, and improve the operational efficiency and management accuracy of logistics systems.


Installation and usage precautions

5.1 Installation precautions

-Before installation, it is necessary to confirm that the product model matches the system requirements, check that the product appearance is not damaged, the interface is not bent or deformed, and the accessories (such as installation brackets, screws, communication cables) are complete.

-Strictly follow the size requirements in the installation manual to open installation holes, ensuring that the touch screen panel is firmly attached after embedding, and avoiding gaps that may cause dust and moisture to enter the interior of the control cabinet.

-The installation location should avoid direct sunlight or strong light exposure to prevent screen reflection from affecting visual effects; At the same time, stay away from high-power motors, frequency converters and other strong electromagnetic interference equipment, and take shielding measures if necessary.

-When wiring, it is necessary to connect the power supply, communication lines, etc. according to the interface definition specifications to ensure that the positive and negative poles are correct, and the shielding layer of the communication line is reliably grounded to avoid equipment damage or communication failures caused by wiring errors.

-After installation, check the sealing performance between the panel and the control cabinet to ensure that the IP protection level of the front panel is effectively guaranteed, especially in humid and dusty industrial environments.

5.2 Precautions for use

-Before the first power on, it is necessary to confirm that the power supply voltage is within the rated range (24V ± 15%) to avoid damage to the power module caused by overvoltage or undervoltage; After powering on, observe whether the startup screen is normal and proceed with subsequent operations only if there are no abnormal prompts.

-When operating the touch screen, fingers or specialized touch pens should be used to avoid using sharp objects (such as pen tips or screwdrivers) to click on the screen, in order to prevent scratching the touch panel and affecting touch performance.

-Regularly clean the surface of the touch screen. Before cleaning, turn off the power and gently wipe it with a soft dry cloth or specialized screen cleaner to prevent moisture from entering the device; If the panel is contaminated with oil and dust, it should be cleaned in a timely manner to prevent affecting touch sensitivity.

-Establish a comprehensive user permission management system, allocate operational permissions based on job responsibilities, prohibit unauthorized personnel from modifying key parameters or performing important operations, and prevent production accidents caused by misoperation.

-Regularly backup the internal configuration files, interface programs, historical data, etc. of the touch screen to avoid data loss due to device failures; At the same time, pay attention to software updates released by ABB in a timely manner, and upgrade the system if necessary to improve equipment performance and safety.

-If there are any abnormal situations such as screen flickering, unresponsive touch control, or communication interruption during operation, the abnormal phenomenon should be recorded first before attempting to restart the device; If the malfunction cannot be resolved, it is necessary to contact professional technicians for troubleshooting to avoid disassembling the equipment on your own.


Common faults and troubleshooting methods

Common Faults

Possible reasons

troubleshooting method

The device cannot be turned on

1. The power supply is not connected or the power line is faulty; 2. The power module is damaged; 3. Internal motherboard malfunction

1. Check if the power wiring is secure and use a multimeter to check if the power voltage is normal; 2. Replace the backup power supply for testing and eliminate power line problems; 3. If the power supply is normal but still cannot be turned on, contact after-sales service to check the motherboard and power module

Touch screen has no response to touch

1. The surface of the touch panel has oil stains, dust, or accumulated water; 2. Touch module malfunction; 3. System program exception

1. Clean the surface of the touch screen after power failure to ensure that there are no stains or obstructions; 2. Restart the device and observe if the touch is restored; 3. Download or upgrade the system program again. If there is still no response, check if the touch module is damaged

Communication interruption, unable to connect with PLC

1. Loose, broken or incorrectly wired communication cables; 2. Inconsistent communication protocol configuration; 3. Communication interface is damaged; 4. Communication failure at the PLC end

1. Check the communication cable connection, re plug and confirm that the wiring meets the protocol requirements; 2. Verify the communication protocol, IP address, port number, and other configuration parameters between the touch screen and PLC; 3. Replace the backup communication cable or interface for testing; 4. Check if the communication module and program on the PLC end are working properly

Abnormal screen display (splash screen, black screen, flashing)

1. Unstable power supply voltage; 2. The screen backlight module is damaged; 3. Graphics card or motherboard malfunction; 4. Strong electromagnetic interference

1. Check the power supply voltage to ensure stability within the rated range; 2. Check if the screen backlight is on. If there is no backlight, replace the backlight module; 3. Stay away from strong interfering devices and take shielding measures; 4. When restarting the device is ineffective, contact after-sales service to check the motherboard and graphics card

Historical data or configuration files are missing

1. Storage module failure; 2. Illegal power outage leading to abnormal data writing; 3. Abnormal deletion of viruses or programs

1. Restore backup data and check if the data storage is normal; 2. Avoid power outages during data writing and equip with UPS power supply to ensure stable power supply; 3. Regularly check and kill viruses, standardize operational permissions, and prevent illegal deletion
