  • ABB AI815 3BSE052604R1 I-O Module
    ❤ Add to collection
  • ABB AI815 3BSE052604R1 I-O Module

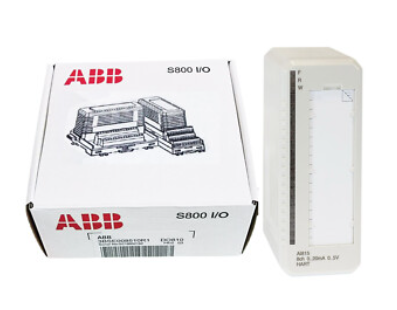

    ABB AI815 (order number: 3BSE052604R1) is a high-precision analog input/O module for industrial automation control systems, belonging to the ABB AC 800M control system family of distributed I/O product series. Its core positioning is to serve as a "data acquisition hub" between on-site analog signals and controllers, specifically used to collect analog signals (such as temperature, pressure, flow rate, liquid level, etc.) output by various sensors in industrial sites. After signal conditioning, isolation, and digital conversion, it is transmitted to the main controller for processing. It is a key basic component for achieving precise monitoring and closed-loop control of production processes in industries such as metallurgy, chemical engineering, power, and pharmaceuticals.

    • ¥22745.00
      ¥24366.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:12.520KG
    • Quantity:
    • (Inventory: 99999)
Description

ABB AI815 (order number: 3BSE052604R1) is a high-precision analog input/O module for industrial automation control systems, belonging to the ABB AC 800M control system family of distributed I/O product series. Its core positioning is to serve as a "data acquisition hub" between on-site analog signals and controllers, specifically used to collect analog signals (such as temperature, pressure, flow rate, liquid level, etc.) output by various sensors in industrial sites. After signal conditioning, isolation, and digital conversion, it is transmitted to the main controller for processing. It is a key basic component for achieving precise monitoring and closed-loop control of production processes in industries such as metallurgy, chemical engineering, power, and pharmaceuticals.




ABB AI815 3BSE052604R1 I-O Module

Product Overview

ABB AI815 (order number: 3BSE052604R1) is a high-precision analog input/O module for industrial automation control systems, belonging to the ABB AC 800M control system family of distributed I/O product series. Its core positioning is to serve as a "data acquisition hub" between on-site analog signals and controllers, specifically used to collect analog signals (such as temperature, pressure, flow rate, liquid level, etc.) output by various sensors in industrial sites. After signal conditioning, isolation, and digital conversion, it is transmitted to the main controller for processing. It is a key basic component for achieving precise monitoring and closed-loop control of production processes in industries such as metallurgy, chemical engineering, power, and pharmaceuticals.

This module combines ABB's technological advantages in signal processing and industrial anti-interference, with high acquisition accuracy, strong signal compatibility, excellent isolation performance, and outstanding stability. In response to the complex electromagnetic environment and multi type signal requirements of industrial sites, the module adopts modular design and wide range adaptation technology, which can be seamlessly integrated into mainstream control systems such as ABB AC 800M and Symphony Plus. At the same time, it supports compatible docking with third-party controllers, greatly improving the scalability and reliability of the system's I/O layer and reducing the error risk in the signal acquisition process.


Core functions and roles

2.1 Accurate acquisition of multiple types of analog signals

The AI815 module has 8 independent analog input channels and supports multiple mainstream industrial analog signal types, including 4-20mA current signal, 0-10V voltage signal, thermocouple signal (such as K type, J type, T type, etc.), and thermal resistance signal (such as PT100, PT1000). The channel signal mode can be flexibly configured through software according to the type of sensor on site, without the need to replace hardware modules. The module has a sampling frequency of 100Hz and a sampling accuracy of ± 0.05%, which can accurately capture small changes in signals. For example, in temperature monitoring of chemical reaction vessels, real-time temperature data with an accuracy of ± 0.1 ℃ can be collected, providing reliable basis for reaction process control.

2.2 Fully isolated design and strong anti-interference capability

The module adopts a dual isolation design of "channel isolation+module level isolation", with a channel isolation voltage of 250V AC and a module to backplane bus isolation voltage of 500V AC, effectively avoiding interference between signals from different channels and the impact of external high voltage on the module. At the same time, the module is equipped with a built-in signal filtering circuit and electromagnetic shielding layer, which can resist electromagnetic radiation, pulse interference, and common mode interference in industrial sites. It complies with the IEC 61000-4 series electromagnetic compatibility standards, ensuring stable signal acquisition near strong interference equipment such as frequency converters and high-voltage motors, without signal distortion or drift problems.

2.3 Signal conditioning and intelligent preprocessing

The module is equipped with a high-performance signal conditioning unit, which performs exclusive optimization processing for different types of signals: low-temperature drift amplification for weak thermocouple signals, differential filtering for easily disturbed current signals, and a three wire acquisition method for thermal resistance signals to eliminate lead resistance errors. At the same time, the module has functions such as wire breakage detection, short circuit protection, and signal over limit alarm. When the sensor is disconnected or the signal exceeds the preset range, it can immediately send a fault signal to the controller, which facilitates timely troubleshooting by operation and maintenance personnel and avoids control errors caused by abnormal signals.

2.4 Hot swappable function and high availability

The module supports hot swappable function, which enables installation and replacement of modules without shutting down the system, avoiding production interruptions caused by traditional I/O module replacement and greatly improving the maintainability and continuous operation capability of the system. The module adopts a redundant power supply design and supports dual power input. When the main power supply fails, it can automatically switch to the backup power supply to ensure uninterrupted signal acquisition. In addition, the module has a self diagnostic function, which can monitor its hardware status in real time (such as power supply, AD converter), and upload the diagnostic results to the controller to achieve early warning and rapid positioning of faults.

2.5 Flexible System Integration and Communication

The module communicates with the main controller through ABB's dedicated PROFIBUS DP or EtherNet/IP bus, supporting seamless integration with the AC 800M controller, and can be uniformly configured and parameterized through the Control Builder M software. The module supports standard I/O mapping function, and the collected digital signals can be directly mapped to the process data area of the controller without complex protocol conversion, simplifying the system integration process. At the same time, the module supports device description files (GSD files), which can be quickly integrated into third-party control systems that support the PROFIBUS DP protocol.


Key technical parameters

Order Number

3BSE052604R1

Product Model

AI815

Product Type

High precision analog input/O module

Number of input channels

8 independent channels, configurable as single ended or differential inputs

Support signal types

4-20mA DC、0-10V DC、 Thermocouples (K/J/T/E/R/S/B/N), Thermistors (PT100/PT1000/Cu50)

sampling precision

± 0.05% (full scale)

sampling frequency

100Hz (single channel), total sampling rate 800Hz

Isolation performance

Between channels: 250V AC; Module and bus: 500V AC; Isolation resistance ≥ 100M Ω

communication interface

PROFIBUS DP V1 (default), supports EtherNet/IP (optional)

Working Voltage

DC 24V ± 20%, dual power redundant input

Working temperature range

-25℃ ~ +60℃

relative humidity

5%~95% (non condensing)

Protection level

IP20 (module body), compatible with the control cabinet, can reach IP54

Electromagnetic compatibility standards

IEC 61000-4-2 (ESD), IEC 61000-4-3 (Radiated Immunity), IEC 61000-4-4 (Electrical Fast Transient)

Installation method

DIN 35mm standard rail installation, supports hot swapping


Installation and configuration points

Installation precautions

-The module needs to be installed in a closed industrial control cabinet, away from high-voltage equipment, frequency converters, and strong electromagnetic radiation sources. The ambient temperature should be controlled at -25 ℃~+60 ℃, and the relative humidity should not exceed 95% (without condensation). The control cabinet should have good ventilation or forced heat dissipation conditions.

-Installed using DIN 35mm standard rails, the modules must be securely fixed, with a heat dissipation gap of ≥ 10mm reserved between modules to avoid heat accumulation caused by dense installation and affecting module performance.

-Before wiring the signal, it is necessary to confirm that the sensor type is consistent with the module channel configuration. For thermocouple signals, attention should be paid to the positive and negative connections. For thermocouple three wire wiring, it is necessary to ensure that the lead resistance is consistent (recommended to be ≤ 1 Ω) to avoid measurement errors.

-Shielded twisted pair cables should be used for analog signal lines, with one end of the shielding layer reliably grounded (grounding resistance ≤ 4 Ω). The distance between the signal line and the power cable should be ≥ 30cm, and vertical crossing should be used for cross laying to reduce electromagnetic interference.

-Wear an anti-static wristband during hot plugging operations to avoid static electricity damaging module electronic components; When plugging and unplugging modules, grasp the plug handles on both sides of the module to avoid touching the interface terminals.

configuration process

1. Hardware installation: Complete the module rail installation, power wiring, signal input wiring, and bus connection. After verifying that the wiring is correct, turn on the power. If the power light and running light are on, it indicates that the hardware is normal.

2. Software configuration: Create a new project in ABB Control Builder M software, add AI815 module hardware configuration, configure module bus address, communication protocol parameters, and power redundancy mode.

3. Channel configuration: For each channel, configure the signal mode (such as 4-20mA, K-type thermocouple, etc.), range, filtering time, and over limit alarm threshold according to the type of sensor connected.

4. Calibration and testing: Input known signals (such as 4mA and 20mA current signals) to the module through a standard signal source, view the collected data in the software, and verify the collection accuracy; If there is an error, perform zero and gain calibration through software.

5. Fault diagnosis configuration: Enable module self diagnosis function and configure fault alarm methods for channel disconnection, short circuit, and signal overload (such as sending fault codes to the controller and triggering output alarms).

6. System integration debugging: Start the control system, monitor the communication status and signal acquisition continuity between the monitoring module and the main controller, simulate sensor fault scenarios, and verify the reliability of the fault alarm function.
